Acura ILX 2020 Owner's Manual

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
560
Handling the Unexpected
1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Valve Stem
Valve Cap
Sealant/Air Hose
Valve Stem
Sealant/Air Hose
20 ACURA ILX-31TX66710.book 560 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued561
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
5. Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 65
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
20 ACURA ILX-31TX66710.book 561 ページ ２０２０年４月１６日　木曜日　午後８時４６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
562
Handling the Unexpected
7. Press the inflator switch to turn on the
compressor.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the air pressure reaches front: 35 psi
(240 kPa)/rear: 33 psi (230 kPa), turn off
the kit.
After the air pressure reaches front: 33 psi
(230 kPa)/rear: 32 psi (220 kPa), turn off
the kit.
u To check the pressure, occasionally turn
off the compressor, and read the
gauge.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
ON
OFF
Pressure Gauge
Models with P215/45R17 87V tires
Models with 225/40R18 92V tires
1Injecting Sealant and Air
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
complete.
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See an Acura dealer for a replacement sealant bottle
and proper disposal of an empty bottle.
Sealant/Air
Hose
Valve Stem
20 ACURA ILX-31TX66710.book 562 ページ ２０２０年４月１６日　木曜日　午後８時４６分

563
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

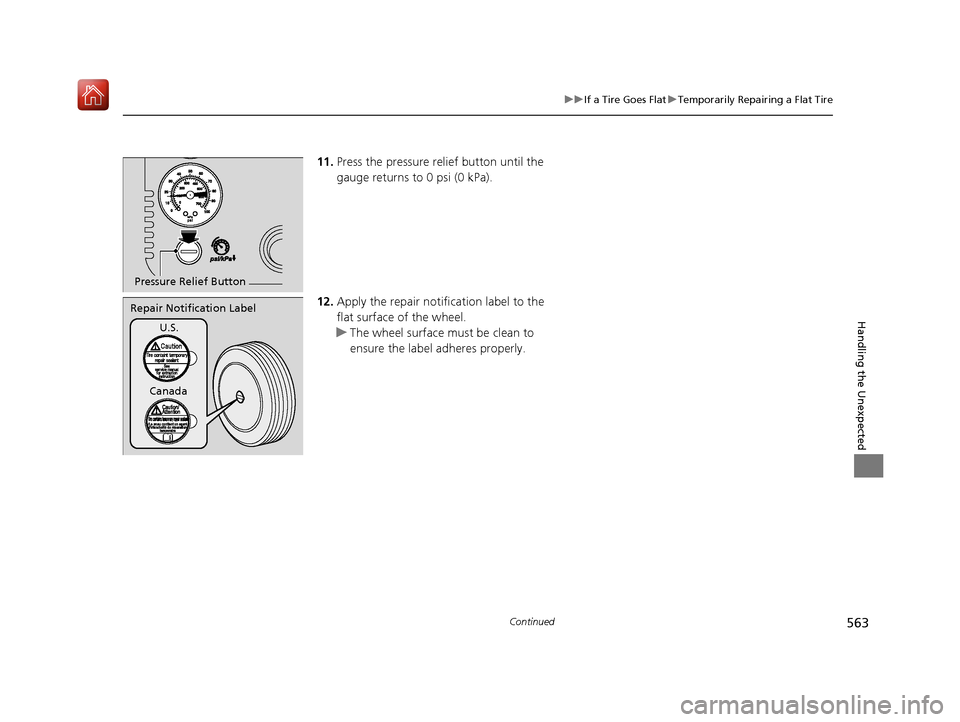

11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
Pressure Relief Button
Repair Notification Label
U.S.
Canada
20 ACURA ILX-31TX66710.book 563 ページ ２０２０年４月１６日　木曜日　午後８時４６分

564
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

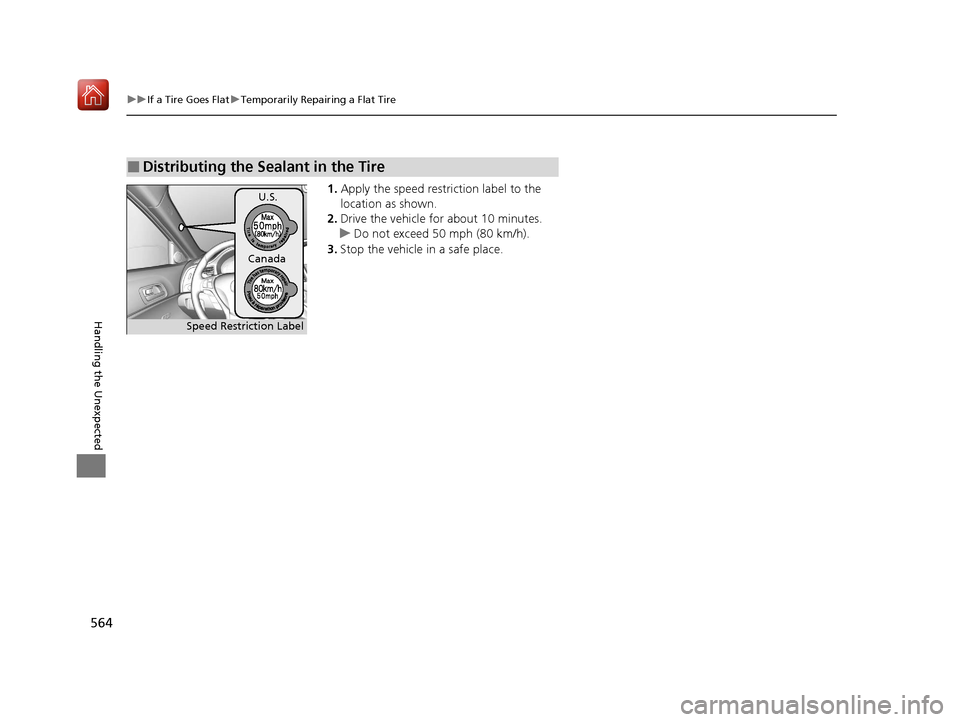

1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
■Distributing the Sealant in the Tire
Speed Restriction Label U.S.
Canada
20 ACURA ILX-31TX66710.book 564 ページ ２０２０年４月１６日　木曜日　午後８時４６分

565
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

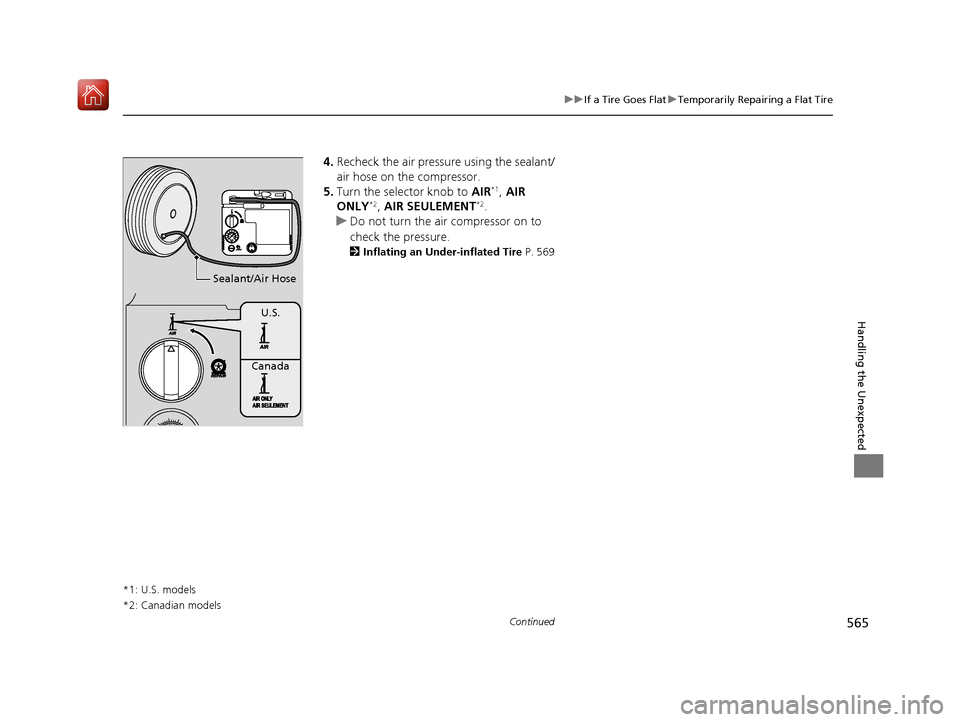

4. Recheck the air pressure using the sealant/
air hose on the compressor.
5. Turn the selector knob to AIR
*1, AIR
ONLY*2, AIR SEULEMENT*2.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 569
*1: U.S. models
*2: Canadian models
Sealant/Air Hose
U.S.
Canada
20 ACURA ILX-31TX66710.book 565 ページ ２０２０年４月１６日　木曜日　午後８時４６分

566
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 595
•Front: 35 psi (240 kPa)/rear: 33 psi (230
kPa) or more:
• Front: 33 psi (230 kPa)/rear: 32 psi (220
kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.
u If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.
Models with P215/45R17 87V tires
Models with 225/40R18 92V tires
20 ACURA ILX-31TX66710.book 566 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued567
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
35 psi (240 kPa)/rear: 33 psi (230 kPa).
• Greater than 25 psi (175 kPa), but less
than front: 33 psi (230 kPa)/rear: 32 psi
(220 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
33 psi (230 kPa)/rear: 32 psi (220 kPa).
2 Inflating an Under-inflated Tire P. 569
Then drive carefully for 10 more minutes
or until you reach the nearest service
station. Do not exceed 50 mph (80 km/h).
u You should repeat this procedure as
long as the air pressu re is within this
range.
Models with P215/45R17 87V tires
Models with 225/40R18 92V tires
1 Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
20 ACURA ILX-31TX66710.book 567 ページ ２０２０年４月１６日　木曜日　午後８時４６分

568
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
7. Unplug the kit from the accessory power
socket.
8. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button
20 ACURA ILX-31TX66710.book 568 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued569
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 558
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the air only hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Valve Stem
Sealant/Air Hose
