parking sensors Acura ILX 2020 Owner's Manual

498
uuParking Your Vehicle uCross Traffic Monitor*
Driving

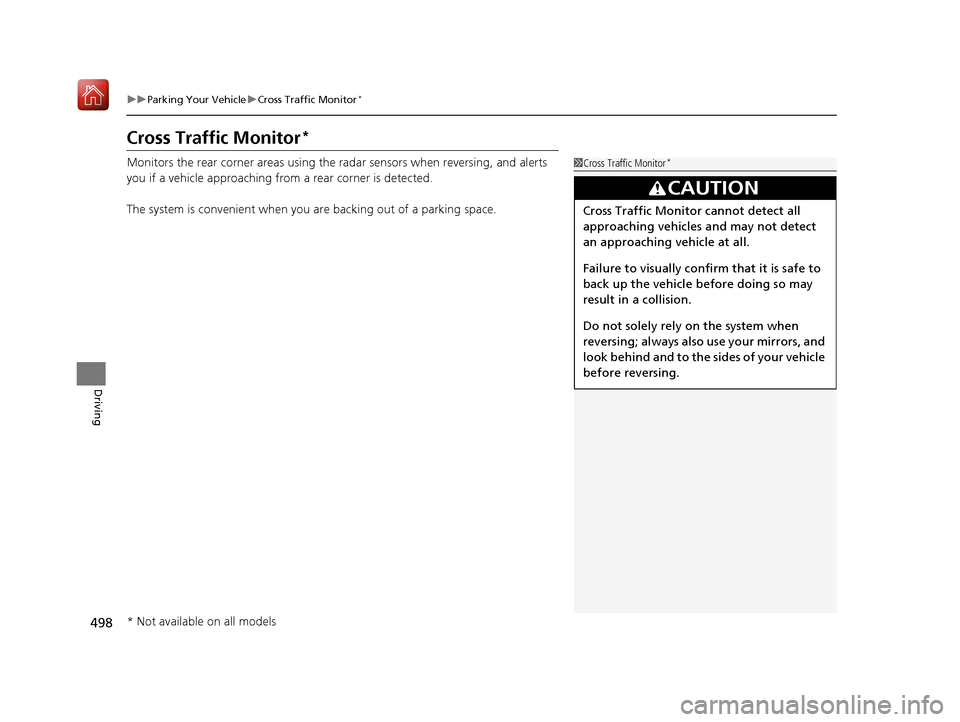

Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
20 ACURA ILX-31TX66710.book 498 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued499
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 500
2 Customized Features P. 310
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.
■How the System Works1 Cross Traffic Monitor*
Cross traffic monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the sens ors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
20 ACURA ILX-31TX66710.book 499 ページ ２０２０年４月１６日　木曜日　午後８時４６分

613
Index
Blind spot information System................ 439
Bluetooth ® Audio ............................. 204, 263
Bluetooth ® HandsFreeLink ®........... 339, 368
Booster Seats (For Children) ...................... 64
Brake System ............................................ 492
Anti-lock Brake System (ABS) .................. 494
Brake Assist System................................. 495
Fluid ....................................................... 526
Foot Brake .............................................. 493
Indicator ........................................... 68, 590
Parking Brake.......................................... 492
Brake System (Amber) Indicator ................................................... 68
Brightness Control (Instrument Panel) ... 148
Built-in Key ............................................... 109
Bulb Replacement .................................... 527
Back-Up Light ......................................... 530
Fog Lights ............................................... 527
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights ... 527
Headlights .............................................. 527
High-Mount Brake Light.......................... 531
Rear License Plate Light ........................... 531
Rear Turn Signal Light ............................. 528
Taillights, Brake and Rear Side Marker
Lights .................................................... 528
Bulb Specifications ................................... 598
C
Carbon Monoxide Gas ............................... 65 Carrying Cargo
.................................. 421, 423
CD Player ........................................... 192, 235
Center Pocket ........................................... 167
Certification Label .................................... 600
Changing Bulbs ......................................... 527
Charging System Indicator ................. 70, 588
Child Safety ................................................. 52
Childproof Door Locks ............................. 122
Child Seat .................................................... 52
Booster Seats ............................................. 64
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Larger Children .......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 122
Cleaning the Exterior ............................... 550
Cleaning the Interior ................................ 547
Client Service Information ....................... 608
Climate Control System ............................ 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 546
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Using Automatic Climate Control ............ 171
Clock .......................................................... 106 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 449
Coat Hook ................................................. 169
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 449
Compact Spare Tire .......................... 572, 599
Compass ...................................................... 93
Console Compartment ............................. 166
Controls ..................................................... 105
Coolant (Engine) ...................................... 523
Adding to the Radiator ............................ 524
Adding to the Reserve Tank..................... 523
Overheating ............................................ 586
Creeping ................................................... 432
Cross Traffic Monitor ............................... 498
Cup Holders .............................................. 168
Customized Features .................. 95, 304, 310
D
Daytime Running Lights .......................... 142
Dead Battery ............................................. 582
Defrosting the Windshield and Windows ................................................. 172
Devices that Emit Radio Waves ............... 601
Dimming Headlights ............................................... 139
Rearview Mirror....................................... 152
Dipstick (Engine Oil) ................................. 519
Directional Signals (Turn Signal) ............. 138
Door Mirrors ............................................. 153
20 ACURA ILX-31TX66710.book 613 ページ ２０２０年４月１６日　木曜日　午後８時４６分
