ECO mode ACURA ILX 2022 Manual PDF

283
uuAudio Error Messages uiPod/USB Flash Drive
Continued
Features
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:Models with one display
*2:Models with two displays
Error MessageSolution
USB Error*1
Appears when there is a problem with the USB adapter unit*1 or audio unit*2. Check if the device is
compatible with the USB adapter unit*1 or audio unit*2.Communication error
detected. When safe, please
reconnect your device.
*2
Bad USB Device
Please check owners
manual.
*1
Appears when an incompat ible device is connected. Disconnec t the device. Then, turn the audio
system off and turn it on again. Do not reconnect the device that caused the error.This USB device is
incompatible. Please see
your owner’s manual for
more details.
*2
No Song*1Appears when the iPod is empty. Check that compatible files are stored on the device.
Unsupported Ver*1
Appears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.This version of iOS is not
supported.*2
22 ACURA ILX-31TX66900.book 283 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

284
uuAudio Error Messages uiPod/USB Flash Drive
Features
*1:Models with one display
*2:Models with two displays
Error MessageSolution
Retry Connection*1
Appears when the system does not acknowledge the iPod. Reconnect the iPod.There is an authentication
error. When safe, please
reconnect your device.
*2
Unplayable File*1Appears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
This function is not available
because the system has
encountered a file error or a
DRM protected file.
*2
Appears when you select the grayed-out option on the screen while displaying the DRM or an
unsupported format file.
No Data*1
Appears when the iPod is empty.
Appears when the USB flash drive is empty or ther e are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
There is no data detected.
When safe, please check
your device and try again.
*2
iPod*2
USB flash drive
iPod*2 and USB flash drive
22 ACURA ILX-31TX66900.book 284 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

285
uuAudio Error Messages u
Continued
Features
*2:Models with two displays
Error MessageSolution
UnsupportedAppears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
USB hubs are not supported.
To listen to audio, directly
connect device to USB port.
*2
Appears when the USB device is connected via the USB hubs. Disconnect the USB hubs and directly
connect the device to the USB port.
22 ACURA ILX-31TX66900.book 285 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

287
uuAudio Error Messages uPandora ®
Continued
Features
Error MessageSolution
This USB device is incompat ible. Please see your owner’s
manual for more details.Appears when an incompatible device is connected. Disconnect
the device. Then, turn the audio sy stem off and turn it again. Do
not reconnect the device that caused the error.
There is an unsupported device detected. When safe, please
reconnect your device.Appears when there is a problem with the audio system. Check if
the device is compatible with the audio system.
No stations have been created . When safe, please create a
station on the device.
Appears when there is no station list on the device. Use the device
to create a station.There is no active station.
This PANDORA station is currently not available. Please select
another station.
Music licenses force us to li mit the number of tracks you may
skip each hour.Appears when you try to skip a track over the predetermined
number of times in an hour.
The system is unable to save rating.
The system is unable to save bookmark.
or
The system is unable to skip.
Appears when the commanded operat ion is failed. Try again later.
There is no data available.Appears when no data is available with Pandora ® activated.
Reboot the app and reconnect the device.
The PANDORA app version on your device is not supported.
When safe, please update the app and try again later.Appears when Pandora® version is not supported. Update
Pandora ® to the latest version.
Models with two displays
22 ACURA ILX-31TX66900.book 287 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

289
uuAudio Error Messages uApple CarPlay/Android Auto
Continued
Features
Apple CarPlay/Android Auto
If an error occurs while using the Apple CarPlay or Android Auto, you may see the
following error messages. If you cannot cl ear the error message, contact a dealer.
Error MessageSolution
A charging error has occurred with the connected device.
When safe, please check the comp atibility of the device and
USB cable. Please see your owner's manual for more details.
This USB device is incompat ible. Please see your owner's
manual for more details.
Appears when an incompatible device is connected. Disconnect
the device. Then, turn the audio sy stem off and turn it again. Do
not reconnect the device that caused the error.
Unable to start Apple CarPlay. When safe, please confirm the
USB connection.Appears when Apple CarPlay or Android Auto fails to recognize
your device.
Check if your device is compatible with Apple CarPlay or Android
Auto, or the latest version of the app is installed on your device.
Unable to start Android Auto. When safe, please confirm the
USB connection.
Unable to start Apple CarPlay. When safe, please try again.Appears when Apple CarPlay or Android Auto fails to recognize
your device.
Reconnect your device and try again.
Unable to start Android Auto. When safe, please try again.
Unable to start Apple CarPlay with your device. Your device is
connected in digital audio mode.Appears when your connected devi ce is incompatible with Apple
CarPlay.
Check if your device is comp atible with Apple CarPlay.
Models with two displays
Information Screen
On Demand Multi-Use DisplayTM
22 ACURA ILX-31TX66900.book 289 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

321
uuCustomized Features u
Continued
Features

Voice Prompt
Brightness
Contrast
Black Level


Default
Display
System
Settings
Voice Reco.
Sync Display Brightness
System Device Information*Header Clock Display

Language
Operation Restriction Tips*
Others

Default
Apple CarPlay Device List
Android Auto Device List
Smartphone
Settings
Smartphone Volume


Factory Data Reset
Units*
Song By Voice*
Song By Voice Phonetic Modification*
Phonebook Phoneti c Modification*
Guidance Volume*

Feedback*Guidance Volume
Verbal Reminder
* Not available on all models
22 ACURA ILX-31TX66900.book 321 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

326
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
SettingsMeter
Language SelectionChanges the displayed language on the multi-
information display.English*1/Français /
Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few
degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN
Off /Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN
Off /Manually Reset*1
Turn by Turn Display*Selects whether the turn-by-turn display comes
on during the route guidance.On*1/Off
* Not available on all models
22 ACURA ILX-31TX66900.book 326 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

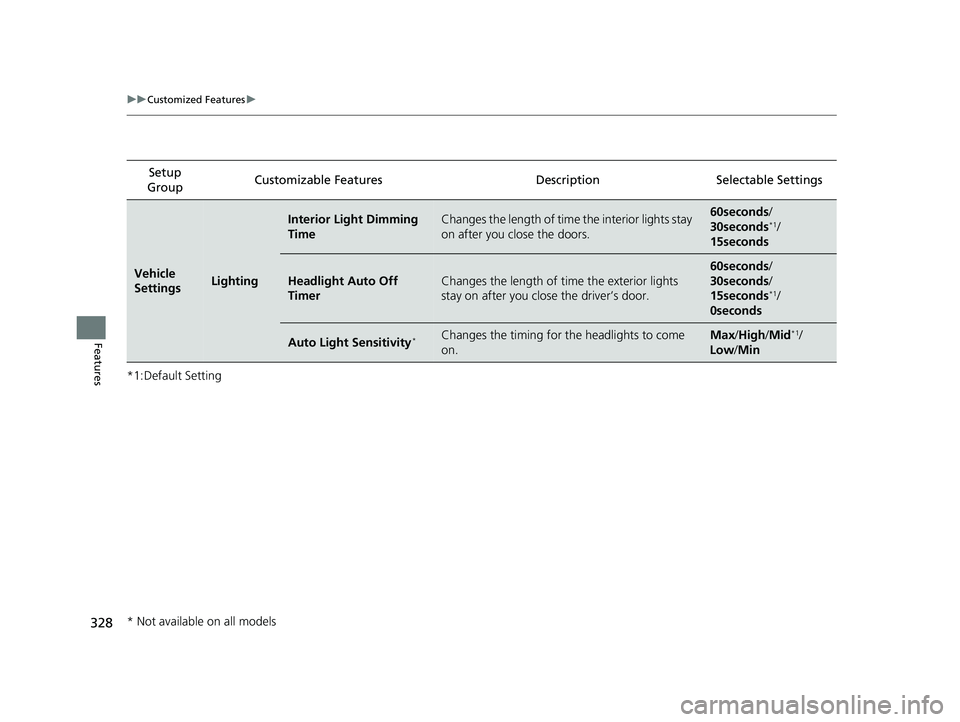

328
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features
Description Selectable Settings
Vehicle
SettingsLighting
Interior Light Dimming
TimeChanges the length of time the interior lights stay
on after you close the doors.60seconds /
30seconds*1/
15seconds
Headlight Auto Off
TimerChanges the length of time the exterior lights
stay on after you clos e the driver’s door.
60seconds/
30seconds /
15seconds
*1/
0seconds
Auto Light Sensitivity*Changes the timing for th e headlights to come
on.Max /High /Mid*1/
Low /Min
* Not available on all models
22 ACURA ILX-31TX66900.book 328 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

329
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
SettingsDoor
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle
Speed*1/Shift from P /
Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When
Driver’s Door
Opens
*1/ All Doors
When Shifted to
Park /All Doors When
Ignition Switched
Off /Off
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to
unlock on the first push of the remote or built-in
key.Driver Door*1/ All
Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.90seconds/
60seconds/
30seconds
*1
Maintenance
Info.Maintenance ResetResets the engine oil life display when you have
performed the maintenance service.—
22 ACURA ILX-31TX66900.book 329 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

333
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
System
Settings Voice
Reco.Voice Prompt
•
Beginner: Explains each option.
• Expert: Turns off voice prompts. Beginner
*1/
Expert
Turns the voice prompt on and off. On
*1/
Off
Song By Voice
*Turns the Song By VoiceTM on and off.
2 Song By VoiceTM (SBV) P. 258On*1/Off
Song By Voice Phonetic
Modification
*
Modifies a voice command for music stored in
the HDD or an iPod.
2 Phonetic Modification P. 260
—
Phonebook Phonetic
Modification
*Modifies a voice command for the phonebook.
2 Phonebook Phonetic Modification* P. 397—
Guidance Volume
*Changes the volume of the voice prompt. —
Models without navigation system
Models with navigation system
* Not available on all models
22 ACURA ILX-31TX66900.book 333 ページ ２０２１年４月２６日　月曜日　午前１１時２７分
