Page 9 of 632

7
Quick Reference Guide
❚Wipers/Washers (P150)
❚Audio Remote Controls (P185)
❚Brightness Control (P152)
❚Headlights/Turn Signals (P142)
❚Fog Lights* (P146)
❚Paddle Shifter (Shift down) (P442)
❚Paddle Shifter (Shift up) (P442)
❚Horn (Press an area around .)
❚Voice Control Buttons* (P222)
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P345, 374)
❚SEL/RESET Button (P95)
❚ (Information) Button (P94)
❚Lane Keeping Assist System (LKAS) Button
(P484)
❚Interval Button (P475)
❚MAIN Button (P467, 484)
❚Adaptive Cruise Control (ACC) Buttons (P468)
* Not available on all models
22 ACURA ILX-31TX66900.book 7 ページ 2021年4月26日 月曜日 午前11時27分
Page 10 of 632

Visual Index
8
Quick Reference Guide
❚Parking Brake (P499)
❚Power Window Switches (P135)
❚Driver's Front Airbag (P44)
❚Trunk Opener (P128)
❚Hood Release Handle (P525)
❚Interior Fuse Box (P601)
❚Passenger's Front Airbag
(P44)
❚USB Adapter Cable* (P181)
❚Shift Lever
Dual Clutch Transmission
(P439)
❚Glove Box (P170)
❚Accessory Power Socket (P173)
❚Rearview Mirror (P156)
❚Auxiliary Input Jack (P183)
❚Door Mirror Controls (P157)
❚Master Door Lock Switch (P126)❚Memory Buttons* (P155)
❚SET Button* (P155)
❚Fuel Fill Door Release Handle (P511)
❚USB Port* (P182)
❚Seat Heater Switches (P174)
22 ACURA ILX-31TX66900.book 8 ページ 2021年4月26日 月曜日 午前11時27分
Page 18 of 632

16
Quick Reference Guide
Climate Control System (P175)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Driver's Side Temperature
Control Dial
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.
AUTO Button
(Recirculation) Button
Passenger's Side Temperature
Control Dial
MODE Control Button
(ON/OFF) Button
SYNC (Synchronization) Button
(Windshield Defroster) Button
/ (Fan Control) Buttons
22 ACURA ILX-31TX66900.book 16 ページ 2021年4月26日 月曜日 午前11時27分
Page 19 of 632

17
Quick Reference Guide
Features (P179)
Audio System (P180)
(P187)
Models with one display
Audio/Information Screen
Selector Knob VOL / (Volume/Power) Knob
CD Button
CD Slot
(CD Eject) Button
Preset Buttons
SETUP Button
PHONE Button DISPLAY Button
A.SEL
(Auto Select) Button
SKIP Bar AUX
Button
BACK Button
SCAN
Button
FM
Button
AM
Button
FOLDER Bar
22 ACURA ILX-31TX66900.book 17 ページ 2021年4月26日 月曜日 午前11時27分
Page 73 of 632

71
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 72
Multi-Information Display Warning and Information Messages ...................... 85
Gauges and Multi-Information Display Gauges .............................................. 92
Multi-Information Display .................. 93
22 ACURA ILX-31TX66900.book 71 ページ 2021年4月26日 月曜日 午前11時27分

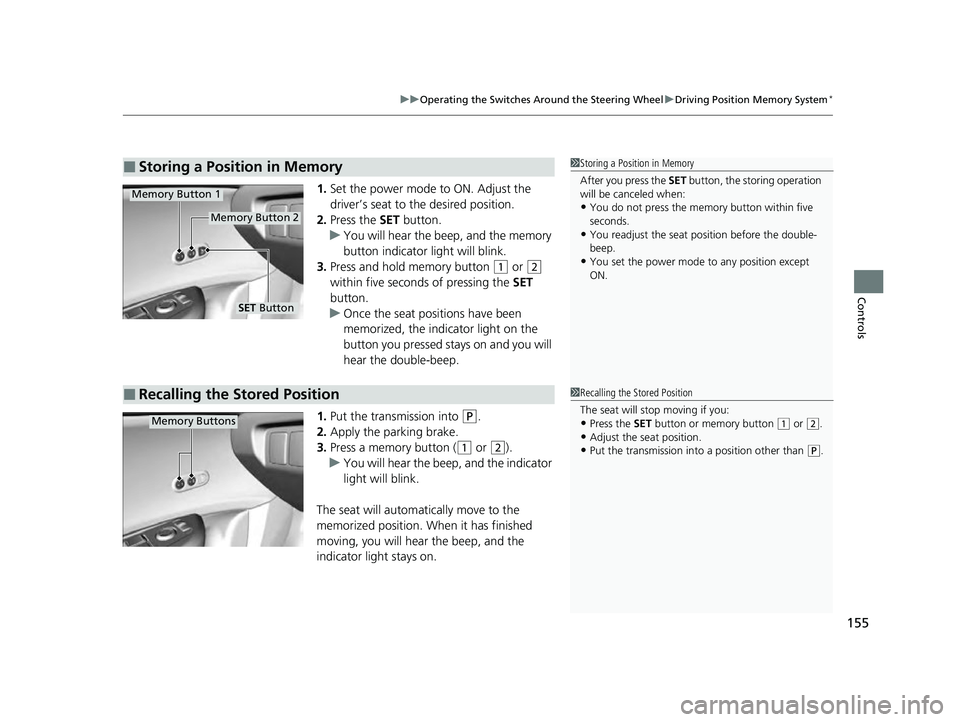

Page 157 of 632

155
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls
1. Set the power mode to ON. Adjust the
driver’s seat to the desired position.
2. Press the SET button.
u You will hear the beep, and the memory
button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat positions have been
memorized, the indicator light on the
button you pressed stays on and you will
hear the double-beep.
1. Put the transmission into
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear the beep, and the indicator
light will blink.
The seat will automatically move to the
memorized position. When it has finished
moving, you will hear the beep, and the
indicator light stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat position before the double-
beep.
•You set the power mode to any position except
ON.
SET Button
Memory Button 1
Memory Button 2
■Recalling the Stored Position1Recalling the Stored Position
The seat will st op moving if you:
•Press the SET button or memory button (1 or (2.
•Adjust the seat position.•Put the transmission into a position other than (P.
Memory Buttons
22 ACURA ILX-31TX66900.book 155 ページ 2021年4月26日 月曜日 午前11時27分
Page 177 of 632

175Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
defroster
vents Floor vents
Dashboard
and floor
ventsDashboard
vents
(ON/OFF) Button
(Recirculation) ButtonAUTO
Button
A/C (Air Conditioning) Button SYNC
(Synchronization)
Button
/ (Fan Control)
Buttons
Driver’s Side Temperature
Control Dial
Passenger's Side
Temperature
Control Dial
22 ACURA ILX-31TX66900.book 175 ページ 2021年4月26日 月曜日 午前11時27分
Page 182 of 632

180
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and the SiriusXM® Radio service*. It can also
play audio CDs, WMA/MP3/AAC files, Hard Disk Drive (HDD) audio*, USB flash
drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
icons on the On Demand Multi-Use Display
TM, or the remote controls on the steering
wheel.
1 About Your Audio System
SiriusXM ® Radio
* is available on a subscription basis
only.
For more information on SiriusXM ® Radio
*, contact a
dealer. 2 General Information on the Audio System
P. 291
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod ®, iPhone ® and iTunes ® are trademarks of Apple
Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Control iPod
USB Flash
Drive
iPod USB Flash
Drive
Models with one display
Models with two displays
* Not available on all models
22 ACURA ILX-31TX66900.book 180 ページ 2021年4月26日 月曜日 午前11時27分
Page 185 of 632

183
uuAudio System uAuxiliary Input Jack
Features
Auxiliary Input Jack
Use the jack to connect a standard audio device.
1.Open the AUX cover.
2. Connect a standard audio device to the
input jack using a 1/8 inch (3.5 mm) stereo
miniplug.
u The audio system auto matically switches
to the AUX mode.
Connect a standard audio device to the input
jack using a 1/8 inch (3.5 mm) stereo
miniplug. u The audio system auto matically switches
to the AUX mode.1 Auxiliary Input Jack
To switch to another mode, press the MODE button
on the steering wheel or any of the audio mode
buttons.
To return to the AUX mode, press the MODE button
on the steering wheel or AUX button.
To switch to another mode or return to the AUX
mode, press the MODE button on the steering wheel
or select Source on the On Demand Multi-Use
Display
TM.
Models with one display
Models with two displays
Models with one display
Models with two displays
22 ACURA ILX-31TX66900.book 183 ページ 2021年4月26日 月曜日 午前11時27分
Page 189 of 632

187
Features
Audio System Basic Operation
To use the audio system function, the power mode must be in ACCESSORY or ON.
Use the selector knob or SETUP button to
access some au dio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
SETUP button: Press to select any mode such
as the RDS Information , Sound Settings,
Play Mode , Resume/Pause , or Adjust
Clock .
BACK button: Press to go back to the
previous display. (Day/Night) button: Press to change
the audio/ information screen brightness. The
brightness can be set differently for the day
time and night time.
Pressing the button switches the modes
between daytime and night time.
Adjust the brightness using .
Models with one display1 Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Press the MODE,
( +, (-, or button on the
steering wheel to cha nge any audio setting.
2 Audio Remote Controls P. 185
Setup Menu Items
2 RDS Information P. 195
2 Sound Settings P. 192
2 Play Mode P. 198, 201, 207
2 Resume/Pause P. 209
2 Adjust Clock P. 110
BACK ButtonSETUP Button
Selector Knob
(Day/Night) Button
Menu Display
