mirror controls ACURA ILX 2022 Owners Manual

Contents
Child Safety P. 56Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Trunk P. 128 Security System P. 132 Windows P. 135
Operating the Switches Around the Steering Wheel P. 139 Mirrors P. 156
Interior Convenience Items P. 168 Climate Control System P. 175
Audio Error Messages P. 280General Information on the Audio System P. 291
Bluetooth ® HandsFreeLink ® P. 345, 374 AcuraLink ®* P. 416
When Driving P. 432 AcuraWatchTM P. 452Braking P. 499
Refueling P. 510 Fuel Economy and CO
2 Emissions P. 513
Maintenance Under the Hood P. 524 Replacing Light Bulbs P. 535
Checking and Maintaining Tires P. 542 Battery P. 551 Remote Transmitter Care P. 552
Accessories and Modifications P. 561
Engine Does Not Start P. 587If the Battery Is Dead P. 590 Shift Lever Does Not Move P. 593
Fuses P. 600 Emergency Towing P. 603
Devices that Emit Radio Waves P. 609 Reporting Safety Defects P. 610 Emissions Testing P. 611
Client Service Information P. 617
Quick Reference GuideP. 6
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 109
FeaturesP. 179
DrivingP. 425
MaintenanceP. 515
Handling the UnexpectedP. 563
InformationP. 605
IndexP. 621
22 ACURA ILX-31TX66900.book 5 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Visual Index
8
Quick Reference Guide
❚Parking Brake (P499)
❚Power Window Switches (P135)
❚Driver's Front Airbag (P44)
❚Trunk Opener (P128)
❚Hood Release Handle (P525)
❚Interior Fuse Box (P601)
❚Passenger's Front Airbag
(P44)
❚USB Adapter Cable* (P181)
❚Shift Lever
Dual Clutch Transmission
(P439)
❚Glove Box (P170)
❚Accessory Power Socket (P173)
❚Rearview Mirror (P156)
❚Auxiliary Input Jack (P183)
❚Door Mirror Controls (P157)
❚Master Door Lock Switch (P126)❚Memory Buttons* (P155)
❚SET Button* (P155)
❚Fuel Fill Door Release Handle (P511)
❚USB Port* (P182)
❚Seat Heater Switches (P174)
22 ACURA ILX-31TX66900.book 8 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

109
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 110
Locking and Unlocking the Doors
Key .................................................. 112
Low Keyless Remote Signal Strength ... 114
Locking/Unlocking the Doors from the Outside .......................................... 115
Locking/Unlocking the Doors from the Inside ............................................. 124
Childproof Door Locks ..................... 126
Auto Door Locking/Unlocking .......... 127
Opening and Closing the Trunk ....... 128
Security System ................................ 132
Immobilizer System .......................... 132
Security System Alarm ...................... 132 Windows
........................................... 135Moonroof............................................. 138Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 139
Turn Signals ..................................... 142
Light Switches.................................. 143
Fog Lights
*...................................... 146
Daytime Running Lights ................... 146
Auto High-Beam .............................. 147
Wipers and Washers ........................ 150
Brightness Control ........................... 152
Rear Defogger/Heated Door Mirror Button ..153
Adjusting the Steering Wheel........... 153 Driving Position Memory System
*.... 154
Mirrors ............................................... 156
Interior Rearview Mirror ................... 156
Power Door Mirrors ......................... 157
Adjusting the Seats .......................... 158
Front Seats ...................................... 158
Interior Convenience Items .............. 168
Interior Lights .................................. 168
Storage Items .................................. 170
Other Interior Convenience Items..... 173
Climate Control System ................... 175
Using Automatic Climate Control .... 175
Automatic Climate Control Sensors......178
* Not available on all models
22 ACURA ILX-31TX66900.book 109 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
148
Controls
■Automatic switching between high-beam and low-beam
When auto high-beam is ac tive, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams then release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 45mph (72
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 30 mph (48
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are operating.
•The camera has dete cted a dense fog.
22 ACURA ILX-31TX66900.book 148 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

153
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror Button
Controls
Rear Defogger/Heated Door Mirror Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.
However, if the outsid e temperature is 32°F
(0°C) or below, it does not automatically
switch off.
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.
1. While the vehicle is stopped, pull the
steering wheel adjustment lever up.
u The steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
u Make sure you can see the instrument
panel gauges and indicators.
3. Push the steering wheel adjustment lever
down to lock the steering wheel in position.
u After adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Rear Defogger/Heated Door Mirror Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the power mode is se t to ON and the outside
temperature is below 41°F (5°C), the heated door
mirror may automatically activate for 10 minutes.
1 Adjusting the Steering Wheel
3WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.To adjust
To lock
Lever
22 ACURA ILX-31TX66900.book 153 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

156
Controls

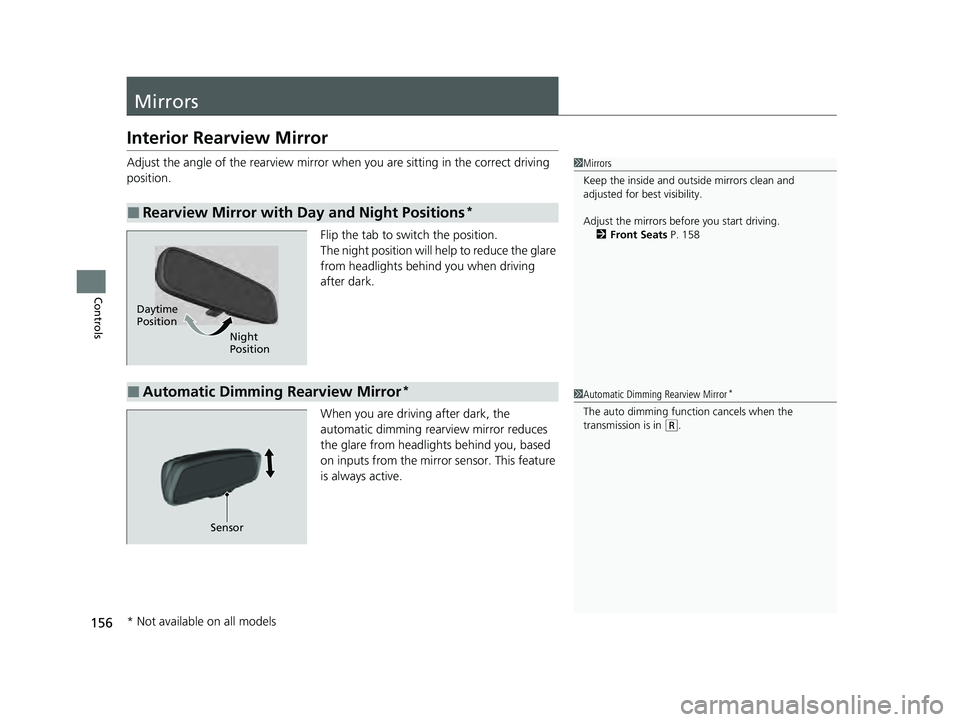

Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
on inputs from the mirror sensor. This feature
is always active.
■Rearview Mirror with Day and Night Positions*
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 158
Daytime
Position
Night
Position
■Automatic Dimming Rearview Mirror*1Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in
(R.
Sensor
* Not available on all models
22 ACURA ILX-31TX66900.book 156 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

157
uuMirrors uPower Door Mirrors
Controls

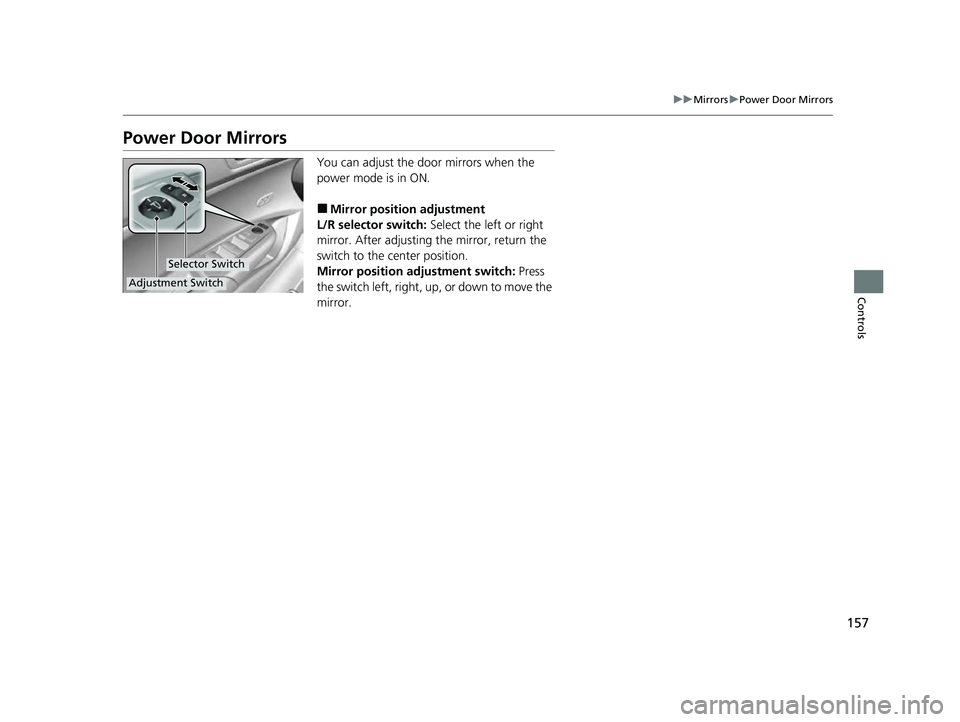

Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
Selector Switch
Adjustment Switch
22 ACURA ILX-31TX66900.book 157 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Index
621
Index
Index
A
AAC................................................... 239, 264
ABS (Anti-lock Brake System) .................. 501
Accessories and Modifications ................ 561
Accessory Power Sockets ......................... 173
AcuraLink ................................................. 416
AcuraWatch
TM.................................... 22, 452
Adaptive Cruise Control (ACC) .......... 80, 466
Additives Coolant .................................................. 531
Engine Oil ............................................... 526
Washer ................................................... 534
Additives, Engine Oil ............................... 526
Adjusting
Armrest .................................................. 167
Front Seats.............................................. 158
Head Restraints ....................................... 162
Mirrors.................................................... 156
Rear Seat ................................................ 166
Steering Wheel ....................................... 153
Temperature ............................................. 96
Air Conditioning System (Climate Control
System) .................................................... 175
Changing the Mode................................ 175
Defrosting the Windshield and
Windows .............................................. 176
Maintenance........................................... 554
Recirculation/Fresh Air Mode................... 175
Sensors ................................................... 178
Synchronization Mode ............................ 177
Using Automatic Climate Control............ 175 Air Pressure
....................................... 543, 607
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ......................................... 44
Airbag Care ............................................... 55
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 52, 76
Passenger Airbag Off Indicator .................. 53
Sensors ...................................................... 41
Side Airbags .............................................. 49
Side Curtain Airbags .................................. 51
AM/FM Radio .................................... 194, 225
Android Auto ............................................ 275
Anti-lock Brake System (ABS) .................. 501
Indicator .................................................... 75
Apple CarPlay ........................................... 270
Armrest ..................................................... 167
Audio Remote Controls ............................ 185
Audio System ............................................ 180
Adjusting the Sound ........................ 192, 220
Auxiliary Input Jack .................................. 183
Bluetooth ® Audio ............................ 208, 267
CD .................................................. 196, 239
Display Setup ................................... 193, 221
Error Messages ........................................ 280
General Information ................................ 291
HDD ........................................................ 242
iPhone ............................................. 262, 294
iPod ................................................. 199, 255
MP3/WMA/AAC ...................... 205, 239, 264 Pandora
®....................................... 202, 262
Reactivating ............................................ 184
Recommended CDs ................................. 292
Recommended Devices............................ 294
Security Code .......................................... 184
Siri Eyes Free ........................................... 269
SiriusXM ® Radio ...................................... 228
Song By VoiceTM (SBV) ............................. 258
Theft Protection ...................................... 184
USB Adapter Cable.................................. 181
USB Flash Drives ...................... 205, 264, 295
USB Port.................................................. 182
Audio/Information Screen ....................... 188
Authorized Manuals ................................ 616
Auto Door Locking/Unlocking ................. 127
Customize ....................................... 105, 329
Auto High-Beam ....................................... 147
Automatic Lighting .................................. 144
Auxiliary Input Jack .................................. 183
Average Fuel Economy .............................. 96
Average Speed ........................................... 97
B
Battery...................................................... 551
Charging System Indicator................. 74, 596
If the Battery Is Dead ............................... 590
Maintenance (Checki ng the Battery) ........ 551
Maintenance (Replacing) ......................... 552
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 172
22 ACURA ILX-31TX66900.book 621 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

622
Index
Blind spot information System................ 445
Bluetooth ® Audio ............................. 208, 267
Bluetooth ® HandsFreeLink ®........... 345, 374
Booster Seats (For Children) ....................... 68
Brake System ............................................. 499
Anti-lock Brake System (ABS) ................... 501
Brake Assist System ................................. 502
Fluid ........................................................ 534
Foot Brake ............................................... 500
Indicator ............................................ 72, 598
Parking Brake .......................................... 499
Brake System (Amber) Indicator .................................................... 72
Brightness Control (Instrument Panel) .... 152
Built-in Key ................................................ 113
Bulb Replacement ..................................... 535
Back-Up Light .......................................... 538
Fog Lights ................................................ 535
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights.... 535
Headlights ............................................... 535
High-Mount Brake Light .......................... 539
Rear License Plate Light............................ 539
Rear Turn Signal Light .............................. 536
Taillights, Brake and Rear Side Marker
Lights..................................................... 536
Bulb Specifications .................................... 606
C
Carbon Monoxide Gas ................................ 69 Carrying Cargo
................................. 427, 429
CD Player ........................................... 196, 239
Center Pocket ........................................... 171
Certification Label .................................... 608
Changing Bulbs ........................................ 535
Charging System Indicator ................. 74, 596
Child Safety ................................................. 56
Childproof Door Locks............................. 126
Child Seat .................................................... 56
Booster Seats ............................................ 68
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Larger Children ......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 558
Cleaning the Interior ................................ 555
Client Service Information ....................... 617
Climate Control System ............................ 175
Changing the Mode ................................ 175
Defrosting the Windshield and
Windows ............................................... 176
Maintenance ........................................... 554
Recirculation/Fresh Air Mode ................... 175
Sensors ................................................... 178
Using Automatic Climate Control ............ 175
Clock .......................................................... 110 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 455
Coat Hook ................................................ 173
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 455
Compact Spare Tire .......................... 580, 607
Compass ...................................................... 97
Console Compartment ............................. 170
Controls .................................................... 109
Coolant (Engine) ...................................... 531
Adding to the Radiator ........................... 532
Adding to the Reserve Tank .................... 531
Overheating ............................................ 594
Creeping ................................................... 438
Cross Traffic Monitor ............................... 505
Cup Holders .............................................. 172
Customized Features ................. 99, 310, 316
D
Daytime Running Lights .......................... 146
Dead Battery ............................................ 590
Defrosting the Windshield and Windows ................................................. 176
Devices that Emit Radio Waves ............... 609
Dimming Headlights .............................................. 143
Rearview Mirror ...................................... 156
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 142
Door Mirrors ............................................. 157
22 ACURA ILX-31TX66900.book 622 ページ ２０２１年４月２６日　月曜日　午前１１時２７分
