Acura ILX Hybrid 2015 Owner's Manual

150

151
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 152
USB Adapter Cable .......................... 153
Auxiliary Input Jack .......................... 153
Audio System Theft Protection ......... 154
Audio System Basic Operation ........ 155
Audio/Information Screen ................ 156
Audio Remote Controls .................... 159
Adjusting the Sound ........................ 160
Playing AM/FM Radio ....................... 161
Playing XM® Radio
*......................... 163
Playing a CD .................................... 165
Playing an iPod ................................ 168 Playing Internet Radio ...................... 171
Playing a USB Flash Drive ................. 173
Playing
Bluetooth ® Audio................. 176
Wallpaper Setup .............................. 178
Audio Error Messages
*
CD Player ......................................... 180
iPod/USB Flash Drive ........................ 181
Pandora ®......................................... 182
General Information on the Audio
System XM ® Radio Service
*......................... 183
Recommended CDs ......................... 184
Compatible iPod, iPhone, and USB Flash Drives ................................................186HomeLink
® Universal Transceiver
*......187
Training HomeLink........................... 187
Bluetooth ® HandsFreeLink ®
Using HFL ........................................ 189
HFL Menus ...................................... 191
* Not available on all models

152Features
Audio SystemAbout Your Audio SystemSee the Navigation System Manual for operation of the audio system, AcuraLink
*,
Bluetooth ® HandsFreeLink ®, and voice commands for these features.
The audio system features AM/FM radio and the XM ® Radio service. It can also play
audio CDs, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and Bluetooth ®
devices.
You can operate the audio system from the buttons and switches on the panel, or
the remote controls on the steering wheel.
1 About Your Audio System
XM ® Radio is available on a subscription basis only.
For more information on XM ® Radio, contact a
dealer.
2 General Information on the Audio System
P. 183
XM ® Radio is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
XM ® is a registered trademark of Sirius XM Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may limit the circumstances in
which you can launch or control your attached audio
device.
Models with navigation system
Remote Control iPod
USB Flash
Drive
* Not available on all models

153
uuAudio System uUSB Adapter Cable
Features
USB Adapter Cable
1. Unclip the USB connector and loosen the
adapter cable.
2. Install the iPod dock connector or the USB
flash drive to the USB connector.
Auxiliary Input JackUse the jack to connect standard audio devices.
1.Open the AUX cover.
2. Connect a standard audio device to the
input jack using a 1/8 inch (3.5 mm) stereo
miniplug.
u The audio system automatically switches
to the AUX mode.
1USB Adapter Cable•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.•Do not use an extension cable with the USB
adapter cable.•Do not connect the iPod or USB flash drive using a
hub.•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.•We recommend your data backed up before using
the device in your vehicle.•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufacturer's instructions
provided with the iPod or visit www.apple.com/ipod.
1Auxiliary Input Jack
To switch the mode, press any of the audio mode
buttons. You can return to the AUX mode by
pressing the AUX button.

154
uuAudio System uAudio System Theft Protection
Features

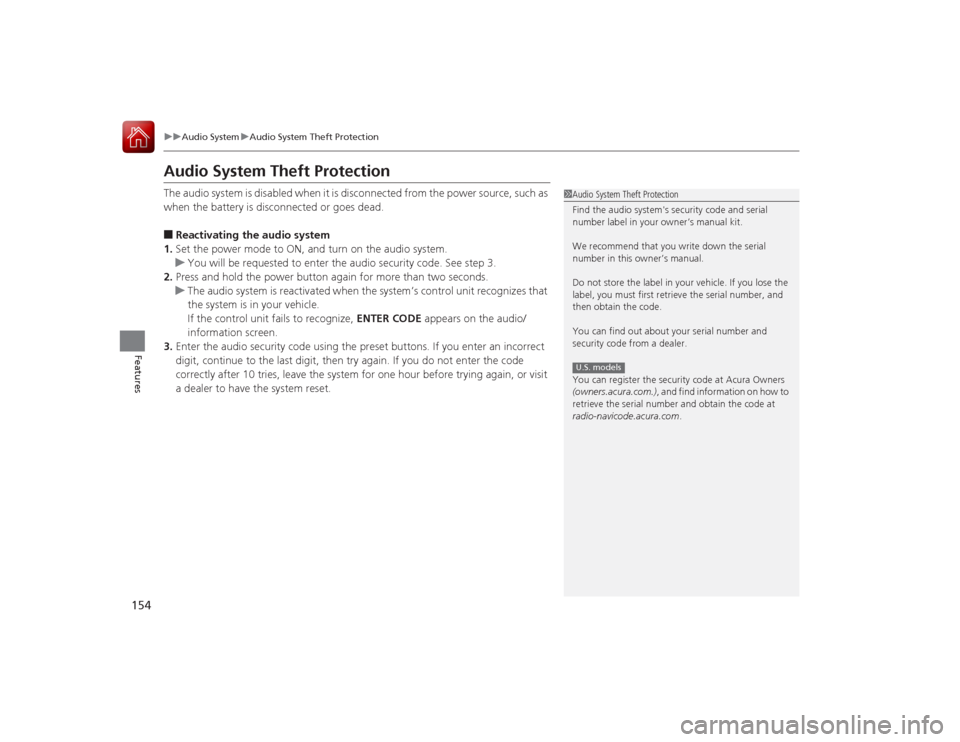

Audio System Theft ProtectionThe audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead.■Reactivating the audio system
1. Set the power mode to ON, and turn on the audio system.
u You will be requested to enter the audio security code. See step 3.
2. Press and hold the power button again for more than two seconds.
u The audio system is reactivated when the sy stem’s control unit recognizes that
the system is in your vehicle.
If the control unit fails to recognize, ENTER CODE appears on the audio/
information screen.
3. Enter the audio security code using the preset buttons. If you enter an incorrect
digit, continue to the last digit, then try again. If you do not enter the code
correctly after 10 tries, leave the system for one hour before trying again, or visit
a dealer to have the system reset.
1Audio System Theft Protection
Find the audio system's security code and serial
number label in your owner’s manual kit.
We recommend that you write down the serial
number in this owner’s manual.
Do not store the label in your vehicle. If you lose the
label, you must first retrieve the serial number, and
then obtain the code.
You can find out about your serial number and
security code from a dealer.
You can register the security code at Acura Owners
(owners.acura.com.) , and find information on how to
retrieve the serial number and obtain the code at
radio-navicode.acura.com .U.S. models

155Features
Audio System Basic OperationTo use the audio system function, the power mode must be in ACCESSORY or ON.Use the selector knob or SETUP button to
access some audio functions.
Press to switch between the normal and
extended display for some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
SETUP button: Press to select any mode such
as the RDS Information , Sound Settings,
Play Mode , Resume/Pause , or Adjust
Clock .
BACK button: Press to go back to the
previous display. button: Press to change the audio/
information screen brightness. The brightness
can be set differently for the day time and
night time.
Pressing the button switches the modes
between daytime and night time.
Adjust the brightness using .
1 Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Press the MODE,
(+, (-, or button on the
steering wheel to change any audio setting. 2 Audio Remote Controls P. 159
Setup Menu Items
2 RDS Information P. 162
2 Sound Settings P. 160
2 Play Mode P. 167, 170, 175
2 Resume/Pause P. 177
2 Adjust Clock P. 104
BACK Button
SETUP ButtonSelector Knob
Button
Menu Display

156
uuAudio System Basic Operation uAudio/Information Screen
Features
Audio/Information ScreenDisplays audio status and wallpaper, and allows you to go to various setup options.
Press DISPLAY button. Rotate and select the mode from the three display
modes.
Press .■
Switching the Display
Selector Knob
DISPLAY
Button

157
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
Shows the current audio information.2 Audio System Basic Operation P. 155Shows a clock screen or an image you import.2Wallpaper Setup P. 178Minimizes the display by only showing the clock and audio status on the display.
1.Press the SETUP button.
2. Rotate and select the setup option you
want to change. Press .■
Audio Display
■
Wallpaper
■
Minimum Display
■
Setting Options

158
uuAudio System Basic Operation uAudio/Information Screen
Features

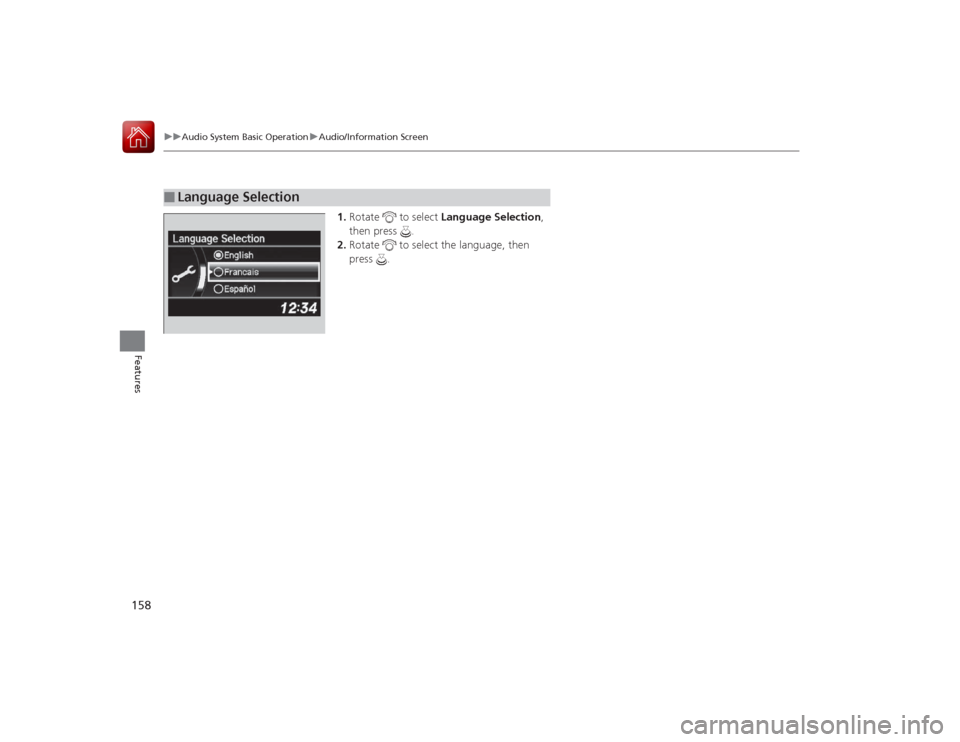

1. Rotate to select Language Selection ,
then press .
2. Rotate to select the language, then
press .
■
Language Selection

159
uuAudio System Basic Operation uAudio Remote Controls
Features
Audio Remote ControlsAllow you to operate the audio system while driving.
MODE Button
Cycles through the audio modes as follows:
FM1 FM2 AM XM1
*
XM2
*
CD AUX
VOL (Volume) Button
Press : To increase the volume.
Press : To decrease the volume.
CH (Channel) Button
• When listening to the radio
Press
(+
: To select the next preset radio station.
Press
(-
: To select the previous preset radio station.
Press and hold
(+
: To select the next strong station.
Press and hold
(-
: To select the previous strong station.
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Press
(+
: To skip to the next song.
Press
(-
: To go back to the beginning of the current or previous song.
• When listening to a CD, USB flash drive
Press and hold
(+
: To skip to the next folder.
Press and hold
(-
: To go back to the previous folder.
• When listening to Pandora®
*
Press
(+
: To skip to the next song.
1 Audio Remote Controls
The CD mode appears only when a CD is loaded.
When in AUX mode, the following are operable from
the remote controls:•iPod/USB flash drive connected to the USB adapter
cable•Bluetooth ® Audio (with some phones only)
VOL Button MODE Button
CH Button
* Not available on all models
