parking sensors Acura ILX Hybrid 2015 Owner's Manual

322

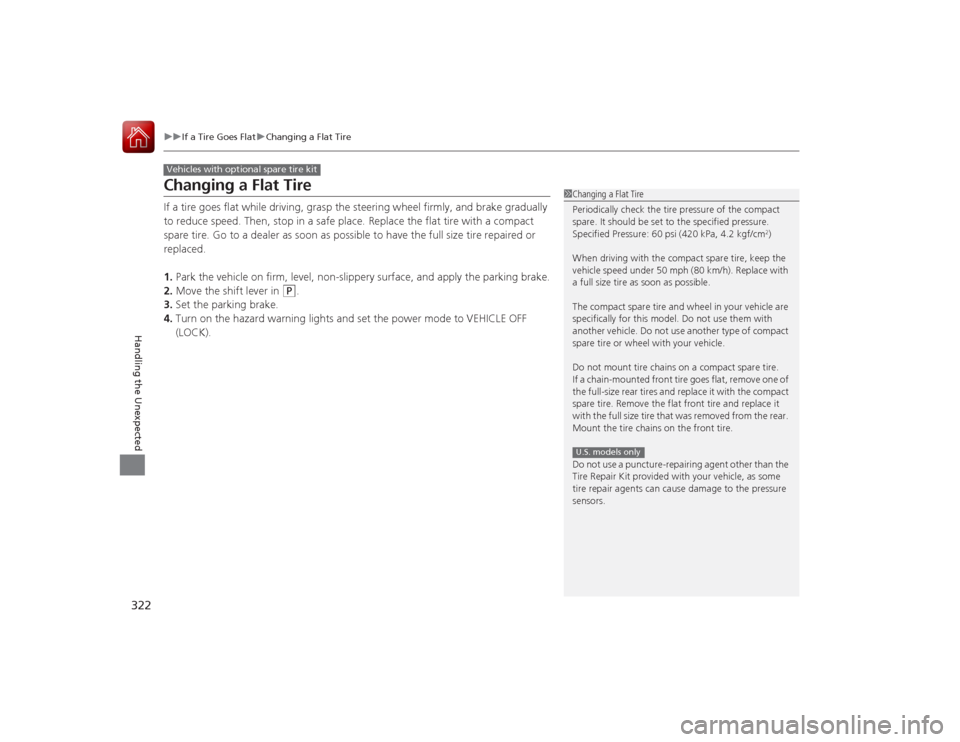

uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat TireIf a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slippery surface, and apply the parking brake.
2. Move the shift lever in
(P
.
3. Set the parking brake.
4. Turn on the hazard warning lights and set the power mode to VEHICLE OFF
(LOCK).
Vehicles with optional spare tire kit
1Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairing agent other than the
Tire Repair Kit provided with your vehicle, as some
tire repair agents can cause damage to the pressure
sensors.
U.S. models only

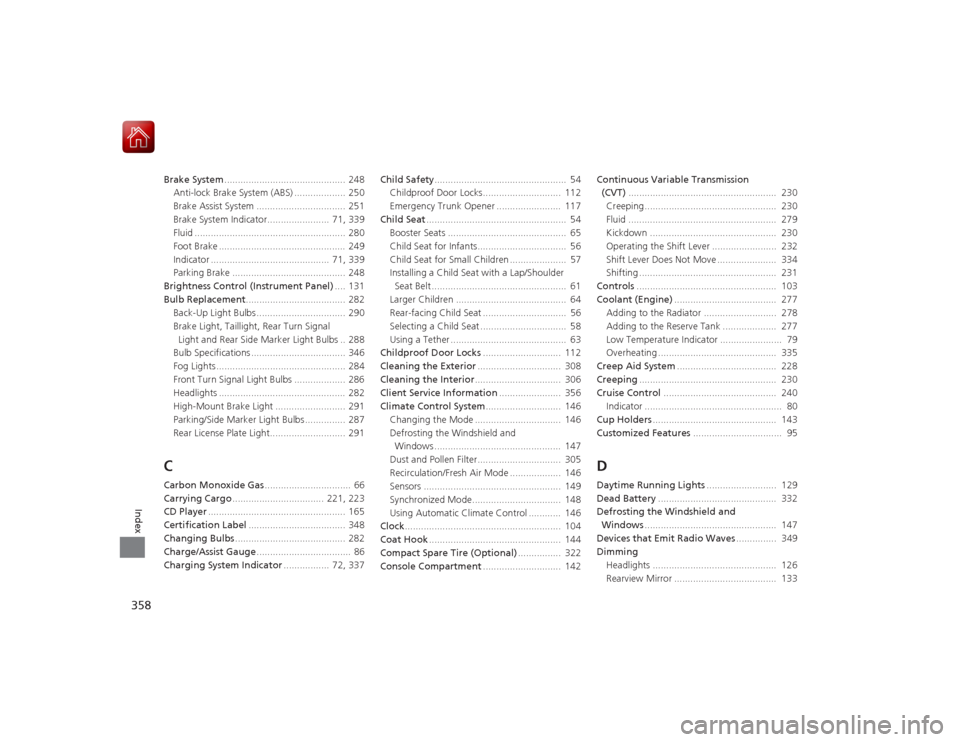

358Index
Brake System............................................. 248
Anti-lock Brake System (ABS) ................... 250
Brake Assist System ................................. 251
Brake System Indicator....................... 71, 339
Fluid ........................................................ 280
Foot Brake ............................................... 249
Indicator ............................................ 71, 339
Parking Brake .......................................... 248
Brightness Control (Instrument Panel) .... 131
Bulb Replacement ..................................... 282
Back-Up Light Bulbs ................................. 290
Brake Light, Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs .. 288
Bulb Specifications ................................... 346
Fog Lights ................................................ 284
Front Turn Signal Light Bulbs ................... 286
Headlights ............................................... 282
High-Mount Brake Light .......................... 291
Parking/Side Marker Light Bulbs ............... 287
Rear License Plate Light............................ 291CCarbon Monoxide Gas ................................ 66
Carrying Cargo .................................. 221, 223
CD Player ................................................... 165
Certification Label .................................... 348
Changing Bulbs ......................................... 282
Charge/Assist Gauge ................................... 86
Charging System Indicator ................. 72, 337Child Safety
................................................. 54
Childproof Door Locks............................. 112
Emergency Trunk Opener ........................ 117
Child Seat .................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Childproof Door Locks ............................. 112
Cleaning the Exterior ............................... 308
Cleaning the Interior ................................ 306
Client Service Information ....................... 356
Climate Control System ............................ 146
Changing the Mode ................................ 146
Defrosting the Windshield and Windows ............................................... 147
Dust and Pollen Filter............................... 305
Recirculation/Fresh Air Mode ................... 146
Sensors ................................................... 149
Synchronized Mode................................. 148
Using Automatic Climate Control ............ 146
Clock .......................................................... 104
Coat Hook ................................................. 144
Compact Spare Tire (Optional) ................ 322
Console Compartment ............................. 142 Continuous Variable Transmission
(CVT) ....................................................... 230
Creeping................................................. 230
Fluid ....................................................... 279
Kickdown ............................................... 230
Operating the Shift Lever ........................ 232
Shift Lever Does Not Move ...................... 334
Shifting ................................................... 231
Controls .................................................... 103
Coolant (Engine) ...................................... 277
Adding to the Radiator ........................... 278
Adding to the Reserve Tank .................... 277
Low Temperature Indicator ....................... 79
Overheating ............................................ 335
Creep Aid System ..................................... 228
Creeping ................................................... 230
Cruise Control .......................................... 240
Indicator ................................................... 80
Cup Holders .............................................. 143
Customized Features ................................. 95
DDaytime Running Lights .......................... 129
Dead Battery ............................................ 332
Defrosting the Windshield and Windows ................................................. 147
Devices that Emit Radio Waves ............... 349
Dimming Headlights .............................................. 126
Rearview Mirror ...................................... 133
