Engine ACURA INTEGRA 1998 Service Repair Manual

I
PGM-FI System
Knock Sensor {KSl (B18C1, 818C5 enginesl
The scan tool indicates Diagnostic Trouble Code (DTC) P0325: A problem in the circuit of the Knock Sensor
{KS).
ECM CONNECIOR D I16P)
Wire side of female terminals
- Tho MIL he3 b6en.eportgd on.- DTC P0325 i3 3tor6d,
Probl6m veriticalion:1. Do the ECM Reset Proc€dure.2. Start the engine. Hold theengine at 3,000 rpm with noload {in Park or neutral} untilthe radiator lan comes on,then let it idle.3. Hold the engine at 3,000 -
4,000 rpm for 10 seconds.
Intarmitt.nl failurc, ay3tem i3 OKrt thii timc llest driva mav b.naccrsrryl.Chcck for poor connactions o.loos. wir.. botw..n Cl33 knocks.nlor (KSl rnd EcM.
Ch6ck {or a 3hort in tho wirc IKSlin6l:1. Turn the ignition switch OFF.2. Disconnect the knock sensorconnector,3. Check for continuity betweenECM connector terminals D6and body ground.
R.o.i. short in thG wire batwaanECM lD6l rnd knock..n3or.
Check for an opcn in lho wiro
IKS lin.l:Check for continuity between ECMconnector terminal D6 and knocksensor connector terminal No. 1.
Reprir op.n in tho wira bttw..nECM lD6l and knock ..Nor.
Substitute a known-good knocksensor and recheck.
Raplac6 thc odginrl knock sanror.ls DTC P0325 is indicated?
Substitut6 . known-good ECM.nd rocheck. lf aymptom/indic.-tion 9003 away, .opbcc thc origi-nal ECM.Wire side of female terminals

t@
tFffi6l
F136il
l-P1362l
Fi3BTl
tFE82-l
Crankshaft Position/Top Dead Center/Cylinder Position (CKP/TDC/CYPI Sensor
The scan tool indicates Diagnostic Trouble Code {DTC) P0335: A malfunction in the Crankshaft Position (CKP)
sensor circuit.
The scan tool indicates Diagnostic Trouble Code (DTC) P0336: A range/performance problem in the CrankshaftPosition (CKP) sensor circuit.
The scan tool indicates Djagnostic Trouble Code (DTC) Pl361: Intermittent interruption in the Top Dead Center(TDC) sensor circuit.
The scan tool indicates Diagnostic Trouble Code (DTC) P1362: No signal in the Top Dead Center (TDC) sensorcircuit.
The scan tool indicates Diagnostic Trouble Code (DTC) P1381: Intermittent interruption in the Cylinder Position(CYP) sensor circuit.
The scan tool indicates Diagnostic Trouble Code (DTC) P]382: No signal in the Cylinder Position (CYP) sensorcircuit.
D€scription
The CKP Sensor determines timing for fuel injection and ignition of each cylinder and also detects engine speed. The TDCSensor determines ignition timing at stan-up (cranking) and when crank angle is abnormal. The Cyp Sensor detects theposition of No. 1 cylinder for sequential fuel injection to each cylinder.
NOTE: ll DTC P1359 is stored at the same time as DTC P0335, P0336, Pl361, P1362, P1381 and/or P1382. troubleshoot DTCP1359 first, then troubleshoot those DTCS.
Problcm va.itic.lion:'1. Do the ECM Reset Procedure.2. Stan the engine.
- Th. MIL ha3 bacn r.oort.d on.- olc P0335, P0336, P1361.P1362, P1381 and/o. P1382 erottorad.
Intormittcnt tailurc, rystem is OKat this lima. Checl tor poor con-naclions or loose wire3 at C109{CKP/lDC/CYP Scn30rl rnd €CM.
ls DTC P0335, P0336, P1361, P1362.P1381 and/or P'l382 indicared?
Chcck for .n open in thc TDC/CYP ,.n3or:L Turn the ignition switch OFF.2. Disconnect the CKP/TDC/CYP
3, Measure aesistance betweenthe terminals oI the indicatedsensor {see table).
Rcplaca tho distributor hou3ingscnsor {soa soction 231,ls rhere 0.5 - 1.0 kO?
TOC P (GRN}
Termanal side of male terminals
CYP P {YELI
CYPM IBLK)
SENSOnoTcSENSORTEEMINALECMTEflMINALCOLOR
CKPP0335c2BLU
P0336c12BLU/YEL {WHTI
TDCP13613G8N
P13627c13WHT/8LU {BEO)
CYPP13814c4YEI
P1382ac14WHT (BLK)
I ): ENGINE WIRE HARNESS SIDE
(To page 11-84)
-83

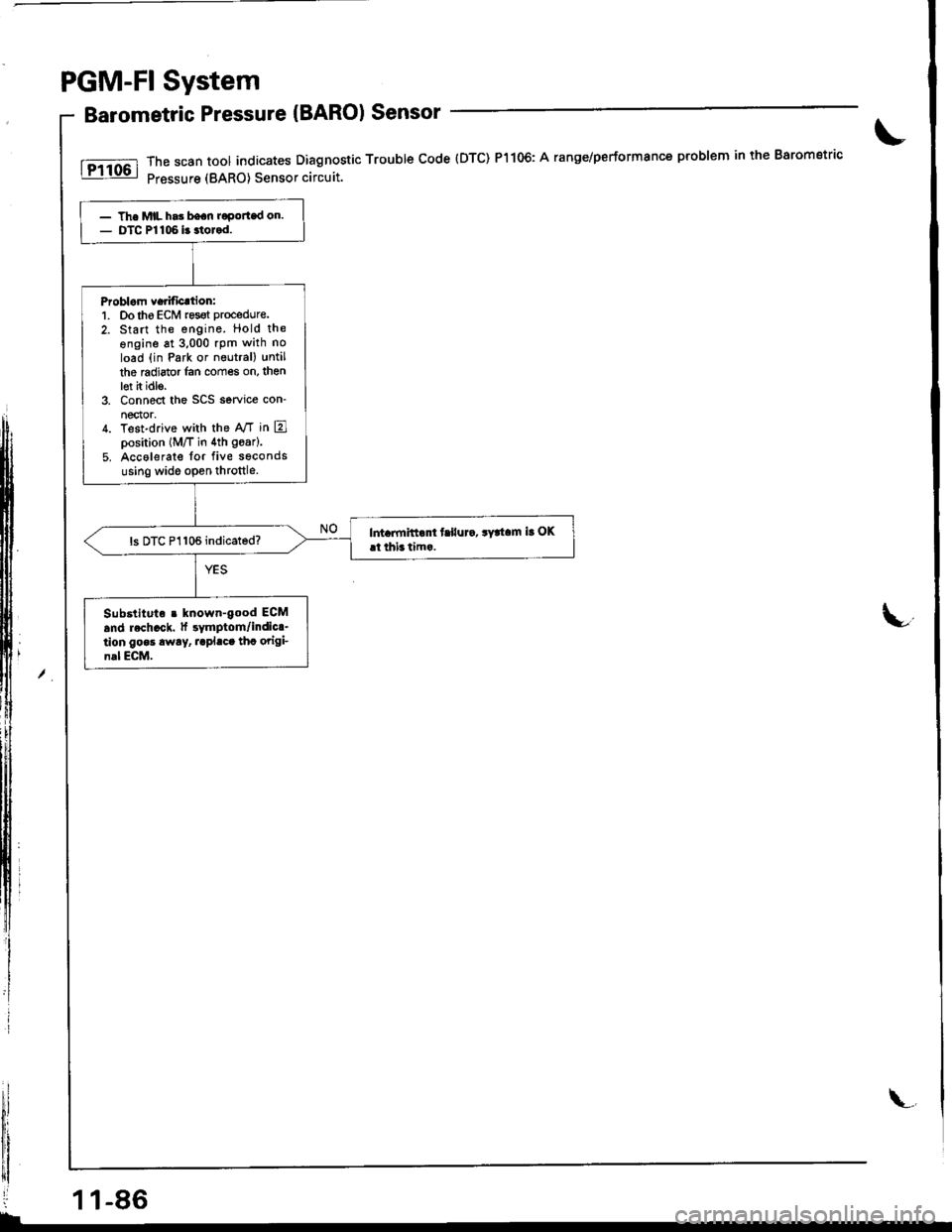

PGM-FI System
Barometric Pressure {BARO) Sensor
rrt*l ;:"""::::[Ti5li"$::::#nostic
rroubre code (Drc) P1106: A ranse/performance p'oblem in the Barometric\
,xl
lu,
i-
- The MIL h.3 bean roportad on.- DTC Pl106 i3 3tolod.
Problom Ye.ification:1. Dotho ECM resot procedure.
2. Start the engine. Hold the
ongine at 3,000 rpm with no
load (in Park or neutral) until
the mdiator lan comes on, thenlet h idle.3. Connect the SCS service con-
nector,4. Test-drive with the A,/T in E]position (M/T in 4th goar).
5. Accolerate for five seconds
using wide open throttle.
Int imitt.nt f.llur., .y!t.m ir OKrt thi. tim..ls DTC P1106 indicated?
Substltuto r known-good EGM
and rech.ck. tf rymptom/indic..lion gooa rway, raplaca thc origi_n.l ECM.
11-86
\.

PGM-FI System
Electrical Load Detector (ELDI (USAI
The scan tool indicates Diagnostic Trouble Code (DTC) P1297: A low voltage problem in the Electrical Load
Detector (ELD) circuit.
ELD 3P CONNECTOR {C218)
Wire side of female termin€ls
Problem verification:1- Do the ECM Reset Procedure.2. Stan the engine.3. Turn on headlights.
Int€rmittont failure. swtom b OKat this time. Check tor poor con-neqtions or loose wi.es at C218IELDI and ECM-
ls DTC P1297 indicated?
Check for ao open in the wire
{lG1 linel:1. Turn the ignition and head-lights OFF.2. Disconnect the ELD 3P con-nector,3. Turn the ignition switch ON (ll).
4. Measure voltage betlveen bodyground and the ELD 3P connector te.minal No.'1.
Repair op6n in the wire baiwe€nNo. 15 ALTERNATOR SP SENSOR17.5 Al fus€ in the under-dashluse/relay box and ELD.
Chock lor short in the wire {ELline,:Measure voltage between bodyground and the ELD 3P connectorterminal No.3.
ls there approx. 5 Vl
Check for a short in the wire (EL
linel:1. Turn the ignition switch OFF.2. Disconnect the ECM connectorD (16P).
3. Check for continuity betweenbody ground and ECM con-nector terminal D16.
Sooair short in the wire betweenECM (D161 and ELD.
Substitut€ a known-9ood ECMand recheck. It symptom/indica-tion goes away, r€place the origi-nal ECM.
EL{GRN/REDI
ECM CONNECTOR D {16PI
Wire side oI Iemale tarminals
11-88

The scan tool indicates Diagnostic Trouble Code (DTC) P1298: A high voltage problem in the Electrical Load
Detector (ELD) circuit.
ELD 3P CONNECTOR {C218}
_rJ ,112 3l-f-dnD
Wire side of female terminals
ECM CONNECTORS
{BLKI
Wire side of female termin6ls
EL {GRN/REDI
ECM CONNECTOR D (16PI
P.oblem verification:l Do the ECM Reset Procedure.2. Start the engine.3. Turn on headlights.
lntermittent failure, 3vstem is OKel ihis time. Chock for ooor con-nections or loose wiros at C218(EtD) and ECM.
ls DTC P1298 indicated?
Check lor an open in the wire(GNO linel:1. Turn the ignition switch andheadlights OFF.2. Disconnect the ELD 3P con-nector.3. Check for continuity betweenbody ground and the ELD 3Pconnector terminal No. 2.
Bepair opon in the wire bstweenELO connector and G402.
Check tor an opon in the wire IELlinell1. Disconnect the ECM connec-tor D (l6Pi.
2. Check for continuity betweenthe ELD 3P connector terminalNo. 3 and ECM connector terminal D16.
Repair open in the wir€ betweenECM l016l and rhe ELD.ls there continuity?
Check for a malfunction in theELD:1. Reconnect the ELD 3P connec-tor and ECM connector D (16P).
2. Start the engine and allow itto idle.3. Wh ile measuring voltagebetween ECM connector terminals D16 and A9, turn theheadlights on {low).
Sub3titute a knownjgood ECMand rechock. lf 3vmptom/indics-tion 9oe6 away, replace the original ECM.
A l32PtIBRN/BI-KI
Wire side of female ierminals
1 1-89

PGM-FI System
Crankshaft Speed Fluctuation {CKF) Sensor
lT13a6l Tje scan tool indicates Diagnostic Trouble Code (DTC) P'1336: lntermittent interruption in the Crankshaft Speed: Fluctuation {CKF) sensor orcurt.
The scan tool indicates Diagnostic Trouble Code (DTC) P1337: No signal in the Craqkshatt Speed Fluctuation (CKF)
sensor circuit.
DescriDtion
The diagnostic system has a pulser rotor on the crankshaft and a pulse pick-up sensor on the engine block. The ECM mon-
itors the crankshaft speed tluctuation based on the CKF sensor signal, and judges that an engine misfire occurred it the
lluctuation goes beyond a predetermined limit.
CKF SENSOR CONNECTOR IC 110)
T:lr+T
IJI',Icrr e -f-fcxr na
{BLU/RED} (D lwHr/REDI
Terminal side of male termanals
- The MIL has beon.ooorted on.- DTC P1336 and/or P1337 arostoaed.
Problem vo.itication:1. Do the ECM Reset Proced!re.2. Start the engine.
lntermittent feilure, swtem is OKat ihis timo. Chcck for ooor oon-noctions or loose wir* ei C110(CKF sonsor) and ECM.
Check for an open in tho CKF sen-sor:1. Turn the ignition switch OFF.2, Disconnect the CKF sensor con-
3. Measu re the resistancebetween the CKF sensor 2Pconnector terminals No. 1 andNo.2.
ls there 1.6 - 3.2 kO?
Check lor . short in tho CKF sen-30t:Check for continuity betweenbody ground and the CKF sensor2P connector terminals No. 1 andNo.2 individually.
ls there continuity?
(To page 11-91)
1 1-90
T:]lf -rl11 2|
TTcKF P /6 6 CKF M
relul Y\Z twxvneotneot ,-- | L

nsnan upeeo rlucruauon lunF, Densor lconr q,
The scan tool indicates Diagnostic Trouble Code (DTC) P1359: A problem in the Crankshaft Position,Top Dead
Cenler/Cylinder Position (cKP/TDC/CYP) sensor circuit.tPr3ssl
The MIL has been reported on.DTC P1359 is stored.
Problem verilication:1. Do the ECM Reset Procedure.2. Turn the ignition switch to theSTART {lll) positaon for 10 sec'
NOTE:. M/T: Clutch pedal must be
. A/T: Transmission in E or E
Intermittent failure, svstem isOK. Check for ooor connactionsor loos€ wi.es at C109 {CKP/TDC/CYP sensorl and ECM.
ls DTC P1359 indicated?
Check for poor connections orloose wires between the CKP/TDC/CYP sensor and the ECM.
Substitute a known-good ECMand recheck. It symptom/indica-tion goes away, replace ih6 origi-nal ECM.
PGM-FI System
Crankshaft Speed Fluctuatio(CKFI Sensor (cont'd)
ECM lnternal Circuit
\
L
I P1607 Tfre scan tool indicates Diagnostic Trouble Code (DTC) Pl607: An ECM Internal Circuit Failure A.
The MIL has been reported on.DTC P16O7 is stored.
Problem verification:1. Do the ECM Reset Procedure.2. Start the engine.3. Allow it to idle {or 5 seconds.
Inte.miftent failure, systom L OKst this iimo.ls DTC P1607 indicated?
Substitute a known-good ECMand .echeck. lf symptom/indica-tion goes away, replace the origi-nalECM.
-92

J
a
I
lF1660l Th"""untool indicates Diag nostic Trou ble code (DTC) P1660:Aproblem in theA./rf Fl data line.
Wire side of temale terminals
(conr'd)
ECM CONNECTOR C I31P}
ATCHK{BLUI
1 2 3 1l 15 6 710
11 t2 131r t5 16 1? t8'tg /21
././I l/nzex)
TCM CONNECTOR 26P (C,r2ol
7 r-T7 s 6 ;i-g-io-rrJzlil
15 16 17 / /.20 22 23 21 25 26
ATCHK IBLU)
o
ECM CONNECTOR C {31PI
Th6 MIL has been reported on.DTC P16GO is stored.
Problem verificationl1. Oo the ECM Reset Procedure.2. Turn the ignition switch OFF.3. Start the engane. Allow theengine at idle for one minute,
lntermittent failure, swtem is OKat lhis time. Check lor poor con-n€ctions or loose wires at C420ITCMI and ECM.
ls DTC P1660 indicated?
Check for an open in the wire
{ATCHK line}:1. Turn the ignition switch OFF.2. Check for continuity betweenECM connecto. terminal C19and TCM 26P connector terminal No.20.
Repair open in the wire betweenECM (Cl9) and TCM.ls there continuity?
Check tor a short in the wire{ATCHK line):1. Disconnect the ECM conoec'tor C (31P).
2- Disconnect the 26P connectorfrom the TCM.3. Check for continuity betweenbody ground and EcM connector terminal Cl9-
Repair short in the wire betweenECM lC19) and TcM.
(To page 11-94)
11-93

ldle Control System
System Description
The idle speed of the engine is controlled by the ldle Air Control (lAC) V8lve.
The valve changes the amount of air bypassing into the intake manifold in response to electric current controlled by the
ECM. When the IAC Valve is activated. the valve opens to maintain the proper idle speed.
81881 engine {B18Cl, B18C5 engines are similarl:
YELI - F.om PGM'FIBLK - MAIN RELAY
VARIOUS SENSORS
L
1 1-96

2.
1.
1.
2.
After the engine stans, the IAC valve opens for a certain time. The amount ol air is increased to raise the idle speed
about 150 - 300 rpm.
When the coolant temperature is low, the IAC valve is opened to obtain the proper fast idle speed. The amount of
bypassed air is thus controlled in relation to the engine coolant temperature.
IDLE SPEEDtrpm,
ENGINECOOLANT TEMPERATURE
140
50
104
40
-1 32
-20 0
176 ('F)
80 fcl
When the idle speed is out of specification and the scan tool does not indicate Diagnostic Trouble Code (DTC) P0505
or P'1508, check the following items:. Adiust the idle speed (see page '11-111)
' ALT FR signal (see page 11-101). Air conditioning signal {seepage'11-102)' Brake switch signal (seepagell-104)
. Starter switch signal (see page 11-1051. A,4 gear position signal (see page 1l 106) (A"/T)
. PSP switch signal (see page 11-108) (USA)
. Fast idle thermo valve (see page 11-110). Hoses and connections. IAC valve and its mounting O rings
ll the above items are normal, substitute a known-good IAC valve and readjust the idle speed (see page 'l I -1 1 l).
lf the idle speed still cannot be adjusted to specification (and the scan tool does not indicate DTC P0505 or P1508) after
IAC valve replacement, substitute a known-good ECM and recheck. lf symptom goes away, replace the original ECM.
11-97
