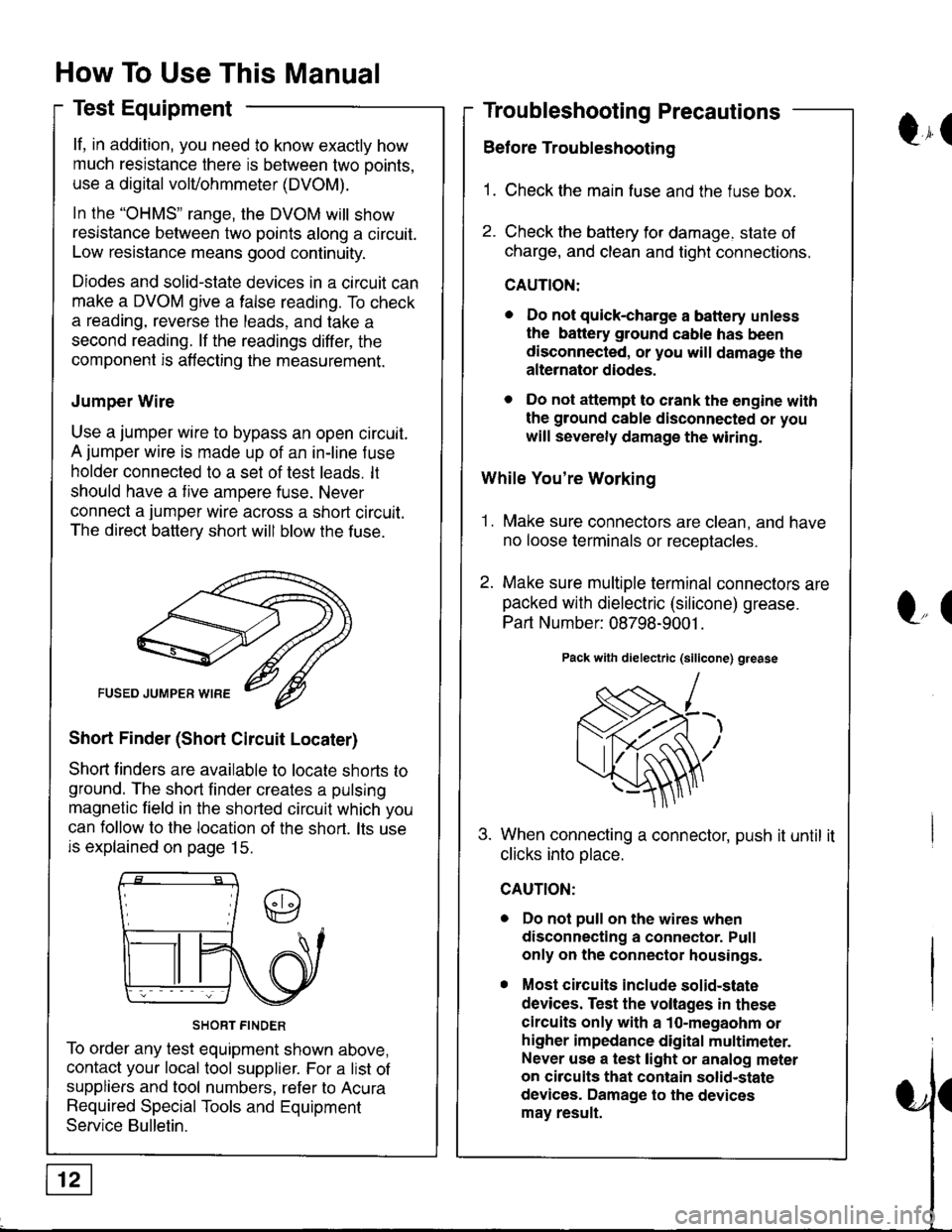

How To Use This Manual
Test Equipment
lf, in addition, you need to know exactly how
much resistance there is between two ooints.
use a digital volVohmmeter (DVOM).
In the "oHMS" range, the DVOM will show
resistance between two points along a circuit.
Low resistance means good continuity.
Diodes and solid-state devices in a circuit can
make a DVOM give a false reading. To check
a reading, reverse the leads, and take a
second reading. lf the readings differ, the
component is affecting the measurement.
Jumper Wire
Use a jumper wire to bypass an open circuit.
A jumper wire is made up of an in-line f use
holder connected to a set of test leads. lt
should have a tive ampere fuse. Never
connect a jumper wire across a short circuit.
The direct battery short will blow the fuse.
Short Finder (Short Circuit Locater)
Shoft linders are available to locate shorts to
ground. The short finder creates a pulsing
magnetic field in the shorted circuit which you
can follow to the location of the short. lts use
is explained on page 15.
SHORT FINDER
To order any test equipment shown above,
contact your local tool supplier. For a list of
suppliers and tool numbers, refer to Acura
Required Special Tools and Equipment
Service Bulletin.
Troubleshooting Precautions
Before Troubleshooting
1. Check the main fuse and the fuse box.
2. Check the battery for damage. state of
charge, and clean and tight connections.
CAUTION:
. Do not quick-charge a battery unless
the battery ground cable has been
disconnected, or you will damage the
alternator diodes.
. Do not attempt to crank the engine with
the ground cable disconnected or you
will severely damage the wiring.
While You're Working
1. Make sure connectors are clean, and have
no loose terminals or receotacles.
2. Make sure multiple terminal connectors are
packed with dielectric (silicone) grease.
Part Number: 08798-9001 .
Pack with dielectric (silicone) grease
When connecting a connector, push it until it
clicks into olace.
Do not pull on the wires when
disconnecting a connector. Pull
only on the connector housings.
Most circuits include solid-state
devices. Test the voltages in these
circuits only with a 1o-megaohm or
higher impedance digital multimeter.
Never use a test light or analog meter
on circuits that contain solid-state
devices. Damage to the devices
may result.
Qr(
l"(

Ground-to-Components I ndex
NOTE: All ground wires are BLK unless otherwise noted.
GroundPageComponents or Circuit Grounded
Battery (BLIVYEL)
--t'I Valve cover (BRN)
G101t.+
and
14-1
Daia link connector (BRN/BLK), Engine or powertrain controt module (pct and pG2
are BLK; LG1 and LG2 are BRN/BLR, IAB controt solenoid valve (GS-B),
lmmobilizer receiver unit ('00 Model) (BRN/BLR, PGM-Ft main retay, Radiator fan
switch, Transmission control module ('98.99 Models with MD (2 BRN/BLK wires),
Vehicle speed sensor, WEC pressure switch (GS-R, Type-R)
Shielding between the ECM or PCM and these components (all have BRAIDED wires):
CKF sensor, Primary and secondary heated oxygen sensors, Knock sensor (GS-R,
Type-R), TDC/CKP/CYP sensor
Shielding between the TCM ('98-'99 Models) or PCM ('00 Model) and these components(all have BRAIDED wires): Countershaft speed sensor, Mainshaft speed sensor
G1s1 ii Condenser fan motor
Brake fluid level switch, Cruise control actuator, Left front parking/turn signal light, Left
front side marker light, Left headlight, Power steering pressure switch (USA), Rear
window washer motor (Hatchback), Windshield washer motor, Windshield wiper motor
14-3
Blower motor relay, ELD unit, Badiator fan motor, Right front parking/turn signal light,
Right front side marker light, Right headlight.....plus everything grounded through G401
ABS fail-safe relay, ABS pump motor
G40114-4
ano
l4-c
A,/T gear position switch, Cigarette lighter, Clutch switch (M,/T), Ctock, Ctutch interlock
switch (MfD, Combination wiper switch (2 wires), Cruise control main switch, Cruise
control unit, Dash lights brightness controller, Data link connector, Daytime running
lights control unit (Canada), Front passenger's door key cylinder switch, Frontpassenger's door lock switch, Gauge assembly (2 wires), Glove box light, Heater
control panel, Heater tan switch, lgnition key switch, Integrated control unit, Interlock
control unit (AfI), Maintenance reminder unit, Mode control motor, Moonroof relay,
Moonroof switch, Parking pin switch (AfD, Power window relay, Rear window defogger
switch, Service check connector, Turn signal/hazard relay.....plus everything grounded
throuoh G201
Driver's door key cylinder switch, Driver's door lock actuator, Drivels door lock switch,Driver's seat belt switch, Fuel pump (BLI(/WHT), Fuel tank unit (BLI(/WHT), power doorlock control unit, Power mirror switch, Power window master switch (2 wires)
Hatch key cylinder switch, Hatch latch switch, Hatch opener actuator, Hatch ooener
switch, Left and right back-up lights, Left and right brake light/taillights, Lett and right
rear parking lights, Left and right rear turn signal lights, License plate lights, power
antenna motor, Trailer lighting connector..... plus everything grounded through G751
6-6
'14-8G503
(Sedan)
High mount brake light, Left and right back-up lights, Lett and right inner brake tighv
taillights, Left and right outer brake light/taittights, Left and right rear parking tights, Leftand right rear turn signal lights, License plate lights, Rear window detogger, Trailer
lighting connector, Trunk latch switch

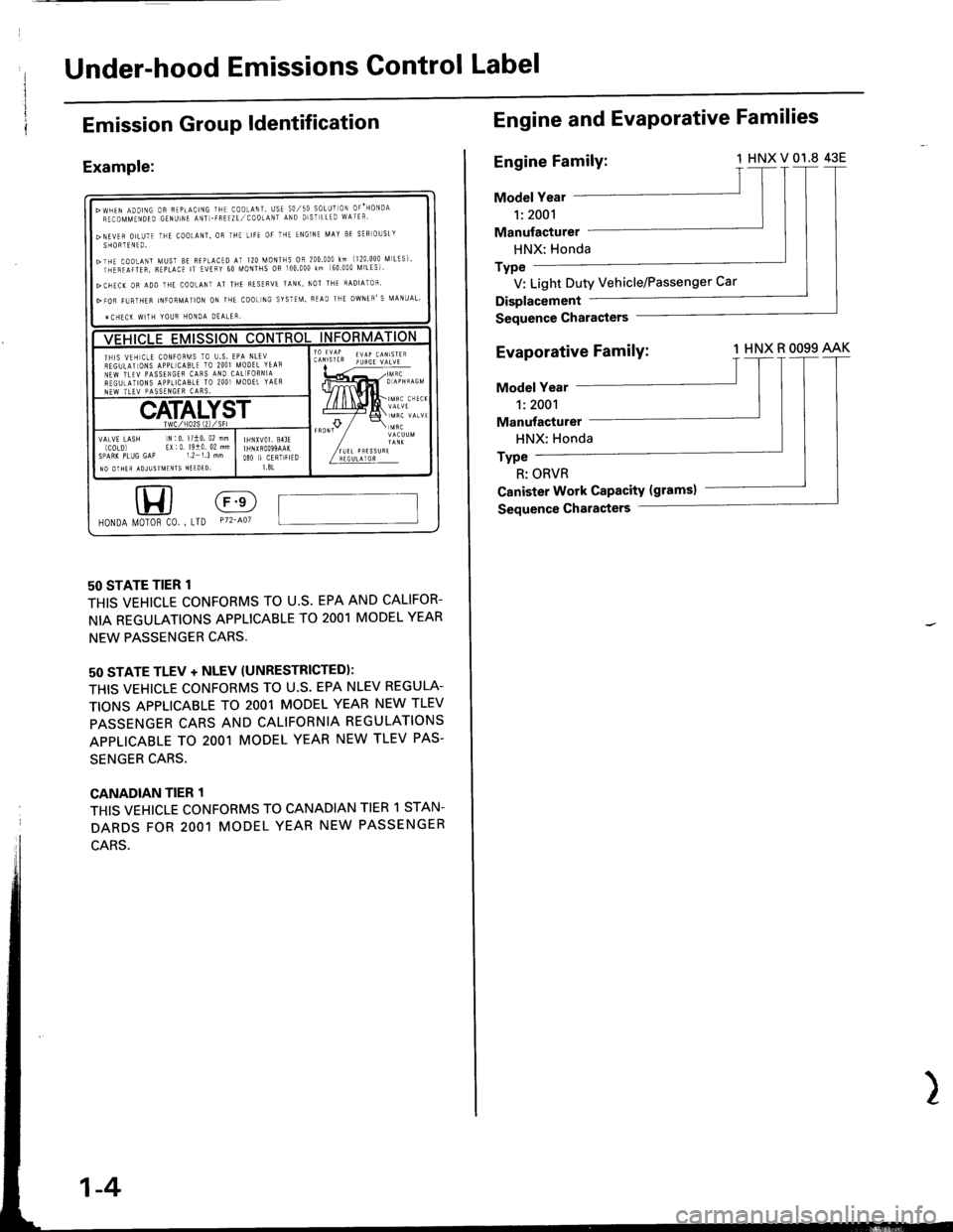

Under-hood Emissions Gontrol Label
Emission GrouP ldentification
Example:
50 STATE TIER 1
THIS VEHICLE CONFORMS TO U.S. EPA AND CALIFOR-
NIA REGULATIONS APPLICABLE TO 2OO1 MODEL YEAR
NEW PASSENGER CARS.
50 STATE TLEV + NLEV (UNRESTRICTEDI:
THIS VEHICLE CONFORMS TO U.S. EPA NLEV REGULA-
TIONS APPLICABLE TO 2OO1 MODEL YEAR NEW TLEV
PASSENGER CARS AND CALIFORNIA REGULATIONS
APPLICABLE TO 2OO1 MODEL YEAR NEW TLEV PAS.
SENGER CARS.
CANADIAN TIER 1
THIS VEHICLE CONFORMS TO CANADIAN TIER 1 STAN.
DARDS FOR 2OO1 MODEL YEAR NEW PASSENGER
HONDA l/0T0R c0. , LTD P72-401
>wHEN ADDTNG oR FEPtActNG THE co0LANT, usE 50,/50 soLUr oN oF'HoNDARECOMMTNDED GENUINE ANT -FREIZE,/COOtANT AND DIST LLED WATEF'
>NEVEfl DILUTE THE COOtANT, OR IHE LIFE OF THE ENGINF MAY BE SER]OUSLYSHORTENTO.
>THE COoLANT MUST BE BEPLACED AT I20 MONTHS OR 200.000 km (120 000 [,| LtS]'rnirilrren, B€pLAcE rT EvEFY 60 [roNTHs oR 100.000 km (60 000 [ilLEs)'
>CHEC( OR ADD THE COOLANI AT THE RESERVE TANK. NOT THE RADIATOF'
>FOR FI,JRTHER INFORMATION ON ]HE COOL]NG SYSTEM. READ THE OWNEN'S MANUAL'
ICHECK WITH YOUR HONOA DEALER,
ll,5lil, 5;i;,'iX;';'THIS VTH CtE CONFOF[IS TO U.S. EPA NLEVREGULATIONS APPL]CABLE TO 2OO] MODEL YTAsNEW TLTV PASSENGEF CAFS AIID CAL]FORNIAREGUTATIONS APPLICABLE TO 2OO] MOOET YAERNEW TLEV PASSENGER CARS.
IHNXVOI, 813FI HNXROO99AAKO8O II CERIIFIED1.81
VATVE LASH N:0. l/10. 02 mm(COLD) EX|0 19i0 02 mmSPARK PLUG GAP 1.2-1.3 mmIO OTHER ADJUSIMENIS NIEDTO,
Engine and EvaPorative Families
Engine Family:1HNXV01.8 43E
Model Year
1:2001
Manufacturer
HNX: Honda
Type
V: Light Duty Vehicle/Passenger Car
Displacement
Sequence Gharasters
Evaporative FamilY:1 HNX R OO99 AAK
Model Year
1:2001
Manufacturer
HNX: Honda
Type
R: ORVR
Ganister Work CaPacitY (gramsl
Sequence Characters
1-4
