fold seats ACURA INTEGRA 1998 Service Repair Manual

Seats

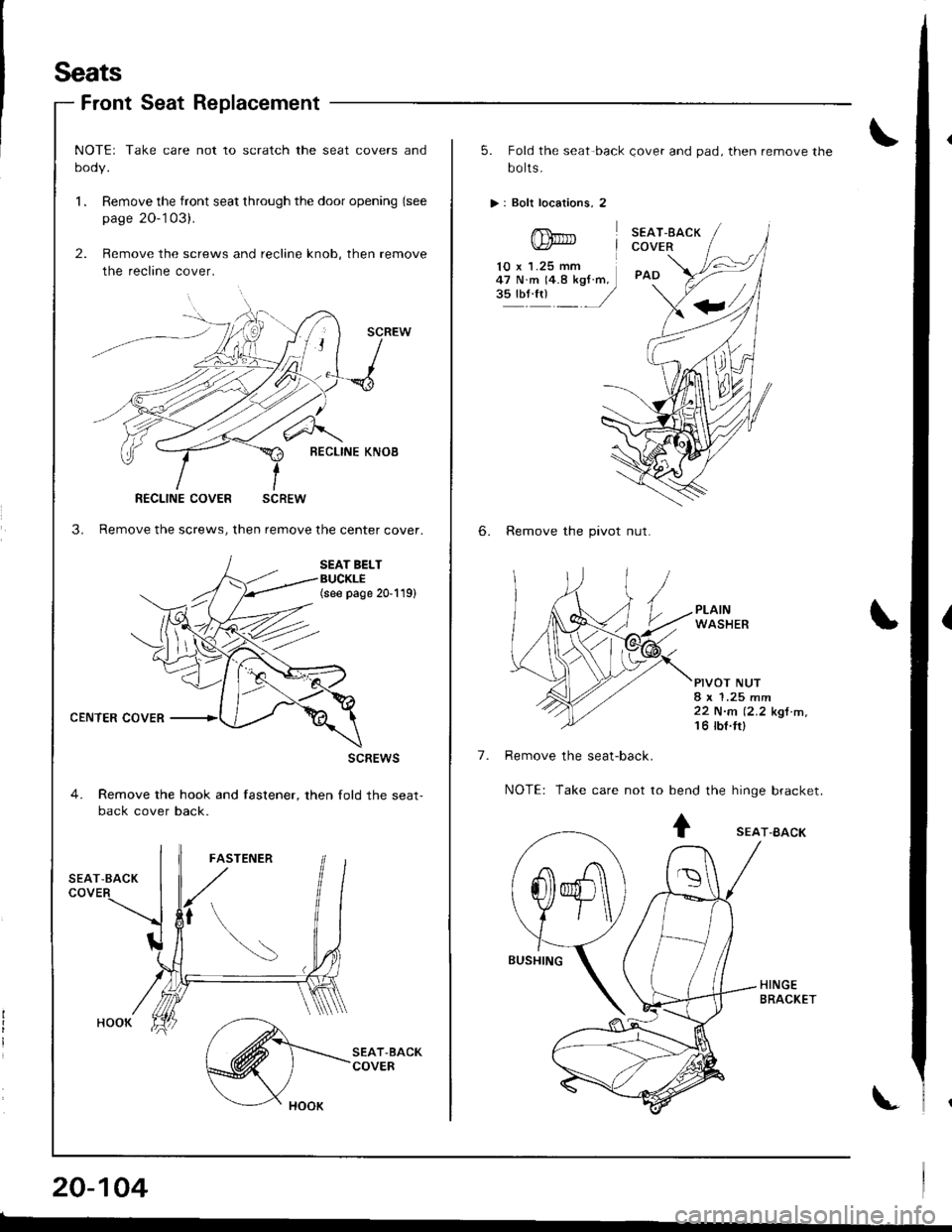

Front Seat Replacement
CENTER COVER
NOTEr Take care not to scratch the seat covers and
oooy.
l. Remove the front seat through the door opening (see
page 20-'103).
2. Remove the screws and recline knob, then remove
the recline cover.
SCREW
l-{O
BECLINE KNOB
3. Remove the screws, then remove the center cover.
SEAT BELTBUCKLE(see page 20-119)
scREws
4. Remove the hook and fastener, then fold the seat-back cover back.
RECLINE COVER SCREW
20-104
5. Fold the seat-back Qover and pad, then remove the
bo lts.
>: Boli locations, 2
SEAT.EACKCOVER
PAD
6. Remove the pivot nut.
PLAINWASHER
PIVOT NUT8 x 1.25 mm22 N.n (2.2 kgt m,'t 6 tbt.ttl
Remove the seat-back.
NOTE: Take care not to bend the hinge bracket.
10 x 1.25 mm47 N.m 14.8 kgf.m,3!'oli1 /
7.
+ sEAr-BAcK
-A\
@ )\
f\

Seats

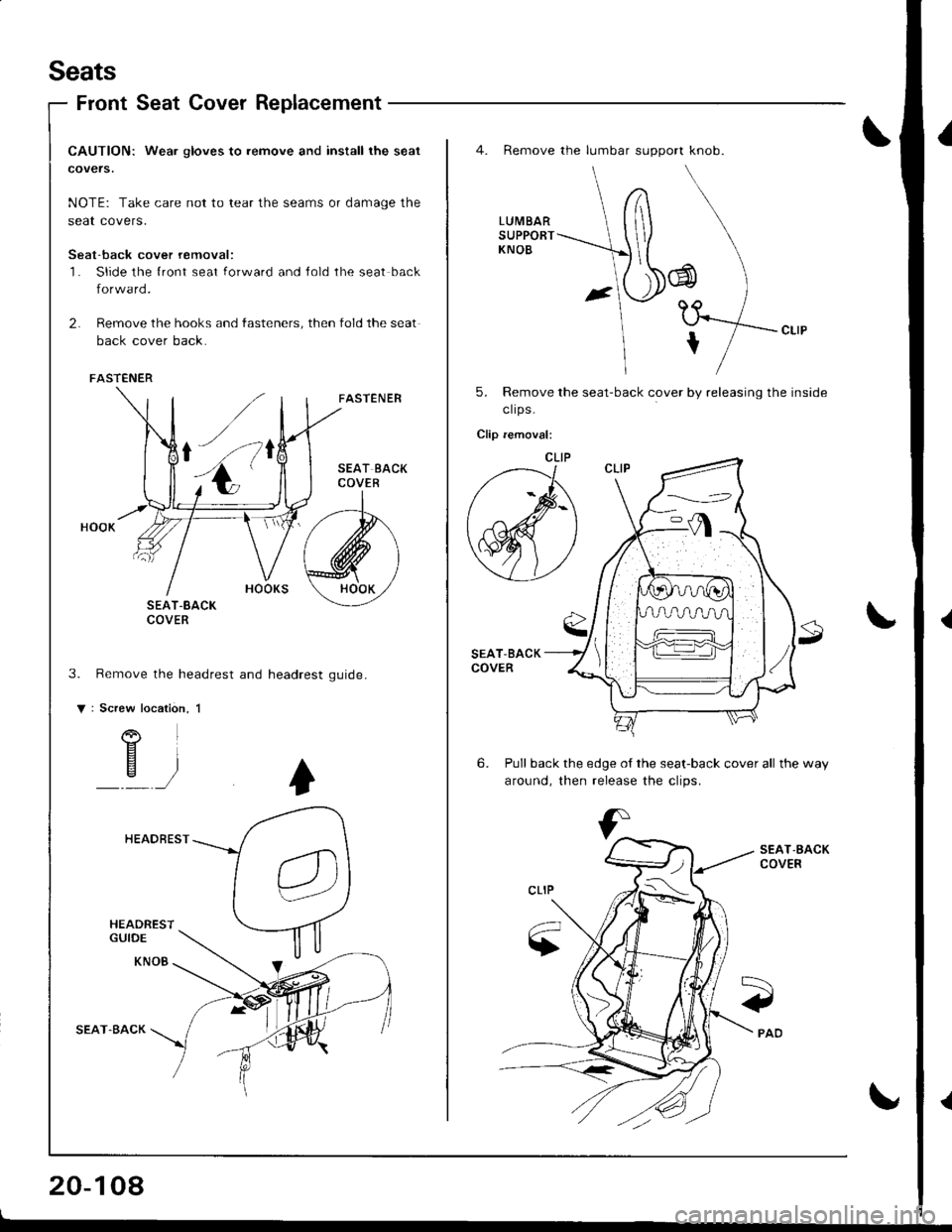

Front Seat Cover Replacement
CAUTION: Wea. gloves to remove and install the seat
covers.
NOTE: Take care not to tear the seams or damage the
seat covers.
Seat-back cover removal:'l- Slide the {ront seat forward and Jold the seat back
forward.
2. Remove the hooks and fasteners, then fold the seat
back cover back.
FASTENER
SEAT-8ACKCOVER
Remove the headrest and headrest
Screw
o
FASTENER
gu rd e.
location, 1
)
HEADREST
HEADRESTGUIDE
KNOB
SEAT.BACK
20-108
o
4. Remove the lumbar support knob.
LUMBARSUPPORTKNOB
J
tf*,,
5. Remove the seat-back cover by releasing the inside
clrps -
Clip removal:
SEAT-BACKCOVER
6. Pull back the edge of the seat-back cover all the way
around. then release the clios.
SEAT,BACKCOVER

Seats
Rear Seat Replacement

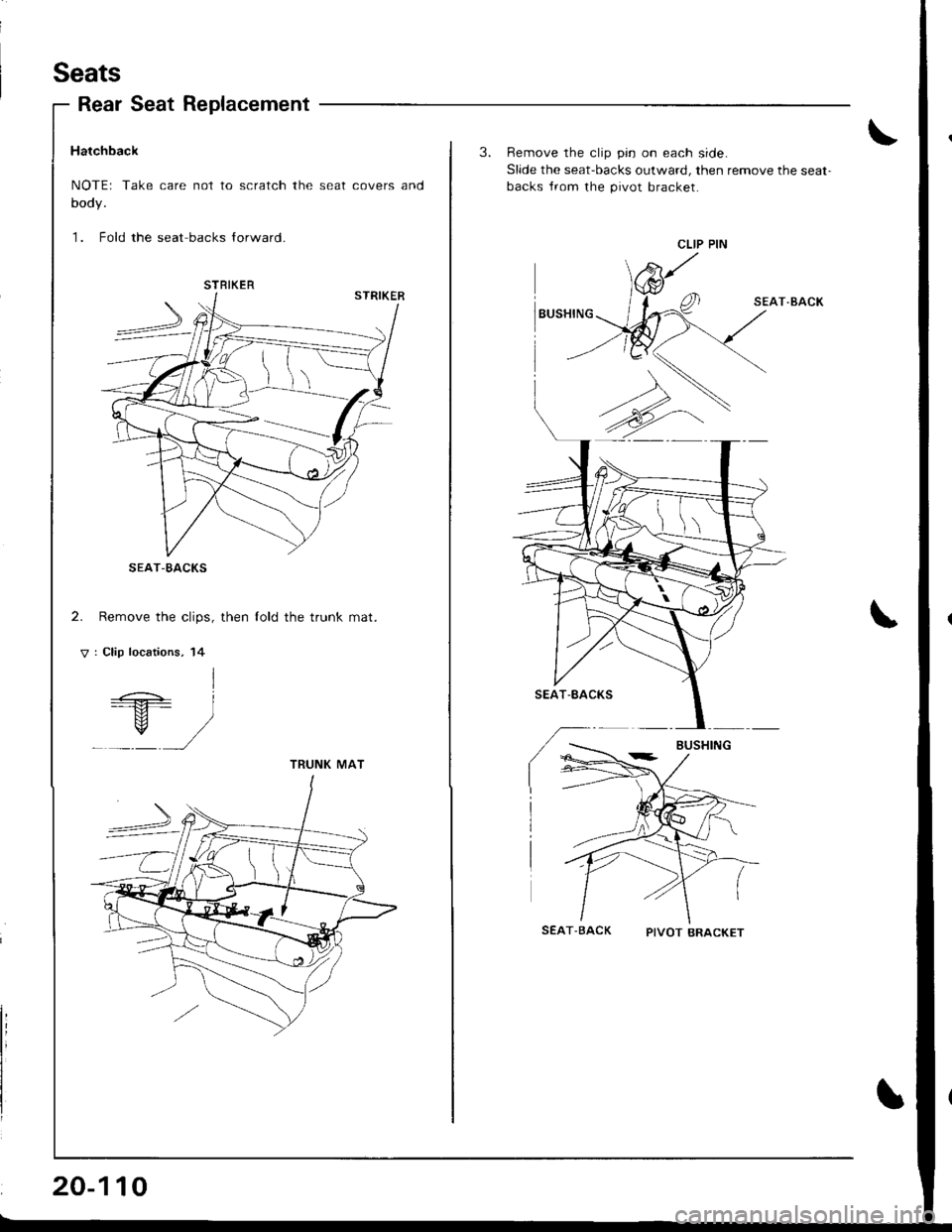

Hatchback
NOTEr Take care not to scratch the seat covers and
body.
1. Fold the seat backs lorward.
2. Remove the clips, then lold the trunk mat.
V : Clip locations, 14
I=+ i---M- l
_Y/
STRIKER
I\.
TRUNK MAT
20-110
3. Remove the clip pin on each side.
Slide the seat-backs outward, then remove the seat-
backs Jrom the pivot bracket.
SEAT.BACK
SEAT-BACK PTVOTBRACKET
\
CLIP PIN

Seats
Rear Seat Replacement {cont'd)

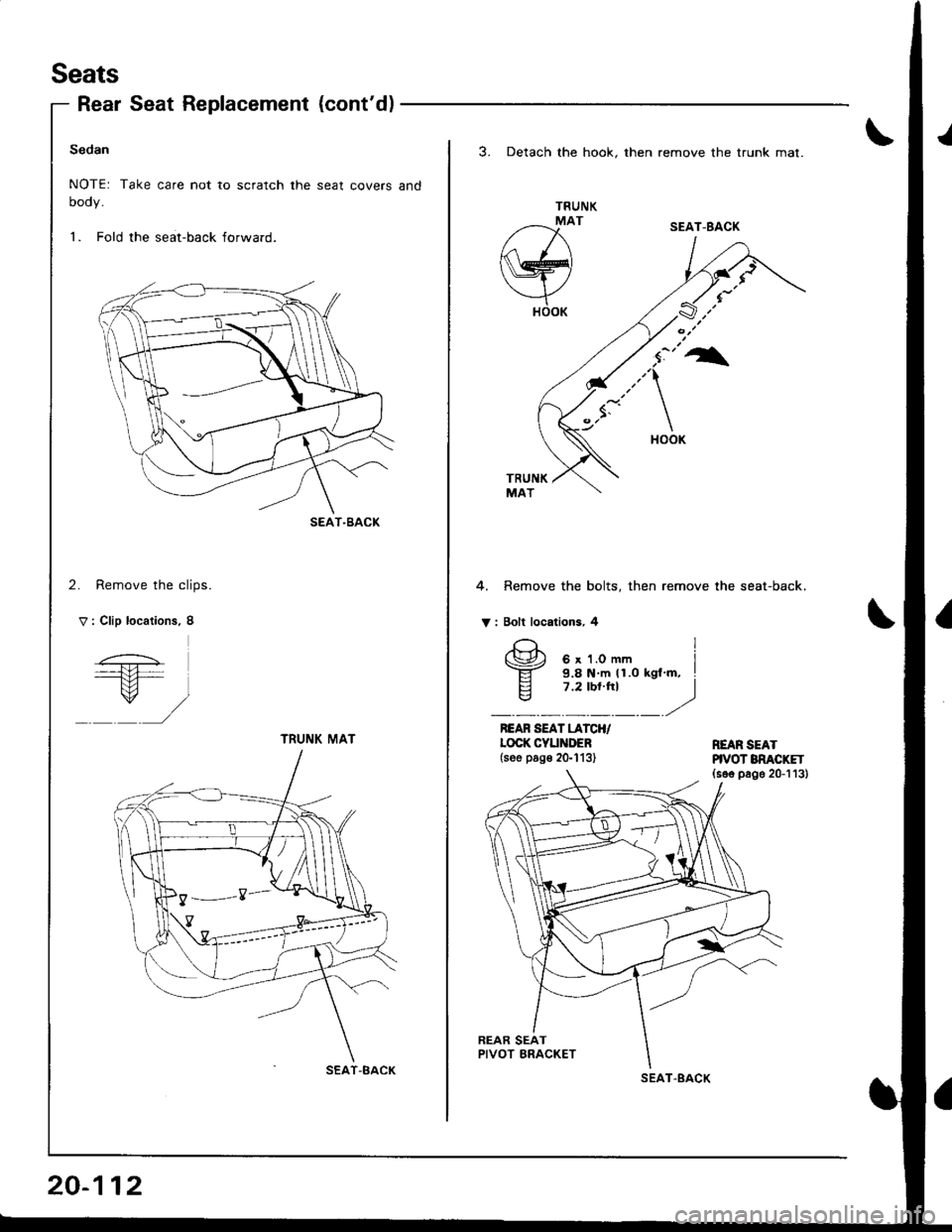

Sedan
NOTE: Take care not to scratch the seat covers and
oooy.
1. Fold the seat-back forward.
2. Remove the clips.
V : Clip locations. 8
SEAT-BACK
TRUNI( MAT
SEAT-BACK
20-112
3. Detach the hook. then remove the trunk mat.
TRUNK
/--x'
w
YHOOK
4. Remove the bolts, then remove the seat-back.
V : Bolt locations, 4
REAR SEAT LATCH/LOCK CYUiIDEB(see pog€ 2G113)REAR SEATHVOT BNACKET(s6e page 20-113)
SEAT-BACK
I
(\Jr', 6 x 1.0 mm I-ET- 9.8 N m (1.0 kgl'm, I
E 7.2 tbt.ht Iq7 ,2'/.
SEAT.BACK
