engine ACURA INTEGRA 2024 Owners Manual

675
Maintenance

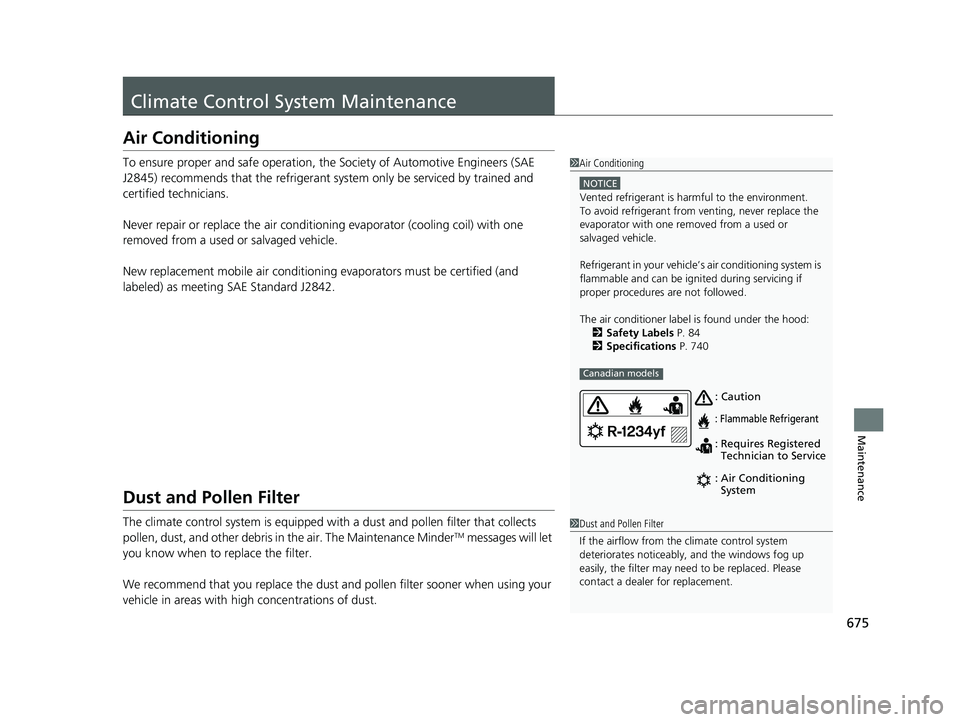

Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust an d pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Air Conditioning
NOTICE
Vented refrigerant is harmful to the environmentM
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicleM
Refrigerant in your vehicle

679
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap is stuck to painted surfaces.
• If driving in conditions that cause buildup of mud, snow, ice or other debris on the
inner fender vents.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
• Do not spray water directly onto the ca mera or the area around it. Water may
enter the lens and cause th e camera to malfunction.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake or hood vents
*.
It can cause a malfunction.
Lock the doors when washing the vehicle.
Do not spray water onto the fuel fill door directly. A
high-pressure spray ma y cause it to open.
Air Intake Vents
1.5 L engine models
2.0 L engine models
Air Intake
Vents
Hood Vents
2.0 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 679 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuCleaning uExterior Care
680
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin-coated parts, they
may stain or the coating may peel. Prompt ly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin-Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Washing the Vehicle
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position. 2 Changing the Wiper Blade P. 657
1Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin-Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
24 ACURA INTEGRA-313S56100.book 680 ページ ２０２３年２月１３日　月曜日　午後２時４１分

685
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 686
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 688
Changing a Flat Tire ......................... 704
Engine Does Not Start Checking the Engine ........................ 711
If the Keyless Remote Battery is Weak .. 712Emergency Engine Start ................... 713
Emergency Engine Stop ................... 714
If the Battery Is Dead
Jump Starting Procedure .................. 715
Shift Lever Does Not Move .............. 718Overheating
How to Handle Overheating............. 719
Indicator Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 722
If the Charging System Indicator Comes On ................................................. 723
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 723
If the Brake System Indicator (Red) Comes On or Blinks ................................... 724
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 726
If the Electric Power Steering (EPS) System Indicator Comes On......................... 725
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 727
Fuses
Fuse Locations ................................. 728
Inspecting and Changing Fuses ........ 732
Emergency Towing ........................... 734
If You Cannot Unlock the Fuel Fill Door.. 735If You Cannot Open the Hatch ........ 736
Refueling ........................................... 737
24 ACURA INTEGRA-313S56100.book 685 ページ ２０２３年２月１３日　月曜日　午後２時４１分

686
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar
Tool Case Funnel
Models with optional spare tire
Funnel
1.5 L engine models with temporary tire repair kit
Tool Case
24 ACURA INTEGRA-313S56100.book 686 ページ ２０２３年２月１３日　月曜日　午後２時４１分

687
uuTools uTypes of Tools
Handling the Unexpected
Funnel
2.0 L engine models with temporary tire repair kit
Tool Case
24 ACURA INTEGRA-313S56100.book 687 ページ ２０２３年２月１３日　月曜日　午後２時４１分

690
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Pull the strap on the cargo area floor lid and
open the lid.1.5 L engine models
2.0 L engine models
24 ACURA INTEGRA-313S56100.book 690 ページ ２０２３年２月１３日　月曜日　午後２時４１分

691
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tire Repair Kit
1.5 L engine models
2.0 L engine models
Tire Repair Kit
24 ACURA INTEGRA-313S56100.book 691 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued693
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 218
5.Start the engine.
2 Starting the Engine P. 433
uKeep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 83
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
24 ACURA INTEGRA-313S56100.book 693 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued699
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
35 psi (240 kPa)/rear: 33 psi (230 kPa).
• Greater than 25 psi (175 kPa), but less
than 33 psi (230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to 33 psi
(230 kPa).
2 Inflating an Under-inflated Tire P. 701
Then, drive carefully for 10 more minutes
or until you reach the nearest service
station. Do not exc eed 50 mph (80 km/h).
u You should repeat this procedure as
long as the air pressu re is within this
range.
Models with 235/40R18 91W tires
Models with 265/30ZR19 93Y tires
Models with 215/50R17 91H tires
1 Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
24 ACURA INTEGRA-313S56100.book 699 ページ ２０２３年２月１３日　月曜日　午後２時４１分
