turn signal ACURA INTEGRA 2024 Owner's Manual

Continued575
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
The front wide view camera behind the
rearview mirror monitors left and right lane
markings in white or yellow, the outer edge of
the pavement (bordered by grass or gravel) or
a detected oncoming vehicles.
If your vehicle approach es any detected lane
markings, the outer edge of the pavement
(bordered by grass or gravel) or a detected
oncoming vehicles when the turn signals have
not been engaged, the system activates.
u If the system cannot detect lane
markings (in white or yellow), no
assistance will be provided to avoid
approaching oncoming vehicles. In
addition to a visual alert, the system
assists with steering and alerts you with
rapid steering wheel vibrations to help
you remain within the detected lane.
2 Vehicle Settings* P. 134
2 Customized Features P. 367
As a visual alert, the Lane departure
message appears on the driver information
interface.
■How the System Works1 Road Departure Mitigation System
There are times when you may not notice the Road
Departure Mitigation system functions due to your
operation of the vehicle, or road surface conditions.
You can change the settin gs for the Road Departure
Mitigation system.
If LKAS is off, the message below may appear if the
system has determined that there is a possibility of
your vehicle crossing over detected lane markings,
the outer edge of the pavement (into a grass or
gravel border) or oncoming vehicle.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Amber
Line
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
24 ACURA INTEGRA-313S56100.book 575 ページ ２０２３年２月１３日　月曜日　午後２時４１分

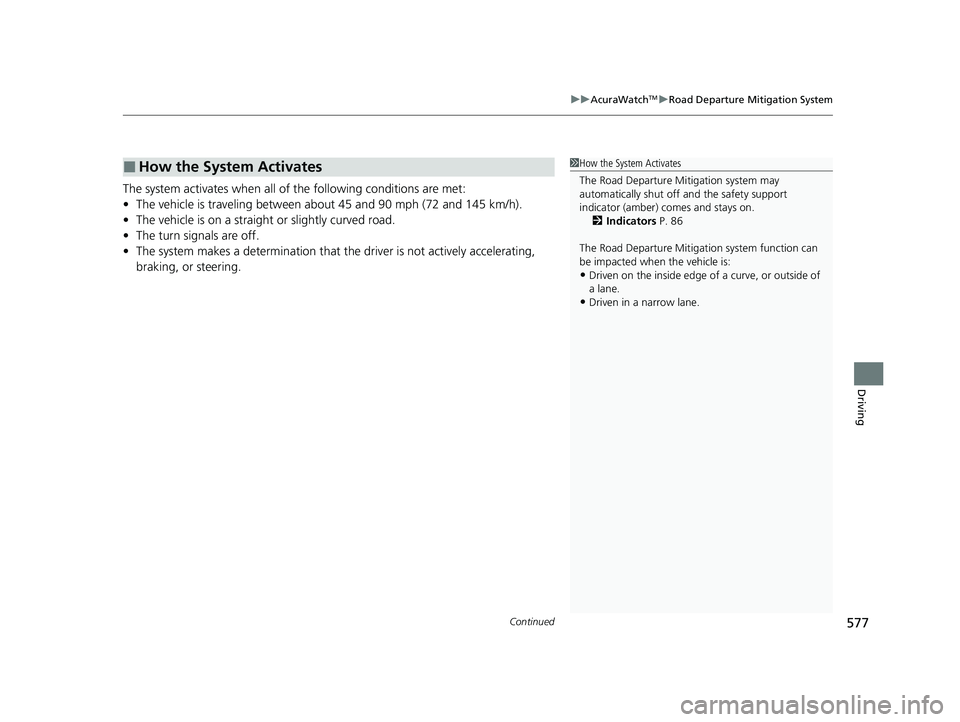

Continued577
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
The system activates when all of the following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The system makes a determination that th e driver is not actively accelerating,
braking, or steering.
■How the System Activates1 How the System Activates
The Road Departure Mi tigation system may
automatically shut off and the safety support
indicator (amber) co mes and stays on.
2 Indicators P. 86
The Road Departure Mitiga tion system function can
be impacted when the vehicle is:
•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
24 ACURA INTEGRA-313S56100.book 577 ページ ２０２３年２月１３日　月曜日　午後２時４１分

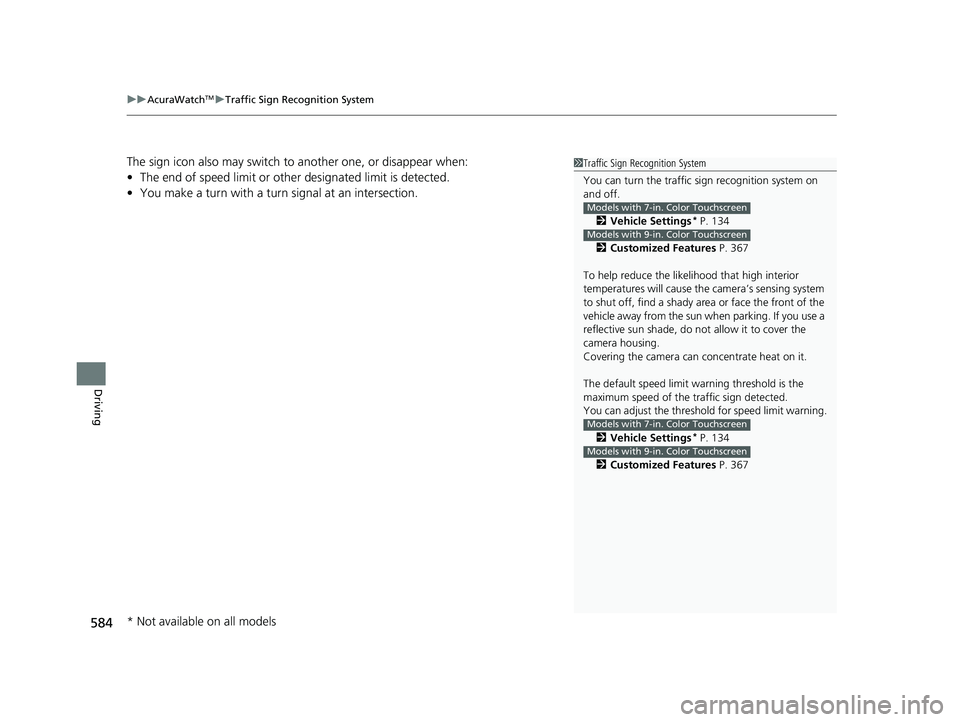

uuAcuraWatchTMuTraffic Sign Recognition System
584
Driving
The sign icon also may switch to another one, or disappear when:
• The end of speed limit or other designated limit is detected.
• You make a turn with a turn signal at an intersection.1Traffic Sign Recognition System
You can turn the traffic sign recognition system on
and off.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
To help reduce the likel ihood that high interior
temperatures will cause the camera’s sensing system
to shut off, find a shady ar ea or face the front of the
vehicle away from the sun when parking. If you use a
reflective sun shade, do not allow it to cover the
camera housing.
Covering the camera can concentrate heat on it.
The default speed limit wa rning threshold is the
maximum speed of the traffic sign detected.
You can adjust the threshol d for speed limit warning.
2 Vehicle Settings
* P. 134
2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
24 ACURA INTEGRA-313S56100.book 584 ページ ２０２３年２月１３日　月曜日　午後２時４１分

655
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Turn Signal, Parking/ChicaneTM Daytime
Running, and Front Side Marker Lights
Front turn signal, parking/ daytime running, and front side marker lights are LED
type. Have an authorized Acura dealer inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
Door Outer Handle Ambient Lights*
Door outer handle ambient lights are LED ty pe. Have an authorized Acura dealer
inspect and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 655 ページ ２０２３年２月１３日　月曜日　午後２時４１分

656
uuReplacing Light Bulbs uBrake, Rear Side Marker, Brake/ChicaneTM Taillights, Back-Up, and Rear Turn Signal Lights
Maintenance
Brake, Rear Side Ma rker, Brake/ChicaneTM Taillights,
Back-Up, and Rear Turn Signal Lights
Brake, rear side marker, brake/ taillights, back-up, and rear turn signal lights are LED
type. Have an authorized Acura dealer inspect and replace the light assembly.
Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
24 ACURA INTEGRA-313S56100.book 656 ページ ２０２３年２月１３日　月曜日　午後２時４１分

740
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Air Conditioning
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelINTEGRA*1
INTEGRA TYPE-S*2
No. of Passengers:
Front 2
Rear3
Total 5
Front 2
Rear2
Total 4
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeRB100EV-01 (POE)*1
ND-OIL14 (POE)*2
Quantity 6.71 – 7.5 cu-in (110 – 123 cm3)*1
6.41 – 7.32 cu-in (105 – 120 cm3)*2
1.5 L engine models
2.0 L engine models
■
Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: 1.5 L engine models
*2: 2.0 L engine models
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK DILKAR8P8SY*1
ILZKAR8J8SY*2
Type
Unleaded premium gasoline, pump octane
number 91 or higher*1
Unleaded premium gasoline, pump octane
number 93 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:1.6 US qt (1.5 L)
Canada:4.8 US qt (4.5 L)*1
1.6 US qt (1.5 L)*2
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/ChicaneTM Daytime Running Lights LEDFront Side Marker LightsLED
Front Turn Signal Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal LightsLED
Rear Side Marker Lights LED
Back-Up LightsLED
Brake/ChicaneTM Taillights LEDHigh-Mount Brake LightLED
Rear License Plate Lights LED
Door Outer Handle Lights*LED
Interior Lights Map Lights LED
Ceiling Light LED
Ambient Lights LED
Vanity Mirror Lights 2 W
Center Console Light LED
Glove Box Light LED
Door Inner Handle Lights
*LED
Foot Lights*LED
Cargo Area Lights LED
* Not available on all models
24 ACURA INTEGRA-313S56100.book 740 ページ ２０２３年２月１３日　月曜日　午後２時４１分

756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日　月曜日　午後２時４１分

757
Index
Coat Hooks............................................... 214
Cold Weather Driving .............................. 670
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 489
Compact Spare Tire .......................... 704, 741
Console Compartment ............................. 211
Continuously Variable Transmission Creeping................................................. 443
Fluid ....................................................... 652
Kickdown ............................................... 443
Operating the Shift Lever .................. 24, 445
Shift Lever Does Not Move ...................... 718
Shifting ................................................... 444
Controls .................................................... 149
Coolant (Engine) .............................. 648, 650
Adding the Coolant ........................ 648, 651
Overheating ............................................ 719
Creeping (Continuously Variable Transmission) .......................................... 443
Cross Traffic Monitor ............................... 613
Cup Holders .............................................. 212
Customize Display .................................... 114
Customized Features ....................... 362, 367
D
Dead Battery............................................ 715
Defaulting All the Settings .............. 366, 384
Defrosting the Windshield and Windows ................................................. 228
Devices that Emit Radio Waves ............... 743Dimming
Headlights ............................................... 184
Rearview Mirror ....................................... 197
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 183
Display Setup .................................... 244, 286
Door Mirrors ............................................. 198
Doors ......................................................... 152
Auto Door Locking .................................. 169
Auto Door Unlocking ............................... 169
Door Open Message .................................. 39
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 166
Locking/Unlocking the Doors from the Outside.................................................. 155
DOT Tire Quality Grading ........................ 663
Driver Attention Monitor ........................ 123
Driver Information Interface ........... 111, 117
Switching the Display .............................. 117
Driver’s Knee Airbag .................................. 57
Driving ....................................................... 425
Braking .................................................... 594
Cold Weather Driving .............................. 670
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 448
Shifting Position ...................................... 444
Starting the Engine .................................. 433
Driving Position Memory System ............. 194
Dust and Pollen Filter ............................... 675
Dynamic Mode Switch .............................. 455
E
Elapsed Time............................................. 122
Electric Power Steering (EPS) System Indicator............................................ 94, 725
Electronic Stability Control (ESC) ............. 474
Emergency ................................................ 734
Emergency Engine Stop ........................... 714
Emergency Hatch Opener ........................ 736
Emissions Testing (Readiness Codes) ....... 746
Engine Coolant ........................................... 648, 650
If the Battery Is Dead ............................... 715
Oil ........................................................... 640
Starting ................................................... 433
Engine Coolant ................................. 648, 650
Adding the Coolant......................... 648, 651
Overheating ............................................ 719
Temperature Gauge ................................ 108
Engine Oil ................................................. 640
Adding .................................................... 643
Checking................................................. 641
Displaying Oil Life .................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Engine oil pressure low Warning ............ 722
ENGINE START/STOP Button .................... 180
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 679
Exterior Mirrors ........................................ 198
24 ACURA INTEGRA-313S56100.book 757 ページ ２０２３年２月１３日　月曜日　午後２時４１分

759
Index
I
Identification NumbersVehicle Identification............................... 742
Immobilizer System .................................. 173
Indicator ................................................... 98
Indicators .................................................... 86
Adaptive Cruise Control (ACC)................ 533
Adaptive Cruise Control (ACC) with
Low Speed Follow ......................... 101, 512
Adaptive Cruise Control (ACC) with Low Speed Follow Interval ............................ 102
Anti-lock Brake System (ABS) .................... 94
Auto High-Beam ....................................... 96
Auto Idle Stop (Green) .............................. 99
Auto Idle Stop OFF .................................... 99
Auto Idle Stop Suspend........................... 100
Auto Idle Stop System (Amber) ................. 99
Automatic Brake Hold ....................... 90, 600
Automatic Brake Hold System ........... 90, 600
Charging System............................... 91, 723
COMFORT Mode ...................................... 97
Cruise Mode ........................................... 102
Electric Power Steering (EPS) System ............................................ 94, 725
Fog Light .................................................. 96
Gear Position ............................................ 92
High Beam ................................................ 96
Immobilizer System ................................... 98
INDIVIDUAL Mode .................................... 97
Lane Keeping Assist System (LKAS) ......... 102
Lights On .................................................. 96 Low Fuel .................................................... 94
Low Tire Pressure/TPMS ............. 95, 480, 727
M (7-speed manual shift mode) Indicator/
Shift ........................................................ 91
Malfunction Indicator Lamp ............... 91, 723
NORMAL Mode ......................................... 97
Parking Brake and Brake System (Amber) ........................................... 90, 726
Parking Brake and Brake System (Red) ...................... 88, 89, 724, 726
Safety Support ................................. 103, 106
Seat Belt Reminder .............................. 42, 93
Security System Alarm ............................... 98
Shift Down ........................................ 92, 450
Shift Position ............................................. 91
Shift Up ............................................. 92, 450
SPORT Mode ............................................. 97
SPORT+ Mode ........................................... 97
Supplemental Restraint System ............ 64, 94
System Message ........................................ 97
Transmission System .................................. 92
Turn Signal and Haza rd Warning ............... 96
Vehicle Stability Assist
TM (VSA ®) OFF ... 95, 475
Vehicle Stability AssistTM (VSA ®)
System............................................. 95, 474
Information ............................................... 739
Instant Fuel Economy ............................... 120
Instrument Panel ........................................ 85
Integrated Dynamics System .................... 454
Dynamic Mode Switch ..................... 455, 456
Interior Lights ........................................... 209 Interior Rearview Mirror
.......................... 197
iPod ................................................... 247, 307
J
Jack (Wheel Nut Wrench) ........................ 707
Jump Starting ........................................... 715
K
Key Number Tag ....................................... 153
Keyless Access System .............................. 155
Keys ........................................................... 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 168
Remote Transmitter ................................. 161
Two-way Keyless Remote ........................ 162
Types and Functions ................................ 152
Kickdown (Continuously Variable Transmission) .......................................... 443
L
Lane Keeping Assist System (LKAS) ......... 553
LATCH (Child Seats) .................................... 73
24 ACURA INTEGRA-313S56100.book 759 ページ ２０２３年２月１３日　月曜日　午後２時４１分

760
Index
Lights................................................. 184, 655
Auto High-Beam ...................................... 188
Automatic ............................................... 185
Bulb Replacement .................................... 655
Chicane
TM Daytime Running Lights........... 187
Fog Lights ................................................ 187
High Beam Indicator .................................. 96
Interior .................................................... 209
Light Switches ......................................... 184
Lights On Indicator .................................... 96
Turn Signals ............................................. 183
Limited Slip Differential (LSD) ................. 477
Load Limits ................................................ 429
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 169
Childproof Door Locks ............................. 168
From Inside .............................................. 166
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 163
Low Battery Charge .................................. 723
Low Fuel Indicator ...................................... 94
Low Remote Key Signal Strength ............ 154
Low Speed Braking Control ............. 501, 507
Lower Anchors ............................................ 73
Luggage (Maximum Load Limit) .............. 429
Lumbar Support ........................................ 200
M
Maintenance............................................. 625
Adding the Coolant......................... 648, 651
Battery .................................................... 671
Brake Fluid .............................................. 653
Cleaning ......................................... 676, 679
Climate Control System ........................... 675
Coolant ........................................... 648, 650
Maintenance Minder
TM............................ 629
Oil ........................................................... 641
Precautions ............................................. 626
Remote Transmitter ......................... 673, 674
Replacing Light Bulbs .............................. 655
Safety...................................................... 627
Service Items ........................................... 633
Tires ........................................................ 659
Transmission Fluid ................................... 652
Under the Hood ...................................... 637
Malfunction Indicator Lamp .............. 91, 723
Manual Transmission ............................... 448
Map Lights ................................................ 210
Maximum Load Limit ............................... 429
Meters, Gauges ......................................... 107
Mirrors ...................................................... 197
Adjusting ................................................ 197
Door ....................................................... 198
Exterior ................................................... 198
Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 682
Moonroof ................................................. 179
Multi-View Rear Camera .......................... 617
N
Navigation................................................ 122
Numbers (Identification) ......................... 742
O
Odometer................................................. 108
Oil (Engine) .............................................. 640
Adding ................................................... 643
Checking ................................................ 641
Displaying Oil Life ................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Viscosity.................................................. 640
Open Source Licenses ...................... 357, 754
Opening
Hatch...................................................... 736
Hood ...................................................... 639
Opening/Closing Hatch...................................................... 170
Moonroof ............................................... 179
Power Windows...................................... 176
Outside Temperature Display ................. 109
Overheating ............................................. 719
P
Paddle Shifters (7-Speed Manual Shift
Mode) ..................................................... 446
Panic Mode ............................................... 175
Parking ..................................................... 607
24 ACURA INTEGRA-313S56100.book 760 ページ ２０２３年２月１３日　月曜日　午後２時４１分
