window ACURA INTEGRA 2024 Owner's Guide

625
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 626
Safety When Performing Maintenance .... 627Parts and Fluids Used in Maintenance Service ........................................... 628
Maintenance Minder
TM..................... 629
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 637Opening the Hood ........................... 639
Recommended Engine Oil ................ 640
Oil Check ......................................... 641
Adding Engine Oil ............................ 643
Changing the Engine Oil and Oil Filter..... 644
Engine Coolant ................................ 648
Transmission Fluid ............................ 652
Brake/Clutch
* Fluid .......................... 653
Refilling Window Washer Fluid......... 654
Replacing Light Bulbs ....................... 655
Checking and Maintaining Wiper Blades.... 657
Checking and Maintaining Tires
Checking Tires ................................. 659
Tire and Loading Information Label ... 661
Tire Labeling .................................... 661
DOT Tire Quality Grading (U.S. Vehicles) .... 663Wear Indicators................................ 665
Tire Service Life ................................ 665 Tire and Wheel Replacement ........... 666
Tire Rotation .................................... 667
Winter Tires ..................................... 668
Battery ............................................... 671
Remote Transmitter Care Replacing the Remote Battery .......... 673
Climate Control System Maintenance .... 675Cleaning
Interior Care .................................... 676
Exterior Care.................................... 679
Accessories and Modifications Accessories ...................................... 682
Modifications................................... 683
* Not available on all models
24 ACURA INTEGRA-313S56100.book 625 ページ ２０２３年２月１３日　月曜日　午後２時４１分

654
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle

657Continued
Maintenance

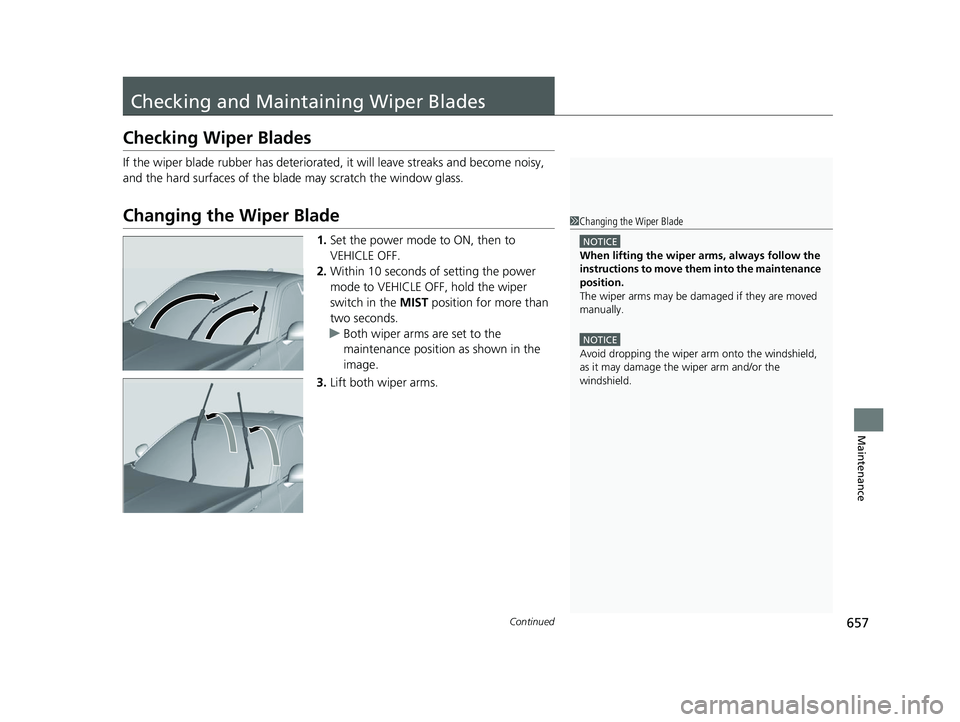

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and become noisy,
and the hard surfaces of the blade may scratch the window glass.
Changing the Wiper Blade
1. Set the power mode to ON, then to
VEHICLE OFF.
2. Within 10 seconds of setting the power
mode to VEHICLE OFF, hold the wiper
switch in the MIST position for more than
two seconds.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Wiper Blade
NOTICE
When lifting the wiper arms, always follow the
instructions to move them into the maintenance
position.
The wiper arms may be damaged if they are moved
manually.
NOTICE
Avoid dropping the wiper arm onto the windshield,
as it may damage the wiper arm and/or the
windshieldM
24 ACURA INTEGRA-313S56100.book 657 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued677
uuCleaning uInterior Care
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over floor
anchors, which keep the mat from sliding
forward.
Do not put any additional floor mats on
top of the anchored mat.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the cover of the electrical
components around the rearview mirror.
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position any rear seat floor mats properly. If not
properly positioned, the floor mats can interfere with
the front seat functions.
Lock Unlock
Example
24 ACURA INTEGRA-313S56100.book 677 ページ ２０２３年２月１３日　月曜日　午後２時４１分

679
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap is stuck to painted surfaces.
• If driving in conditions that cause buildup of mud, snow, ice or other debris on the
inner fender vents.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
• Do not spray water directly onto the ca mera or the area around it. Water may
enter the lens and cause th e camera to malfunction.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake or hood vents
*.
It can cause a malfunction.
Lock the doors when washing the vehicle.
Do not spray water onto the fuel fill door directly. A
high-pressure spray ma y cause it to open.
Air Intake Vents
1.5 L engine models
2.0 L engine models
Air Intake
Vents
Hood Vents
2.0 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 679 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuCleaning uExterior Care
680
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin-coated parts, they
may stain or the coating may peel. Prompt ly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin-Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Washing the Vehicle
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position. 2 Changing the Wiper Blade P. 657
1Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin-Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
24 ACURA INTEGRA-313S56100.book 680 ページ ２０２３年２月１３日　月曜日　午後２時４１分

681
uuCleaning uExterior Care
Maintenance

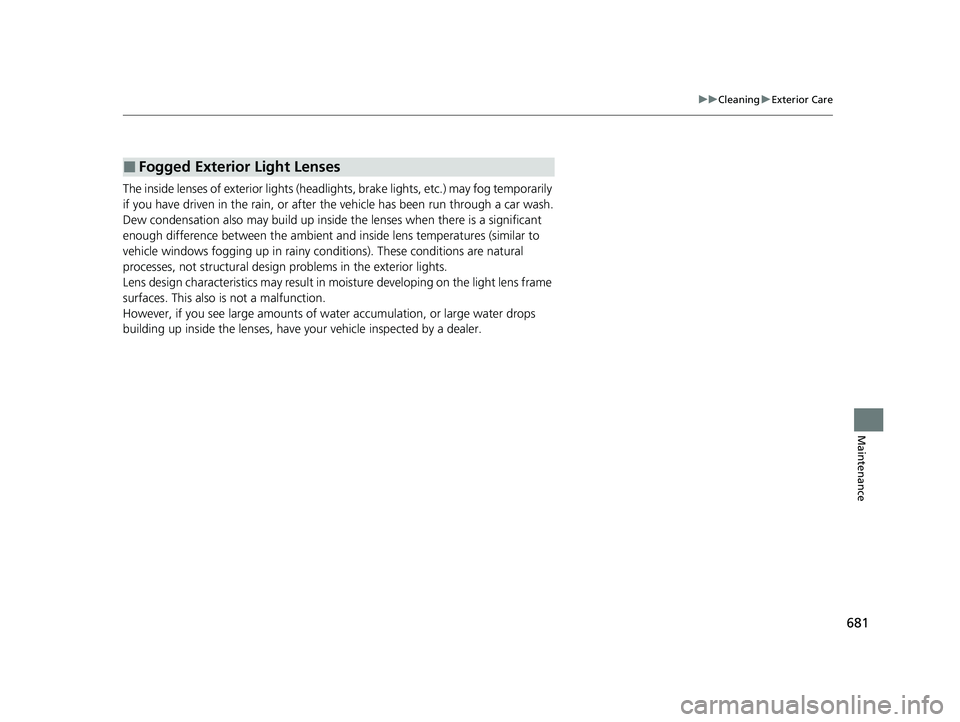

The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
24 ACURA INTEGRA-313S56100.book 681 ページ ２０２３年２月１３日　月曜日　午後２時４１分

682
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any items other than Ac ura Genuine Accessories designated for
your vehicle over areas marked SRS AIRBAG, on the sides or backs of the front
seats, on the sides of the rear seats, on fro nt or side pillars, or near the side
windows.
Items other than Acura Genuine Accessories designated for your vehicle installed
in these areas may interfere with proper operation of the vehicle’s airbags or may
be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 728
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Acura Genuine Accessories are recommended to
ensure proper operati on on your vehicle.
Some Acura Genuine Access ories are supplied with
an exclusive owner’s manua l for the operation and
care detail of the product. If an accessory owner’s
manual is provided to you, please refer to it for full
detail.
If any Acura Genuine Accessories become inoperable,
refer to the separate accessory owner’s manual (if
applicable) or consult a de aler for assistance to
troubleshoot the potenti al faulty condition.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
24 ACURA INTEGRA-313S56100.book 682 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued693
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 218
5.Start the engine.
2 Starting the Engine P. 433
uKeep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 83
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
24 ACURA INTEGRA-313S56100.book 693 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
702
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 218
8.Start the engine.
2 Starting the Engine P. 433
uKeep the engine runn ing while injecting
air.
2 Carbon Monoxide Gas P. 83
9.Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
24 ACURA INTEGRA-313S56100.book 702 ページ ２０２３年２月１３日　月曜日　午後２時４１分
