service ACURA INTEGRA 2024 Workshop Manual

698
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 734
•Front: 35 psi (240 kPa)/rear: 33 psi (230
kPa) or more:
• 33 psi (230 kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.
u If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.
Models with 235/40R18 91W tires
Models with 265/30ZR19 93Y tires
Models with 215/50R17 91H tires
24 ACURA INTEGRA-313S56100.book 698 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued699
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
35 psi (240 kPa)/rear: 33 psi (230 kPa).
• Greater than 25 psi (175 kPa), but less
than 33 psi (230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches to 33 psi
(230 kPa).
2 Inflating an Under-inflated Tire P. 701
Then, drive carefully for 10 more minutes
or until you reach the nearest service
station. Do not exc eed 50 mph (80 km/h).
u You should repeat this procedure as
long as the air pressu re is within this
range.
Models with 235/40R18 91W tires
Models with 265/30ZR19 93Y tires
Models with 215/50R17 91H tires
1 Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
24 ACURA INTEGRA-313S56100.book 699 ページ ２０２３年２月１３日　月曜日　午後２時４１分

717
uuIf the Battery Is Dead uJump Starting Procedure
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC)*, Adaptive Cruise Control
(ACC) with Low Speed Follow*, and safety support
indicators may come on in amber along with a
message in the gauge when you set the power mode
to ON after reconnecting th e battery. Drive a short
distance at more than 12 mph (20 km/h). Each
indicator should go off. If any do not, have your
vehicle checked by a dealer.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 717 ページ ２０２３年２月１３日　月曜日　午後２時４１分

734
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 594
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
24 ACURA INTEGRA-313S56100.book 734 ページ ２０２３年２月１３日　月曜日　午後２時４１分

739
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 740
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 742
Devices that Emit Radio Waves ....... 743
Reporting Safety Defects ................. 745
Emissions Testing Testing of Readiness Codes .............. 746
Warranty Coverages ......................... 749
Authorized Manuals ......................... 752
Client Service Information ............... 753Open Source Licenses
....................... 754
24 ACURA INTEGRA-313S56100.book 739 ページ ２０２３年２月１３日　月曜日　午後２時４１分

741
uuSpecifications u
Information
■
Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■ Manual Transmi ssion Fluid*
*1: 1.5 L engine models
*2: 2.0 L engine models
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedAcura MTF
Capacity Change 2.0 US qt (1.9 L)*1
2.3 US qt (2.2 L)*2
■
Engine Oil
*1: 1.5 L engine models
*2: 2.0 L engine models
■Engine Coolant
*1: Continuously Variable Transmission models
*2: Manual Transmission models
Recommended·Acura Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change
3.4 US qt (3.2 L)
*1
5.3 US qt (5.0 L)*2
Change
including
filter3.7 US qt (3.5 L)*1
5.7 US qt (5.4 L)*2
SpecifiedAcura Long-Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity
1.51 US gal (5.72 L)*1
1.48 US gal (5.59 L)*2
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)
1.76 US gal (6.65 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.5 L engine models
2.0 L engine models
■ Tire
*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Models with 19 inch wheel
*4: Vehicle with optional spare tire
Regular
Size215/50R17 91H*1
235/40R18 91W*2
265/30ZR19 93Y*3
Pressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])*1
35 (240 [2.4])*2, *3
Rear33 (230 [2.3])
Compact
Spare
*4
Size T125/80R17 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2
19 x 9 1/2J*3
Compact Spare*417 x 4T
* Not available on all models
24 ACURA INTEGRA-313S56100.book 741 ページ ２０２３年２月１３日　月曜日　午後２時４１分

750
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or re cycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle.
This provision does not apply to a new motor vehicle purchased solely for
commercial or industrial use.
24 ACURA INTEGRA-313S56100.book 750 ページ ２０２３年２月１３日　月曜日　午後２時４１分

751
uuWarranty Coverages u
Information
Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty.
The Federal Trade Commission requires that a manufacturer demonstrate that an
aftermarket or recycled part or service performed by a person other than an
authorized service provider caused damage to another part of the vehicle otherwise
covered under warranty before denying warranty coverage.
Additionally, federal law allows a manufact urer to void a motor vehicle warranty or
deny warranty coverage if the manufacture r provides the article or service to
consumers free of charge under the warranty or the manufacturer has secured a
waiver from the Federal Trade Commission.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further in formation concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
24 ACURA INTEGRA-313S56100.book 751 ページ ２０２３年２月１３日　月曜日　午後２時４１分

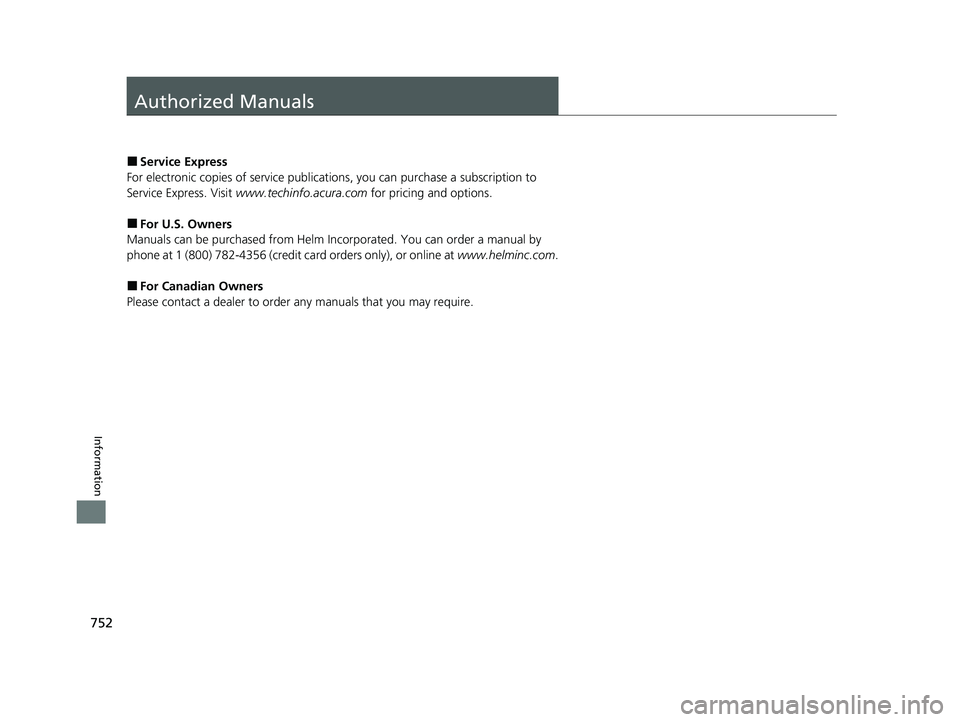

752
Information
Authorized Manuals
■Service Express
For electronic copies of se rvice publications, you can purchase a subscription to
Service Express. Visit www.techinfo.acura.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
24 ACURA INTEGRA-313S56100.book 752 ページ ２０２３年２月１３日　月曜日　午後２時４１分

753
Information
Client Service Information
Acura dealership personnel are trained professionals able to deal with any problems
you may encounter with your vehicle. If, however, you are faced with a problem that
they cannot resolve to your satisfaction, contact Acura Client Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop CHI-4
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-7546 In Guam
Triple J Autogroup
157 S. Marine Corps Drive
Tamuning, GU 96913
Tel: (671) 648-22771
Client Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 742
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
