ACURA INTEGRA 2024 Manual Online

79
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■Using an outer anchor
1. Remove the cargo area cover.
2 Cargo Area Cover P. 217
2.Locate the appropriate tether anchor point.
3. Route the tether strap over the top of the
head restraint. Make sure the strap is not
twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Anchor
Tether Strap Hook
Tether Strap Hook
Anchor
Straight top tether type in outer
position
Other top tether type in outer
position
24 ACURA INTEGRA-313S56100.book 79 ページ ２０２３年２月１３日　月曜日　午後２時４１分

80
uuChild Safety uSafety of Infants and Small Children
Safe Driving

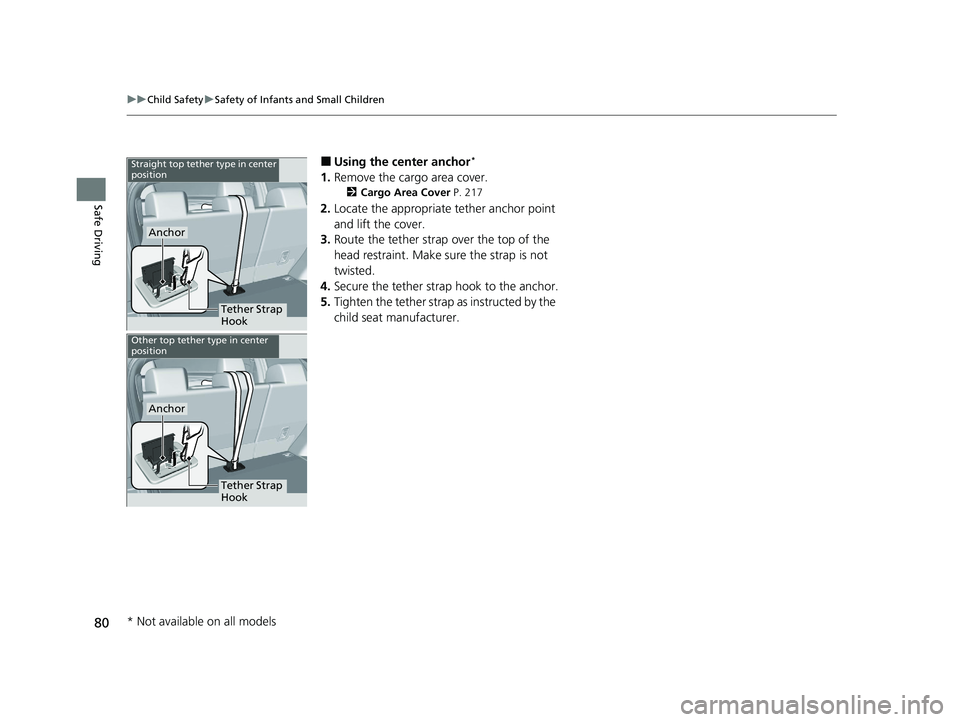

■Using the center anchor*
1. Remove the cargo area cover.
2 Cargo Area Cover P. 217
2.Locate the appropriate tether anchor point
and lift the cover.
3. Route the tether strap over the top of the
head restraint. Make sure the strap is not
twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap
Hook
Anchor
Straight top tether type in center
position
Other top tether type in center
position
Tether Strap
Hook
Anchor
* Not available on all models
24 ACURA INTEGRA-313S56100.book 80 ページ ２０２３年２月１３日　月曜日　午後２時４１分

81
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
24 ACURA INTEGRA-313S56100.book 81 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuChild Safety uSafety of Larger Children
82
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g., 6 years or 60
lbs). Be sure to check current laws in the state,
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
24 ACURA INTEGRA-313S56100.book 82 ページ ２０２３年２月１３日　月曜日　午後２時４１分

83
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the hatch open, airflow can pull exhaust gas into
the interior and create a hazardous conditi on. If you must drive with the hatch open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
24 ACURA INTEGRA-313S56100.book 83 ページ ２０２３年２月１３日　月曜日　午後２時４１分

84
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label, which may be removed by the owner), contact a dealer
for a replacement.
Dashboard
U.S. models only
Radiator Cap
Sun Visor
U.S. models Canadian models
Air Conditioner System
2.0 L engine models for U.S.
Canadian models
1.5 L engine models for U.S.
Radiator Tank Cap
2.0 L engine models
1.5 L engine models
24 ACURA INTEGRA-313S56100.book 84 ページ ２０２３年２月１３日　月曜日　午後２時４１分

85
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 86
Gauges and Displays Gauges ............................................ 107
Driver Information Interface (Left Side Area) ............................................. 111
Driver Information Interface (Right Side Area) ............................................. 117
Head-Up Display
*............................ 143
* Not available on all models
24 ACURA INTEGRA-313S56100.book 85 ページ ２０２３年２月１３日　月曜日　午後２時４１分

86
Instrument Panel
Indicators
Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.
M (7-speed manual
shift mode) Indicator/
Shift Indicator
* P. 91
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)U.S.
Canada
U.S.
Canada
Automatic Brake
Hold System
Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve t he issue, follow the instructions in the
owner's manual.
 P. 88
*1
Malfunction
Indicator Lamp
Charging System
Indicator
Seat Belt Reminder
Indicator Low Fuel Indicator
 P. 90
 P. 90
 P. 90
 P. 91
 P.

91
*1
*1
*1
Shift Position
Indicator* P. 91
Transmission System
Indicator
* P. 92
 P. 93 
P. 94
*1
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
AssistTM (VSA®)
System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental
Restraint System
Indicator
Electric Power
Steering (EPS) System
Indicator
*1

P. 94
 P. 94
 P. 95*1
*1
 P. 95
*1 P. 94
*1 *1
*1 *1
Shift Up Indicator* P. 92
Shift Down Indicator* P. 92
Gear Position
Indicator* P. 92
* Not available on all models
24 ACURA INTEGRA-313S56100.book 86 ページ ２０２３年２月１３日　月曜日　午後２時４１分

87
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve t he issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 95
Auto Id
le Stop System
Indicator
(Amber)* P. 99
 P. 96
 P. 96 
P. 101
*1
 P. 96
 P. 96

P. 96 Immobilizer System
Indicator

P. 98
S

ecur
ity System Alarm
Indicator 
P. 98
 P. 97 
P. 102
 P. 106
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 101
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 102
*1 *1Safety Support
Indicator (Amber)
P. 103
*1
NORMAL Mode
Indicator* P. 97
Auto Idle Stop OFF
Indicator* P. 99
Auto Idle Stop
Suspend Indicato
r* P. 100
SPORT
Mode Indicator 
P. 97
Cruise Mode Indicator
(White/Green) 
P. 102
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 102
Auto Idle Stop
Indicator (Green)* P. 99COMFORT Mode
Indicator 
P. 97 INDIVI DUAL
Mode
Indicator
* P. 97
SPORT+
Mode
Indicator
* P. 97
* Not available on all models
24 ACURA INTEGRA-313S56100.book 87 ページ ２０２３年２月１３日　月曜日　午後２時４１分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Red)
●Comes on when the parking brake is
applied, and goes off wh en it is released.●The beeper sounds and th e indicator comes on if
you drive with the parking brake applied.
●Comes on for about 30 seconds when you apply
the electric parking brake wh ile the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.
●Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.
• Comes on when the brake fluid level is
low.•Comes on while driving - Make sure the parking
brake is released. Stop in a safe place and check
the brake fluid level.
2 What to do when th e indicator comes on
while driving P. 724
U.S.
Canada
(Red)
