Hatch ACURA INTEGRA 2024 Owners Manual

Contents
Child Safety P. 68Exhaust Gas Hazard P. 83Safety Labels P. 84
Hatch P. 170Security System P. 173 Windows P. 176 Moonroof* P. 179
Mirrors P. 197 Seats P. 199
Climate Control System P. 226
Audio Error Messages P. 339 General Information on the Audio System P. 341
Bluetooth ® HandsFreeLink ® P. 385, 405
When Driving P. 433 AcuraWatchTM P. 486 Braking P. 594 Parking Your Vehicle P. 607
Fuel Economy and CO
2 Emissions P. 623 Turbo Engine Vehicle P. 624
Maintenance Under the Hood P. 637 Replacing Light Bulbs P. 655
Checking and Maintaining Tires P. 659 Batt ery P. 671 Remote Transmitter Care P. 673
Cleaning P. 676 Accessories and Modifications P. 682
Engine Does Not Start P. 711 If the Battery Is Dead P. 715
Indicator Coming On/Blinking P. 722 Fuses P. 728 Emergency Towing P. 734
If You Cannot Open the Hatch P. 736 Refueling P. 737
Devices that Emit Radio Waves P. 743 Reporting Safety Defects P. 745 Emissions Testing P. 746
Client Service Information P. 753 Open Source Licenses P. 754
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 85
ControlsP. 149
FeaturesP. 233
DrivingP. 425
MaintenanceP. 625
Handling the UnexpectedP. 685
InformationP. 739
IndexP. 755
24 ACURA INTEGRA-313S56100.book 5 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P637)
❚Windshield Wipers (P191, 657)
❚Tires (P659, 688)
❚Fog Lights* (P187, 655)
❚Power Door Mirrors (P198)
❚How to Refuel (P621)
❚Opening/Closing the Hatch (P170)
❚Side Turn Signal Lights* (P183, 655)
❚Headlights (P184, 655)
❚Front Turn Signal Lights (P183, 655)
❚Front Side Marker Lights (P184, 655)
❚Rear Side Marker Lights (P656)
❚Door Lock/Unlock Control (P155)
❚Parking/ChicaneTM Daytime Running Lights (P187, 655)
❚Rear Turn Signal Lights (P656)
❚High-Mount Brake Light (P656)
❚Multi-View Rear Camera (P617)
❚Hatch Release Button (P171)
❚Rear License Plate Light (P656)
❚Brake Lights (P656)
❚Back-Up Lights (P656)
❚ChicaneTM Taillights (P656)
24 ACURA INTEGRA-313S56100.book 10 ページ ２０２３年２月１３日　月曜日　午後２時４１分

17
Quick Reference Guide
Hatch(P170)
●Press the hatch release button to unlock
and open the hatch when you carry the
keyless remote.
Hatch Release Button
Power Door Mirrors
(P198)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P176)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
ON position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
24 ACURA INTEGRA-313S56100.book 17 ページ ２０２３年２月１３日　月曜日　午後２時４１分

32
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation*.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and hatch (Walk away auto lock ®) (P158)
24 ACURA INTEGRA-313S56100.book 32 ページ ２０２３年２月１３日　月曜日　午後２時４１分

39
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the hatch are closed
and locked. Locking the doors and the hatch helps prevent an occupant from
being ejected and an outsider from unexpectedly opening a door or the hatch.
2 Locking/Unlocking the Doors from the Inside P. 166
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Seats P. 199
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front Head Restraint Positions P. 206
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 45
•Protect children by using seat belts or child seats according to a child’s age,
height, and weight.
2 Child Safety P. 68
1Safety Checklist
If the door and/or hatch open message appears on
the driver information inte rface, a door and/or the
hatch is not completely cl osed. Close all doors and
the hatch tightly until the message disappears.
2 Driver Information Interface (Right Side
Area) P. 117
24 ACURA INTEGRA-313S56100.book 39 ページ ２０２３年２月１３日　月曜日　午後２時４１分

83
Safe Driving

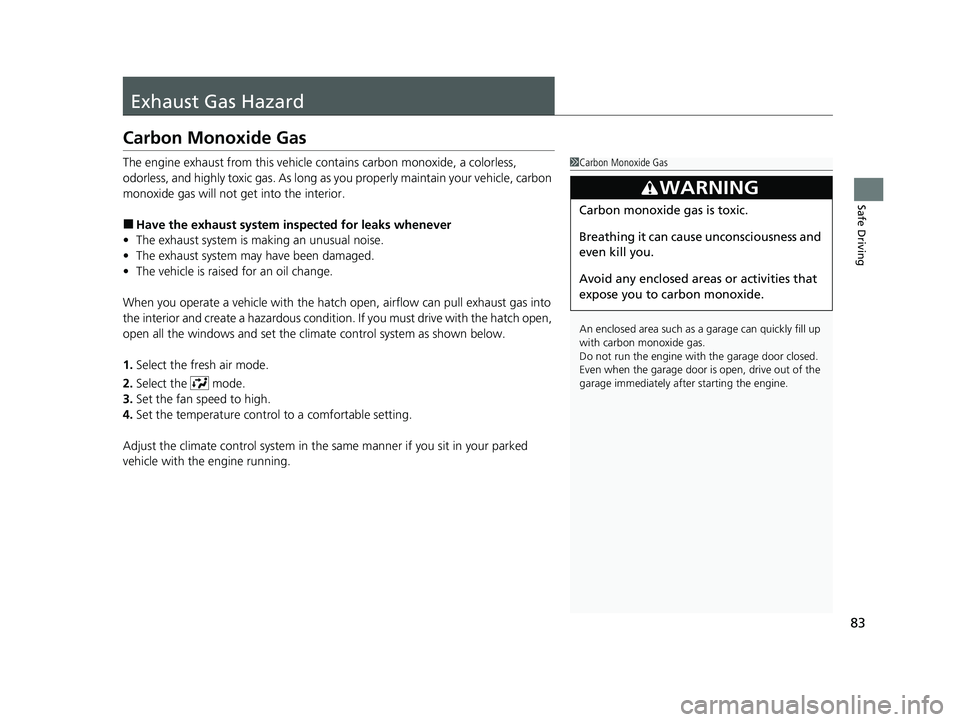

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the hatch open, airflow can pull exhaust gas into
the interior and create a hazardous conditi on. If you must drive with the hatch open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
24 ACURA INTEGRA-313S56100.book 83 ページ ２０２３年２月１３日　月曜日　午後２時４１分

139
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Door setup
Auto door lockChanges the setting for when the doors
and the hatch automatically lock.With vehicle speed*1/Shift from P /OFF
Auto door unlockChanges the setting for when the doors
and the hatch automatically unlock.All doors when driver’s door opens*1/All
doors when shifted to Park /All doors
when ignition switched OFF /OFF
Walk away auto lock
Changes the settings for the automatic
locking the doors when you walk away
from the vehicle while carrying the
keyless remote.
ON /OFF*1
Keyless lock answer
backLOCK/UNLOCK - The exterior lights flash.
LOCK (2nd push) - The beeper sounds.ON*1/OFF
Keyless remote power
window controlTurns remote window control using the
keyless remote on and off.ON*1/ OFF
Lockout preventionChanges the settings for the lockout
protection function.ON*1/OFF
Lock presettingChanges the settings for the lock
presetting function.ON*1/OFF
24 ACURA INTEGRA-313S56100.book 139 ページ ２０２３年２月１３日　月曜日　午後２時４１分

149
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Keyless Remote Signal Strength 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 166
Childproof Door Locks ..................... 168
Auto Door Locking/Unlocking .......... 169
Hatch ................................................. 170
Security System
Immobilizer System .......................... 173 Security System Alarm...................... 173
Windows ........................................... 176
Moonroof
*........................................ 179
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 180
Turn Signals ..................................... 183
Light Switches.................................. 184
Fog Lights
*...................................... 187
ChicaneTM Daytime Running Lights ... 187
Auto High-Beam .............................. 188
Wipers and Washers ........................ 191
Rear Defogger/Heated Door Mirror Button ........................................ 193
Driving Position Memory System*.... 194
Adjusting the Steering Wheel .......... 196
Mirrors Interior Rearview Mirror ................... 197
Power Door Mirrors ......................... 198
Seats .................................................. 199
Interior Convenience Items .............. 209
Climate Control System Using Automatic Climate Control .... 226
Automatic Climate Control Sensors......231
* Not available on all models
24 ACURA INTEGRA-313S56100.book 149 ページ ２０２３年２月１３日　月曜日　午後２時４１分

152
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to start and stop the engine, and
lock and unlock all the doors, hatch, and fuel
fill door.1Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 173
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust, and sand.
•Do not take the keys apart except to replace the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start.
2 Remote Engine Start
* P. 435
Models with remote engine starter
Models without remo te engine starter
Models with remote engine starter
* Not available on all models
24 ACURA INTEGRA-313S56100.book 152 ページ ２０２３年２月１３日　月曜日　午後２時４１分

154
uuLocking and Unlocking the Doors uLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to locate the keyless remote to start the engine
and lock and unlock all the doors, hatch, and the fuel fill door.
In the following cases, starting the engine and locking/unlocking the doors, hatch,
and fuel fill door may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the ke yless remote's battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
24 ACURA INTEGRA-313S56100.book 154 ページ ２０２３年２月１３日　月曜日　午後２時４１分
