153
uuLocking and Unlocking the Doors uKey
Controls
The built-in key can be used to unlock the
doors when the keyles s remote battery
becomes weak and the power door unlock
operation is disabled.
To remove the built-in key, push the release
button and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Button
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
24 ACURA INTEGRA-313S56100.book 153 ページ ２０２３年２月１３日　月曜日　午後２時４１分

625
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 626
Safety When Performing Maintenance .... 627Parts and Fluids Used in Maintenance Service ........................................... 628
Maintenance Minder
TM..................... 629
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 637Opening the Hood ........................... 639
Recommended Engine Oil ................ 640
Oil Check ......................................... 641
Adding Engine Oil ............................ 643
Changing the Engine Oil and Oil Filter..... 644
Engine Coolant ................................ 648
Transmission Fluid ............................ 652
Brake/Clutch
* Fluid .......................... 653
Refilling Window Washer Fluid......... 654
Replacing Light Bulbs ....................... 655
Checking and Maintaining Wiper Blades.... 657
Checking and Maintaining Tires
Checking Tires ................................. 659
Tire and Loading Information Label ... 661
Tire Labeling .................................... 661
DOT Tire Quality Grading (U.S. Vehicles) .... 663Wear Indicators................................ 665
Tire Service Life ................................ 665 Tire and Wheel Replacement ........... 666
Tire Rotation .................................... 667
Winter Tires ..................................... 668
Battery ............................................... 671
Remote Transmitter Care Replacing the Remote Battery .......... 673
Climate Control System Maintenance .... 675Cleaning
Interior Care .................................... 676
Exterior Care.................................... 679
Accessories and Modifications Accessories ...................................... 682
Modifications................................... 683
* Not available on all models
24 ACURA INTEGRA-313S56100.book 625 ページ ２０２３年２月１３日　月曜日　午後２時４１分

672
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The battery installed in this vehicle is specifically
designed for a model wi th Auto Idle Stop.
Using a battery other than this specified type may
shorten the battery life, a nd prevent Auto Idle Stop
from activating. If you need to replace the battery,
make sure to select the specified type and size. Ask a
dealer for more details.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC)*, Adaptive Cruise Control
(ACC) with Low Speed Follow (LSF)*, and safety
support indicators may come on in amber along with
a message in the gauge when you set the power
mode to ON after re connecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Models with Auto Idle Stop
* Not available on all models
24 ACURA INTEGRA-313S56100.book 672 ページ ２０２３年２月１３日　月曜日　午後２時４１分

673Continued
Maintenance
Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposalM
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Models without two-way keyless remote
Battery type: CR2032
Battery Cover
24 ACURA INTEGRA-313S56100.book 673 ページ ２０２３年２月１３日　月曜日　午後２時４１分

750
uuWarranty Coverages u
Information

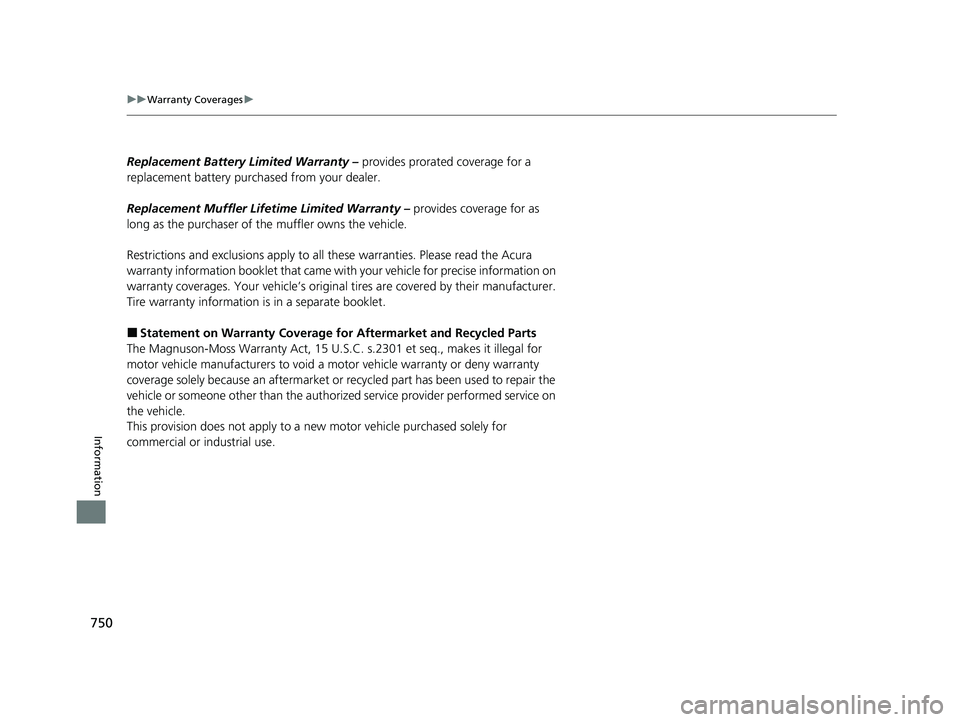

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or re cycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle.
This provision does not apply to a new motor vehicle purchased solely for
commercial or industrial use.
24 ACURA INTEGRA-313S56100.book 750 ページ ２０２３年２月１３日　月曜日　午後２時４１分

756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日　月曜日　午後２時４１分

760
Index
Lights................................................. 184, 655
Auto High-Beam ...................................... 188
Automatic ............................................... 185
Bulb Replacement .................................... 655
Chicane
TM Daytime Running Lights........... 187
Fog Lights ................................................ 187
High Beam Indicator .................................. 96
Interior .................................................... 209
Light Switches ......................................... 184
Lights On Indicator .................................... 96
Turn Signals ............................................. 183
Limited Slip Differential (LSD) ................. 477
Load Limits ................................................ 429
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 169
Childproof Door Locks ............................. 168
From Inside .............................................. 166
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 163
Low Battery Charge .................................. 723
Low Fuel Indicator ...................................... 94
Low Remote Key Signal Strength ............ 154
Low Speed Braking Control ............. 501, 507
Lower Anchors ............................................ 73
Luggage (Maximum Load Limit) .............. 429
Lumbar Support ........................................ 200
M
Maintenance............................................. 625
Adding the Coolant......................... 648, 651
Battery .................................................... 671
Brake Fluid .............................................. 653
Cleaning ......................................... 676, 679
Climate Control System ........................... 675
Coolant ........................................... 648, 650
Maintenance Minder
TM............................ 629
Oil ........................................................... 641
Precautions ............................................. 626
Remote Transmitter ......................... 673, 674
Replacing Light Bulbs .............................. 655
Safety...................................................... 627
Service Items ........................................... 633
Tires ........................................................ 659
Transmission Fluid ................................... 652
Under the Hood ...................................... 637
Malfunction Indicator Lamp .............. 91, 723
Manual Transmission ............................... 448
Map Lights ................................................ 210
Maximum Load Limit ............................... 429
Meters, Gauges ......................................... 107
Mirrors ...................................................... 197
Adjusting ................................................ 197
Door ....................................................... 198
Exterior ................................................... 198
Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 682
Moonroof ................................................. 179
Multi-View Rear Camera .......................... 617
N
Navigation................................................ 122
Numbers (Identification) ......................... 742
O
Odometer................................................. 108
Oil (Engine) .............................................. 640
Adding ................................................... 643
Checking ................................................ 641
Displaying Oil Life ................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Viscosity.................................................. 640
Open Source Licenses ...................... 357, 754
Opening
Hatch...................................................... 736
Hood ...................................................... 639
Opening/Closing Hatch...................................................... 170
Moonroof ............................................... 179
Power Windows...................................... 176
Outside Temperature Display ................. 109
Overheating ............................................. 719
P
Paddle Shifters (7-Speed Manual Shift
Mode) ..................................................... 446
Panic Mode ............................................... 175
Parking ..................................................... 607
24 ACURA INTEGRA-313S56100.book 760 ページ ２０２３年２月１３日　月曜日　午後２時４１分

761
Index
Parking Brake........................................... 594
Parking Brake and Brake System
Indicator (Amber) ............................. 90, 726
Parking Brake and Brake System Indicator (Red) ....... 88, 89, 724, 726
Parking Sensor System ............................. 609
Passenger Airbag Off Indicator ................. 65
Passing Indicators ..................................... 184
Playing Bluetooth ® Audio ............... 253, 313
Power Windows ....................................... 176
Precautions While Driving
Rain ........................................................ 441
Pregnant Women ....................................... 47
Puncture (Tire) ......................................... 688
R
Radio (FM/AM)................................. 245, 292
Radio (SiriusXM ®)..................................... 296
Radio Data System (RDS) ................. 246, 294
Range ........................................................ 120
RDS (Radio Data System) ................. 246, 294
Readiness Codes (Emissions Testing) ...... 746
Rear Defogger/Heated Door Mirror
Button ..................................................... 193
Rear Seat Heaters ..................................... 225
Rear Seats (Folding Down) ...................... 203
Rearview Mirror ....................................... 197
Refueling .................................................. 619
Fuel Gauge ............................................. 108
Gasoline ................................. 619, 737, 740 Low Fuel Indicator ..................................... 94
Regulations ............................... 480, 663, 743
Remote Transmitter ................................. 161
Replacement Battery ............................................ 673, 674
Bulbs ....................................................... 655
Fuses ............................................... 728, 730
Tires ................................................ 666, 704
Wiper Blade Rubber ................................. 657
Reporting Safety Defects ......................... 745
Resetting a Trip Meter ............................. 119
Rev Match System ..................................... 449
Road Departure Mitigation ..................... 574
On and Off .............................................. 578
S
Safe Driving ................................................ 35
Safety Check ............................................... 39
Safety Labels ............................................... 84
Safety Message ............................................. 3
Safety Support .......................................... 129
Seat Belts ..................................................... 40
Adjusting the Shoulder Anchor .................. 46
Automatic Seat Belt Tensioners .................. 44
Checking ................................................... 48
Fastening ................................................... 45
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 76
Pregnant Women ...................................... 47
Reminder ................................................... 42 Warning Indicator ............................... 42, 93
Seat Heaters ...................................... 224, 225
Seats .......................................................... 199
Adjusting ................................................ 199
Front Seat Heaters ................................... 224
Front Seats .............................................. 199
Lumbar Support ...................................... 200
Rear Seat Heaters .................................... 225
Rear Seats ............................................... 203
Security System ......................................... 173
Security System Alarm Indicator................. 98
Select Lever ............................................... 448
Operation................................................ 448
Selecting a Child Seat ................................. 72
Selector Knob (Audio) .............................. 242
Setting the Clock ...................................... 150
Settings ..................................................... 134
Shift Lever ................................... 24, 444, 448
Releasing................................................. 718
Won’t Move ............................................ 718
Shift Position Indicator ...................... 91, 445
Shift Up/Down Indicators ......................... 450
Shifting (Transmission) ..................... 444, 448
Shoulder Anchor ........................................ 46
Side Airbags ................................................ 60
Side Curtain Airbags .................................. 63
Siri Eyes Free ............................................. 257
SiriusXM ® Radio ........................................ 296
Smart Shortcuts ........................................ 320
Snow Tires ................................................. 668
Sonar Sensors ............................................ 592
24 ACURA INTEGRA-313S56100.book 761 ページ ２０２３年２月１３日　月曜日　午後２時４１分
