remote start ACURA INTEGRA 2024 Owners Manual

Contents
Child Safety P. 68Exhaust Gas Hazard P. 83Safety Labels P. 84
Hatch P. 170Security System P. 173 Windows P. 176 Moonroof* P. 179
Mirrors P. 197 Seats P. 199
Climate Control System P. 226
Audio Error Messages P. 339 General Information on the Audio System P. 341
Bluetooth ® HandsFreeLink ® P. 385, 405
When Driving P. 433 AcuraWatchTM P. 486 Braking P. 594 Parking Your Vehicle P. 607
Fuel Economy and CO
2 Emissions P. 623 Turbo Engine Vehicle P. 624
Maintenance Under the Hood P. 637 Replacing Light Bulbs P. 655
Checking and Maintaining Tires P. 659 Batt ery P. 671 Remote Transmitter Care P. 673
Cleaning P. 676 Accessories and Modifications P. 682
Engine Does Not Start P. 711 If the Battery Is Dead P. 715
Indicator Coming On/Blinking P. 722 Fuses P. 728 Emergency Towing P. 734
If You Cannot Open the Hatch P. 736 Refueling P. 737
Devices that Emit Radio Waves P. 743 Reporting Safety Defects P. 745 Emissions Testing P. 746
Client Service Information P. 753 Open Source Licenses P. 754
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 85
ControlsP. 149
FeaturesP. 233
DrivingP. 425
MaintenanceP. 625
Handling the UnexpectedP. 685
InformationP. 739
IndexP. 755
24 ACURA INTEGRA-313S56100.book 5 ページ ２０２３年２月１３日　月曜日　午後２時４１分

138
uuGauges and Displays uDriver Information Interface (Right Side Area)
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Keyless access
setup
Door unlock modeChanges which doors unlock when you grab the driver’s
door handle.Driver door only*1/All
doors
Keyless access light
flashCauses some exterior lights to flash when you unlock/
lock the doors.ON*1/ OFF
Keyless access beepCauses the beeper to soun d when you unlock/lock the
doors.ON*1/ OFF
Remote start system
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting setup
Auto high-beamTurns the auto high-beam on and off.ON*1/OFF
Interior light dimming
timeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight auto off
timerChanges the length of time the exterior lights stay on
after you close the driver’s door.60sec /30sec /15sec*1/0sec
Auto light sensitivity*Changes the timing for the headlights to come on.Max/High/ Mid*1/Low /Min
Auto headlight ON
with wiper ONChanges the settings for th e wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position.
ON*1/OFF
* Not available on all models
24 ACURA INTEGRA-313S56100.book 138 ページ ２０２３年２月１３日　月曜日　午後２時４１分

149
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Keyless Remote Signal Strength 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 166
Childproof Door Locks ..................... 168
Auto Door Locking/Unlocking .......... 169
Hatch ................................................. 170
Security System
Immobilizer System .......................... 173 Security System Alarm...................... 173
Windows ........................................... 176
Moonroof
*........................................ 179
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 180
Turn Signals ..................................... 183
Light Switches.................................. 184
Fog Lights
*...................................... 187
ChicaneTM Daytime Running Lights ... 187
Auto High-Beam .............................. 188
Wipers and Washers ........................ 191
Rear Defogger/Heated Door Mirror Button ........................................ 193
Driving Position Memory System*.... 194
Adjusting the Steering Wheel .......... 196
Mirrors Interior Rearview Mirror ................... 197
Power Door Mirrors ......................... 198
Seats .................................................. 199
Interior Convenience Items .............. 209
Climate Control System Using Automatic Climate Control .... 226
Automatic Climate Control Sensors......231
* Not available on all models
24 ACURA INTEGRA-313S56100.book 149 ページ ２０２３年２月１３日　月曜日　午後２時４１分

152
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following keys:Use the keys to start and stop the engine, and
lock and unlock all the doors, hatch, and fuel
fill door.1Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 173
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust, and sand.
•Do not take the keys apart except to replace the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start.
2 Remote Engine Start
* P. 435
Models with remote engine starter
Models without remo te engine starter
Models with remote engine starter
* Not available on all models
24 ACURA INTEGRA-313S56100.book 152 ページ ２０２３年２月１３日　月曜日　午後２時４１分

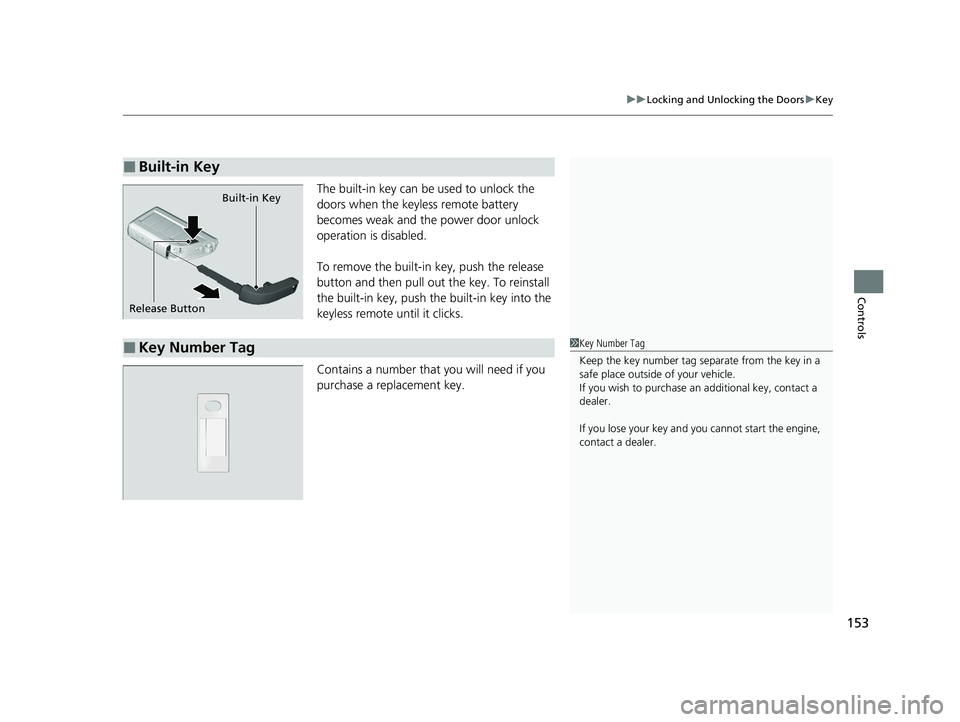

153
uuLocking and Unlocking the Doors uKey
Controls
The built-in key can be used to unlock the
doors when the keyles s remote battery
becomes weak and the power door unlock
operation is disabled.
To remove the built-in key, push the release
button and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Button
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
24 ACURA INTEGRA-313S56100.book 153 ページ ２０２３年２月１３日　月曜日　午後２時４１分

154
uuLocking and Unlocking the Doors uLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to locate the keyless remote to start the engine
and lock and unlock all the doors, hatch, and the fuel fill door.
In the following cases, starting the engine and locking/unlocking the doors, hatch,
and fuel fill door may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the ke yless remote's battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
24 ACURA INTEGRA-313S56100.book 154 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
162
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless remote from extended distances.
Press the lock button, the Amber (LEFT) LED blinks once. After three seconds, one of
the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status*1 Checking Door Lock Status*
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range
required for unlocking the ha tch and all the doors as
well as activating the pani c function is the same as
that required for operating the standard keyless
remote.
When checking the door lock status, you can also
start or stop the engine.
2 Remote Engine Start
* P. 435
Red
Green
Amber
Lock Button
* Not available on all models
24 ACURA INTEGRA-313S56100.book 162 ページ ２０２３年２月１３日　月曜日　午後２時４１分

173Continued
Controls
Security System
Immobilizer System
This system prevents a key that has not been pre-registered from starting the
engine.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the hatch, hood, or doors are forcibly
opened. The alarm does not activate if th e hatch or doors are opened with the key,
remote transmitter or keyless access system.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P (continuously variable transmission models) or the
hood is opened before the power mode is set to ON.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattendedM
Do not alter the system or add other devices to itM
Doing so may damage the system and make your
vehicle inoperableM
Apply and hold the brake pedal before turning the
vehicle on the first time after the battery has been
disconnectedM
Canadian models
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security system alarm continues for a maximum
of two minutes until the security system alarm
deactivates.
24 ACURA INTEGRA-313S56100.book 173 ページ ２０２３年２月１３日　月曜日　午後２時４１分

180
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
*1:Manual transmission models
■Changing the Power Mode1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the keyless remote is
inside the vehicle.
The engine may also start if the keyless remote is
close to the door or window, ev en if it is outside the
vehicle.
ON mode:
The ENGINE START/STOP button is on (in red), if the
engine is running.
If the battery of the keyless remote is getting low, the
engine may not start when you push the ENGINE
START/STOP button. If the engi ne does not start,
refer to the following link.
2 If the Keyless Remote Battery is Weak
P. 712
Operating Range
Continuously Variable Transmission Manual Transmission
VEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked
*1.
The power to all electrical
components is turned off.
Press the button without the
transmission in
( P.
Press the button with the
transmission in
( P. Press the button.
Without pressing
the clutch pedal
Without pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and
other accessories in this position.
ON
The button blinks (in red).
All electrical components can be
used.
Put the transmission into (P.
24 ACURA INTEGRA-313S56100.book 180 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued181
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in (P
(continuously variable transmission) and the power mode in ACCESSORY, the
vehicle automatically goes into the mode similar to VEHICLE OFF (LOCK) to avoid
draining the battery.
When in this mode:
The steering wheel does not lock. You cannot lock or unlock doors with the remote
transmitter or the keyless access system. Press the ENGINE START/STOP button
twice to switch the mode to VEHICLE OFF (LOCK).
If you open the driver’s door when the power mode is in ACCESSORY, a warning
beep sounds.
■Automatic Power Off
■Power Mode Reminder
1 ENGINE START/STOP Button
If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the st eering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Do not leave the power mode in ACCESSORY or ON
when you get out.
Manual transmission models
Manual transmission models
24 ACURA INTEGRA-313S56100.book 181 ページ ２０２３年２月１３日　月曜日　午後２時４１分
