Acura MDX 2002 Owner's Manual

µµ
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the TUNE knob. The mode changes
fromBAStoTREtoFADtoBAL,
and then back to the selected audio
mode, each time you press the
TUNE knob.
Use these modes to
adjust the tone to your liking. Select
TRE or BAS by pressing the TUNE
knob. Adjust the desired mode by
turning the TUNE knob. The level
indicators on the display show you
the range.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. Select BAL or FAD by pressing the
TUNE knob. Adjust the Balance or
Fader to your liking by turning the
TUNE knob. The level indicators on
the display show you the range.
The system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode with the
TUNE knob.
Audio System
Comf ort and Convenience Feat ures
Adjusting the Sound
Treble/Bass
Balance/Fader
137
T T
U
UN NEE K
KNNO OBB
L
LE
E V
V E
EL
L I
INND DI
ICCA A T
TO
OR RSS
01/09/07 12:17:10 31S3V610_142

For inf ormation, see page . You can use the instrument panel
brightness control dial to adjust the il-
lumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .73
157
Audio System
Comf ort and Convenience Feat ures
A udio System L ighting
Radio Frequencies and Reception
138
01/09/07 12:17:17 31S3V610_143

Û
The ignition switch must be in
ACCESSORY (I) or ON (II).
Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button. Dolby noise reduction turns on when
you insert a cassette. If the tape was
not recorded with Dolby noise reduc-
tion, turn it of f by pressing the
button.
Noise reduction remains of f until you
turn it on by pressing the button
again.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
You can remove the cassette with
the ignition switch in any position,
even if the audio system is turned of f . If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
To switch to the radio or CD
changer while listening to a tape,
presstheAM,FMorCDbutton.To
change back to the cassette player,
press the TAPE button.

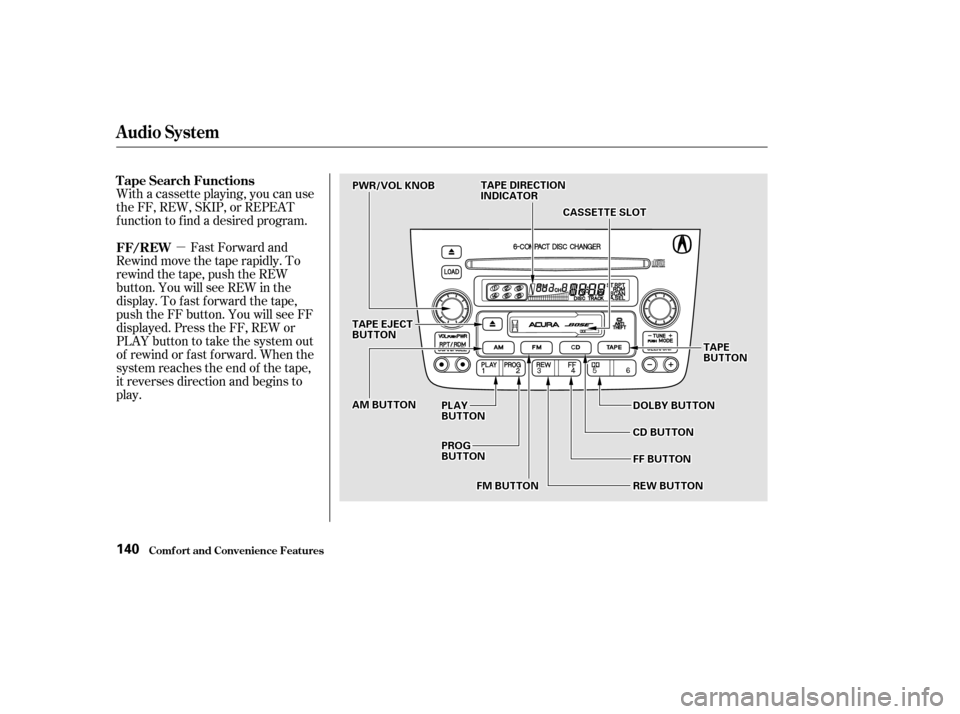

Operating the Cassette Player
Audio System
Comf ort and Convenience Feat ures139
01/09/07 12:17:28 31S3V610_144

µ
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and
Rewind move the tape rapidly. To
rewind the tape, push the REW
button. You will see REW in the
display. To f ast f orward the tape,
push the FF button. You will see FF
displayed. Press the FF, REW or
PLAY button to take the system out
of rewind or f ast f orward. When the
system reaches the end of the tape,
it reverses direction and begins to
play. T ape Search Functions
FF/REW
Audio System
Comf ort and Convenience Feat ures140
P P W
WR R//V
V O
OL L K
KNNO OBB
A
A M
M B
BUUT TT
TO
ON N T
T
A
A P
PE
E D
DI
IRRE EC
CT TI
IOON N
I
IN ND DI
ICCA A T
TO
OR R
C
CAA S
SSSEET
TT
TE
E S
SLLOOT T
T
T A
A P
PE
E E
EJ
JEE C
CT T
B
BU UT TT
TO
ON N
P
PL
LAA Y
Y
B
BU UT TT
TO
ON N
P
P R
RO OG G
B
BU UT TT
TO
ON N D
D
O
OL LBBY Y B
BUUT TT
TO
ON N
C
CD D B
BUUT TT
TO
ON N
F
FF F B
BUUT TT
TO
ON N T
T
A
A P
PE
E
B
BU UT TT
TO
ON N
R
RE EW
W B
BUUT TT
TO
ON N
F
FM M B
BUUT TT
TO
ON N
01/09/07 12:17:36 31S3V610_145

ÓÓ
µ
Ó
Óµ´ µ
´
To stop the SKIP f unction bef ore it
f inds the beginning of a song or
passage, press either of the SKIP
buttons ( or ). The SKIP f unction allows
you to f ind the beginning of a song
or passage. To skip to the beginning
of a song or passage currently
playing, push the button. You will
see REW flashing in the display as
thetaperewinds.Toskiptothe
beginning of the next song, push the button. You will see FF f lashing in
the display as the tape fast forwards.
When the system f inds the begin-
ning of a song or passage, it goes
back to PLAY.
Audio System
Comf ort and Convenience Feat ures
SK IP
141
S SK KIIPP B
BUUT TT
TO
ON NSS
R
RP PT
T B
BUUT TT
TO
ON N R
RE
EP
PE
EA
A T
T I
INND DI
ICCA A T
TO
OR R
F
FF F B
BUUT TT
TO
ON N
R
RE EW
W B
BUUT TT
TO
ON N
01/09/07 12:17:43 31S3V610_146

µThe Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
Pressing the REW or FF button, or
either of the SKIP buttons, also turns
of f REPEAT. The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
168
REPEA T Caring f or the Cassette Player
Comf ort and Convenience Feat ures
Audio System
142
01/09/07 12:17:51 31S3V610_147

CONT INUED
Your Acura’s audio system has an in-
dash CD changer that holds up to six
discs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio and
cassette player.
To load the CDs or operate the CD
changer, the ignition switch must be
in ACCESSORY (I) or ON (II).
Load and play only standard round
discs. Odd-shaped CDs may jam in
the drive or cause other problems.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
Audio System
Comf ort and Convenience Feat ures
Operating the CD Changer
143
S SKKIIPP B
BUUT TT
TO
ON NSS
C
CD D B
BUUT TT
TO
ON N
R
RD
D M
M B
BUUT TT
TO
ON N
R
RE EP
PE
EA
A T
T B
BUUT TT
TO
ON N
L
LO
OA AD
D B
BUUT TT
TO
ON N
C
CDD E
EJ
JEE C
CT T B
BUUT TT
TO
ON N
P
P W
WR R//V
V O
OL L
K
KN NO OBB C
CD
D S
SLLOOT T
01/09/07 12:18:01 31S3V610_148

To load multiple CDs in one
operation:Press and hold the Load button
until you hear a beep and see
‘‘____’’inthedisplay,then
release the button.
On the lef t side of the display, the
CD Loaded indicator f or an empty
position will begin blinking. Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the Load button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, and you do not
press the Load button, the system
will wait f or ten seconds, then stop
the load operation and begin playing
the last CD loaded. To load a single CD:
Press and release the Load button.
When the CD Loaded indicator f or
an empty position starts to blink,
andyouseeLOAdinthedisplay,
insert the disc into the CD slot.
Insert it only about halfway, the
drive will pull it in the rest of the
way.
The system will load the CD, and
begin playing it.
When you see LOAd in the display,
insert the disc into the CD slot.
Insert it only about halfway, the
drive will pull it in the rest of the
way. You will again see the dashes
in the display as the CD is loaded.
When LOAd appears again in the
display, insert the next disc into
the CD slot. Do no try to insert a
disc until LOAd appears. You
could damage the audio unit.
1.
2.
3.
4. 5.
1.
2.
3.
Audio System
Comf ort and Convenience Feat ures
L oading CDs in t he Changer
144
01/09/07 12:18:13 31S3V610_149

CONT INUED
If you press the Load button while a
CD is playing, the system will stop
playing that CD and start the loading
sequence. It will then play the CD
just loaded.
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate preset
button. Select an empty position (the
CD Loaded indicator is of f ), and
press the preset button f or that
position (1 to 6). The system will
stop playing the current CD and start
the loading sequence. It will then
play the CD just loaded.
Audio System
Comf ort and Convenience Feat ures145
L LOOA AD
D B
BUUT TT
TO
ON N
A
A M
M B
BUUT TT
TO
ON N P
PR
RE ES
SE ET
T B
BUUT TT
TO
ON NSSC
CD
D S
SLLOOT T
F
FM M
B
BU UT TT
TO
ON N
C
CD
D L
LOOA AD
DE
ED
D
I
IN ND DI
ICCA A T
TO
OR R
T
TA
A P
PE
E B
BUUT TT
TO
ON N
01/09/07 12:18:21 31S3V610_150

µµ
µ
Ó
Ó
ÓÓ
´
µ
´µ
Select the CD changer by pressing
the CD button. You will see ‘‘Cd’’ in
the display. The system will begin
playing the last selected disc in the
CD changer. You will see the disc
and track numbers displayed.
When that disc ends, the next disc in
the CD changer is loaded and played.
Af ter the last disc f inishes, the
system returns to disc 1.
To select a dif f erent disc, press the
appropriate Preset button (1 6). If
youselectanemptypositioninthe
CD changer, the system will go into
the loading sequence (see page ).
You can use the SKIP buttons while
a disc is playing to select passages
and change tracks. To activate the Repeat
f eature, press and release the RPT
button. You will see RPT in the
display as a reminder. The system
continuously replays the current
track. Press the RPT button again to
turn it off. Pressing either of the
SKIP buttons also turns off the
repeat feature.
This feature,
when activated, plays the tracks
within a CD in random order, rather
than in the order they are recorded
on the CD. To activate Random Play,
press the RDM button. You will see
RDM in the display. The system will
then select and play tracks randomly.
This continues until you deactivate
RandomPlaybypressingtheRDM
button again, or you select a
dif f erent CD with a preset button.
To move rapidly within a track, press
and hold the appropriate SKIP
button. You will hear a beep and the
system will continue to move. Press
the button to move forward, or
the button to move backward.
Release the button when the system
reaches the point you want.
Each time you press the button
and release it, the system skips
f orward to the beginning of the next
track. Press and release the
buttontoskipbackwardtothe
beginning of the current track. Press
and release it again to skip to the
beginning of the previous track.
144
Audio System
Comf ort and Convenience Feat ures
Operat ionREPEAT
RANDOM PLAY
146
01/09/07 12:18:30 31S3V610_151
