Your authorized Acura dealer knows
your vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
skilled person to keep your
warranties in ef f ect. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the Maintenance Record.
Check your warranty booklet f or
more inf ormation.
We recommend the use of Acura
parts and f luids whenever you have
maintenance done.
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed. Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page
.
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate light monthly. See
page .
U.S. Vehicles:
Brakes Check the f luid level
monthly. See page .
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed at the recommended time
or mileage period to ensure long-
term reliability. 189
190
242 243
253
245
Maintenance Schedule
Servicing Your Vehicle
Owner’s Maintenance ChecksMaintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certif ied’’ to EPA standards.
230

Î
ÎÌ
Ì
Ì
Î
Î Î
231
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km)
Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
( (
O
O r
re
ev
ve
er
ry
y 7
7y
ye
ea
ar
rs
s, , w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
(
(
O
O r
re
ev
ve
er
ry
y 1
1y
ye
ea
ar
r,
, w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
(
( O
O r
re
ev
ve
er
ry
y 2
2y
ye
ea
ar
rs
s, , w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
At every 15,000 miles (24,000 km) up to 30,000 miles (48,000 km) or every 1 year, then every 30,000 miles (48,000 km) or 2 years. At 45,000 miles (72,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
See information on maintenance and emissions warranty, middle column, page .
( ( O
O t
th
h e
er
rw
w i
is
se e a
ad
d j
ju
u s
stt o
o n
nl
ly
y i
if
f n
n o
oi
is
sy y )
)
120
192 135
216150
240
90
144
75
120
60
96
45
72
30
48
15
24 105
168
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 223)
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Inspect valve clearance
Replace automatic transmission fluid
Replace transfer fluid
Replace VTM-4 rear differential fluid
Inspect idle speed
Replace spark plugs
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
1:
2:: 230
1
1 2
Maintenance Schedule for Normal Conditions

Î
Î
ÎÌ
Ì
Ì
ÎÎ
ÌÎ
232
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km)
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first
7.5
12 15
2430
4845
7260
9675
120 90
144 105
168 135
216150
240
( (
O
O r
re
ev
ve
er
ry
y 1
1y
ye
ea
ar
r,
, w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
(
( O
O r
re
ev
ve
er
ry
y 2
2y
ye
ea
ar
rs
s, , w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
(
(O
O t
th
h e
er
rw
w i
is
se e a
ad
d j
ju
u s
stt o
o n
nl
ly
y i
if
f n
n o
oi
is
sy y )
)
(
( O
O r
re
ev
ve
er
ry
y 7
7y
ye
ea
ar
rs
s, , w
w h
hi
ic
ch h e
ev
ve
er
r c
coo m
m e
es
s f
fi
ir
r s
st t)
)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
At every 7,500 miles (12,000 km) up to 15,000 miles (24,000 km) or every 6 months, then every 15,000 miles (24,000 km) or 1 year.
See timing belt on page for replacement information under special driving conditions. Follow this schedule for rear differential fluid replacement if you use your vehicle for off-highway driving, trailer towing, mainly in stop-and-go driving. Otherwise, use
the fluid replacement schedule in the Maintenance Schedule for Normal Conditions.
See information on maintenance and emissions warranty, middle column, page . Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
120
192
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 254)
Check front and rear brake wear
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace automatic transmission fluid
Replace transfer fluid
Replace air cleaner element
Inspect valve clearance
Replace VTM-4 rear differential fluid
Inspect idle speed
Replace spark plugs
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid 1:
2:
3: : 244
230
1, 2
,3
Maintenance Schedule for Severe Conditions

Fluid Locations
236
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)COOLANT
RESERVOIR
POWER STEERING
FLUID (Red cap) RADIATOR CAP ENGINE OIL FILL CAPAUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
BRAKE FLUID
(Gray cap)

Check the f luid level with the engine
at normal operating temperature.Park the vehicle on level ground.
Shut of f the engine.
Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission. Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
If the level is below the lower
mark, remove the f ill plug and add
f luid into the tube to bring it to the
upper mark.Pour the f luid slowly and caref ully so
you do not spill. Clean up any spills
immediately; it could damage
components in the engine
compartment.
To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1 (Automatic
Transmission Fluid), then drive the
vehicle f or a short distance. Do this
three times. Then drain and ref ill the
transmission a final time.
1.
2.
3. 5. 4.
Automatic Transmission Fluid
242
DIPSTICK DIPSTICK
LOWER MARK UPPER MARK

Check the f luid level in the brake
f luid reservoir monthly. Replace it
according to the maintenance
schedule recommendations.The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Insert the dipstick all the way back
in the transmission.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your dealer. Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
6.
Brake Fluid
Automatic Transmission Fluid, Brake Fluid
Maint enance
243
MAX
MIN

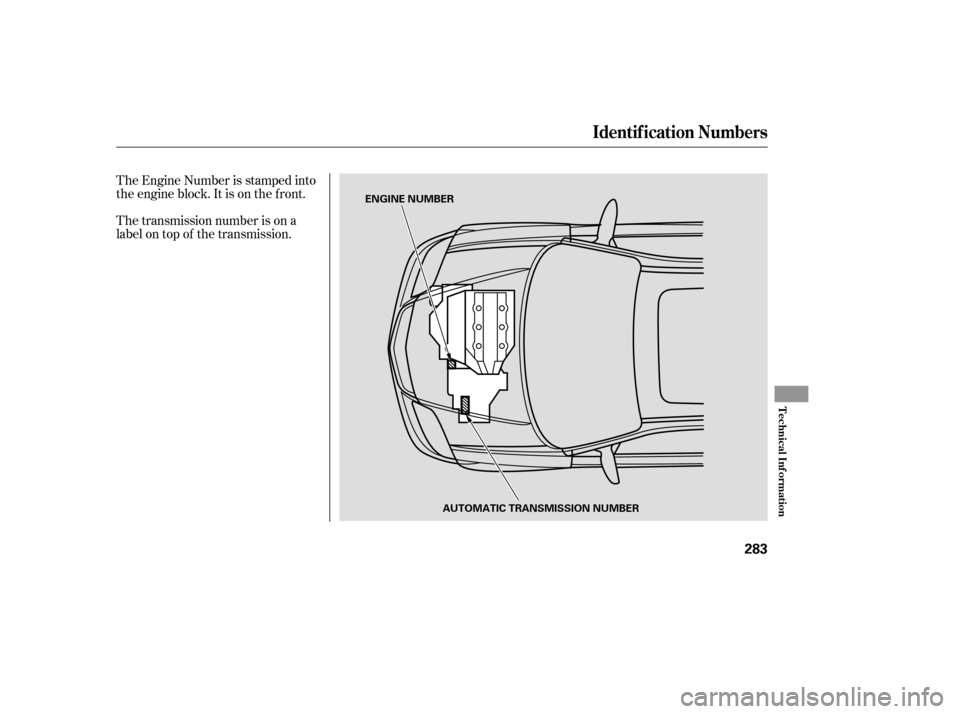

The Engine Number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
283
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER

µµÎ
Î
Î
Î
Î
Î Î
Î
Specif ications
284
Dimensions
Weights
Air ConditioningCapacities
1.88 US gal (7.1
)
2.38 US gal (9.0)
4.5 US qt (4.3
)
4.2 US qt (4.0
)
5.3 US qt (5.0
)
2.9 US qt (2.7)
7.7 US qt (7.3)
188.7 in (4,793 mm)
77.0 in (1,955 mm)
68.7 in (1,744 mm)
71.3 in (1,811 mm)
106.3 in (2,700 mm)
66.3 in (1,685 mm)
66.5 in (1,690 mm)
9,835 lbs (4,461 kg)
HFC-134a (R-134a)
24.7 26.5 oz (700 750 g) ND-OIL8 2.9 US qt (2.7
)
3.0 US qt (2.8)
0.45 US qt (0.43
)
0.48 US qt (0.45)
0.16 US gal (0.6
) 4.8 US qt (4.5
)
Excluding the oil remaining in the engine. Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Equipped with transmission fluid cooler and power steering fluid
cooler.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
See the tire information label atta-
ched to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid
Transfer
assembly
fluid
Windshield
washer
reservoir
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation. Approx.
Front
Rear
1:
2:
Standard
Premium
1:
2: Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
Change
Total
Change
Total 20.4 US gal (77.0
)
2
1 1
2

CONT INUED
...
Accessories and Modif ications . 191
ACCESSORY (Ignition Key .......................................
Position) .81
............
Accessory Power Sockets . 104
....................
Additives, Engine Oil . 238
.............................
Airbag (SRS) .11, 24
..............
Air Conditioning System . 106
.....................
Rear A/C Control .111
.........................................
Usage .107
.......................
Air Outlets (Vents) .108
.......................
Air Pressure, Tires .252
......................................
Antif reeze .240
Anti-lock Brakes (ABS) ....................
Indicator Light .61, 209
...................................
Operation .209
..............
Anti-thef t, Audio System . 131
.
Anti-thef t Steering Column Lock . 81
................
Audio System . 112,118,123
...
Automatic Seat Belt Tensioners . 22
.........................
Automatic Lighting .75
.............
Automatic Speed Control . 146
..............
Automatic Transmission . 200
..........................
Capacity, Fluid .284
...............
Checking Fluid Level . 242.......................................
Shif ting .200
.
Shif t Lever Position Indicator . 200
................
Shif t Lever Positions . 200
....................
Shif t Lock Release . 203
...........................
Automatic Wipers .72
Battery Charging System ...........................
Indicator .60, 272
............................
Jump Starting .268
..............................
Maintenance .257
............................
Specif ications .285
..............................
Bef ore Driving .185
..................................
Belts, Seat .10, 21
.........................
Beverage Holders .102
..................................
Booster Seats .51
Brakes ...........
Anti-lock System (ABS) . 209
.............
Break-in, New Linings . 186
...........................................
Fluid .243
....................
Bulb Replacement .247
.........................................
Parking .94
.................
System Indicator . 61,274
........................
Wear Indicators .208 .............................
Braking System .208
.................
Break-in, New Vehicle . 186
..
Brightness Control, Instruments . 76
........................
Brights, Headlights .74
Bulb Replacement ..........................
Back-up Lights .247
..............................
Brake Lights .247
................
Front Parking Lights . 246
........
Front Side Marker Lights . 246
.................................
Headlights .245
.........
High-mount Brake Light . 248
.................................
Rear Bulbs .247
............................
Specif ications .285
....................
Turn Signal Lights . 246
..............................
Bulbs, Halogen .245
Index
A
B
INDEX
I

Î
................................
Cancel Button .146
............................
Capacities Chart .284
.............
Carbon Monoxide Hazard . 54
.............................
Carrying Cargo .193
..............
CAUTION, Explanation of . ii
.........................................
CD Care .128
..........................
CD Changer .125, 126
.....
CD Changer Error Messages . 129
.......................................
CD Player .125
........................
Certif ication Label .282
...................................
Chains, .256
Change Oil ........................................
How to .238
......................................
When to .229
....................
Changing a Flat Tire .261
...
Charging System Indicator . 60,272
............
Checklist, Bef ore Driving . 198
..................
Childproof Door Locks . 82
.....................................
Child Saf ety .35
..............................
Booster Seats .51
.............................
Child Seats .43, 44
.....
Important Saf ety Reminders . 38
..........................................
Inf ants .40
..........................
Larger Children .50 .........................................
LATCH .45
......................
Risks with Airbags .36
.............................
Small Children .41
..........................................
Tether .48
.........
Where Should a Child Sit? . 36
.......................................
Child Seats .43
..........
Tether Anchorage Points . 48
...............
Climate Control System . 106
..............................................
Clock .151
.....................
Code, Audio System .131
........................
CO in the Exhaust .289
......................
Compact Spare Tire .260
...............
Consumer Inf ormation . 296
.............
Controls, Instruments and . 57
Coolant ........................................
Adding .240
....................................
Checking .190
.........................
Proper Solution .240
...................
Temperature Gauge . 69
Crankcase Emissions Control ........................................
System .289
................
Cruise Control Indicator . 63
............
Cruise Control Operation . 146
...................................
Cup Holders .102
..........
Customer Relations Of f ice . 296................
DANGER, Explanation of . ii
...................................
Dashboard .4, 58
................
Daytime Running Lights . 76
.................................
Dead Battery .268
............
Def ects, Reporting Saf ety . 298
................
Def ogger, Rear Window . 77
..............
Def rosting the Windows . 109
....................................
Dimensions .284
...............
Dimming the Headlights . 74
Dipstick ..........
Automatic Transmission . 242
..................................
Engine Oil .190
..........................
Directional Signals .74
........
Disc Brake Wear Indicators . 208
.....................
Disposal of Used Oil .239
Doors ..............
Locking and Unlocking . 82
....................
Lockout Prevention . 82
......................
Power Door Locks .82
..........
DOT Tire Quality Grading . 286
...........
Driver and Passenger Safety . 7
...........................................
Driving .197
....................................
Economy .190
tires
Index
C D
II
