display Acura MDX 2006 Owner's Guide

To set the clock:Push the CLOCK button. The
hours digits will start blinking. If
you want to only set the minutes,
go to step 4. To change the hours to a lower
number, press and hold the
MODE button. To change the
hours to a higher number, press
andholdtheA/Cbutton.
When the hours reach the desired
number, release the button.
To set the minutes, press the
CLOCK button again. The
minutes digits will start blinking.
Use the MODE or A/C button to
set the minutes to the desired
number.
Press the CLOCK button again.
The clock will return to its normal
display.
For example:
1:06 will reset to 1:00
1:52 will reset to 2:00 You can quickly set the time to the
nearest hour. Press the CLOCK
button, then press the RESET button.
If the displayed time is before the
half hour, it will reset back to the
previous hour. If the displayed time
is af ter the half hour, it will reset
f orward to the next hour.
1. 2.
3.
4.
5.
6.
Setting the Clock
Trip Computer
Features
151

µµµµ
µµ
The compass may need to be
manually calibrated af ter exposure to
a strong magnetic field. If the
compassseemstobecontinually
showing the wrong direction and is
not self -calibrating, do the f ollowing. Do this procedure in an open
area, away f rom buildings, power
lines, and other vehicles. Press and hold the CLOCK and
TRIP buttons until the display
changes (about 1 second).
Press the Calibrate (MODE)
button.
Press the Set (FAN) button.
‘‘Calibrate’’ will start blinking, and
the direction display will change to
‘‘ ’’.
Drive the vehicle slowly in two
complete circles.
When the display goes f rom
‘‘ ’’ to an actual heading, the
unit is calibrated.
Press the CLOCK, TRIP, or
RESET button to complete the
calibration and return the display
to normal.
Compass operation can be af f ected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be af f ected
by accessories such as antennas and
roof racks that are mounted by
magnets.
If you see ‘‘ ’’ in the direction
display and ‘‘Calibrate’’ is blinking,
the compass is self -calibrating.
1.
2.
3.4.
5.
6.
Compass Operation
Compass Calibration
Trip Computer
152
NOTE:

In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:Press the Zone (A/C) button. The
zone the compass is currently set
to is displayed.
Find the zone f or your area on the
map.If the zone is incorrect, press and
hold the MODE button to get the
number to count down, or the A/C
button to get the number to count
up. If the zone is correct, continue
to step 5.
Press the Set (FAN) button to set
the zone selection.
Press the CLOCK, TRIP or
RESET button to exit the zone
selection and return display to
normal.
Press and hold the CLOCK and
TRIP buttons until the display
changes (about 1 second).
1. 2.
3.4.
5.
6.
CONT INUED
Compass Zone Select ion
Trip Computer
Features
153

The Brightness control has seven
positions. In the middle f ive positions
the display will dim when you turn
on the parking lights or headlights.
Moving the control to the far left
position turns of f the display. It will
come back on f or several seconds if
you press any of the buttons.
In the f ar right (maximum
brightness) position, the display will
notdimwhenyouturnonthe
parking lights.
Always use a sof t cloth and mild
glass/plastic cleaner (such as
cleaners f or computer monitor
screens) to clean the display.Whenever you shif t to R (reverse)
with the ignition switch in the ON
(II) position, the rear view is shown
on the navigation system screen.
For the best picture, always keep the
rear view camera clean, and do not
cover the camera lens.
When you wipe the screen, some
black lines may appear because of
static electricity build-up. This is
normal. They will disappear in 5 to
10 minutes. When in reverse, the touch screen,
and Navi ‘‘hard’’ buttons are locked
out. Touching the ZOOM button
allows you to adjust the brightness of
the rear view camera image.
The camera brightness
cannot be adjusted by voice control.
Since the rear view camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.Navigation models
BRIGHT NESS control
Cleaning the Display Rear View Camera and Monitor
Trip Computer, Rear View Camera and Monitor
Features
155
NOTE:
REAR VIEW CAMERA

µ
ÎÎ
Touring model with Navigation System Touring model without Navigation
System
To operate the HFL, use the HFL
TALK/BACKbuttonontheleftside
of the steering wheel. This inf ormation is displayed
whetherornotthephoneisbeing
used:
Phone Indicates a phone is
currently linked to the HFL.
Here is the function of each HFL
button:
HFLTalk:Thisbuttonisusedbefore
you give a command, to answer
incoming calls, and to conf irm
system inf ormation.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation.
HFL Buttons
HandsFreeL ink
162
Refer to your navigation system
Manual.
SIGNAL
STLENGTH
ROAM STATUS
NAVIGATION SYSTEM BUTTON HFL TALK/BCK BUTTON
PHONE
HFL TALK BUTTON
HFL BACK BUTTON
TM

Thevoiceof theHFLcanbesetto
male or f emale (U.S. models only).
Also, the incoming notif ication can
be set to a ring tone, a prompt, or no
notification.Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘System.’’ The HFL
response is, ‘‘System options are
setup and clear.’’
Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Ring tone’’ or ‘‘Prompt.’’
If you choose ‘‘Ring tone’’ you will
hear a ring tone through the audio
speakers to announce an incoming
call. If you choose ‘‘Prompt,’’ you
will hear this message to
announce an incoming call: ‘‘You
have an incoming call.’’ Press and release the top of the
TALK/BACK button. If you say
‘‘Yes’’ af ter the beep, the HFL
response is, ‘‘Would you like a ring
tone or a prompt?’’ If you say ‘‘No’’
af ter the beep, the HFL returns to
its main menu. Saying ‘‘No’’ will
result in no ring tone or prompt
playback during an incoming call.
The audio system will still mute,
and a message will be displayed.
Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Male’’ or ‘‘Female,’’
depending on the system voice
you want. The HFL response is,
‘‘Male (Female) prompts have been selected. Would you like an
audible notif ication of an incoming
call?’’
Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Setup.’’ The HFL
response is ‘‘Would you like male
or f emale prompts?’’
Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Security.’’ The HFL
response is ‘‘Security options are
lock, unlock, and set passcode.’’
Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Lock’’ or ‘‘Unlock.’’
Lock means the HFL will prompt
you f or your passcode each time
the ignition switch is turned to the
ON (II) position and you press the
Talk button. You will only be
askedforthepasscodeonceper
ignition cycle. If the HFL is locked,
its response is ‘‘System is locked.
Each time the vehicle is turned on,
the passcode will be required to
use the system.’’ If the HFL is
unlocked, its response is ‘‘The
system is unlocked. Returning to
the main menu.’’
2. 1.
4.
5.
3.
2. 1.
To set up the system, do this:
To lock or unlock the HFL, do this:
Setting Up the System
HandsFreeL ink
Features
165
TM

With your phone on and the
ignition in the ACCESSORY (I) or
ON (II) position, press and release
the Talk button. After the beep,
say ‘‘Phone set up.’’ The HFL
response is ‘‘Phone set up options
are status, pair, edit, delete, and
list.’’
Your Bluetooth compatible phone
with HandsFree Prof ile must be
paired to the HFL before you can
make and receive hands-free call.
HFL does not allow you to pair
your phone if the vehicle is
moving.
For pairing, your phone must be in
its Discovery mode.
The f ollowing procedure works f or
most phones. If you cannot pair
your phone to the HFL with this
procedure, ref er to your phone’s
operating manual, or talk to your
phone retailer.
During the pairing process, turn
of f any previously paired phones
bef ore pairing a new phone. Up to six phones can be paired to
the HFL. Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Pair.’’ The HFL
response is ‘‘The pairing process
requires operation of your mobile
phone. For saf ety, only perf orm
this f unction while the vehicle is
stopped. State a f our-digit code f or
pairing. Note this code. It will be
requested by the phone.’’
Press and release the top of the
TALK/BACK button. After the
beep, say the f our-digit code you
want to use. For example, say ‘‘1, 2,
3, 4.’’ The HFL response is, ‘‘1, 2, 3,
4. Is this correct?’’Press and release the top of the
TALK/BACK button. After the
beep, say ‘‘Enter.’’ The HFL
response is ‘‘Searching f or a
Bluetooth phone.’’
When asked by the phone, enter
the four-digit code from step 3 into
your phone. The HFL response is
‘‘A new phone has been f ound.
What would you like to name this
phone?’’ Follow the prompts on your phone
to get it into its Search mode. The
phone will search f or the HFL.
When it comes up, select
HandsFreeLink f rom the list of
options displayed on your phone.
Steps 5 and 6 show a
common way to get your phone into
its Discovery mode. If these steps do
not work on your phone, ref er to the
phone’s operating manual.
1.
4.
5.
6.
2.
3.
Pairing Your Phone
HandsFreeL ink
166
NOTE:
NOTE:
TM

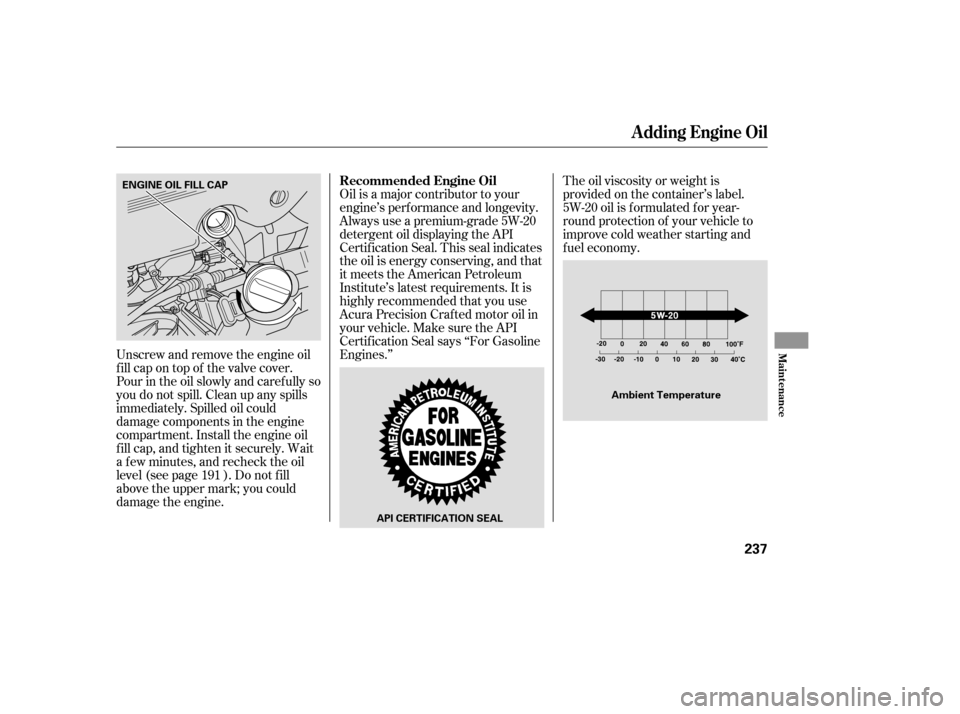

Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
f ill cap, and tighten it securely. Wait
a f ew minutes, and recheck the oil
level (see page ). Do not f ill
above the upper mark; you could
damage the engine.Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Acura Precision Craf ted motor oil in
your vehicle. Make sure the API
Certif ication Seal says ‘‘For Gasoline
Engines.’’
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is f ormulated f or year-
round protection of your vehicle to
improve cold weather starting and
f uel economy.
191 Recommended Engine Oil
A dding Engine Oil
Maint enance
237
API CERTIFICATION SEAL
Ambient Temperature
ENGINE OIL FILL CAP

You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil, it
displays the API Certif ication Seal
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals given in the maintenance
schedule.Open the hood, and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and f ilter
according to the recommendations in
the maintenance schedule. The oil
and f ilter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Your vehicle does not require any oil
additives. Additives may adversely
af f ect the engine or transmission
perf ormance and durability.
1.2.
A dding Engine Oil, Changing the Oil and Filter
Synthetic Oil
Engine Oil A dditivesChanging the Oil and Filter
238
WASHER
DRAIN BOLT

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
Look f or a burned wire inside the
f use. If it is burned out, replace it
withoneof thesparefusesof the
same rating or lower.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page).
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
6.
5.
131
Fuses
278
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
