Before you leave the pavement, be
sure to do all scheduled maintenance
and service, and inspect your vehicle
f or any problems. Pay special
attention to the condition of the tires,
and check the tire pressures.
After you return to the pavement,
caref ully inspect your vehicle to
make sure there is no damage that
could make driving it unsaf e.
Recheck the condition of the tires
and the tire pressures.
The route presents limits (too steep
or bumpy roads). You have limits
(driving skill and comfort). And your
vehicle has limits (traction, stability,
and power).
Driving of f -highway can be
hazardous if you f ail to recognize
limits and take the proper
precautions.Forbettertractiononallsurfaces,
accelerate slowly and gradually build
up speed. If you try to start too fast
on wet soil, mud, snow, or ice, you
might not have enough traction to
get underway, and you may dig
yourself a hole. Starting with the
shif t lever in D position will help you
have a smoother start on snow or ice.
Keep in mind that you will usually
need more time and distance to
brake to a stop on unpaved surf aces.
Avoid hard braking. Do not ‘‘pump’’
the brakes; let the anti-lock braking
system pump them f or you.
Debris in the road can damage your
suspension or other components.
Because your vehicle has a high
center of gravity, driving over a large
obstacle, or allowing a wheel to drop
into a deep hole can cause your
vehicle to tip or roll over.If you can’t clearly see all conditions
or obstacles on a slope, walk the
slope bef ore you drive on it. If you
have any doubt whether or not you
can saf ely drive on the slope, don’t
do it. Find another route.
If you are driving up a hill and f ind
that you cannot continue,
. Your vehicle could roll
over. Slowly back down the hill,
f ollowing the same route you took up
the hill.
Bef ore driving through water, stop,
get out if necessary, and make sure
that: The water is not deep enough to
cover your wheel hubs, axles, or
exhaust pipe. You could stall and
not be able to restart your engine.
The water can also damage
important vehicle components.
do not try to
turn around
Check Out Your Vehicle
Remember Accelerating and Braking
Avoiding ObstaclesDriving on Slopes
Crossing a Stream
Of f -Highway Driving Guidelines
378
\f—\f—\fy
\f
y
()-
\fy\fy
2008 MDX

The banks are sloped so you can
drive out.
The water is not f lowing too f ast.
Deep rushing water can sweep you
downstream. Even very shallow
rushingwatercanwashthe
ground f rom under your tires and
cause you to lose traction and
possibly roll over.
The banks and surf ace under the
water provide good traction. The
water may hide hazards such as
rocks, holes, or mud.If the water is deeper than the wheel
hubs, some additional service may
be required. This service is not
covered by your warranties.
If you decide it is saf e to drive
through water, choose a suitable
speed, and proceed without shif ting,
changing speeds, stopping, or
shutting of f the engine. If you get stuck, caref ully try to go in
the direction (f orward or reverse)
that you think will get you unstuck.
Donotspinthetiresathighspeeds.
It will not help you get out and may
cause damage to the transmission or
After driving through water, test
your brakes. If they got wet, gently
‘‘pump’’ them while driving slowly
until they operate normally. If you are still unable to f ree yourself ,
your vehicle is equipped with f ront
and rear tow hooks designed f or this
purpose.
Use a nylon strap to attach the MDX
to the recovery vehicle and caref ully
take out the slack in the strap. Once
the strap is tight, the recovery
vehicle should apply f orce.
Remember that the recovery vehicle
needs good traction to avoidbecoming stuck, too.
You should never use a jack to try to
get unstuck. Your vehicle could
easily slip of f the jack and hurt you
or someone else.
You may be able to safely tow a
lightweight trailer (such as a
motorcycle or small tent trailer) of f -
road if you f ollow these guidelines.
Do not exceed 1,000 lbs (450 kg)
or a tongue weight of 100 lbs (45
kg).
Stay on smooth, level dirt roads,
and avoid driving in hilly terrain.
Allow extra room f or starting,
stopping, and turning.
Slow down if you encounter bumps
or other obstacles.
If You Get Stuck
Towing a Trailer Off-Road
Of f -Highway Driving Guidelines
Driving
379
\f—\f—\fy
\f
y
()-
\fy\fy
SH-AWD®system.
2008 MDX

This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.
This section also includes
instructions on how to read the
maintenance minder messages on
the multi-information display, and
instructions f or simple maintenance
tasks you may want to take care of
yourself .......................
Maintenance Saf ety .382
....................
Maintenance Minder .383
..............................
Fluid Locations .391
.......
Engine Compartment Cover .392
........................
Adding Engine Oil .393
Changing the Engine Oil and
...........................................
Filter .394
..............................
Engine Coolant .396
....................
Windshield Washers .398
....
Automatic Transmission Fluid .399
....................................
Brake Fluid .401
....................
Power Steering Fluid .402
....................................
Timing Belt .402
.............................................
Lights .403
..................
Dust and Pollen Filter .409
................
Cleaning the Seat Belts .409
.....................................
Floor Mats .410
.................................
Wiper Blades .411
...............................................
Tires .415
...................
Checking the Battery .421
.............................
Vehicle Storage .422
469
Maintenance
Maint enance
381
\f—\f—\fy
\f
\fy
()-
\fy\fy
2008 MDX

To eliminate potential hazards, read
the instructions bef ore you begin,
and make sure you have the tools
and skills required.Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is of f .
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of f ire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all f uel-related parts. Wear eye protection and
protective clothing when working
with the battery or compressed air.
All service items not detailed in this
section should be perf ormed by a
certif ied technician or other qualif ied
mechanic.
Some of the most important saf ety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
perf orming maintenance. Only you
can decide whether or not you
should perf orm a given task.Do
not run the engine unless
instructed to do so.
Let the engine and exhaust system cool
down bef ore touching any parts.
Be sure there is
adequate ventilation whenever you
operate the engine.
Maintenance Saf ety
Important Saf ety Precautions Injury f rom moving parts.
Burns f rom hot parts.
Carbon Monoxide poison f rom
engine exhaust.
Potential Vehicle Hazards
382
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual. Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
\f—\f—\fy
\f

y
()-
\fy\fy
2008 MDX

µ
µ
µ
µ
µ
µ
µ
µ
µ
µµ
µ
One of the most convenient and
important f eatures of the multi-
inf ormation display on your vehicle
is the maintenance minder.
Based on engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e.
The system also displays the code
f or other scheduled maintenance
items needing service.
The remaining engine oil lif e is
displayed according to the table
shown below.
Calculated Engine Oil Lif e (%)
100% 91% 90% 81%
80% 71%
70% 61%
60% 51%
50% 41%
40% 31%
30% 21%
20% 16%
15% 11%
10% 6% 5% 1% 0% Displayed
Engine Oil Lif e (%)
100% 90%
80%
70%
60%
50%
40%
30%
20%
15%
10%
5%
0%
To see the remaining engine oil lif e
displayed on the multi-inf ormation
display as a percentage, turn the
ignition switch to the ON (II)
position. Make sure the display
pressure, and then press the SEL/
RESETbuttononthesteeringwheel
repeatedly until the engine oil lif e
appears (see page ).
73
CONT INUED
Maintenance Minder
Engine Oil L if e
Maint enance
383
REMAINING ENGINE OIL LIFE
\f—\f—\fy
\f
y
()-
\fy\fy
showsblank,SH-AWD®and tire
2008 MDX

µ
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE’’, along with ‘‘5%’’, and the
maintenance item code are displayed
on the lower part of the multi-
inf ormation display when the
calculated engine oil lif e is 1 5
percent (see page ).
When the remaining oil lif e is 1 to 5
percent, the multi-information
display shows a ‘‘SERVICE DUE
NOW’’ message with the same
maintenance items ‘‘SERVICE DUE
SOON’’ was displayed with. When
you see this message have the
indicated maintenance perf ormed as
soon as possible.
When the remaining engine oil lif e is
15 to 6 percent, the multi-inf ormation
display shows a ‘‘SERVICE DUE
SOON’’ message along with the
maintenance schedule code
indicating the main and sub items
required at the time of the oil change.
Ref er to page f or a complete list
of the maintenance main items and
sub items.
390
383
Maintenance Minder
384
MAINTENANCE
SUB ITEMS
MAINTENANCE
MAIN ITEM
\f—\f—\fy
\f
\fy
()-
\fy\fy
2008 MDX

ÝÛÝÛ
µ

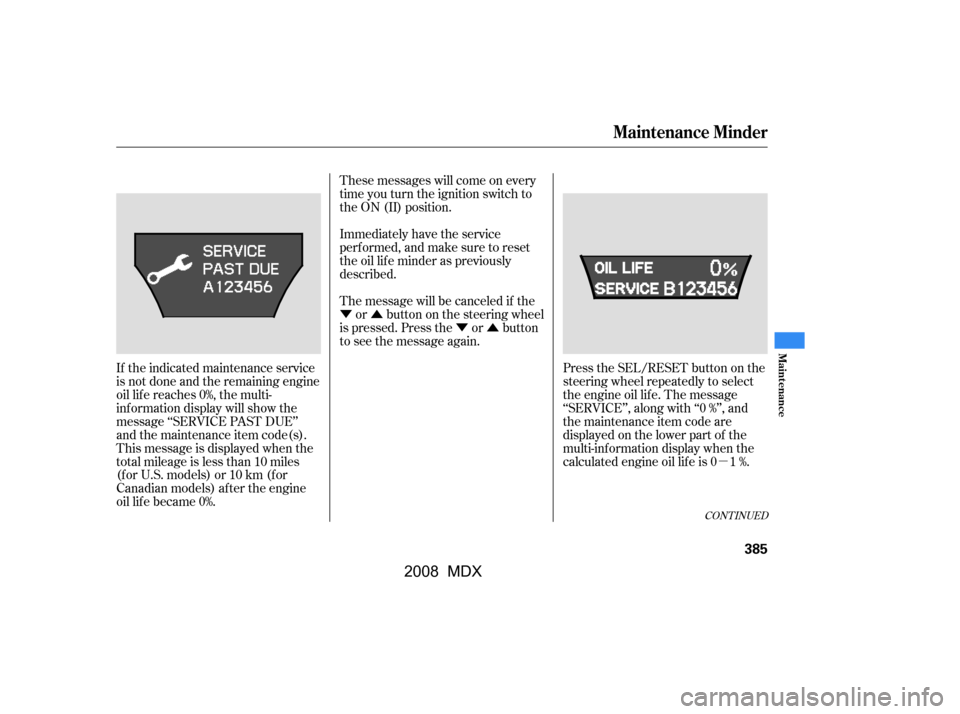

If the indicated maintenance service
is not done and the remaining engine
oil lif e reaches 0%, the multi-
inf ormation display will show the
message ‘‘SERVICE PAST DUE’’
and the maintenance item code(s).
This message is displayed when the
total mileage is less than 10 miles
(f or U.S. models) or 10 km (f or
Canadian models) af ter the engine
oillifebecame0%. These messages will come on every
time you turn the ignition switch to
the ON (II) position.
Immediately have the service
perf ormed, and make sure to reset
the oil lif e minder as previously
described.
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE’’, along with ‘‘0 %’’, and
the maintenance item code are
displayed on the lower part of the
multi-inf ormation display when the
calculated engine oil lif e is 0 1 %.
CONT INUED
Maintenance Minder
Maint enance
385
\f—\f—\fy
\f
y
()-
\fy\f\fy
2008 MDX

ÝÛÝÛ
If the indicated required service is
not done and the remaining engine
oil lif e becomes 0%, the multi-
inf ormation display will show a
‘‘SERVICE PAST DUE’’ message,
thetotalmileageaftertheremaining
oillifebecame0%,andthe
maintenance item code(s). This message is displayed when you
drive over 10 miles (f or U.S. models)
or 10 km (f or Canadian models)
af ter seeing the 0% message.
Immediately have the service
perf ormed, and make sure to reset
the display as previously described.
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.
When you press the SEL/RESET
button to select the engine oil lif e,
the message ‘‘SERVICE’’, along with
the maintenance item code and the
total negative mileage af ter the oil
lif e became 0 %, will be displayed on
the lower part of the multi-
inf ormation display.
Maintenance Minder
386
MAINTENANCE CODE
CANADA U.S.
TOTAL PAST DUE MILEAGE
TOTAL PAST DUE MILEAGE
U.S.
CANADA
\f—\f—\fy
\f
y
()-
\fy\f
y
2008 MDX

ÛÝ
All the maintenance items displayed
in the multi-information display are
in code.
For an explanation of the
maintenance codes, see page . Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the display the
next time you turn the ignition
switch to the ON (II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Turn the ignition switch to the ON
(II) position.
If the engine oil lif e is not
displayed, press the SEL/RESET
buttononthesteeringwheel
repeatedly the multi-information
tire pressure. Select ‘‘RESET’’ by pressing the
INFO ( / ) button, then press
the SEL/RESET button to reset
the engine oil lif e display. The
maintenance item code(s) will
disappear, and the engine oil lif e
will reset to ‘‘100.’’ If you want to
cancel the oil lif e reset mode,
select ‘‘CANCEL.’’
Press and hold the SEL/RESET
button on the steering wheel f or more than 10 seconds. The
remaining engine oil lif e reset
mode will be shown on the multi-
inf ormation display.
1.
2.
3. 4.
390
Maintenance Minder
Maintenance Main Items and Sub
Items Resetting the Engine Oil Lif e
Display
Maint enance
387
MAINTENANCE
MAIN ITEM
MAINTENANCE
MAIN ITEM MAINTENANCE
SUB ITEMS
MAINTENANCE
SUB ITEMS
\f—\f—\fy
\f
y
()-
\fy\fy
displayshowsblank,SH-AWD®and
2008 MDX

µµµ
µ
µ µ
Ì Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page . Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be perf ormed in accordance
with the intervals indicated by the
Multi-Inf ormation Display. 326
326
399 401
416 403
Owner’s Maintenance Checks
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’to EPA
standards.
Maintenance Minder
Maint enance
389
\f—\f—\fy
\f
\fy
()-
\fy\fy
2008 MDX
