warning Acura MDX 2012 Navigation Manual

6
Navigation System
ACURA MDX KA 31STX850
IntroductionWhile driving, do not
look at the screen
or operate the system controls for more than a second or so
at a time, and only
after deciding you can do so safely. Pull to the side of the ro
ad if you need more
time to look at the screen or operate the controls.
The navigation system is designed to provide route information to help you reach your destinatio
n. However, this
route guidance may
sometimes conflict
with current road conditions such as street closures, road construction, detours, and out-of-date map data. Additionally, the system itself has certain limitations (see page 129). Therefore, you must verify the audio and visual route information provided by the system by carefully observing the roadway, signs and signals, etc. If you are unsure, proceed with caution. Always use your own good judgment, and obey traffic laws while driving.
Map OverviewCurrent StreetThe current street on which your vehicle is located appears at the bottom of the map
screen (see page 20). A message
saying “Not on a
digitized road” may
appear instead when you drive half a mile away from a mapped road. For more details, see
Off-road Tracking
on
page 71.Verified/Unverified StreetYour navigation system has two kinds of streets: verified (red, gray, and pink) and unverified (purple). The differences between the two types of streets are contrasted in the chart on page 7.
Using the navigation system while driving can take yourattention away from the road,causing a crash in which youcould be seriously injured orkilled.
WARNING
“Unverified” Road
“Verified” Road
00 ACURA MDX_KA.book 6 ページ ２０１１年７月２７日　水曜日　午前１１時６分
Only operate system controls when the conditions permit you
to safely do so.

20
Navigation System
ACURA MDX KA 31STX850
Getting StartedMap Screen Legend
: Par k
: Hospital
: Shopping Mall
: Golf Course: Airport/Business
: Water Area
: Cemetery
: University
Traffic Status Indicator
(see page 23.)
Vehicle Position
(see page 64)
(Use voice command “Display
current location” or use the
Interface Dial to show current
location.)
Current Map Scale
(see page 66)
Message Icon (see page 80)
Indicates that you have an
AcuraLink message.
Warning Icon
Indicates that there are weather
warnings. To check the warning
list, see page 85. Current Street
(see page 6)
Map Scale Adjustment
(Mile or km per half-inch appears only
when you zoom in or out by rotating the
Interface Dial knob .)NOTE:
See Map Legend in the Map Information
on the Map menu for further explanation.
No Entry Icon
GPS Signal Strength
: Best Reception
: Good Reception
(Missing): Poor/No Reception
Map Orientation
(see page 63)
Map Menu
(see page 58)
(Push in on the Interface Dial to view.)
Breadcrumbs
(see
Off-road Tracking on
page 71) Streets
(see Map Overview on page 6)
: Freeways
: State Routes
: Verified Streets
: Unverified Streets
: One-way Streets (see page 67) (1/20 mile scale only)
Landmark Icon - Generic (see page 67)
Grocery Store
Hotel/Lodging
Gas Station
Hospital
Post Office
Restaurant
Acura Dealer
Honda Dealer
AT M
School
Parking Lot
Parking Garage
Freeway Exit Information
NOTE:
If you move the
Interface Dial over an area (map features
shown above), the name is displa yed at the top of the screen.
North-up
Heading-up
Map Features
00 ACURA MDX_KA.book 20 ページ ２０１１年７月２７日　水曜日　午前１１時６分

56
Navigation System
ACURA MDX KA 31STX850

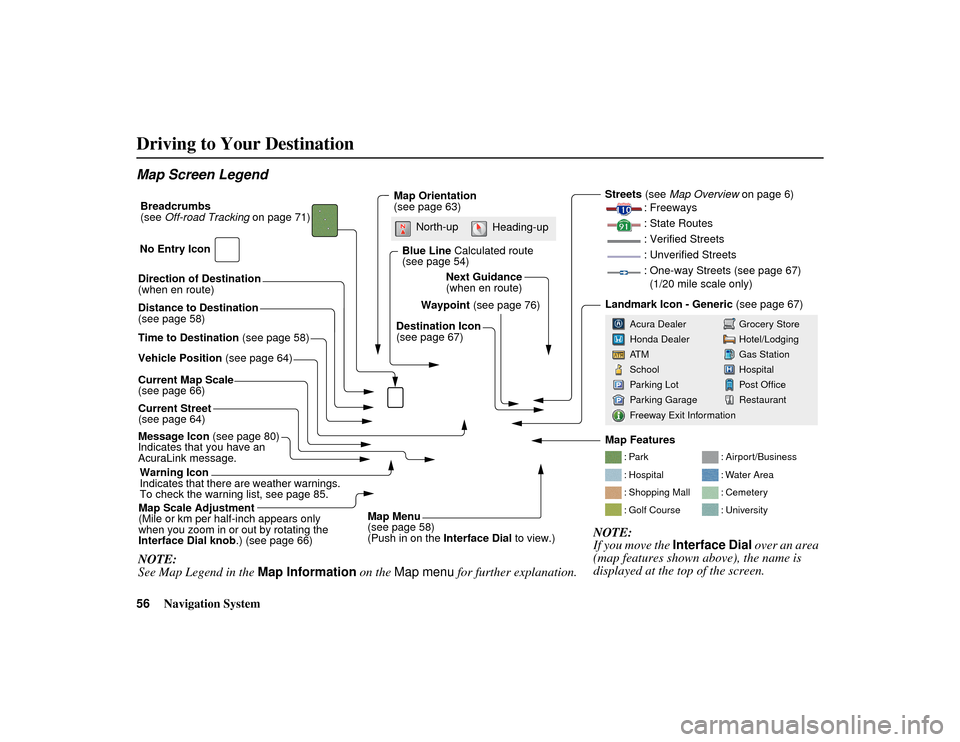

Driving to Your DestinationMap Screen LegendDirection of Destination
(when en route)
Vehicle Position (see page 64)
Current Map Scale
(see page 66)
Message Icon (see page 80)
Indicates that you have an
AcuraLink message.
Warning Icon
Indicates that there are weather warnings.
To check the warning list, see page 85.
Current Street
(see page 64)
Map Scale Adjustment
(Mile or km per half-inch appears only
when you zoom in or out by rotating the
Interface Dial knob .) (see page 66)NOTE:
See Map Legend in the Map Information on the Map menu for further explanation.
Waypoint (see page 76)
Map Orientation
(see page 63)
Breadcrumbs
(see
Off-road Tracking on page 71)
NOTE:
If you move the Interface Dial over an area
(map features shown above), the name is
displayed at the top of the screen.
Blue Line Calculated route
(see page 54)
Distance to Destination
(see page 58)
Time to Destination (see page 58) Destination Icon
(see page 67)Next Guidance
(when en route)
: Par k
: Hospital
: Shopping Mall
: Golf Course
: Airport/Business
: Water Area
: Cemetery
: University
Streets
(see Map Overview on page 6)
: Freeways
: State Routes
: Verified Streets
: Unverified Streets
: One-way Streets (see page 67) (1/20 mile scale only)Landmark Icon - Generic (see page 67)
Grocery Store
Hotel/Lodging
Gas Station
Hospital
Post Office
Restaurant
Acura Dealer
Honda Dealer
AT M
School
Parking Lot
Parking Garage
Freeway Exit Information
No Entry Icon
Map Menu
(see page 58)
(Push in on the
Interface Dial to view.)
North-up
Heading-up
Map Features
00 ACURA MDX_KA.book 56 ページ ２０１１年７月２７日　水曜日　午前１１時６分

58
Navigation System
ACURA MDX KA 31STX850
Driving to Your DestinationDistance and Time to
DestinationWhen you select a destination, the
distance to the destination is the actual
road distance of the calculated route,
and not “as the crow flies.” When
viewing a list of destinations (points of
interest), such as restaurants, the
distance is “as the crow flies” (see Sort
by Distance to Travel on page 41).
The displayed time to the destination
may differ from the actual travel time
because the time is calculated based on
the posted road speed data and your
current speed.
NOTE:
If you are en route and the Interface
Dial is moved, the “Time to
Destination” an d “Distance to
Destination” indica tions are replaced
with an indicator showing distance from
the current vehicle location.
Map MenuWhen the map screen is displayed,
pressing in on the Interface Dial
displays the Map menu. If the map is
scrolled, the Map menu will not
appear. Press the MAP/GUIDE button,
the BACK button, or the CANCEL
button to return to the basic map screen.
Voice - Button shown if currently en
route. Select to hear the next voice
guidance.
New Messages - Indicates that there are
AcuraLink messages for you to read.
These messages consist of quick tips
and other information communicated to
you by Acura. If the button is grayed
out, you have no messages. For detailed
information on this feature, see page 80. Traffic Incidents -
Displays a list of the
traffic incidents around your current
position or on your current route. You
can view this same list by saying
“Display traffic incidents.” For detailed
information on this feature, see page 25.
Weather Info. - Allows you to view the
weather forecast, warning list, warning
map, and radar map. See AcuraLink
Weather on page 82.
Guidance Menu - Button shown if
currently en route. This button allows
you to set or confirm the guidance
features. For detailed information, see
Guidance Menu on page 59.
00 ACURA MDX_KA.book 58 ページ ２０１１年７月２７日　水曜日　午前１１時６分

82
Navigation System
ACURA MDX KA 31STX850
Information Features For questions about the HFL Cellular Phonebook, call HandsFreeLink
customer support at (888) 528-7876,
or (888) 9-ACURA-9 in Canada, or
visit www.acura.com/handsfreelink.Traffic IncidentsWhen you say or select
Traffic
Incidents
, you can view a list of the
traffic incidents near your current
position or along your calculated route.
See
Viewing Incident Reports
on page 25
and Traffic Rerouting on page 73.
NOTE:
To receive traffic information, your XM
traffic/weather subscription must be
paid. See page 124 for details. If you select an incident from the list
and push in on the
Interface Dial, the
detailed information and the map of the
surrounding area will appear.
NOTE:
When you cannot receive Traffic
Incidents information and select this
feature, the message “Traffic
information could not be received” will
be displayed. The traffic information
will be automatically updated every 20
minutes. For an explanation regarding
the verification of reception status,
please see Traffic & Weather Status on
page 124.
AcuraLink WeatherThe Weather Info. option allows you
to view the weather forecast, warning
list, warning map, and radar map.
When you say or select Weather Info.
on the Map menu or INFO screen, the
following screen appears:
NOTE:
 You can view the same screen by selecting Weather Info. from the
Map menu (see page 58).
 To receive weather information, your XM traffic/weather subscription must
be paid. See page 124 for details.
00 ACURA MDX_KA.book 82 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System83
ACURA MDX KA 31STX850
Information Features
 When you cannot receive Weather
Info. and select this feature, the
message “Weather information could
not be received” will be displayed.
The weather information will be
automatically updated every 20
minutes. For information regarding
the verification of reception status,
please see Traffic & Weather Status
on page 124.Weather ForecastYou can view the weather forecast for
the current position or the city you
selected. Say or select Weather
Forecast , and the display changes to:
When you select Current Position ,
the Forecast screen will be displayed. When you select
City Vicinity, the
Enter city name screen will be
displayed. Enter the name of the city
using the Interface Dial. If the system
does not find an exact match, select
LIST when you finish entering the name
of the city. Select a desired city from the
list. The Forecast screen will be
displayed.
When you select the “1 day” tab, you
can view the one-day forecast and get
information about th e current weather,
forecast, and temperature. When you
select the “3 day” tab, you can view the
three-day forecast (day/night). NOTE:
 When the GPS signal or weather
information cannot be received,
“NA” or “No Data” will be
displayed.
 You can view the same information by selecting the weather icon for a city
on the map screen.
Warning ListYou can view a list of all weather
warnings in the Un ited States. Say or
select Warning List Sorted by
Distance , and the display changes to:
00 ACURA MDX_KA.book 83 ページ ２０１１年７月２７日　水曜日　午前１１時６分

84
Navigation System
ACURA MDX KA 31STX850
Information FeaturesYou can view three types of lists by
selecting a sorting method from “All
US,” “Within 500mi,” or “On Route.” A
warning icon in the list indicates that
your vehicle is in the warning area, or
the calculated route runs through the
area. When you select a listed item by
pushing in on the Interface Dial, the
detailed information will be displayed.
Say “Read List” or push in on the
Interface Dial , and the information
will be read to you.
NOTE:
The “On Route” tab can be selected
only when en route.
Warning MapYou can view the warning map, which
contains different colors according to
the type of warning. Say or select
Warning Map , and the display
changes to:
Select the colored area by moving the
Interface Dial. If desired, rotate the
Interface Dial knob to change the
map scale (50, 150, or 350 miles). When
you have the crosshairs in the desired
area, push in on the Interface Dial.
The Weather Warning screen will be
displayed.
Radar MapTo view a radar map displaying rain or
other weather systems, say or select
Radar Map. The display changes to:
Heavy rain
Moderate rain
Light rain
Heavy freezing rain
Light freezing rain
Heavy snow
Light snow
Move the Interface Dial to scroll the
map. To change the scale (50, 150, or
350 miles), turn the Interface Dial
knob.
00 ACURA MDX_KA.book 84 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System85
ACURA MDX KA 31STX850
Information Features
NOTE:
 Moving the cursor does not display
the detailed information.
 Changes to the scale of the Radar Map are not reflected on the original
map screen.Weather Information on MapWeather Icons
Weather icons can be displayed on the
map screen when turned on (see
page 68). They appear next to the city
names on all map scales.
When you scroll through the map using
the Interface Dial , the weather icon is
displayed at the top right of the screen.
This shows you the weather at the
cursor position. When you select the weather icon next
to a city name and push in the
Interface Dial, the
Forecast screen
will be displayed. To return to the map
screen, press the CANCEL button.
Warning IconThe warning icon indicates that a
weather warning area exists near your
current location or along your calculated route. To check th
e weather warnings,
see Warning List on page 83.
Weather Information for
DestinationWhen you select a destination, weather
icons for the destination will display on
the right side of the screen.
00 ACURA MDX_KA.book 85 ページ ２０１１年７月２７日　水曜日　午前１１時６分

86
Navigation System
ACURA MDX KA 31STX850
Information FeaturesYou can also view the weather
information for your destination when
you select the destination directly from
the map screen (use the Interface Dial
to position the target mark on your
desired destination, and then push in on
the Interface Dial ).
NOTE:
When the GPS signal or weather
information cannot be received, “NA”
will be displayed. When the system calculates a route and
there is a warning on the route, the
following screen will be displayed:
Select
Check Info. , and the warning
list will be displayed (see page 83).
MessagesSee AcuraLink Messages on page 80.Voice HelpWhen you say or select Voice Help on
the INFO screen ( Main Info.), you will
see the following screen:
You can select the “MAP,” “MENU,”
or “AUDIO” tab by moving the
Interface Dial to the left or right.
NOTE:
You can select an item by saying either
the line number or the item name.
00 ACURA MDX_KA.book 86 ページ ２０１１年７月２７日　水曜日　午前１１時６分

90
Navigation System
ACURA MDX KA 31STX850
Information FeaturesNOTE:
 Only one entry can be stored for each calendar day.
 A maximum of 50 entries can be stored in the calendar. After you
reach 50 entries, a warning message
will appear telling you that the limit
has been reached. You can clear any
older entries as needed.
 The system displays active calendar entries only after you answer OK on
the Disclaimer screen.
 For more information, see System Start-up on page 18.
Scenic Road InformationSay or select Scenic Road
Information while on the INFO screen
(Other ), and the display will change as
indicated below.
The number of scenic roads for each
state will be listed.Select a state and a list of the scenic
roads in that state will be displayed.
After making a selection, the scenic road
will display on the screen at a scale,
where its main portion is the focal point
of the map. You can then set this as a
destination or waypoint.If you select a scenic road that runs
through multiple states, only the portion
of the road in the selected state will be
displayed.
CalculatorWhen you say or select Calculator on
the INFO screen ( Other), the display
changes to:
Use the Interface Dial and Knob to
use the following features:CalculatorThe calculator function operates like a
standard handheld calculator.Unit ConversionValues entered on the calculator can be
converted from one unit to another (e.g.,
inches to millimeters).
00 ACURA MDX_KA.book 90 ページ ２０１１年７月２７日　水曜日　午前１１時６分
