headlights Acura MDX 2012 Owner's Manual

This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.Control Locations
..........................
66
Instrument Panel
..........................
67
Instrument Panel Indicators
..........
68
Gauges
..........................................
78
Multi-Information Display
.............
79
Controls Near the Steering
Wheel
.....................................
125
Windshield Wipers and
Washers
..............................
126
Rear Window Wiper and
Washer
...............................
127
Turn Signal and Headlights
........
128
Hazard Warning Button
..............
132
Rear Window Defogger
...............
132
Instrument Panel Brightness
......
133
Steering Wheel Adjustments
.......
134
Keys and Locks
...........................
136
Immobilizer System
....................
138
Ignition Switch
............................
139
Door Locks
.................................
140
Childproof Door Locks
............
141
Tailgate
.......................................
141
Power Tailgate
........................
142
Remote Transmitter
....................
145Seats
...........................................
149
Detachable Anchor
.................
155
Seat Heaters
................................
157
Seat Heaters and Seat
Ventilation
...............................
158
Power Windows
..........................
160
Moonroof
....................................
163
Parking Brake
.............................
164
Mirrors
.......................................
165
Driving Position Memory
System
....................................
168
Interior Lights
.............................
170
Interior Convenience Items
.........
173
Beverage Holders
...................
174
Console Compartment
............
175
Storage Compartment
.............
175
Glove Box
...............................
175
Sunglasses Holder
..................
176
Sun Visor
................................
176
Vanity Mirror
..........................
177
Accessory Power Sockets
.......
177
AC Power Outlet
.....................
178
Instruments and Controls
65
Instruments and Controls

Immobilizer System
Indicator
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. It will then go off if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine's fuel system will be
disabled (see page 138).
Lights On Indicator
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or
position. This indicator will
also come on when the light switch is
in AUTO and the lights turn on
automatically. If you turn the ignition
switch to the ACCESSORY (I) or the
LOCK (0) position without turning
off the light switch, this indicator will
remain on. A reminder chime will
also sound when you open the
driver's door.
Fog Light Indicator
This indicator comes on when you
turn on the fog lights. For more
information, see page 130.High Beam Indicator
This indicator comes on with the
high beam headlights. For more
information, see page 128.
Instrument Panel Indicators74

Group Setup Menu Item Description Setting Option Page
LIGHTING SETUP
(P. 110)INTERIOR LIGHT
DIMMING TIMEChanges how long (in seconds) the interior lights stay
on after you close the doors and the tailgate.60 sec 15 sec 111
30 sec
ᤳ
HEADLIGHT
AUTO OFF TIMERChanges how long (in seconds) the exterior lights stay
on after you close the driver's door.60 sec
112 30 sec 0 sec
15 sec
ᤳ
AUTO LIGHT
SENSITIVITYChanges the timing of when the headlights come on.
The headlight switch needs to be in the AUTO
position.MAX LOW
113 HIGH MIN
MID
ᤳ
DOOR/WINDOW
SETUP
(P. 115)AUTO DOOR LOCK Changes the setting of when to automatically lock the
doors.SHIFT FROM P
116 WITH VEH SPD
ᤳ
OFF
AUTO DOOR UNLOCK Changes the setting of when to automatically unlock
the driver's/all the doors.SHIFT TO P
ᤳ
DRIVER
DOOR/ALL
DOORS
117 IGN OFF
OFF
KEY AND REMOTE
UNLOCK MODEChanges which doors unlock with the remote
transmitter on a first push.DRIVER DOOR
ᤳ
119
ALL DOORS
KEYLESS LOCK
ACKNOWLEDGMENTThe exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also sound
when you press the LOCK button twice.ON
ᤳ
120 OFF
SECURITY RELOCK TIMER Changes how long it takes (in seconds) for the doors
to relock and the security system to set after you
unlock but do not open the door.90 sec
121 60 sec
30 sec
ᤳ
WIPER SETUP
(P. 123)WIPER ACTION Changes the wiper operation between two settings
when the wiper switch is in the INT position.INTERMITTENT 123
WITH VEH SPD
ᤳ
DEFAULT ALL
(P. 93)Set/Cancel all the customized settings as default. SET 93
CANCEL
ᤳ: Default setting
Multi-Information Display92

Headlight Auto Off TimerThe headlights, parking lights, side
marker lights, taillights, and license
plate lights go off after the selected
time when you remove the key from
the ignition switch and close the
driver's door. To change how long
the lights stay on before they go off,
follow these instructions:
You can choose this customizable
item from‘‘LIGHTING SETUP’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.
Multi-Information Display112

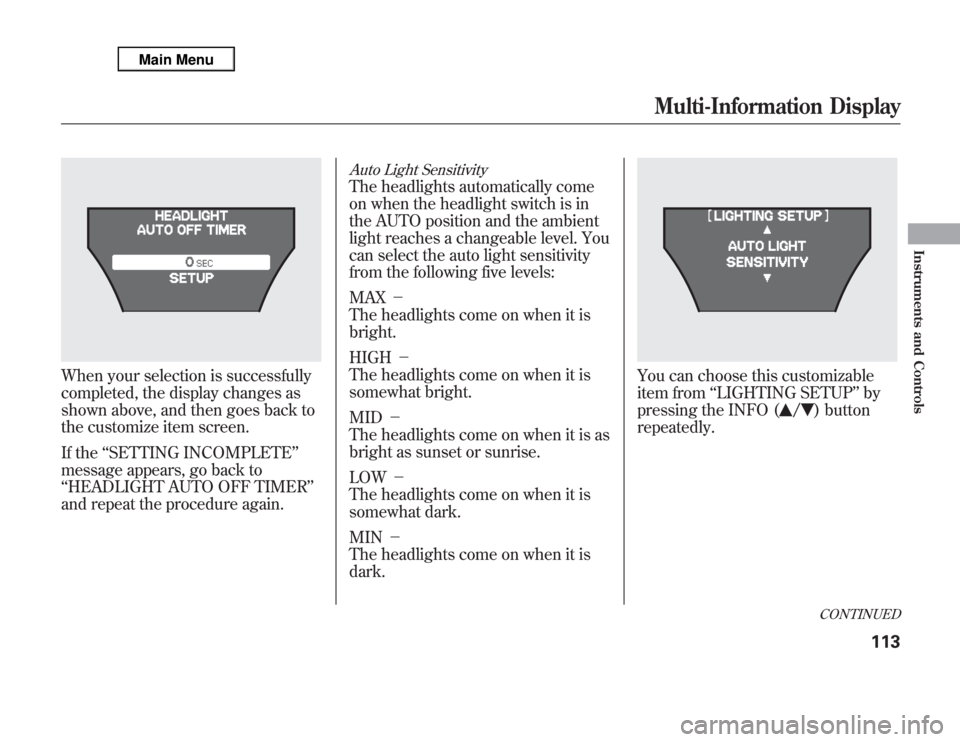

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘HEADLIGHT AUTO OFF TIMER’’
and repeat the procedure again.
Auto Light SensitivityThe headlights automatically come
on when the headlight switch is in
the AUTO position and the ambient
light reaches a changeable level. You
can select the auto light sensitivity
from the following five levels:
MAX－
The headlights come on when it is
bright.
HIGH－
The headlights come on when it is
somewhat bright.
MID－
The headlights come on when it is as
bright as sunset or sunrise.
LOW－
The headlights come on when it is
somewhat dark.
MIN－
The headlights come on when it is
dark.
You can choose this customizable
item from‘‘LIGHTING SETUP’’by
pressing the INFO (
/
) button
repeatedly.CONTINUED
Multi-Information Display
113
Instruments and Controls

1. MIST
2. OFF
3. INT－Intermittent
4. LO－Low speed
5. HI－High speed
6. Windshield washersPush the right lever up or down to
select a position.
MIST－The wipers run at high
speed until you release the lever.
OFF－The wipers are not activated.
INT－The length of the wipe
interval is varied automatically
according to vehicle speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay (
position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
To change the‘‘WIPER ACTION’’
setting, see page 123.LO－The wipers run at low speed.
HI－The wipers run at high speed.
Windshield Washer－Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
When you activate the windshield
washer with the headlights turned
on, the headlight washer will be
activated under certain conditions.
For more information, see following
Headlight Washers
section.
Windshield Wipers and Washers126

Headlight Washers
(On Canadian models)The headlight washers can be
operated at any time by pressing the
headlight washer button located next
to the steering wheel column. The
headlights must be turned on to use
this button. In addition, the headlight
washer operates without pressing the
button the first time you turn on the
windshield washers with the ignition
switch in the ON (II) position.The headlight washers use the same
fluid reservoir as the windshield
washers.Rear Window Wiper and Washer
1. Rotate the switch clockwise to turn
the rear window wiper ON.
2. Hold past ON to turn the rear
window wiper on and to spray the
rear window washer.
CONTINUED
Windshield Wipers and Washers
127
Instruments and Controls

3. When you turn the wiper switch to
the‘‘OFF’’position, the wiper will
return to its parked position.
4. Rotate the switch
counterclockwise to spray the
window washer.
When you shift the transmission to
the reverse position with the front
windshield wipers activated, the
rear window wiper operates
automatically.
When the wiper control lever
position is INT, the rear wiper
operates intermittently. When it is
LO or HI, the rear wiper operates
continuously.
The rear window washer uses the
same fluid reservoir as the
windshield washer.Turn Signal and Headlights
1. Turn signal
2. Off
3. Parking and indicator lights
4. AUTO
5. Headlights on
6. High beams
7. Flash high beams
8. Fog lights off
9. Fog lights onTurn Signal－Push down on the
lever to signal a left turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Headlights On－Turning the
switch to the‘‘
’’position turns on
the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the‘‘
’’
position turns on the headlights. If
you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder chime when
you open the driver's door.
Windshield Wipers and Washers, Turn Signal and Headlights128

When the light switch is in either of
these positions, the lights on
indicator comes on as a reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
High Beams－To switch from low
beams to high beams, push the left
lever forward until you hear a click.
The blue high beam indicator will
come on (see page 74). Pull it back to
return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams stay on as long as you hold
the lever back.AUTO－The automatic lighting
feature turns on the headlights and
all other exterior lights, when it
senses low ambient light.
To turn on automatic lighting, turn
the light switch to AUTO at any time.
The lights will come on automatically
when the outside light level becomes
low (at dusk, for example). The
lights on indicator comes on as a
reminder. The lights and indicator
will turn off automatically when the
system senses high ambient light.
The lights will remain on when you
turn off the ignition switch. They will
turn off automatically when you
remove the key and open the driver's
door. To turn them on again, either
turn the ignition switch to the ON
(II) position or turn the light switch
to the
position.Even with the automatic lighting
feature turned on, we recommend
that you turn on the lights manually
when driving at night or in a dense
fog, or when you enter dark areas
such as long tunnels or parking
facilities.
To change the‘‘AUTO LIGHT
SENSITIVITY’’setting, see page 113.
Do not leave the light switch in
AUTO if you will not be driving the
vehicle for an extended period (a
week or more). You should also turn
off the lights if you plan to leave the
engine idling or off for a long time.
CONTINUED
Turn Signal and Headlights
129
Instruments and Controls

The automatic lighting feature is
controlled by a sensor located on top
of the dashboard. Do not cover this
sensor or spill liquids on it.Fog Lights
Turn the fog lights on and off by
turning the switch next to the
headlight switch.
You can use the fog lights only when
the headlights are on low beam.
With the light switch in the AUTO
position, you can also use the fog
lights when the headlights turn on
automatically. They will go off when
the headlights turn off.Daytime Running Lights
With the headlight switch off, the
daytime running lights come on
when you turn the ignition switch to
the ON (II) position and release the
parking brake. They remain on until
you turn the ignition switch off, even
if you set the parking brake.
When the headlights are on, the
daytime running lights are off.
LIGHT SENSOR
Turn Signal and Headlights130
