display Acura MDX 2013 Owner's Manual

MenuWhen you select‘‘MENU’’with the
interface dial, the screen changes to
the DVD's title menu.Play Mode
When you select‘‘PLAY MODE’’
with the interface dial, you can
change the DVD's Audio, Subtitle or
Angle setting.
‘‘Audio’’To change the Audio setting,
highlight‘‘Audio’’from the play
mode menu with the
or
button.
A submenu of the dubbed language
appears. You can select another
language by turning the interface
dial. The sound characteristics
(Dolby Digital, LPCM, MPEG Audio,
dts) recorded with the selected
language is also displayed next to the
language.
CONTINUED
Rear Entertainment System
319
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

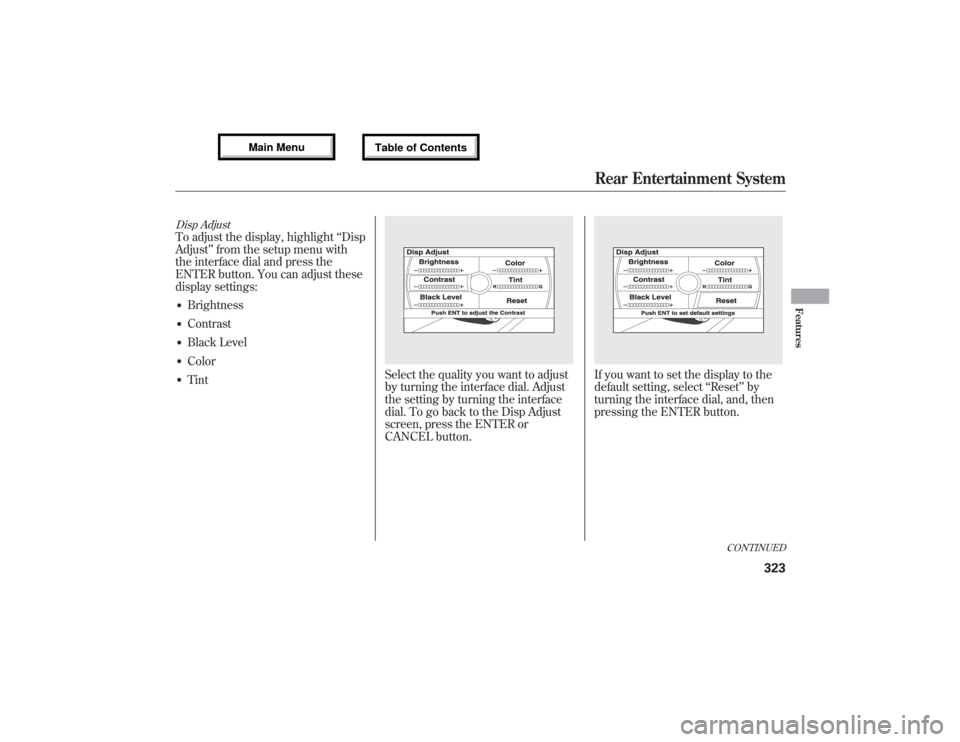

Disp AdjustTo adjust the display, highlight‘‘Disp
Adjust’’from the setup menu with
the interface dial and press the
ENTER button. You can adjust these
display settings:●Brightness●Contrast●Black Level●Color●Tint
Select the quality you want to adjust
by turning the interface dial. Adjust
the setting by turning the interface
dial. To go back to the Disp Adjust
screen, press the ENTER or
CANCEL button.
If you want to set the display to the
default setting, select‘‘Reset’’by
turning the interface dial, and, then
pressing the ENTER button.
CONTINUED
Rear Entertainment System
323
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

The display changes as shown above.
Select‘‘Yes,’’and press the ENTER
button. You will see the message
‘‘Default display settings applied’’on
the display for 5 seconds.
Aspect RatioYou can set the screen mode to these
settings:●Normal●Wide●Zoom●Full
Select the‘‘Aspect Ratio’’by turning
the interface dial, then press the
ENTER button. The selectable
setting menu is displayed, and the
current setting is highlighted in blue.
Select the desired setting by turning
the interface dial, then press the
ENTER button.
The selected setting will be
highlighted in blue for one second,
and the screen returns to the play
mode in the selected setting.
Rear Entertainment System32412/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

Personal SurroundTo change the Personal Surround
setting, highlight‘‘Personal
Surround’’from the setup menu with
the interface dial and press the
ENTER button. The effect selection
appears.Select‘‘Music,’’ ‘‘Cinema,’’or‘‘Voice’’
by turning the interface dial, and
enter your selection by pressing the
ENTER button. The‘‘PERSONAL
SURROUND’’logo is displayed in
the upper right corner of the screen.
If you select‘‘Off,’’the logo
disappears, and there will be no
special sound effect.
LanguageYou can change the display language
to English, French, or Spanish.
Rotate the interface dial to the setting
you want, then press the ENTER
button.
CONTINUED
Rear Entertainment System
325
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

When you press the SETUP button
while a DVD is not playing, the setup
menu appears for audio.Disp Adjust, Personal Surround, and
LanguageThe operation for these menus is the
same as that for using the DVD
player.
AppearanceYou can change the color of the
screen to white, black, blue, brown,
or red. You can also synchronize
with the front navigation system.
Rotate the interface dial to the setting
you want, then press the ENTER
button.
INITIAL SETTINGS MenuWhen you press the MENU button
on the rear control panel when a
DVD is not playing, the‘‘INITIAL
SETTINGS’’menu is displayed.
There are five selectable menus:
‘‘Language’’ ‘‘Dynamic Range’’,
‘‘Angle Mark’’,‘‘Parental Level’’, and
‘‘Password’’.
Rear Entertainment System32612/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

INITIAL SETTINGS (Language)When you select‘‘Language’’with
the interface dial, the menu shown
above appears.
To return to the stop or previous
screen, press the CANCEL button.
Because the priority language is
determined by each disc you insert,
you might not be able to set a
selected item.Menu Language
To select the language used in the
DISC menus, select‘‘Menu
Language’’by pressing the
or
button.
Select the desired language by
turning the interface dial, and then
pressing the ENTER button.
The selectable languages are,
English, French, Spanish, German,
Italian, Dutch, Chinese, Korean,
Thai, Japanese or others.
If you want another language than
those listed, you need to enter the
code number of the desired
language. Select‘‘other,’’and press
the ENTER button. The display
changes as shown in the next
column.
CONTINUED
Rear Entertainment System
327
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

If you select‘‘No,’’and press the
ENTER button, the display returns to
the initial screen of the‘‘Language’’
menu.
If you select‘‘Yes,’’the display
changes to the language code input
mode. Select the first digit using the
interface dial, and press the ENTER
button to enter it. Repeat this until all
four digits are filled. Press thebutton on the control panel to enter
the new language code.
If you made a mistake entering a
number digit, press the
button on
the control panel. Then select and
enter the correct digit as described.
The display returns to the initial
‘‘Language’’menu screen.
Rear Entertainment System32812/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

Select the‘‘Dynamic Range’’by
turning the interface dial.
To turn‘‘Dynamic Range’’on or off,
select‘‘ON’’or‘‘OFF’’by turning the
interface dial, and then press the
ENTER button.Angle Mark
When you switch to another angle
while playing a DVD, the angle mark
is displayed in the upper right corner
of the screen.
You can set the system to display or
not display this angle mark.
Select the‘‘Angle Mark’’by turning
the interface dial. If you want the
angle mark to be displayed, select
‘‘ON’’by turning the interface dial,
and then press the ENTER button.
ANGLE MARK
Rear Entertainment System33012/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

Parental Level
You can place an auditory restriction
by changing the parental control
level. The higher the level number,
the lower the restriction.
Highlight‘‘Parental Level’’and press
the ENTER button. You will see the
submenu. If you select‘‘No’’and
press the ENTER button, the screen
goes back to the‘‘Others’’menu.
When you select and enter‘‘Yes,’’the
display changes as shown above. To
change the level, you need to enter
your four digit password. Select the
number for the first digit by turning
the interface dial, and enter it by
pressing the ENTER button. Repeat
this until all four digits are filled.
Press the
button on the control
panel.
CONTINUED
Rear Entertainment System
331
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

If the system does not recognize the
password you entered, you will see
the above display. Repeat the
parental control level steps until you
enter the correct password.
If you enter the password correctly,
you can then change the parental
control level.
Once you correctly enter the
password, turn the interface dial to
change the level, and then press the
ENTER button. Press the
button to
enter your selection.Changing the Password
The password was set to‘‘1111’’
when the vehicle left the factory.
