ad blue Acura MDX 2016 Navigation Manual

212Bluetooth® HandsFreeLink®
Bluetooth® HandsFreeLink®Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle’s navigation system, without handling your cell phone.Using HFLh (Pick-up) button: Press to go to the Speed Dial/Call History on the multi-
information display or to answer an incoming call.
J (Hang-up/back) button: Press to end a call, to cancel a command or to clear
the phone information on th e multi-information display.
d (Talk) button: Press to give HFL voice commands.
PHONE button: Press to go dire ctly to the Phone screen.
Interface dial: Rotate i to select an item on the screen, then press u. Move w,
y , e or y to select secondary menu.■HFL Buttons
1 Bluetooth ® HandsFreeLink®
To use HFL, you need a Bluetooth®-compatible
cell phone. For a list of compatible phones,
pairing procedures, and special feature
capabilities:
Visit www.acura.com/ handsfreelink, or
call 1-888-528-7876.
Voice control tips:•Aim the vents away from the ceiling and close
the windows, as noise coming from them may
interfere with the microphone.•Press and release the d button when you
want to call a number using a stored voice tag,
a phonebook name, or a number. Speak
clearly and naturally after a beep.•If the microphone picks up voices other than
yours, the command may be misinterpreted.•To change the volume level, use the audio
system’s volume knob or the remote audio
controls on the steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
If you receive a call whil e using the audio system,
the system resumes its operation an after ending
the call.
Volume down
Volume up
Pick-up
Button
PHONE
ButtonInterface
DialMicrophone
Hang-up/Back ButtonTalk Button
MDX_KA-31TZ58200.book 212 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

213
XX
Bluetooth® HandsFreeLink®
XUsing HFL
Bluetooth ® HandsFreeLink®
The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled
or inoperable while the vehicle is in
motion.
You cannot select a grayed-out
option until the vehicle is stopped.
Only previously stored speed dial
entries with voice tags, phonebook
names, or numbers can be called
using voice commands while the
vehicle is in motion.
2Setting Up Speed Dialing
P. 221
■HFL Status Display
1Bluetooth ® HandsFreeLink®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are
registered trademarks ow ned by Bluetooth SIG,
Inc., and any use of such marks by Honda Motor
Co., Ltd., is under license. Other trademarks and
trade names are t hose of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when
the call is ended.
Bluetooth ® HandsFreeLink® (HFL ) allows you to
place and receive phone call s using your vehicle’s
navigation system, without handling your mobile
phone.
Battery Level Status
Bluetooth
® Indicator
Comes on when your
phone is connected
to HFL. Roam Status
Signal Strength
Caller’s Name
Caller’s Number
■
Limitations for Manual Operation
1 HFL Status Display
The information that appears on the audio/
information screen varies between phone
models.
You can change the system language to English,
French, or Spanish.
2 Language Settings P. 36
Disabled Option
MDX_KA-31TZ58200.book 213 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

214
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth ® HandsFreeLink®
Pairing a PhoneHPHONE button
When no Bluetooth®-compatible phone is paired, the following screen appears:
1. Rotate i to select Yes. Press u.
2. Make sure your phone is in search
or discoverable mode. Press u.
X
HFL automatically searches for a
Bluetooth ® device.
3. When your phone appears on the
list, select it by pressing u.
X
If your phone does not appear,
you can select Refresh to search
again.
X
If your phone still does not
appear, move r to select
Phone not Found? and search
for Bluetooth ® devices using
your phone. From your phone,
select HandsFreeLink .
1Pairing a Phone
Your Bluetooth ®-compatible phone must be
paired to HFL before you can make and receive
hands-free calls.
Phone Pairing Tips:•You cannot pair your phone while the vehicle
is moving.•Up to six phones can be paired.•Your phone's battery may drain faster when it
is connected to HFL.•If your phone is not r eady for pairing or not
found by the system within three minutes, the
system will time out and returns to idle.
Once you have paired a phone, you can see it
displayed on the screen wi th one or two icons on
the right side.
These icons indicate the following:
: The phone can be used with HFL.
: The phone is compatible with Bluetooth®
Audio.
MDX_KA-31TZ58200.book 214 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

215
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth® HandsFreeLink®
4.HFL gives you a pairing code on the
audio/information screen.X
Confirm if the pairing code on
the screen and your phone
match.
This may vary by phone.
5. You will receive a notification on
the screen if pairing is successful.
H SETTINGS button
X Phone Settings
X Connect Phone
1.Rotate i to select Add
Bluetooth Device.
2. Make sure your phone is in search
or discoverable mode. Press u.
X
HFL automatically searches for a
Bluetooth ® device.
1Pairing a Phone
When pairing is completed, an
Automatic
Phone Sync
prompt appears. Select
On
if you
want your call history and phonebook
automatically imported to HFL.
2 Automatic Phone Sync setting P. 236
Some phones may have an additional setting to
allow the phone to auto connect each time you
turn on your vehicle.
■ Pairing from Phone Setup
Continued
MDX_KA-31TZ58200.book 215 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

216
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth ® HandsFreeLink®
3.When your phone appears on the
list, select it by pressing u.X
If your phone does not appear,
you can select Refresh to search
again.
X
If your phone still does not
appear, move r to select
Phone not Found? and search
for Bluetooth ® devices using
your phone. From your phone,
select HandsFreeLink .
4. HFL gives you a pairing code on the
audio/information screen.
X
Confirm if the pairing code on
the screen and your phone
match. This may vary by phone.
5. You will receive a notification on
the screen if pairing is successful.
MDX_KA-31TZ58200.book 216 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

217
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth® HandsFreeLink®
HSETTINGS button
X System Settings
X Edit Pairing Code
Rotate i to select Fixed or
Random . Press u.
■Changing the Pairing Code
1 Changing the Pairing Code
The pairing code may be six or four digits
depending on your phone.
The default pair ing code is
0000
until you
change the setting.
To create your own, select
Fixed
, and delete the
current code, then enter a new one.
For a randomly generated pairing code each time
you pair a phone, select
Random
.
MDX_KA-31TZ58200.book 217 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

218
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth ® HandsFreeLink®
HSETTINGS button
X Phone Settings
X Bluetooth Device List
1.Rotate i to select a paired phone
you want to replace. Press u.
2. Rotate i to select Replace This
Device . Press u.
3. HFL enters the pairing process and
searches a new phone.
X
Follow the prompts to pair a
new phone.
4. You will receive a notification on
the screen if pairing is successful.
■Changing the Currently Paired Phone
1 Changing the Currently Paired Phone
The replaced phone will keep the same speed
dial entries, and security PIN information from
the previously paired phone.
MDX_KA-31TZ58200.book 218 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

219
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth® HandsFreeLink®
HSETTINGS button
X Phone Settings
X Bluetooth Device List
1.Rotate i to select a paired phone
you want to replace. Press u.
2. Rotate i to select Delete This
Device . Press u.
3. You will receive a confirmation
message on the screen. Rotate i
to select Yes. Press u .
4. You will receive a notification on
the screen if deleti on is successful.
■Deleting a Paired Phone
MDX_KA-31TZ58200.book 219 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

220
XX
Bluetooth® HandsFreeLink®
XImporting Phonebook Data
Bluetooth ® HandsFreeLink®

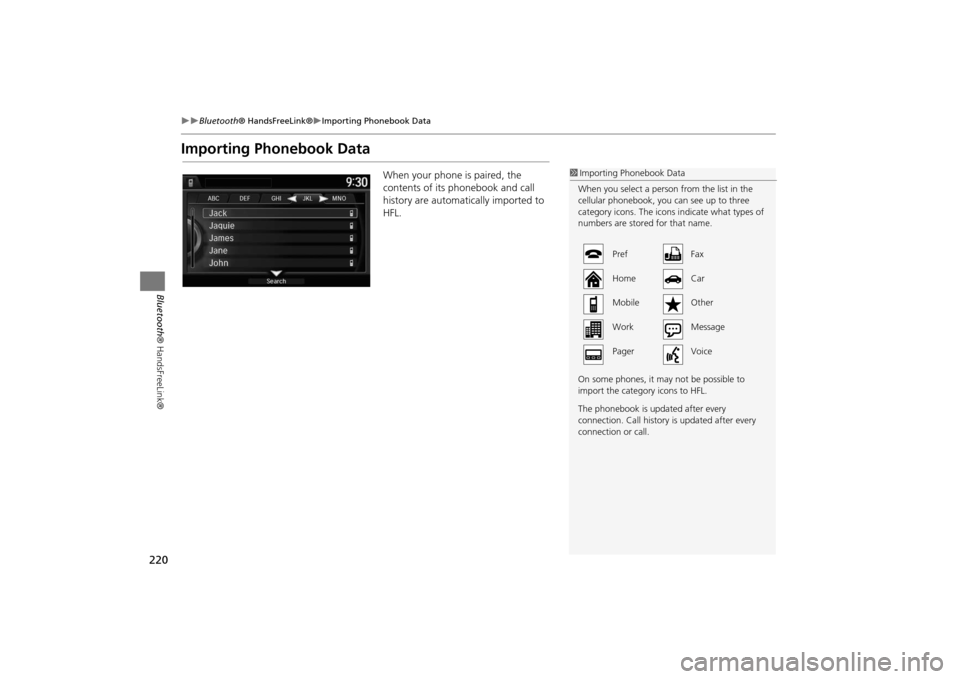

Importing Phon ebook Data
When your phone is paired, the
contents of its phonebook and call
history are automatically imported to
HFL.
1Importing Phonebook Data
When you select a person from the list in the
cellular phonebook, you can see up to three
category icons. The icons indicate what types of
numbers are stored for that name.
On some phones, it may not be possible to
import the category icons to HFL.
The phonebook is updated after every
connection. Call histor y is updated after every
connection or call.
Pref Fax
Home Car
Mobile Other
Work Message
Pager Voice
MDX_KA-31TZ58200.book 220 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

221
XX
Bluetooth® HandsFreeLink®
XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®

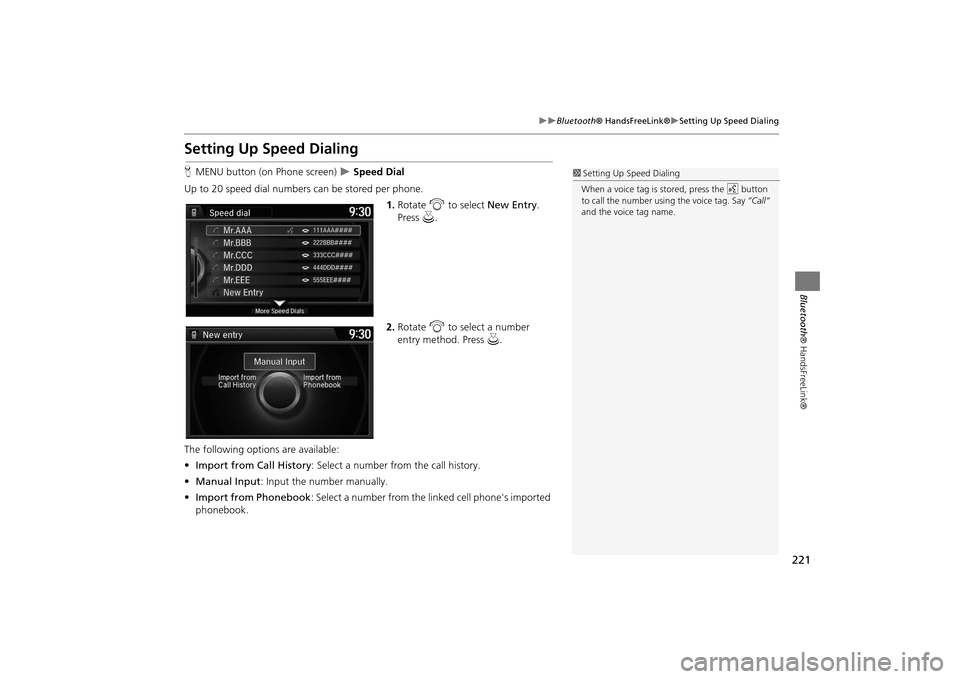

Setting Up Speed DialingHMENU button (on Phone screen)
X Speed Dial
Up to 20 speed dial numbers can be stored per phone. 1.Rotate i to select New Entry .
Press u.
2. Rotate i to select a number
entry method. Press u.
The following options are available:
• Import from Call History : Select a number from the call history.
• Manual Input : Input the number manually.
• Import from Phonebook : Select a number from the linked cell phone's imported
phonebook.
1 Setting Up Speed Dialing
When a voice tag is stored, press the d button
to call the number using the voice tag. Say ”Call“
and the voice tag name.
MDX_KA-31TZ58200.book 221 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
