navigation update Acura MDX 2016 Navigation Manual

94
XX

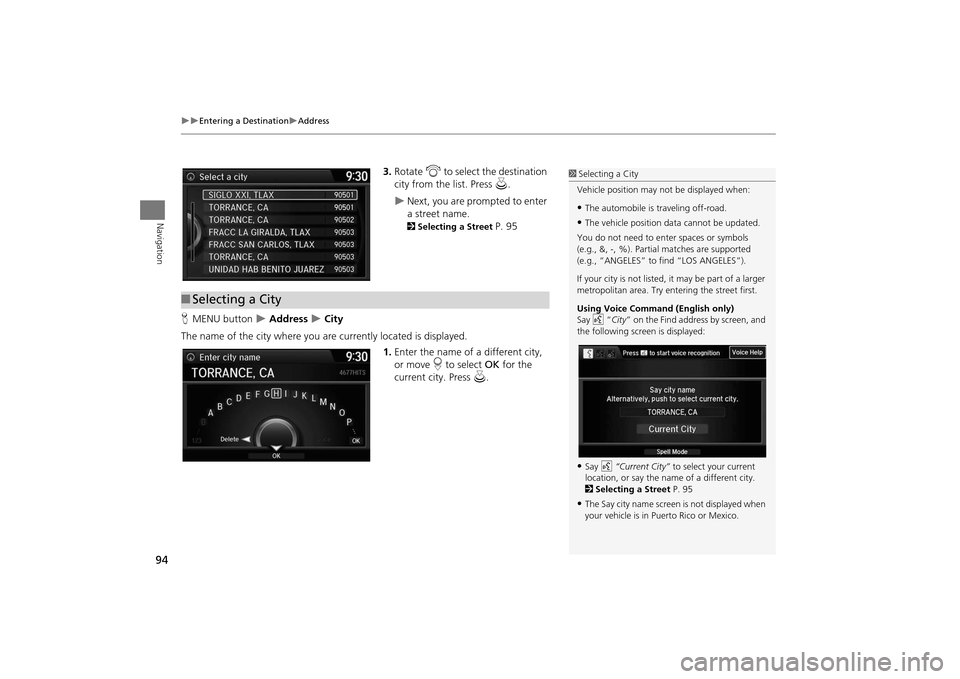

Entering a Destination
XAddress
Navigation
3.Rotate i to select the destination
city from the list. Press u.X
Next, you are prompted to enter
a street name. 2Selecting a Street
P. 95
H MENU button
X Address
X City
The name of the city where you are currently located is displayed. 1.Enter the name of a different city,
or move r to select OK for the
current city. Press u.
■Selecting a City
1 Selecting a City
Vehicle position may not be displayed when:•The automobile is traveling off-road.•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols
(e.g., &, -, %). Partia l matches are supported
(e.g., “ANGELES” to find “LOS ANGELES”).
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Using Voice Command (English only)
Say d “City ” on the Find address by screen, and
the following screen is displayed:•Say d “Current City” to select your current
location, or say the name of a different city.
2 Selecting a Street P. 95•The Say city name screen is not displayed when
your vehicle is in Puerto Rico or Mexico.
MDX_KA-31TZ58200.book 94 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

183
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HSETTINGS button (in HDD mode)
X Audio Settings
X CD/HDD
Update the Gracenote® Album Info (Gracenote® Media Database) that is included
with the navigation system. 1.Insert the update disc into the disc
slot or connect the USB flash drive
that includes the update.
2. Rotate i to select Update
Gracenote Album Info. Press u.
3. Rotate i to select Update by CD
or Update by USB . Press u.
X
The system starts updating and
the confirmation message
appears on the screen. Press to
finish u.
■Updating Gracenote® Album Info
1 Updating Gracenote® Album Info
To acquire updated files:
• Consult a dealer.
• Visit http://www.navteq. com/gracenote/acura.
Once you perform an update, any information
you edited before will be overwritten or erased.
MDX_KA-31TZ58200.book 183 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

258AcuraLink®
AcuraLink®Is a subscription-based service that provides convenient features such as voice
communication in case of emergency, online security, one-on-one operator
assistance, and the transmission of impo rtant messages regarding your vehicle’s
status.
For information on traffic re routing and traffic information updates, provided by the
AcuraLink® server.In Case of Emergency
If your vehicle’s airbags deploy or if
the unit detects that the vehicle is
severely impacted, your vehicle
automatically will attempt to connect
to the AcuraLink® operator. Once
connected, information about your
vehicle, its positioning, and its
condition will be sent to the operator;
you also can speak to the operator
when connected.
■ Automatic collision notification
1 AcuraLink®
AcuraLink® also provid es services you can
operate from the Internet or your smartphone.
To subscribe to AcuraLink®, or to get more
information about all of its features, contact an
Acura dealer or visit owners.acura.com.1In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected or you do not have adequate
cellular coverage.
You cannot use emergency services when:•You travel outside the AcuraLink® service
coverage areas.•There is a problem with the connecting
devices, such as the ASSIST button,
microphone, speakers, or the unit itself.•You are not subscribed to the service or your
subscription is no longer valid.
You cannot operate othe r navigation- or phone-
related functions using the screens while talking
to the operator.
Only the operator can te rminate the connection
to your vehicle.
1 Automatic collis ion notification
If the unit fails to conne ct to the operator, it
repeatedly tries until it succeeds.
Audio/Information ScreenOn Demand Multi-Use Display
TM
MDX_KA-31TZ58200.book 258 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

289
Other Features
This section describes the useful functions incorporated into the
navigation system to help make your journey easier and more enjoyable.
Trip Computer....................................... 290
Calendar ................................................ 291
Information Functions .......................... 292
System Device Information ................... 292
Map Data Update ................................ 292
Info Screen Preference ......................... 293
Multi-view Rear Camera ....................... 294
About Your Multi-Vi ew Rear Camera ... 294
MDX_KA-31TZ58200.book 289 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

292Other Features
Information FunctionsSystem Device InformationHSETTINGS button
X Navi Settings
X Map
X System Device Information
View database, software, device, an d vehicle identification information.
Map Data UpdateHSETTINGS button
X Navi Settings
X Map
X Map Data Update
Check the map data update status when updating the map database.
1 System Device Information
You will need this info rmation when ordering a
map update.
2 Obtaining a Navigation Update P. 3191Map Update Status
This operation is only avai lable during a database
update.
2 Obtaining a Navigation Update P. 319
MDX_KA-31TZ58200.book 292 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

297
Troubleshooting
Troubleshooting................................... 298
Map, Voice, Entering Destinations ........ 298
Traffic .................................................. 300
Guidance, Routing ............................... 301
Update, Coverage, Map Errors ............. 303
Display, Accessories.............................. 303
Miscellaneous Questions ...................... 303
Error Messages ...................................... 304
Navigation System ................................ 304
CD Player ............................................. 305
Hard Disc Drive (HDD) Audio ................ 306
iPod®/USB Flash Drive .......................... 307
Pandora® ............................................ 308
Aha
TM Radio ......................................... 311
MDX_KA-31TZ58200.book 297 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

300
XX
Troubleshooting
XTraffic
Troubleshooting
Traffic
Problem
Solution
AcuraLink Real-Time Traffic™ information could not
be received or is not displayed properly.
• Check that the traffic status indicator is available on the map screen.2Map Screen Legend
P. 9
• Check that the traffic icons are turned on.
2 Showing Icons on Map
P. 73
• AcuraLink® automatically updates traffic information every five minutes. If the information remains the same, press the LI NK button, and connect to the operator.
2AcuraLink®
P. 258
• There may be a temporary technical problem in your metropolitan area. Call Acura Client Relations to see if there is an outage.
2 Acura Client Relations Contact Information
P. 318
• If the situation persists, see your Acura dealer for assistance.
• AcuraLink® is not available in Alaska, Hawaii, Canada, Puerto Rico, and Mexico.
The navigation system sometimes provides a detour
route when I am drivi ng a route on the freeway.
If Traffic Rerouting is set to On, the navigation system pr ovides a detour route to
your destination only if it can find a signific antly faster route than the original one. 2Traffic Rerouting
P. 60
The navigation system routes me to an exit and an
alternate freeway with unknown flow speeds or
surface streets.
The navigation system predicts which ro ute should be faster based on freeway
congestion along your route. Use your own experience to determine whether the
alternate route would be faster.
How can I ignore the detour route and return to the
original route?
Press the SETTINGS button. Select Navi Settings > Routing , and set Traffic
Rerouting to Off. 2Traffic Rerouting
P. 60
MDX_KA-31TZ58200.book 300 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

301
XX
Troubleshooting
XGuidance, Routing
Troubleshooting
Guidance, Routing
Problem
Solution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.
The navigation system attempts to generate the optimal route. You can change the
route preferences used when calculating a route. 2Route Preference
P. 56
The navigation system wants to route me around
potential traffic problems. How do I stop these pop-up
messages?
Press the SETTINGS button. Select Navi Settings > Routing , and set Traffic
Rerouting to Off . 2Traffic Rerouting
P. 60
The street I’m on is not shown on the map screen.
The mapping database is constantly undergoing revision. You can access the most
recent information on the internet. 2Map Coverage
P. 319
The vehicle position icon is not following the road and
the “GPS icon” text in th e upper left hand corner of
the screen is white or missing.
• Check that the GPS antenna (located in the dashboard) is not blocked. For best reception, remove items from the dashboard, such as radar detectors, cell phones,
or loose articles.
• Metallic tinting or other aftermarket devi ces can interfere with the GPS reception.
Please consult a dealer. 2 GPS System
P. 316
The blue highlighted route and voice guidance
stopped or turned into a blue/pink line before I got to
my destination.
Your route has entered an unverified area. 2Unverified Routing
P. 58
How do I stop the map from rotating as I drive along?
Press the SETTINGS button. Select Navi Settings > Map > View > North-Up , or say
d “Display north-up” to change the map orientation.
The “time to destination” display sometimes increases
even though I am getting closer to my destination.
If your speed reduces due to slower traffic, the navigation system updates the “time to
destination” based on your actual road speed to give you a better estimate of arrival
time.
The vehicle position icon on the map “lags” a short
distance behind, especially when I arrive at an
intersection.
This is normal. The navigation system is un aware of the width of intersections. Large
differences in vehicle position can indicate a temporary loss of the GPS signal. 2 GPS System
P. 316
Continued
MDX_KA-31TZ58200.book 301 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

303
XX
Troubleshooting
XUpdate, Coverage, Map Errors
Troubleshooting
Update, Coverage, Map ErrorsDisplay, AccessoriesMiscellaneous Questions
Problem
Solution
My city is not part of a fully verified detailed coverage
area.
The mapping database is constantly undergoing revision. You can access the most
recent information on the internet. 2 Map Coverage
P. 319
Does the navigation system work outside North
America?
The navigation system contains maps for the 50 U.S. states, Canada, Puerto Rico, and
Mexico. The navigation system will not work in other countries. 2Map Coverage
P. 319
How do I report errors I find in the database?
Minor errors are bound to occur in a large database. If you encounter major errors, see2Reporting Errors
P. 318
Problem
Solution
The display appears dim when starting the car in really
cold weather.
This is normal. The display will become brighter after a few minutes.
Problem
Solution
My battery was disconnected or went dead, and the
navigation system is asking for a code.
Set the power mode to ON, and press and hold the 9 (Power) button for two
seconds. The system should reactivate. If you have installed an aftermarket system,
contact a dealer.
MDX_KA-31TZ58200.book 303 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

313
Reference Information
System Initialization..............................314
Entering the Security Code ....................314
Acquiring GPS Information ....................314
Startup Confirmation Screen .................315
Map Matching ......................................315
System Limitations ................................316
GPS System...........................................316
Address Calculation ..............................316
Database ..............................................316
Client Assistance ....................................318
Resolving Problems ...............................318
Reporting Errors ....................................318
Acura Client Relations Contact Information .........................................318 Visiting a Dealer ................................... 318
Map Coverage ..................................... 319
Obtaining a Navigation Update ............ 319
Traffic Information ............................... 320
Operation in Alaska, Hawaii, Canada,
Puerto Rico, and Mexico ..................... 320
Legal Information ................................. 321
Copyrights ........................................... 321
User Agreements ................................. 321
As required by the FCC ........................ 327
MDX_KA-31TZ58200.book 313 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
