Continued63
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
3. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 56
Models with second row captain seat
Tether Strap Hook
Anchor
Outer positions1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Tether Strap Hook
Anchor
Models with second row bench seatCenter position of second row bench seat
All positions
17 ACURA MDX-31TZ56300.book 63 ページ ２０１６年５月１３日　金曜日　午後７時４６分

uuChild Safety uSafety of Infants and Small Children
64
Safe Driving1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
17 ACURA MDX-31TZ56300.book 64 ページ ２０１６年５月１３日　金曜日　午後７時４６分

Continued65
uuChild Safety uSafety of Infants and Small Children
Safe Driving

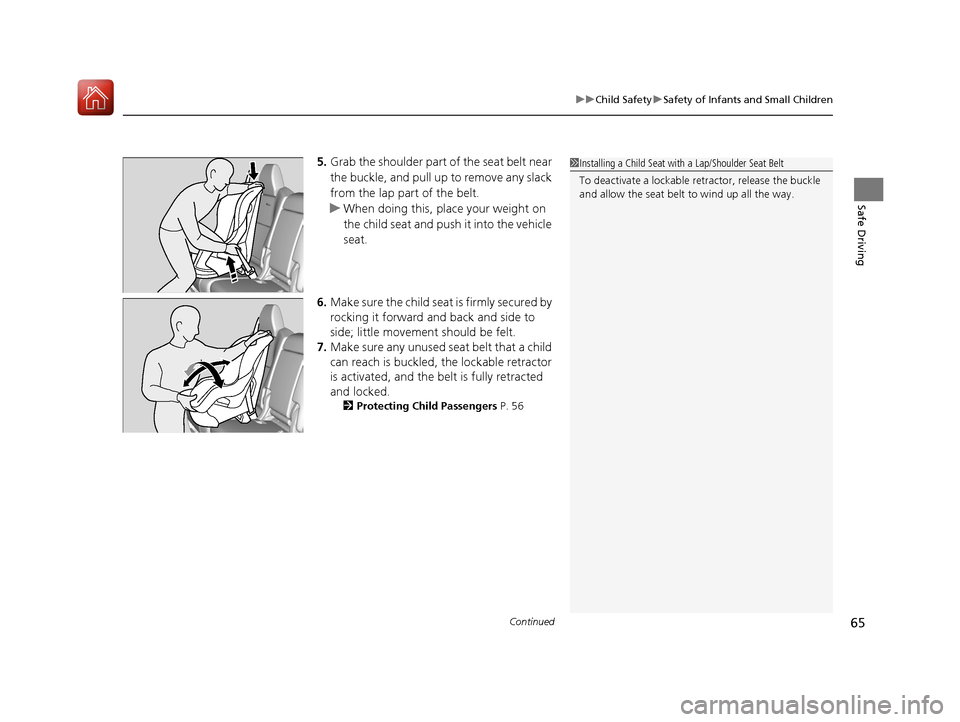

5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 56
1Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
17 ACURA MDX-31TZ56300.book 65 ページ ２０１６年５月１３日　金曜日　午後７時４６分

uuChild Safety uSafety of Infants and Small Children
66
Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child restraint system that comes
with a tether but can be installed with a seat
belt, the tether may be used for additional
security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.
Models with second row captain seat
Tether Anchorage Points
Tether Anchorage Points
Models with second row bench seat
Tether Anchorage Points
Third row seat
17 ACURA MDX-31TZ56300.book 66 ページ ２０１６年５月１３日　金曜日　午後７時４６分

67
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■Using a second row anchor
1. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
1. Put the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
2. Tighten the tether strap as instructed by the
child seat manufacturer.Models with second row captain seat
Anchor
Tether Strap Hook
Outer positions
Anchor
Models with second row bench seat
Tether Strap Hook
Center position of second row bench seat
All positions
17 ACURA MDX-31TZ56300.book 67 ページ ２０１６年５月１３日　金曜日　午後７時４６分

68
uuChild Safety uSafety of Infants and Small Children
Safe Driving

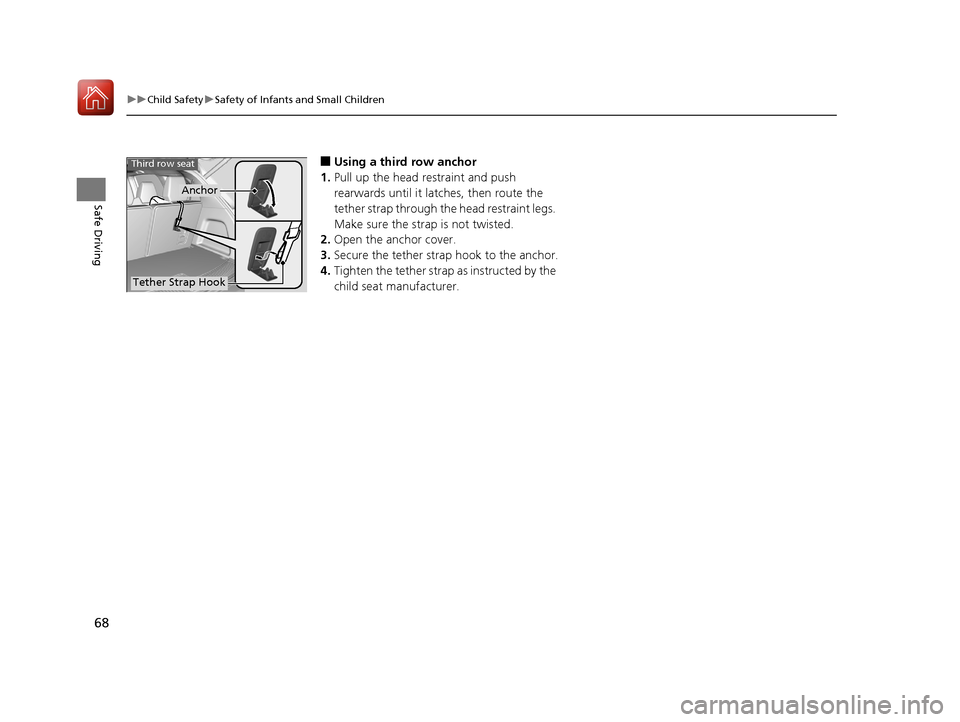

■Using a third row anchor
1. Pull up the head restraint and push
rearwards until it latc hes, then route the
tether strap through the head restraint legs.
Make sure the strap is not twisted.
2. Open the anchor cover.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap Hook
Anchor
Third row seat
17 ACURA MDX-31TZ56300.book 68 ページ ２０１６年５月１３日　金曜日　午後７時４６分

69
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
17 ACURA MDX-31TZ56300.book 69 ページ ２０１６年５月１３日　金曜日　午後７時４６分

uuChild Safety uSafety of Larger Children
70

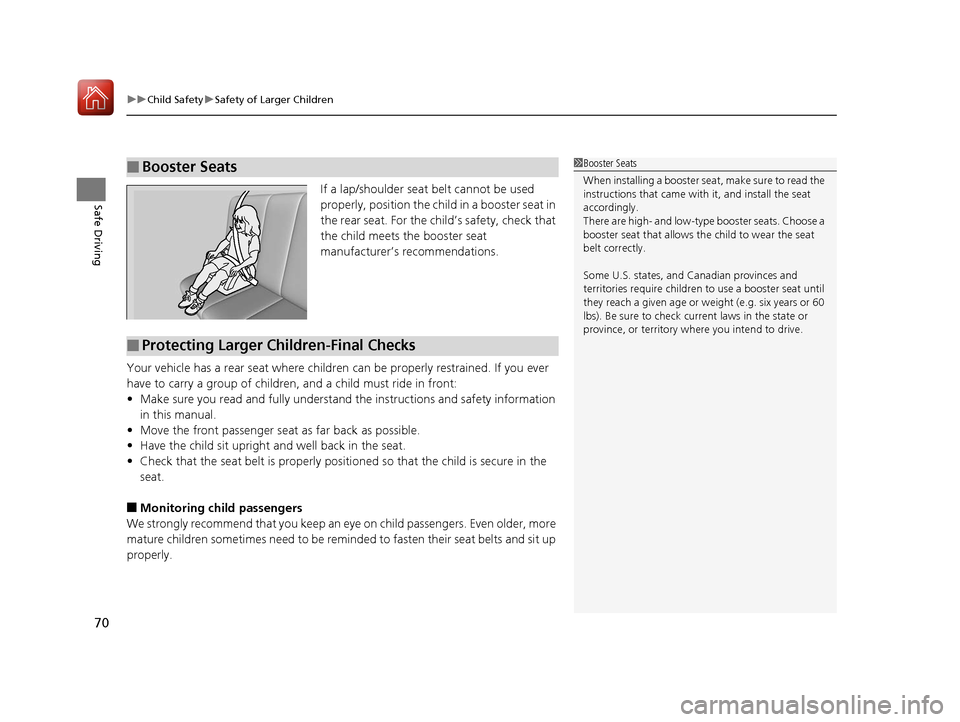

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the chil d in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
17 ACURA MDX-31TZ56300.book 70 ページ ２０１６年５月１３日　金曜日　午後７時４６分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 157—
System Message
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on along with a beep
when a problem is detected. A
system message on the MID
appears at the same time.
●While the indicator is on, roll the multi-
function steering wheel control to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears on
the MID. Take the appropriate action for the
message.
●The MID does not return to the normal screen
unless the warning is canceled, or the multi-
function steering-wheel controls is rolled.
—
17 ACURA MDX-31TZ56300.book 86 ページ ２０１６年５月１３日　金曜日　午後７時４６分

125
uuGauges and Multi-Info rmation Display (MID)uMID
Continued
Instrument Panel
Exit
Door Setup
Dynamic Mode Setup
Default All
Lighting Setup
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Auto Folding Door Mirror*
Interior Ligh t Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Roll
Push
Push
Roll
Roll
Roll
Roll
Roll
Roll
Power Tailgate SetupPush
Power Open By Outer Handle
Keyless Open Mode
Push
Maintenance Info.
Roll
PushPreferred Dynamic Mode
Roll
Roll
Roll
PushMaintenance Reset
Security Relock Timer
* Not available on all models
