Acura MDX 2017 Owner's Manual

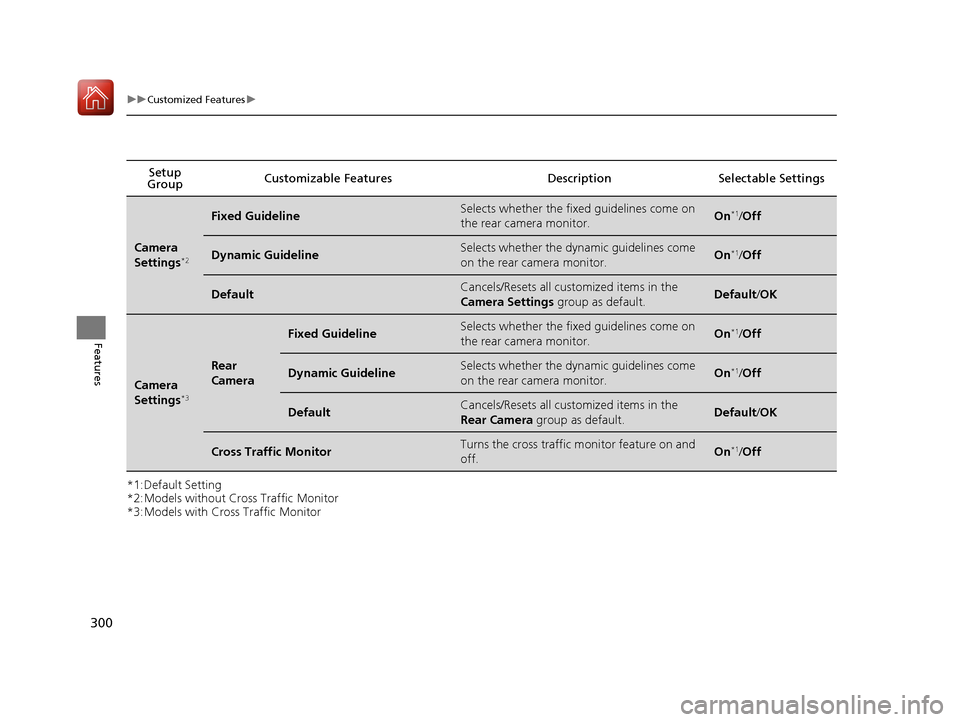

300
uuCustomized Features u
Features
*1:Default Setting
*2:Models without Cross Traffic Monitor
*3:Models with Cross Traffic MonitorSetup
Group Customizable Features Description Selectable Settings
Camera
Settings*2
Fixed GuidelineSelects whether the fixe
d guidelines come on
the rear camera monitor.On*1/ Off
Dynamic GuidelineSelects whether the dynamic guidelines come
on the rear camera monitor.On*1/Off
DefaultCancels/Resets all customized items in the
Camera Settings group as default.Default/OK
Camera
Settings*3
Rear
Camera
Fixed GuidelineSelects whether the fixe d guidelines come on
the rear camera monitor.On*1/ Off
Dynamic GuidelineSelects whether the dynamic guidelines come
on the rear camera monitor.On*1/Off
DefaultCancels/Resets all customized items in the
Rear Camera group as default.Default/OK
Cross Traffic MonitorTurns the cross traffic monitor feature on and
off.On*1/Off
17 ACURA MDX-31TZ56300.book 300 ページ ２０１６年５月１３日　金曜日　午後７時４６分

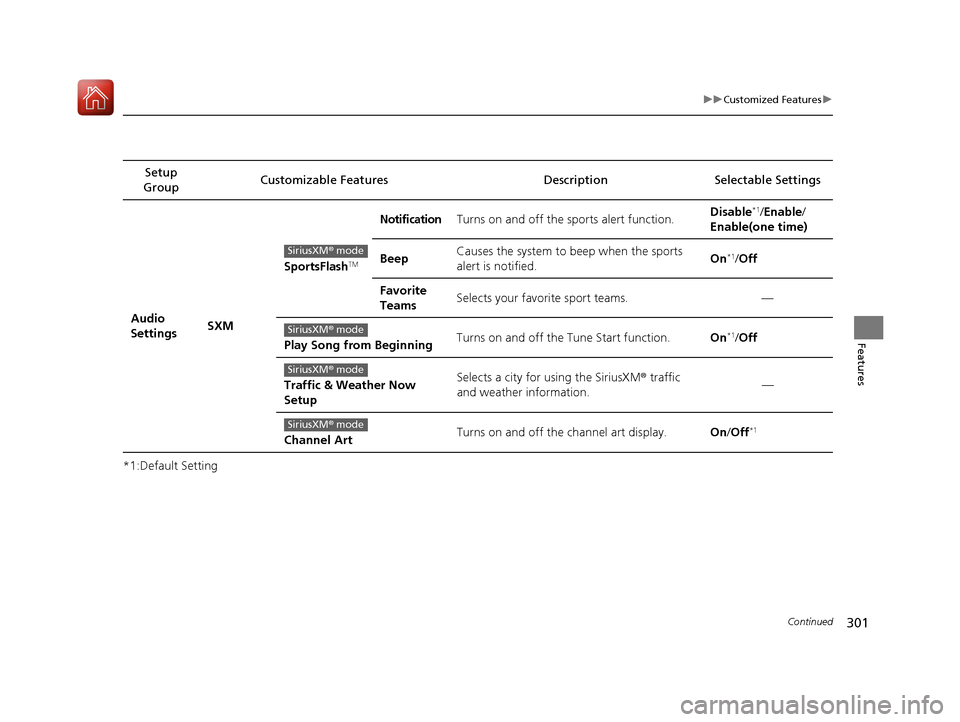

301
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio
Settings SXMSportsFlash
TM
NotificationTurns on and off the sp
orts alert function. Disable*1/
Enable /
Enable(one time)
Beep Causes the system to beep when the sports
alert is notified.
On
*1/
Off
Favorite
Teams Selects your favorite sport teams. —
Play Song from Beginning Turns on and off the
Tune Start function. On
*1/Off
Traffic & Weather Now
Setup Selects a city for
using the SiriusXM ® traffic
and weather information. —
Channel Art Turns on and off the channel art display.
On/Off
*1
SiriusXM ® mode
SiriusXM ® mode
SiriusXM ® mode
SiriusXM ® mode
17 ACURA MDX-31TZ56300.book 301 ページ ２０１６年５月１３日　金曜日　午後７時４６分

302
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Audio
SettingsBluetooth
Bluetooth Device List Edits or deletes a
Bluetooth® Audio device
paired to HFL. —
Connect Bluetooth Audio
Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Other Source Select Popup
Selects whether the list of selectable audio
sources comes on when the
AUDIO button is
pressed. On
/Off
*1
Cover Art Turns on and off the cover art display.
On
*1/Off
Default Cancels/Resets all customized items in the
Audio Settings
group as default. Default/
OK
Bluetooth ® Audio, Pandora ®* or
AhaTM mode
Bluetooth ® Audio, Pandora ®* or
AhaTM mode
iPod, USB, Pandora ®* or AhaTM
mode
* Not available on all models
17 ACURA MDX-31TZ56300.book 302 ページ ２０１６年５月１３日　金曜日　午後７時４６分

303
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Phone
SettingsPhone
Connect Phone
Pairs a new phone to HFL, or connects or
disconnects a paired phone.
2Phone Setup P. 317
—
Bluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone, or cr eates a security PIN.
2Phone Setup P. 317
—
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Phone Setup P. 317—
Auto TransferSets calls to automatica lly transfer from your
phone to HFL when you enter the vehicle.On*1/ Off
Auto AnswerSets whether to automatically answer an
incoming call after about four seconds.On /Off*1
Ring ToneSelects the ring tone.Fixed /Mobile
Phone*1/ Off
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phon e is paired to HFL.On/Off
Use Contact PhotoDisplays a caller’s pict ure on an incoming call
screen.On*1/ Off
17 ACURA MDX-31TZ56300.book 303 ページ ２０１６年５月１３日　金曜日　午後７時４６分

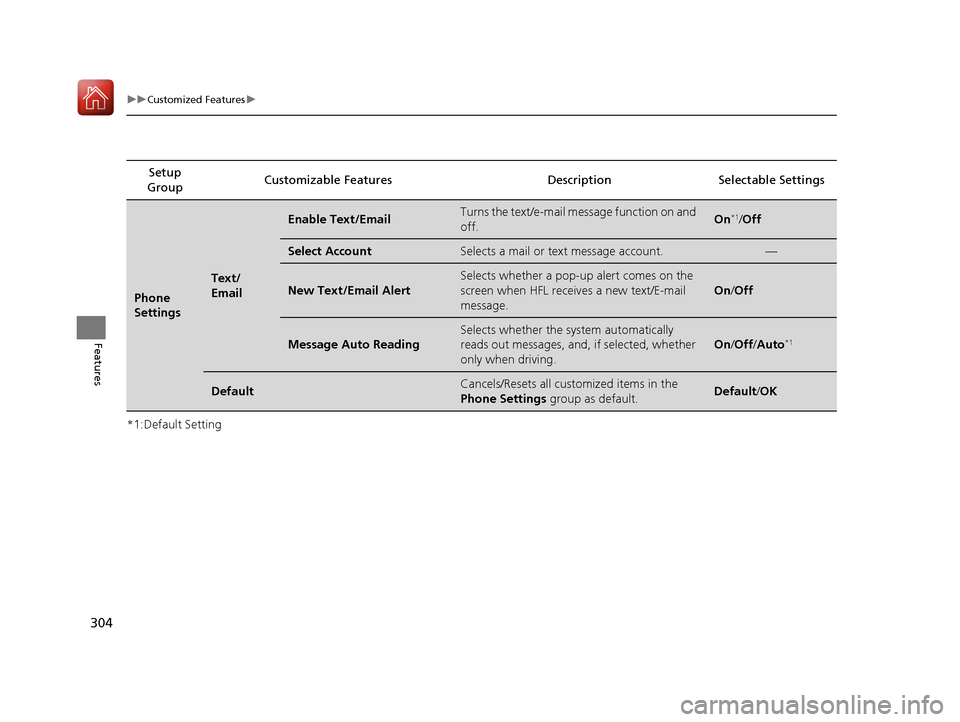

304
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Phone
Settings
Text/
Email
Enable Text/EmailTurns the text/e-mail me
ssage function on and
off.On*1/ Off
Select AccountSelects a mail or text message account.—
New Text/Email Alert
Selects whether a pop-up alert comes on the
screen when HFL receives a new text/E-mail
message.
On /Off
Message Auto Reading
Selects whether the system automatically
reads out messages, and, if selected, whether
only when driving.
On /Off /Auto*1
DefaultCancels/Resets all customized items in the
Phone Settings group as default.Default/ OK
17 ACURA MDX-31TZ56300.book 304 ページ ２０１６年５月１３日　金曜日　午後７時４６分

305
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Info
SettingsClock
Clock/
Wallpaper
Type
Clock
See System Settings on P. 291 to P. 293.
Wallpaper
Clock Adjustment
Clock Format
Other Info Screen Preference Selects the top menu when the
INFO button is
pressed.
●Info Top - A brief menu pops up.●Info Menu- A full menu pops up.●Off- A menu does not pop up. Info Top
/Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info Settings
group as default. Default
/OK
17 ACURA MDX-31TZ56300.book 305 ページ ２０１６年５月１３日　金曜日　午後７時４６分

306
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
You can reset all the menu and customiz ed settings as the factory defaults.
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Others tab.
4. Rotate to select Factory Data Reset ,
then press .
u The pop-up menu appears on the screen.
5. Rotate to select Yes, then press .
u The confirmation message will appear.
6. Rotate to select Yes, then press
again to reset the settings.
u The confirmation message will appear.
Press to select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settin gs will be reset:
•Routing & Guidance: Rerout ing, Unverified Area
Routing, Traffic Re routing, Edit Waypoint Search
Area, Guidance Mode, Street Name Guidance
•Route Preference•Audio preset settings
•Phonebook entries
•Other display and each item settings
Models with navigation system
17 ACURA MDX-31TZ56300.book 306 ページ ２０１６年５月１３日　金曜日　午後７時４６分

307
Features
HomeLink® Universal Transceiver
The HomeLink ® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.
■Important Safety Precautions
1 HomeLink ® Universal Transceiver
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and re verse stop features. If it
does not, HomeLink may not be able to operate it.
17 ACURA MDX-31TZ56300.book 307 ページ ２０１６年５月１３日　金曜日　午後７時４６分

308
uuHomeLink ® Universal Transceiver uTraining HomeLink
Features
Training HomeLink
If it is necessary to erase a previously entered
learned code:
• Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the bu ttons, and proceed to
step 1.
• If you are training the second or third
button, go directly to step 1.
The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instruct ions about your specific remote opener,
visit http://www.homelink.com or call (800) 355-3515.
Red Indicator
17 ACURA MDX-31TZ56300.book 308 ページ ２０１６年５月１３日　金曜日　午後７時４６分

309
uuHomeLink ® Universal Transceiver uTraining HomeLink
Features
■Training a Button1Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1. Press and hold the desired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Quickly release the Home Link button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and rele ase the HomeLink button
again in step 2.
Indicator remains on
for about 25 secs.
Standard transmitter
Indicator remains on for
about 25 secs.
Rolling code transmitter
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
HomeLink® is a registered tra demark of Gentex
Corporation.4.
3.
2.
5.A.
B.
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and release the desi red HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicato r (LED) change from slowly blinking to
constantly on or rapidly blinking? The pr ocess should take less than 60 seconds.
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and release the Ho
meLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking ? The process should take less than 60
seconds.
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro
lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.
HomeLink indicator rapidly blinks.HomeLink LED is
constantly on.
YESNO
YES
YESNONO
17 ACURA MDX-31TZ56300.book 309 ページ ２０１６年５月１３日　金曜日　午後７時４６分
