Page 138 of 581
137
uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Keyless Access Re mote Signal Strength
The vehicle transmits radio waves to locate the keyless access remote when locking/
unlocking the doors and tailgate, or to start the engine.
In the following cases, locking/unlocking the doors and tailgate, or starting the
engine may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless access re mote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless access remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
1 Low Keyless Access Remote Signal Strength
Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless access
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
17 ACURA MDX-31TZ56300.book 137 ページ 2016年5月13日 金曜日 午後7時46分
Page 462 of 581
461
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 462
Safety When Performing Maintenance ..463
Parts and Fluids Used in Maintenance Service...464Maintenance MinderTM..................... 465
Maintenance Under the Hood
Maintenance Items Under the Hood .. 469
Opening the Hood ........................... 470
Engine Compartment Cover ............. 471
Recommended Engine Oil ................ 472
Oil Check ......................................... 473
Adding Engine Oil ............................ 474
Changing the Engine Oil and Oil Filter ...475 Engine Coolant ................................ 477
Transmission Fluid ............................ 479
Brake Fluid ....................................... 480
Refilling Window Washer Fluid......... 480
Replacing Light Bulbs ....................... 481Checking and Maintaining Wiper Blades... 486Checking and Maintaining Tires
Checking Tires ................................. 490
Tire and Loading Information Label .. 491
Tire Labeling .................................... 491
DOT Tire Quality Grading (U.S. Vehicles).. 493Wear Indicators................................ 495
Tire Service Life ................................ 495 Tire and Wheel Replacement ........... 496
Tire Rotation .................................... 497
Winter Tires ..................................... 498
Battery ............................................... 499
Remote Transmitter Care Replacing the Button Battery ........... 501
Remote Control and Wireless Headphone Care
*........................... 503Climate Control System Maintenance.. 505Cleaning Interior Care .................................... 506
Exterior Care.................................... 508
Accessories and Modifications ........ 511
* Not available on all models
17 ACURA MDX-31TZ56300.book 461 ページ 2016年5月13日 金曜日 午後7時46分
Page 500 of 581
499
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display (MID) will
display a warning message. If this happens,
have you vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 230
•The clock resets.
2 Clock P. 134
•The navigation system* is disabled.
2 Refer to navigation system manual
Charging the Battery*
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Models with Auto Idle Stop
Battery
* Not available on all models
17 ACURA MDX-31TZ56300.book 499 ページ 2016年5月13日 金曜日 午後7時46分
Page 502 of 581
501Continued
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Models without remote control engine start system
Battery type: CR2032
Battery
17 ACURA MDX-31TZ56300.book 501 ページ 2016年5月13日 金曜日 午後7時46分
Page 504 of 581
503Continued
Maintenance
Remote Control and Wireless Headphone Care*
Replacing the Battery
If it takes several pushes on the remo te control buttons to operate the rear
entertainment system, replace the battery.
1.Remove the cover.
2. Make sure to replace the battery with the
correct polarity.
■Remote Control
Models with Rear Entertainment System
1Replacing the Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: BR3032
* Not available on all models
17 ACURA MDX-31TZ56300.book 503 ページ 2016年5月13日 金曜日 午後7時46分
Page 549 of 581
548
uuFuses uFuse Locations
Handling the Unexpected
Located near the + terminal on the battery.
Pull up the cover.
Replacement of this fuse should be done by
a dealer.
Fuse location is shown on the back of the
positive battery terminal cover.
■Engine Compartment Fuse
Box Type C
FusePositive Battery
Terminal Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
Fan Main60 A
17 ACURA MDX-31TZ56300.book 548 ページ 2016年5月13日 金曜日 午後7時46分

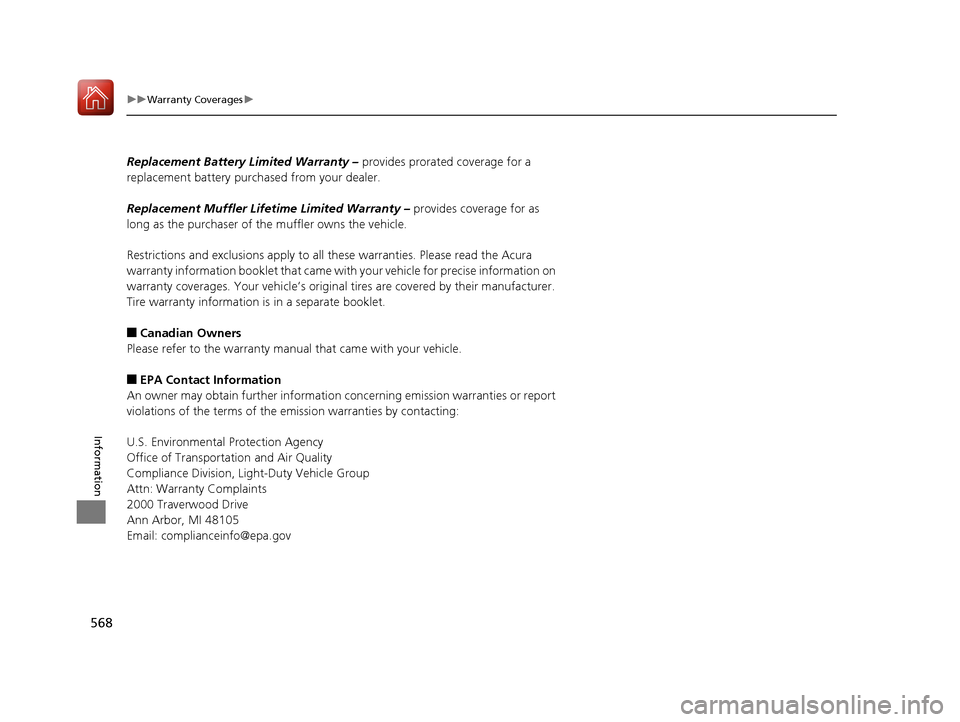

Page 569 of 581
568
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
17 ACURA MDX-31TZ56300.book 568 ページ 2016年5月13日 金曜日 午後7時46分
Page 574 of 581
573
Index
Shifting ................................................... 374
Auxiliary Input Jack ................................. 230
Average Fuel Economy ............................ 119
Average Speed ......................................... 120
AWD ......................................................... 423
B
Back-Up Light ........................................... 484
Battery ...................................................... 499
Charging System Indicator ................ 78, 541
Jump Starting ......................................... 537
Maintenance (Checking the Battery) ....... 499
Belts (Seat) .................................................. 33
Beverage Holders ..................................... 205
Blind Spot Information (BSI) System ....... 421
Indicator ................................................... 95
Bluetooth ® Audio ..................................... 273
Bluetooth ® HandsFreeLink ®.................... 310
Booster Seats (For Children) ...................... 70
Brake System ............................................ 428
Anti-lock Brake System (ABS) .................. 434
Automatic Brake Hold ............................. 432
Brake Assist System................................. 435
Brake System Indicator .............................. 75
Fluid ....................................................... 480
Foot Brake .............................................. 431
Indicator ..................................... 74, 75, 543
Parking Brake.......................................... 428
Brake System (Amber)
Indicator ................................................... 75 Brake System (Red)
Indicator ............................................ 74, 543
Brightness Control (Instrument Panel) .... 178
BSI (Blind Spot Information) System ....... 421
Bulb Replacement .................................... 481
Back-Up Light .......................................... 484
Brake Light and Rear Turn Signal Light ..... 482
Fog Lights ................................................ 481
Front Turn Signal/ Parking, Daytime
Running and Front Side Marker Lights ... 481
Headlights ............................................... 481
High-Mount Brake Light .......................... 485
Puddle Lights ........................................... 485
Rear License Plate Lights .......................... 485
Side Turn Signal/Em ergency Indicator
Lights .................................................... 481
Taillights .................................................. 484
Taillights/Rear Side Maker Lights .............. 483
Bulb Specifications ................................... 560
C
Car Wash Mode........................................ 378
Carbon Monoxide Gas ................................ 71
Carrying Cargo .................................. 349, 351
CD Player ................................................... 260
Center Pocket ........................................... 204
Certification Label .................................... 562
Changing Bulbs ......................................... 481
Charging System Indicator ................. 78, 541Child Safety
................................................. 56
Childproof Door Locks............................. 148
Child Seat .................................................... 56
Booster Seats ............................................ 70
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 64
Larger Children ......................................... 69
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 508
Cleaning the Interior ................................ 506
Client Service Information ....................... 570
Climate Control System ............................ 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 220
Dust and Pollen Filter............................... 505
Rear Climate Control System ................... 221
Sensors ................................................... 225
Synchronized Mode................................. 217
Using Automatic Climate Control ............ 213
Clock .......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 436
Coat Hook ................................................. 209
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 436
Compact Spare Tire .......................... 515, 561
17 ACURA MDX-31TZ56300.book 573 ページ 2016年5月13日 金曜日 午後7時46分
Page 579 of 581
578
Index
Passenger Front Airbag Off Indicator....... 54
Passing Indicators ..................................... 167
Power Tailgate .......................................... 152
Power Windows ........................................ 160
Precautions While Driving ........................ 372
Driving Guidelines for Your Utility Vehicle................................................... 372
Rain ......................................................... 372
Pregnant Women ....................................... 39
Puncture (Tire) .................................. 515, 522
R
Radiator..................................................... 478
Radio (AM/FM) .......................................... 245
Radio (SiriusXM ®)...................................... 249
Radio Data System (RDS) .......................... 247
Range ........................................................ 120
RDS (Radio Data System) .......................... 247
Readiness Codes (Emissions Testing) ....... 565
Rear Climate Control System ................... 221
From the Front Panel ............................... 221
From the Rear Panel................................. 224
Rear Defogger/Heated Door Mirror
Button ...................................................... 179
Rear Seats .................................................. 197
Second Row Seat ............................. 190, 191
Third Row Seat ........................................ 197
Rearview Mirror ........................................ 183
Refueling ................................................... 456
Fuel Gauge .............................................. 116 Gasoline .......................................... 456, 560
Low Fuel Indicator ..................................... 81
Regulations ............................... 426, 493, 563
Remote Engine Start with Vehicle Feedback ................................................. 369
Checking Door Lock Status...................... 145
Remote Transmitter ................................. 143
Replacement
Battery ............................ 501, 502, 503, 504
Bulbs ....................................................... 481
Front Wiper Blade Rubber ....................... 486
Fuses ............................... 546, 549, 551, 552
Rear Wiper Blade Rubber......................... 488
Tires ........................................................ 496
Reporting Safety Defects ......................... 564
Resetting a Trip Meter ............................. 119
Reverse Tilt Door Mirror .......................... 184
Right Selector Wheel ....................... 117, 123
Road Departure Mitigation (RDM) ......... 405
On and Off.............................................. 407
S
Safe Driving ................................................ 27
Safety Checklist .......................................... 32
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor.................. 37
Automatic Seat Belt Tensioners ................. 35
Checking................................................... 40 Detachable Anchor ................................... 38
Fastening .................................................. 36
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 64
Pregnant Women...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 81
Seat Heaters ..................................... 211, 212
Seat Ventilation ....................................... 211
Seats .......................................................... 186
Adjusting ................................................ 186
Driver’s Seat Lumbar Support .................. 186
Front Seats.............................................. 186
Rear Seats ............................................... 197
Seat Heaters ................................... 211, 212
Seat Ventilation ...................................... 211
Second Row Seat ............................ 190, 191
Third Row Seat ....................................... 197
Second Row Outer Seats Heaters ............ 212
Second Row Seat (Folding Down) ........... 191
Security System ........................................ 157
Immobilizer System Indicator..................... 85
Security System Alarm Indicator ................ 86
Select Button ............................................ 374
Operation ............................................... 376
Select Lever ................................................ 18
Operation ................................................. 18
Selecting a Child Seat ................................ 60
Sequential Mode ...................................... 380
Sequential Mode Operation ................... 381
Setting the Clock ...................................... 134
17 ACURA MDX-31TZ56300.book 578 ページ 2016年5月13日 金曜日 午後7時46分
