Page 212 of 581

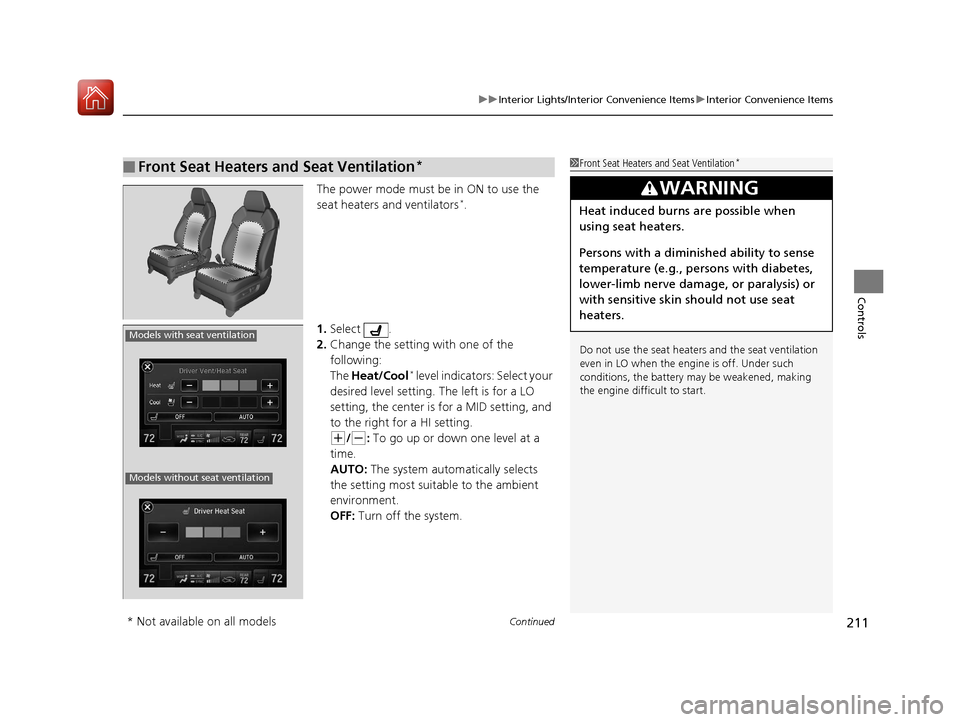

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters and ventilators*.
1. Select .
2. Change the setting with one of the
following:
The Heat/Cool
* level indicators: Select your
desired level setting. The left is for a LO
setting, the center is for a MID setting, and
to the right for a HI setting.
(+/(-: To go up or down one level at a
time.
AUTO: The system automatically selects
the setting most suitable to the ambient
environment.
OFF: Turn off the system.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
Models with seat ventilation
Models without seat ventilation
* Not available on all models
17 ACURA MDX-31TZ56300.book 211 ページ 2016年5月13日 金曜日 午後7時46分
Page 213 of 581

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls
The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting
Four times - The OFF se tting (no indicators on)
Pull the tab and roll up the sunshade all the
way. Use the hooks to hang it.
■Second Row Outer Seat Heaters*1 Second Row Outer Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
■Integrated Sunshades*1Integrated Sunshades*
Use the sunshades only when the windows are fully
closed. Using the shade while a window is open can
unhook and blow off the sh ade, hitting and hurting
anyone sitting near the window.
Tab
Hook
* Not available on all models
17 ACURA MDX-31TZ56300.book 212 ページ 2016年5月13日 金曜日 午後7時46分
Page 368 of 581

367Continued
Driving
When Driving
Starting the Engine
1.Make sure the parkin g brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you press
the electric parking brake switch.
2. Depress the brake pedal.
u Make sure the transmission is in
(P.
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
The engine will crank until it starts.
1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate control
system, and rear defogger in order to reduce battery drain.
If you live in a region where winter is extremely cold,
an engine block heater and transmission clutch
actuator heater will impr ove starting and warming of
the engine. Consult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Bring the keyless access remote close to the ENGINE
START/STOP button if the batte ry in the keyless
access remote is weak.
2 If the Keyless Access Remote Battery is
Weak P. 535
The engine may not start if the keyless access remote
is subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.
Brake Pedal
17 ACURA MDX-31TZ56300.book 367 ページ 2016年5月13日 金曜日 午後7時46分
Page 371 of 581

uuWhen Driving uStarting the Engine
370
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start with Vehicle Feedback*
•You have already used the remote twice to start
the engine.
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.•Door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The telematics unit malfunctions.
•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and tailgate did not
lock, and the engine does not start.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The air conditioning is acti vated in recirculation
mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat and heated steering wheel are activated*.
2 Heated Steering Wheel* P. 210
2 Front Seat Heaters and Seat
Ventilation
* P. 211, 212
* Not available on all models
17 ACURA MDX-31TZ56300.book 370 ページ 2016年5月13日 金曜日 午後7時46分
Page 576 of 581

575
Index
FluidsAutomatic Transmission .......................... 479
Brake ...................................................... 480
Engine Coolant ....................................... 477
Windshield Washer ................................. 480
Fog Lights ................................................. 170
Folding Down the Second Row Seat ...... 191
Folding Down the Third Row Seat .......... 197
Foot Brake ................................................ 431
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 186
Adjusting ................................................ 186
Front Sensor Camera ............................... 388
Fuel ..................................................... 20, 456
Fuel Economy and CO
2 Emissions ............ 459
Gauge .................................................... 116
Instant Fuel Economy .............................. 120
Low Fuel Indicator..................................... 81
Range ..................................................... 120
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy and CO
2 Emissions ............ 459
Fuel Fill Cap ................................................ 20
Fuel Fill Door ...................................... 20, 457
Unable to Unlock .................................... 555
Fuses ......................................................... 546
Inspecting and Changing ........................ 553
Locations ........................ 546, 549, 551, 552
G
Gasoline (Fuel)
Economy ................................................. 459
Gauge ..................................................... 116
Information ............................................. 456
Low Fuel Indicator ..................................... 81
Refueling ................................................. 456
Gauges ...................................................... 116
Gear Position Indicator ...................... 79, 376
Gear Shift Positions Automatic Transmission ........................... 374
Glass (care) ................................................ 509
Glove Box .................................................. 202
H
Handling the Unexpected ........................ 513
HandsFreeLink ® (HFL) ............................... 310
Auto Answer ........................................... 325
Automatic Import of Cellular Phonebook
and Call History ..................................... 327
Automatic Transferring ............................ 325
Displaying Messages ................................ 340
HFL Buttons ............................................. 310
HFL Menus .............................................. 312
HFL Status Display ................................... 311
Limitations for Manua l Operation ............ 311
Making a Call .......................................... 331
Options During a Call .............................. 337
Phone Setup ............................................ 317
Receiving a Call ....................................... 336 Receiving a Text Message/e-mail.............. 338
Ring Tone................................................ 326
Selecting a Mail Account ......................... 339
Speed Dial ............................................... 328
To Create a Security PIN .......................... 324
To Set Up a Text/e-mail message
Options ................................................. 322
Use Contact Photo .................................. 326
Hazard Warning Button .............................. 4
HDMI Jack ..................................................... 7
Head Restraints ........................ 192, 194, 195
Headlight Washers ................................... 177
Headlights ................................................. 167
Aiming .................................................... 481
Auto High-Beam System.......................... 171
Automatic Operation............................... 168
Dimming ......................................... 167, 170
Operating................................................ 167
Heated Door Mirrors ................................ 179
Heated Steering Wheel ............................ 210
Heated Windshield ................................... 179
Heater (Steering Wheel) .......................... 210
Heaters (Seat) ................................... 211, 212
HFL (HandsFreeLink ®)............................... 310
High Beam Indicator .................................. 84
Hill Start Assist System ............................. 371
HomeLink ® Universal Transceiver ............ 307
17 ACURA MDX-31TZ56300.book 575 ページ 2016年5月13日 金曜日 午後7時46分
Page 579 of 581

578
Index
Passenger Front Airbag Off Indicator....... 54
Passing Indicators ..................................... 167
Power Tailgate .......................................... 152
Power Windows ........................................ 160
Precautions While Driving ........................ 372
Driving Guidelines for Your Utility Vehicle................................................... 372
Rain ......................................................... 372
Pregnant Women ....................................... 39
Puncture (Tire) .................................. 515, 522
R
Radiator..................................................... 478
Radio (AM/FM) .......................................... 245
Radio (SiriusXM ®)...................................... 249
Radio Data System (RDS) .......................... 247
Range ........................................................ 120
RDS (Radio Data System) .......................... 247
Readiness Codes (Emissions Testing) ....... 565
Rear Climate Control System ................... 221
From the Front Panel ............................... 221
From the Rear Panel................................. 224
Rear Defogger/Heated Door Mirror
Button ...................................................... 179
Rear Seats .................................................. 197
Second Row Seat ............................. 190, 191
Third Row Seat ........................................ 197
Rearview Mirror ........................................ 183
Refueling ................................................... 456
Fuel Gauge .............................................. 116 Gasoline .......................................... 456, 560
Low Fuel Indicator ..................................... 81
Regulations ............................... 426, 493, 563
Remote Engine Start with Vehicle Feedback ................................................. 369
Checking Door Lock Status...................... 145
Remote Transmitter ................................. 143
Replacement
Battery ............................ 501, 502, 503, 504
Bulbs ....................................................... 481
Front Wiper Blade Rubber ....................... 486
Fuses ............................... 546, 549, 551, 552
Rear Wiper Blade Rubber......................... 488
Tires ........................................................ 496
Reporting Safety Defects ......................... 564
Resetting a Trip Meter ............................. 119
Reverse Tilt Door Mirror .......................... 184
Right Selector Wheel ....................... 117, 123
Road Departure Mitigation (RDM) ......... 405
On and Off.............................................. 407
S
Safe Driving ................................................ 27
Safety Checklist .......................................... 32
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor.................. 37
Automatic Seat Belt Tensioners ................. 35
Checking................................................... 40 Detachable Anchor ................................... 38
Fastening .................................................. 36
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 64
Pregnant Women...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 81
Seat Heaters ..................................... 211, 212
Seat Ventilation ....................................... 211
Seats .......................................................... 186
Adjusting ................................................ 186
Driver’s Seat Lumbar Support .................. 186
Front Seats.............................................. 186
Rear Seats ............................................... 197
Seat Heaters ................................... 211, 212
Seat Ventilation ...................................... 211
Second Row Seat ............................ 190, 191
Third Row Seat ....................................... 197
Second Row Outer Seats Heaters ............ 212
Second Row Seat (Folding Down) ........... 191
Security System ........................................ 157
Immobilizer System Indicator..................... 85
Security System Alarm Indicator ................ 86
Select Button ............................................ 374
Operation ............................................... 376
Select Lever ................................................ 18
Operation ................................................. 18
Selecting a Child Seat ................................ 60
Sequential Mode ...................................... 380
Sequential Mode Operation ................... 381
Setting the Clock ...................................... 134
17 ACURA MDX-31TZ56300.book 578 ページ 2016年5月13日 金曜日 午後7時46分
Page 580 of 581

579
Index
SH-AWD® (Super Handling-All Wheel
DriveTM) ................................................... 423
SH-AWD ® Torque Distribution
Monitor ................................................... 121
Shift Button ........................................ 18, 374
Shifting (Transmission) ...................... 18, 374
Shoulder Anchor ........................................ 37
Side Airbags ............................................... 50
Side Curtain Airbags .................................. 52
Siri Eyes Free ............................................. 275
SiriusXM ® Radio ....................................... 249
Snow Tires ................................................ 498
Spare Tire ......................................... 515, 561
Spark Plugs ............................................... 560
Specifications ........................................... 560
Specified Fuel ................................... 456, 560
Speedometer ............................................ 116
Speed-sensitive Electric Power Steering (EPS) System
Indicator ........................................... 84, 543
SRS Airbags (Airbags) ................................ 44
Starting Assist Brake Function ................ 386
Starting the Engine .................................. 367
Does Not Start ........................................ 534
Jump Starting ......................................... 537
Remote Engine Start ............................... 369
Steering Wheel ........................................ 182
Adjusting ................................................ 182
Heater .................................................... 210
Stopping ................................................... 445
Summer Tires ............................................ 498 Sunglasses Holder
..................................... 210
Super Handling-All Wheel DriveTM
(SH-AWD ®) .............................................. 423
Indicator .................................................... 87
Supplemental Restraint System (SRS) ........ 44
Switches (Around the Steering Wheel) ............................................. 4, 5, 163
Synchronized Mode .................................. 217
System Message Indicator .......................... 86
T
Tachometer............................................... 116
Tailgate ..................................................... 150
Unable to Open ....................................... 556
Temperature
Gauge ..................................................... 116
Outside Temperature Display ................... 119
Temperature Gauge ................................. 116
Temperature Sensor ......................... 119, 225
Temporary Tire Repair Kit ........................ 523
Third Row Seat (Folding Down) .............. 197
Third Row Seat Access .............................. 190
Tie-down Anchors .................................... 209
Time (Setting) ........................................... 134
Tire Fill Assist .................................... 424, 545
Tire Pressure Monitoring System
(TPMS) ..................................................... 424
Indicator ............................................ 84, 545
Tire Fill Assist ................................... 424, 545
Tire Repair Kit ........................................... 522 Tires
........................................................... 490
Air Pressure ..................................... 491, 561
Checking and Maintaining ...................... 490
Inspection ............................................... 490
Labeling .................................................. 491
Puncture (Flat Tire) .......................... 515, 522
Regulations ............................................. 493
Rotation .................................................. 497
Spare Tire ........................................ 515, 561
Summer .................................................. 498
Temporary Tire Repair Kit ........................ 523
Tire Chains .............................................. 498
Tire Repair Kit.......................................... 522
Wear Indicators ....................................... 495
Winter..................................................... 498
Tools .......................................................... 514
Towing a Trailer ....................................... 354
Equipment and Accessories ..................... 358
Load Limits .............................................. 354
Towing Your Vehicle ................................ 364
Emergency .............................................. 554
TPMS (Tire Pressure Monitoring
System) .................................................... 424
Indicator............................................ 84, 545
Trailer Stability Assist ............................... 362
Transmission ....................................... 18, 374
Automatic ......................................... 18, 374
Fluid ........................................................ 479
Gear Position Indicator ...................... 79, 376
Number................................................... 562
Sequential Mode ..................................... 380
17 ACURA MDX-31TZ56300.book 579 ページ 2016年5月13日 金曜日 午後7時46分
