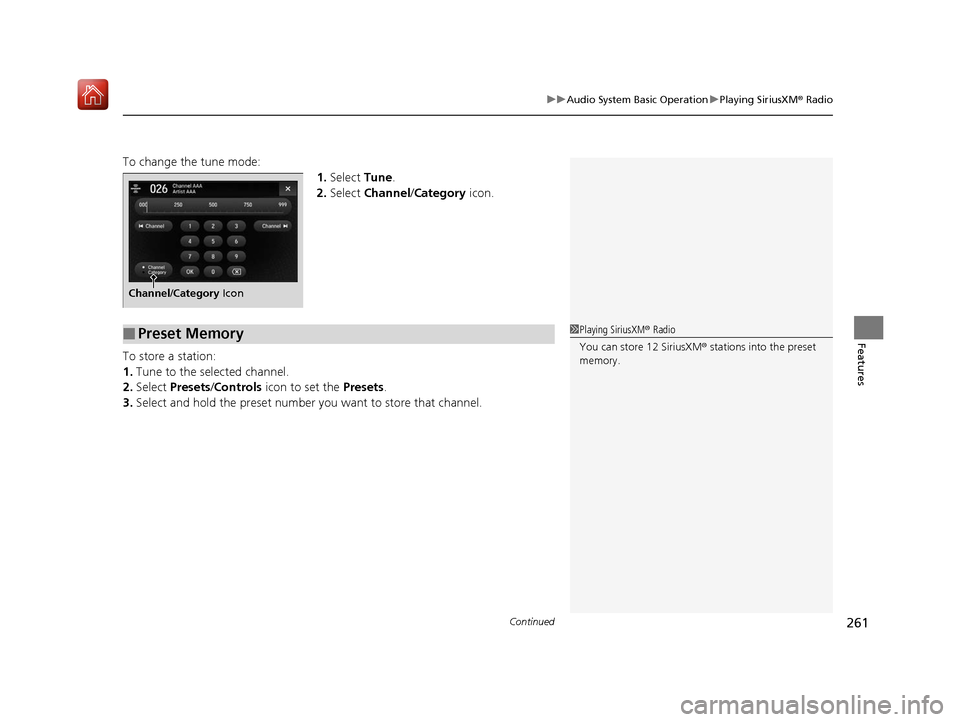

Continued261
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features
To change the tune mode:
1.Select Tune.
2. Select Channel /Category icon.
To store a station:
1. Tune to the selected channel.
2. Select Presets /Controls icon to set the Presets.
3. Select and hold the preset number you want to store that channel.
Channel/Category Icon
■Preset Memory1Playing SiriusXM ® Radio
You can store 12 SiriusXM ® stations into the preset
memory.
19 ACURA MDX-31TZ56510.book 261 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

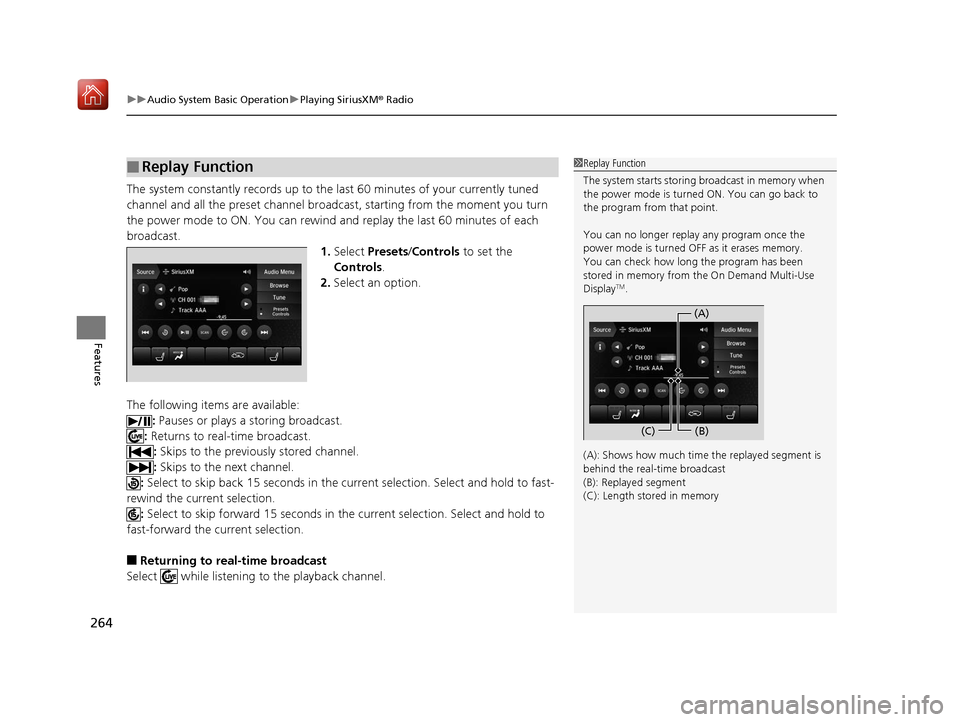

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
264
Features
The system constantly records up to the last 60 minutes of your currently tuned
channel and all the preset channel broadcast, starting from the moment you turn
the power mode to ON. You can rewind and replay the last 60 minutes of each
broadcast. 1.Select Presets /Controls to set the
Controls .
2. Select an option.
The following items are available: : Pauses or plays a storing broadcast.
: Returns to real-time broadcast.
: Skips to the previously stored channel.
: Skips to the next channel.
: Select to skip back 15 seconds in the current selection. Select and hold to fast-
rewind the current selection.
: Select to skip forward 15 seconds in the current selection. Select and hold to
fast-forward the current selection.
■Returning to real-time broadcast
Select while listening to the playback channel.
■Replay Function1Replay Function
The system starts storing broadcast in memory when
the power mode is turned ON. You can go back to
the program from that point.
You can no longer repl ay any program once the
power mode is turned OFF as it erases memory.
You can check how long the program has been
stored in memory from the On Demand Multi-Use
Display
TM.
(A): Shows how much time the replayed segment is
behind the real-time broadcast
(B): Replayed segment
(C): Length stored in memory
(A) (B)
(C)
19 ACURA MDX-31TZ56510.book 264 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

269
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features
Sample each channel on the selected mode for 10 seconds.
1. Select Presets /Controls to set the Controls.
2. Select SCAN.
3. Select Scan Channels or Scan Presets.
To turn off scan, select Stop Scan.
■Scan1Scan
You can select desired channel by songs using Scan
Presets .
The “Scan Songs in Preset s” function is based on
TuneScan
TM technology of SiriusXM ®.
The “Featured Channels ” function is based on
Featured Favorites
TM technology of SiriusXM ®.
TuneScan
TM and Featured FavoritesTM are registered
trademarks of SiriusXM ® Radio, Inc.
Scan Mode Menu Items
Scan Channels: Scans for channels with a strong
signal in the selected mode.
Scan Presets: Scans for desired preset channel by
songs. Select (skip up) or (skip down) to
skip to the next/previ ous stored selection.
19 ACURA MDX-31TZ56510.book 269 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

Index
690
Index
Index
A
AAC.................................................... 270, 295
ABS (Anti-lock Brake System) ................... 537
AC Power Outlet ....................................... 215
Accessories and Modifications ................. 625
Accessory Power Sockets .......................... 214
AcuraLink .................................................. 437
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) .................................. 492
Indicator .................................................... 95
Additives
Coolant ................................................... 591
Washer .................................................... 594
Adjusting
Armrest ................................................... 205
Front Seats .............................................. 192
Head Restraints........................ 199, 201, 202
Headlights ............................................... 595
Mirrors .................................................... 189
Rear Seats................................................ 204
Steering Wheel ........................................ 188
Temperature ............................................ 122
Agile Handling Assist ................................ 522
Air Conditioning System (Climate Control System) .................................................... 220
Changing the Mode ................................ 223
Defrosting the Windshield and Windows ............................................... 226
Dust and Pollen Filter ............................... 619
Rear Climate Control System ................... 227
Sensors .................................................... 231 Synchronized Mode................................. 224
Using Automatic Climate Control ............ 220
Air Pressure ....................................... 605, 677
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ........................................ 45
Airbag Care............................................... 55
Driver’s Knee Airbag.................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 53, 86
Passenger Front Airbag Off Indicator ......... 54
Sensors ..................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags.................................. 52
AM/FM Radio ............................................ 256
Android Auto ........................................... 305
Anti-lock Brake System (ABS) .................. 537
Indicator.................................................... 86
Apple CarPlay ........................................... 301
Armrest ..................................................... 205
Audio Remote Controls ........................... 239
Audio System ............................................ 234
Adjusting the Sound................................ 251
Auxiliary Input Jack.................................. 238
Error Messages ........................................ 310
General Information ................................ 318
HDD ........................................................ 273
Internet Radio ......................................... 293
iPhone............................................. 293, 320
iPod ........................................................ 286 MP3/WMA/AAC ............................. 270, 295
Reactivating ............................................ 238
Recommended CDs ................................ 319
Recommended Devices ........................... 320
Remote Controls ..................................... 239
Security Code ......................................... 238
Theft Protection ...................................... 238
USB Flash Drives...................................... 320
USB Port ................................................. 235
Authorized Manuals ................................ 685
Auto Door Locking/Unlocking ................ 154
Customize ...................................... 132, 376
Auto High-Beam ...................................... 177
Indicator ................................................... 86
Auto Idle Stop .......................................... 483
OFF Button ............................................. 484
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 535
Indicator ................................................. 535
Automatic Brake Hold System
Indicator ................................................. 535
Automatic Folding Door Mirror .............. 191
Automatic Intermittent Wipers .............. 181
Aut o

matic Lighting .................................. 174
Automatic Transmission .......................... 474
Creeping................................................. 474
Fluid ....................................................... 593
Kickdown ............................................... 474
Operating the Shift Button ...................... 477
19 ACURA MDX-31TZ56510.book 690 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

692
Index
Coat Hook................................................. 216
Collision Mitigation Braking SystemTM
(CMBSTM) .................................................. 539
Compact Spare Tire .......................... 629, 677
Compass .................................................... 445
Console Compartment ............................. 210
Controls ..................................................... 137
Coolant (Engine) ....................................... 591
Adding to the Radiator ............................ 592
Adding to the Reserve Tank ..................... 591
Overheating............................................. 655
Creeping (Automatic Transmission) ........ 474
Cross Traffic Monitor ................................ 554
Cup Holders ............................................... 212
Customized Features ........................ 126, 360
D
Daytime Running Lights ........................... 176
Dead Battery ............................................. 653
Defrosting the Windshield and
Windows .................................................. 226
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 173
Rearview Mirror ....................................... 189
Dipstick (Engine Oil) ................................. 587
Directional Signals (Turn Signal) .............. 172
Door Mirrors ............................................. 190 Doors
......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking .............................. 154
Door Open Message.................................. 32
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside .............................................. 13, 151
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 607
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 447
Automatic Transmission .......................... 474
Braking ................................................... 531
Off-Highway Driving Guidelines............... 465
Shifting Gear ........................................... 475
Starting the Engine.................................. 467
Driving Position Memory System ............ 186
Dust and Pollen Filter ............................... 619
Dynamic Mode button ............................. 489
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 531
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 520Emergency
................................................ 670
Emissions Testing (Readiness Codes) ...... 681
Engine ....................................................... 678
Coolant .................................................. 591
Jump Starting ......................................... 653
Remote Engine Start ............................... 469
Starting................................................... 467
Engine Compartment Cover .................... 585
Engine Coolant ........................................ 591
Adding to the Radiator ........................... 592
Adding to the Reserve Tank .................... 591
Overheating ............................................ 655
Temperature Gauge ................................ 119
Engine Oil
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 579
Low Oil Pressure Indicator ................. 82, 657
ENGINE START/STOP Button .................... 169
EPS (Electric Power Steering) System ............................................... 88, 659
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 622
Exterior Mirrors ........................................ 190
F
Features.................................................... 233
Filters Dust and Pollen....................................... 619
Oil .......................................................... 589
19 ACURA MDX-31TZ56510.book 692 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
