rear view mirror Acura MDX 2019 User Guide

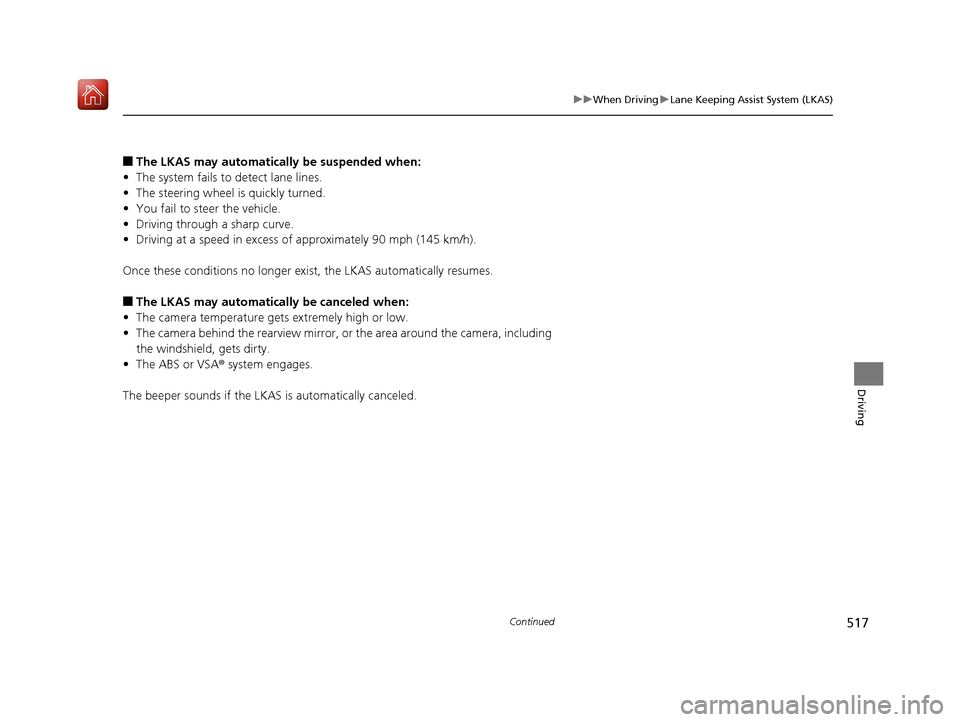

517
uuWhen Driving uLane Keeping Assist System (LKAS)
Continued
Driving
■The LKAS may automatica lly be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exist, the LKAS automatically resumes.
■The LKAS may automatically be canceled when:
• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
19 ACURA MDX-31TZ56510.book 517 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

539
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 543
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 490
Be careful not to severely impact the radar sensor
cover.
1 How the system works
Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. The radar sensor is
behind the emblem.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle or pedestrian
detected in front of you becomes about 3 mph (5 km/h) and over with a chance
of a collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you. The camera is
located behind the
rearview mirror.
When to use
19 ACURA MDX-31TZ56510.book 539 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

546
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving
Limitations applicable to pedestrian detection only
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is slouching or squatting.
• When the pedestrian is shorter than about 3 feet (1 meter) or taller than about 7
feet (2 meter) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squa tting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and wi nding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused CMBS
TM to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.
19 ACURA MDX-31TZ56510.book 546 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

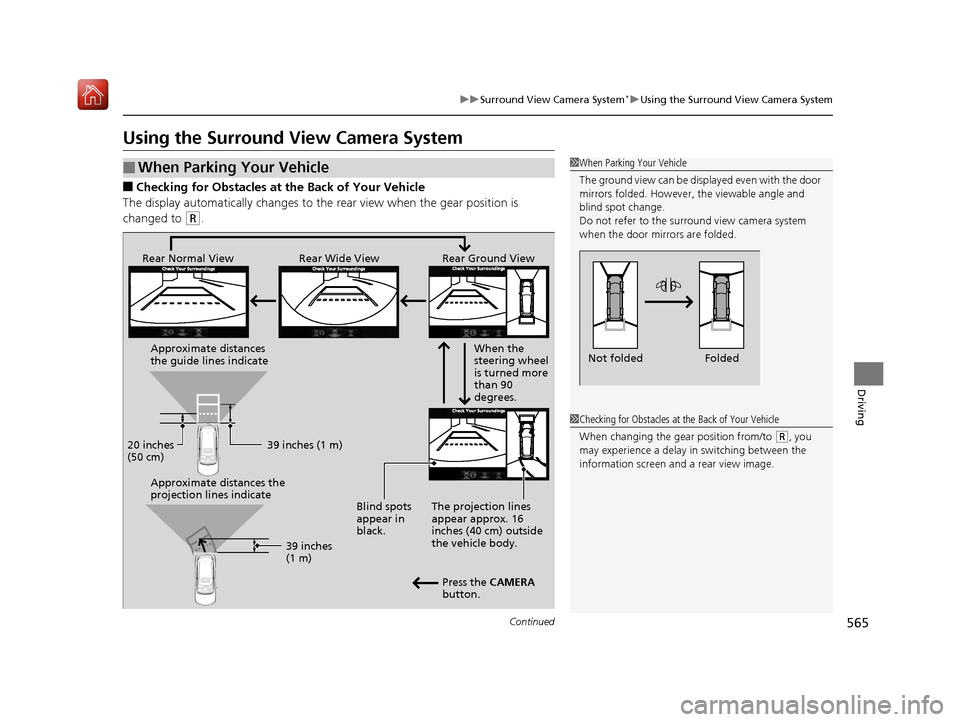

565
uuSurround View Camera System*uUsing the Surround View Camera System
Continued
Driving
Using the Surround View Camera System
■Checking for Obstacles at the Back of Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■When Parking Your Vehicle1 When Parking Your Vehicle
The ground view can be disp layed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.
Folded
Not folded
1 Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
information screen and a rear view image.
Rear Wide View
Rear Normal View Rear Ground View
When the
steering wheel
is turned more
than 90
degrees.
The projection lines
appear approx. 16
inches (40 cm) outside
the vehicle body.
Blind spots
appear in
black.
Press the CAMERA
button.
Approximate distances
the guide lines indicate
Approximate distances the
projection lines indicate
39 inches (1 m)
20 inches
(50 cm)
39 inches
(1 m)
19 ACURA MDX-31TZ56510.book 565 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

692
Index
Coat Hook................................................. 216
Collision Mitigation Braking SystemTM
(CMBSTM) .................................................. 539
Compact Spare Tire .......................... 629, 677
Compass .................................................... 445
Console Compartment ............................. 210
Controls ..................................................... 137
Coolant (Engine) ....................................... 591
Adding to the Radiator ............................ 592
Adding to the Reserve Tank ..................... 591
Overheating............................................. 655
Creeping (Automatic Transmission) ........ 474
Cross Traffic Monitor ................................ 554
Cup Holders ............................................... 212
Customized Features ........................ 126, 360
D
Daytime Running Lights ........................... 176
Dead Battery ............................................. 653
Defrosting the Windshield and
Windows .................................................. 226
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 173
Rearview Mirror ....................................... 189
Dipstick (Engine Oil) ................................. 587
Directional Signals (Turn Signal) .............. 172
Door Mirrors ............................................. 190 Doors
......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking .............................. 154
Door Open Message.................................. 32
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside .............................................. 13, 151
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 607
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 447
Automatic Transmission .......................... 474
Braking ................................................... 531
Off-Highway Driving Guidelines............... 465
Shifting Gear ........................................... 475
Starting the Engine.................................. 467
Driving Position Memory System ............ 186
Dust and Pollen Filter ............................... 619
Dynamic Mode button ............................. 489
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 531
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 520Emergency
................................................ 670
Emissions Testing (Readiness Codes) ...... 681
Engine ....................................................... 678
Coolant .................................................. 591
Jump Starting ......................................... 653
Remote Engine Start ............................... 469
Starting................................................... 467
Engine Compartment Cover .................... 585
Engine Coolant ........................................ 591
Adding to the Radiator ........................... 592
Adding to the Reserve Tank .................... 591
Overheating ............................................ 655
Temperature Gauge ................................ 119
Engine Oil
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 579
Low Oil Pressure Indicator ................. 82, 657
ENGINE START/STOP Button .................... 169
EPS (Electric Power Steering) System ............................................... 88, 659
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 622
Exterior Mirrors ........................................ 190
F
Features.................................................... 233
Filters Dust and Pollen....................................... 619
Oil .......................................................... 589
19 ACURA MDX-31TZ56510.book 692 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

694
Index
I
Identification Numbers............................ 678
Engine and Transmission.......................... 678
Vehicle Identification ............................... 678
IDS (Integrated Dynamics System) ........... 489
Illumination Control ................................. 184
Button ..................................................... 184
Immobilizer System .................................. 163
Indicator .................................................... 89
Indicators ..................................................... 78
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) .................... 95, 492
Anti-lock Brake System (ABS) ..................... 86
Auto High-Beam ........................................ 86
Auto Idle Stop ........................................... 92
Auto Idle Stop System................................ 92
Automatic Brake Hold........................ 81, 535
Automatic Brake Hold System ............ 81, 535
Blind spot information System ........... 99, 524
Brake System (Amber)................................ 79
Brake System (Red) ............................ 78, 659
Charging System ............................... 82, 657
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 97, 98
Electric Parking Brake................................. 80
Electric Parking Brake System ..................... 80
Fog Lights .................................................. 89
Gear Position ............................................. 83
High Beam................................................. 88
Immobilizer System .................................... 89
Keyless Access System ............................... 91 Lane Keeping Assist System (LKAS) .... 93, 514
Lights On .................................................. 89
Low Fuel ................................................... 85
Low Oil Pressure ................................ 82, 657
Low Tire Pressure/TPMS ............................. 88
Malfunction Indicator Lamp............... 82, 658
Parking Brake and Brake System ........ 78, 659
Road Departure Mitigation (RDM) ............. 94
Seat Belt Reminder .............................. 34, 85
Security System Alarm ............................... 90
Speed-sensitive Electric Power
Steering (EPS) System ...................... 88, 659
Super Handling-All Wheel Drive
TM.............. 91
Supplemental Restraint System ............ 53, 86
System Message ........................................ 90
Transmission System.......................... 84, 661
Turn Signal ................................................ 88
Vehicle Stability Assist ® (VSA ®)
System ............................................ 87, 520
VSA ® OFF .......................................... 87, 521
Information .............................................. 675
Information Screen .................................. 246
Instrument Panel ........................................ 77
Brightness Control................................... 184
Integrated Dynamics System (IDS) ........... 489
Dynamic Mode button ............................ 489
Interface Dial ............................................ 241
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 189
Internet Radio .......................................... 293
iPhone ............................................... 293, 320 iPod
................................................... 286, 320
J
Jack (Wheel Nut Wrench) ........................ 633
Jump Starting ........................................... 653
K
Key Number Tag ...................................... 141
Keyless Access System .............................. 142
Keyless Lockout Prevention ..................... 149
Keys ........................................................... 139
Lockout Prevention ................................. 149
Number Tag............................................ 141
Rear Door Won’t Open ........................... 153
Remote Transmitter ................................ 147
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 474
L
Lane Keeping Assist System (LKAS)........ 512
Indicator ................................................... 93
Language (HFL) ........................................ 396
LATCH (Child Seats) ............................. 61, 68
LED Puddle Light ...................................... 146
Legal Information on Apple CarPlay/
Android Auto ......................................... 333
License information ................................. 336
Lights ................................................ 173, 595
Automatic............................................... 174
19 ACURA MDX-31TZ56510.book 694 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

695
Index
Bulb Replacement ................................... 595
Daytime Running Lights .......................... 176
High Beam Indicator ................................. 88
Interior.................................................... 207
Light Switches......................................... 173
Lights On Indicator.................................... 89
Turn Signals ............................................ 172
Load Limits ............................................... 451
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 154
Childproof Door Locks ............................ 153
From Inside ............................................. 151
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 149
Low Battery Charge ................................. 657
Low Fuel Indicator ..................................... 85
Low Oil Pressure Indicator ................. 82, 657
Lower Anchors ..................................... 61, 68
Lubricant Specifications Chart ................ 677
Luggage (Maximum Load Limit) ............. 451
Lumbar Support ....................................... 192
M
Maintenance............................................ 575
Battery .................................................... 613
Brake Fluid .............................................. 594
Cleaning ................................................. 620
Climate Control System .......................... 619 Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587
Precautions .............................................. 576
Radiator .................................................. 592
Remote Control ....................................... 617
Remote Transmitter ......................... 615, 616
Replacing Light Bulbs ............................... 595
Safety ...................................................... 577
Service Items ........................................... 581
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 583
Wireless Headphone ................................ 618
Malfunction Indicator Lamp .............. 82, 658
Map Lights ................................................ 208
Maximum Load Limit ............................... 451
Meters, Gauges ......................................... 119
MID (Multi-information Display) ............. 120
Mirrors ....................................................... 189
Adjusting ................................................. 189
Door........................................................ 190
Exterior .................................................... 190
Interior Rearview ..................................... 189
Modifications (and Accessories) .............. 625
Moonroof .................................................. 168
MP3 ................................................... 270, 295
Multi-function Steering-wheel
Controls ................................................... 120
Multi-Information Display (MID) ............. 120
Multi-View Rear Camera .......................... 559N
Numbers (Identification).......................... 678
O
Odometer................................................. 121
Off-Highway Driving Guidelines ............. 465
Oil (Engine) Adding .................................................... 588
Checking................................................. 587
Displaying Oil Life .................................... 579
Low Oil Pressure Indicator ................. 82, 657
On Demand Multi-Use Display
TM............. 242
Open Source Licenses ............................... 335
Opening/Closing Hood....................................................... 584
Moonroof ............................................... 168
Power Windows ...................................... 166
Tailgate ................................................... 155
Operating the Switches Around the Steering Wheel ....................................... 169
Outside Temperature Display .................. 122
Overhead Screen ...................................... 340
Overheating .............................................. 655
P
Paddle Shifters (Sequential Mode) .......... 482
Panic Mode ............................................... 165
Parking ...................................................... 548
Parking Brake ........................................... 531
19 ACURA MDX-31TZ56510.book 695 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

696
Index
Parking Brake and Brake System Indicator ............................................ 78, 659
Parking Sensor System .............................. 550
Passenger Front Airbag Off Indicator ....... 54
Passing Indicators ..................................... 173
Power Tailgate .......................................... 157
Power Windows ........................................ 166
Precautions While Driving ........................ 473
Driving Guidelines for Your Utility Vehicle................................................... 473
Rain ......................................................... 473
Pregnant Women ....................................... 39
Puncture (Tire) .................................. 629, 636
R
Radiator..................................................... 592
Radio (AM/FM) .......................................... 256
Radio (SiriusXM ®)...................................... 259
Radio Data System (RDS) .......................... 257
Range ........................................................ 123
RDS (Radio Data System) .......................... 257
Readiness Codes (Emissions Testing) ....... 681
Rear Climate Control System ................... 227
From the Front Panel ............................... 227
From the Rear Panel................................. 230
Rear Defogger/Heated Door Mirror
Button ...................................................... 185
Rear Entertainment System (RES) ............ 337
Auxiliary Console Panel ............................ 338
Front Control Panel Operation ................. 354 HDMI
TM Port ............................................ 339
Operating the System .............................. 341
Overhead Screen ..................................... 340
Playable Discs .......................................... 359
Rear Control Panel Operation .................. 342
Wireless Headphones .............................. 337
Rear Seats ................................................. 204
Second Row Seat ............................ 197, 198
Third Row Seat ........................................ 204
Rearview Mirror ....................................... 189
Refueling .................................................. 571
Fuel Gauge.............................................. 119
Gasoline .......................................... 571, 676
Low Fuel Indicator ..................................... 85
Regulations ............................... 529, 607, 679
Remote Engine Start with Vehicle Feedback ................................................. 469
Checking Door Lock Status...................... 150
Remote Transmitter ................................. 147
Replacement Battery ............................ 615, 616, 617, 618
Bulbs ....................................................... 595
Front Wiper Blade Rubber ....................... 600
Fuses ............................... 662, 665, 667, 668
Rear Wiper Blade Rubber......................... 602
Tires ........................................................ 610
Reporting Safety Defects ......................... 680
Resetting a Trip Meter ............................. 122
Reverse Tilt Door Mirror .......................... 190
Right Selector Wheel ....................... 120, 126 Road Departure Mitigation (RDM)
......... 507
On and Off ............................................. 509
S
Safe Driving ................................................ 27
Safety Checklist .......................................... 32
Safety Labels .............................................. 75
Safety Message ............................................ 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor ................. 37
Automatic Seat Belt Tensioners ................. 35
Checking .................................................. 40
Detachable Anchor ................................... 38
Fastening .................................................. 36
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 66
Pregnant Women...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 85
Seat Heaters ..................................... 218, 219
Seat Ventilation ....................................... 218
Seats .......................................................... 192
Adjusting ................................................ 192
Driver’s Seat Lumbar Support .................. 192
Front Seats.............................................. 192
Rear Seats ............................................... 204
Seat Heaters ................................... 218, 219
Seat Ventilation ...................................... 218
Second Row Seat ............................ 197, 198
Third Row Seat ....................................... 204
19 ACURA MDX-31TZ56510.book 696 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
