Acura MDX 2019 Owner's Manual

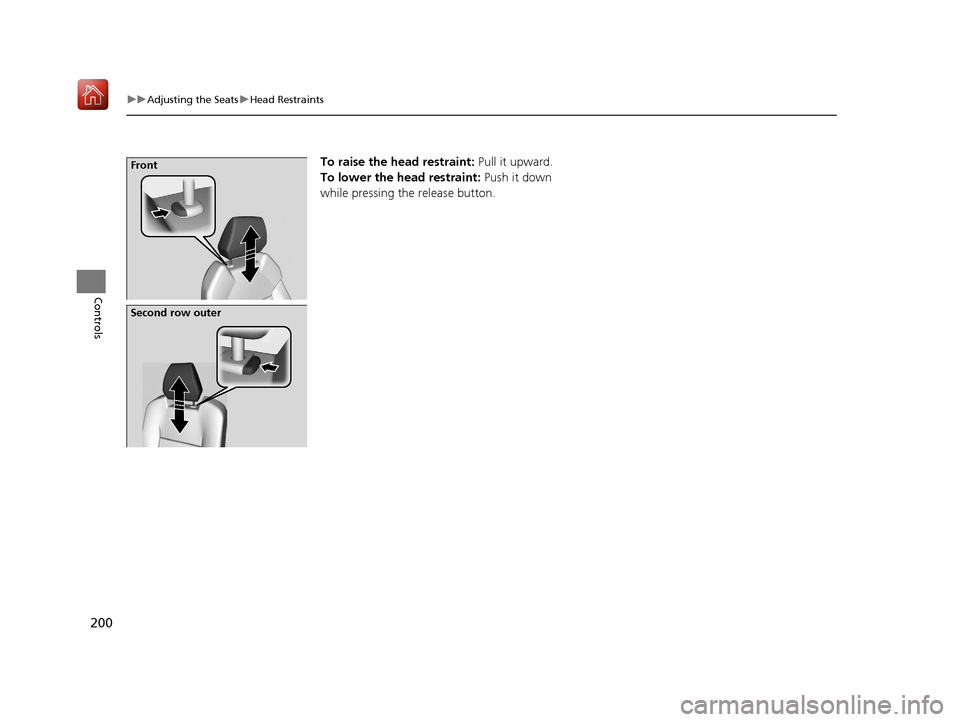

200
uuAdjusting the Seats uHead Restraints
Controls
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.Front
Second row outer
19 ACURA MDX-31TZ56510.book 200 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

Continued201
uuAdjusting the Seats uHead Restraints
Controls
A passenger sitting in the second row center
seating position should adjust the height of
their head restraint to an appropriate position
before the vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Changing the Second Row Center Seat Head Restraint
Position
*
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Front and second row head restraints
* Not available on all models
19 ACURA MDX-31TZ56510.book 201 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

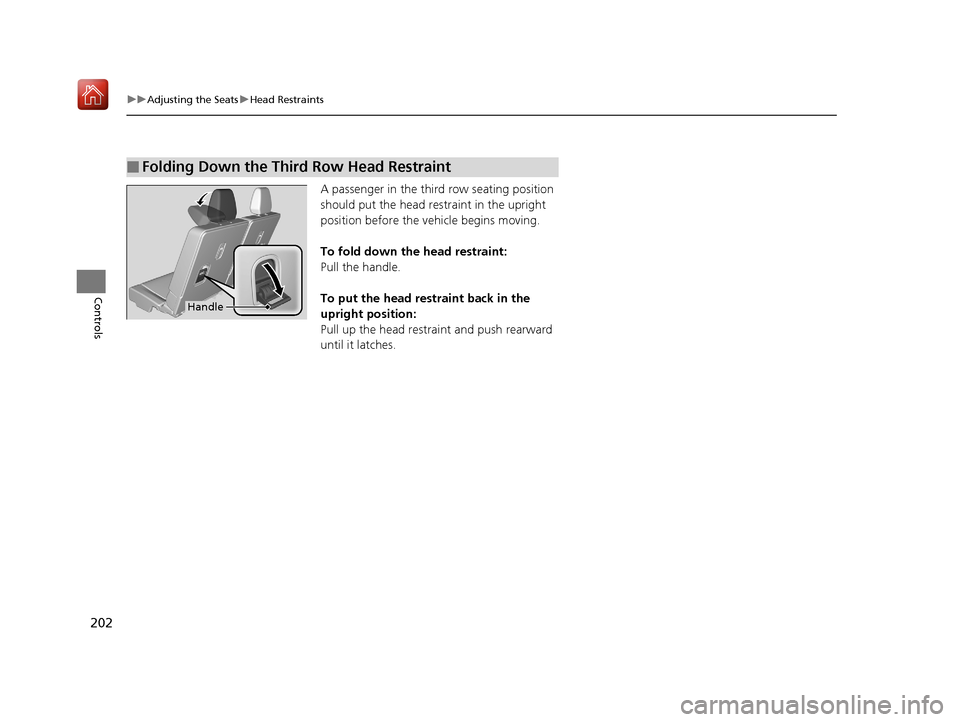

202
uuAdjusting the Seats uHead Restraints
Controls
A passenger in the thir d row seating position
should put the head restraint in the upright
position before the vehicle begins moving.
To fold down the head restraint:
Pull the handle.
To put the head restraint back in the
upright position:
Pull up the head restra int and push rearward
until it latches.
■Folding Down the Third Row Head Restraint
Handle
19 ACURA MDX-31TZ56510.book 202 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

203
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their s eats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of posi tion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
19 ACURA MDX-31TZ56510.book 203 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

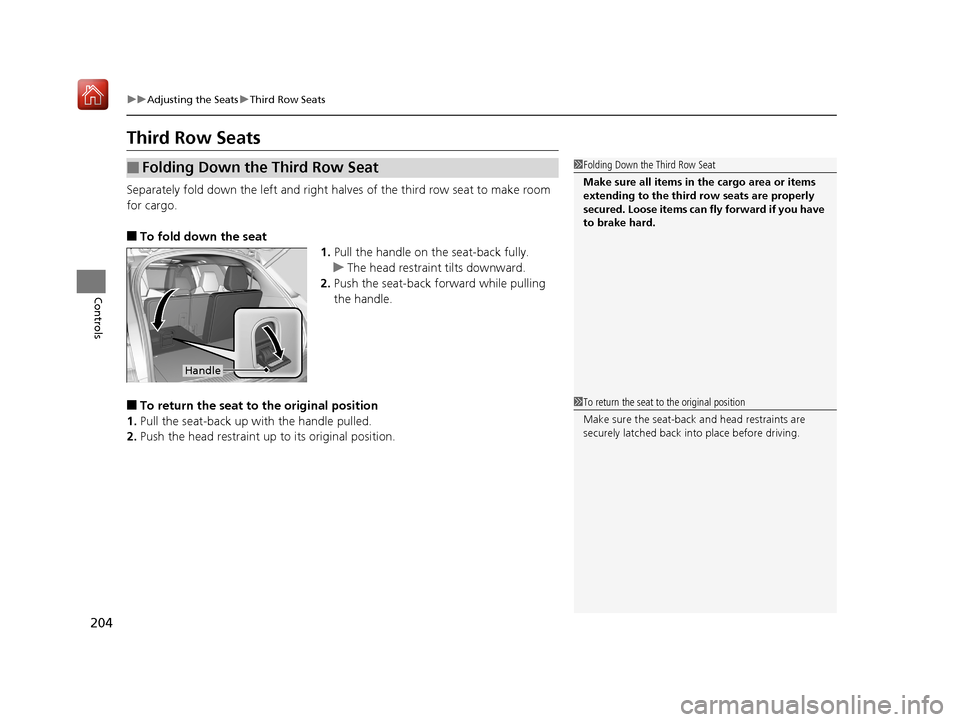

204
uuAdjusting the Seats uThird Row Seats
Controls
Third Row Seats
Separately fold down the left and right halv es of the third row seat to make room
for cargo.
■To fold down the seat 1.Pull the handle on the seat-back fully.
u The head restraint tilts downward.
2. Push the seat-back forward while pulling
the handle.
■To return the seat to the original position
1. Pull the seat-back up with the handle pulled.
2. Push the head restraint up to its original position.
■Folding Down the Third Row Seat1Folding Down the Third Row Seat
Make sure all items in the cargo area or items
extending to the third row seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Handle
1To return the seat to the original position
Make sure the seat-back and head restraints are
securely latched back in to place before driving.
19 ACURA MDX-31TZ56510.book 204 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

205
uuAdjusting the Seats uArmrest
Continued
Controls
Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to a desired position.
■Using the Front Seat Armrest
19 ACURA MDX-31TZ56510.book 205 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

206
uuAdjusting the Seats uArmrest
Controls
Pull down the armrest in the center backrest.
The console lid can be used as an armrest.
To adjust:
Slide the armrest to a desired position.
Pull down the armrest.
■Using the Rear Seat Armrest
Models with bench seat
Models with rear console compartment
Models with captain seatModels without rear console
compartment
19 ACURA MDX-31TZ56510.book 206 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

207Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any of the doors are
opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the tailgate or any doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 126, 360
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
If you leave any of the tailgate or doors open in
VEHICLE OFF (LOCK) mode, th e interior lights go off
after about 15 minutes.
Door Activated Position
Off
On
19 ACURA MDX-31TZ56510.book 207 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

uuInterior Lights/Interior Convenience Items uInterior Lights
208
Controls
■Front
The map lights can be turned on and off by
pressing the (map light) button.
■Second and third row
The map lights can be turned on and off by
pressing the (map light) button when the
front interior light switch is in the door
activated position.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the button.
Front
Second and third row
■Cargo Area Lights
Off On
19 ACURA MDX-31TZ56510.book 208 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Press the button to open the glove box. You
can lock the glove box with the built-in key.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removed shelf can be stored upside down
in the glove box.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
Tabs
19 ACURA MDX-31TZ56510.book 209 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
