Acura MDX 2019 Owner's Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
420
Features
■To modify a voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings,
then press .
3. Rotate to select Phonebook
Phonetic Modification , then press .
4. Rotate to select the phone you want
to add phonetic modification to, then
press .
5. Rotate to select a contact name you
want to modify, then press .
u The pop-up menu appears on the
screen.
6. Rotate to select Modify, then press
.
7. Press .
u Using the button, follow the
prompts to complete the voice tag.
8. You will receive a confirmation message
on the screen. Rotate to select OK,
then press .
9. Rotate to select Options..., then press
.
10. Rotate to select OK, then press .1Phonebook Phonetic Modification*
You can only modify or de lete contact names for the
currently connected phone.
* Not available on all models
19 ACURA MDX-31TZ56510.book 420 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

421
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To delete a modified voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Rotate to select Phonebook Phonetic
Modification , then press .
4. Rotate to select the phone you want to
delete phonetic modification, then press
.
5. Rotate to select a contact name you
want to delete, then press .
u The pop-up menu appears on the screen.
6. Rotate to select Delete, then press .
u Items to be deleted are indicated with a
trash icon.
7. Rotate to select Options..., then press
.
8. Rotate to select OK, then press .
Trash Icon
19 ACURA MDX-31TZ56510.book 421 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

422
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete all modified voice tags
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Rotate to select Phonebook Phonetic
Modification , then press .
4. Rotate to select the phone you want to
delete phonetic modification, then press
.
5. Rotate to select Options..., then press
.
6. Rotate to select Delete All, then press
.
7. You will receive a confirmation message on
the screen. Rotate to select Yes, then
press .
19 ACURA MDX-31TZ56510.book 422 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

Continued423
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say “Call” and the voice tag
name, “Call by name” and the phonebook name, or
“Call” and the phone number.
The maximum range be tween your phone and
vehicles is 30 fe et (10 meters).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls ca nnot be made with
HandsFreeLink ® and are only made from Apple
CarPlay.
19 ACURA MDX-31TZ56510.book 423 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

uuBluetooth ® HandsFreeLink ®u HFL Menus
424
Features
■To make a call using the imported
phonebook
1. Press the PHONE button.
2. Rotate to select Phonebook, then
press .
3. Rotate to select a contact name, then
press .
u The phonebook is stored alphabetically.
4. Rotate to select a number, then press
.
u Dialing starts automatically.1To make a call using the imported phonebook
You can call a stored voice-tagged speed dial
number, phonebook name, or number using voice
commands. 2 Speed Dial P. 415
You can use the keyboard on the On Demand Multi-
Use Display
TM for a partial match search.
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
Models with navigation system
Models without navigation system
19 ACURA MDX-31TZ56510.book 424 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

425
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To make a call using a phone number
1. Press the PHONE button.
2. Rotate to select Dial, then press .
3. Select a number.
u Use the keyboard on the On Demand
Multi-Use Display
TM for entering
numbers.
4. Select .
■To make a call using redial
1. Press the PHONE button.
2. Rotate to select Redial, then press .
u Dialing starts automatically.
19 ACURA MDX-31TZ56510.book 425 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

uuBluetooth ® HandsFreeLink ®u HFL Menus
426
Features
■To make a call using the call history
Call history is stored by All*1, Dialed ,
Received, and Missed.
1. Press the PHONE button.
2. Rotate to select Call History, then
press .
3. Move or to select All
*1, Dialed ,
Received , and Missed .
4. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel right to select
Call History .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.
*1: This function may not be avai lable depending on a cellular phone.
1To make a call using the call history
The call history disp lays the last 20 dialed, received, or
missed calls.
(Appears only when a phone is connected to HFL.)
These icons next to the number indicate the
following:
: Dialed calls.
: Received calls.
: Missed calls.
The call history disp lays the last 12 dialed, received, or
missed calls.
Steering switches
On MIDSteering switches
19 ACURA MDX-31TZ56510.book 426 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

Continued427
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

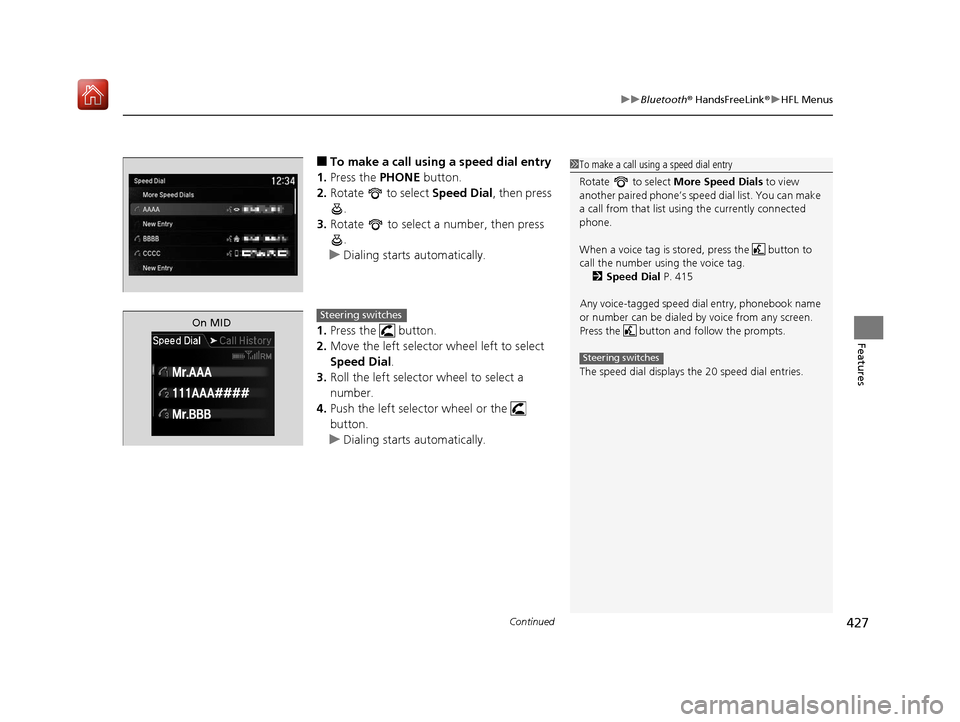

■To make a call using a speed dial entry
1. Press the PHONE button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel left to select
Speed Dial .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.1To make a call using a speed dial entry
Rotate to select More Speed Dials to view
another paired phone’s spee d dial list. You can make
a call from that list using the currently connected
phone.
When a voice tag is stored, press the button to
call the number using the voice tag.
2 Speed Dial P. 415
Any voice-tagged speed di al entry, phonebook name
or number can be dialed by voice from any screen.
Press the button and follow the prompts.
The speed dial displays the 20 speed dial entries.
Steering switches
On MIDSteering switches
19 ACURA MDX-31TZ56510.book 427 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

uuBluetooth ® HandsFreeLink ®u HFL Menus
428
Features

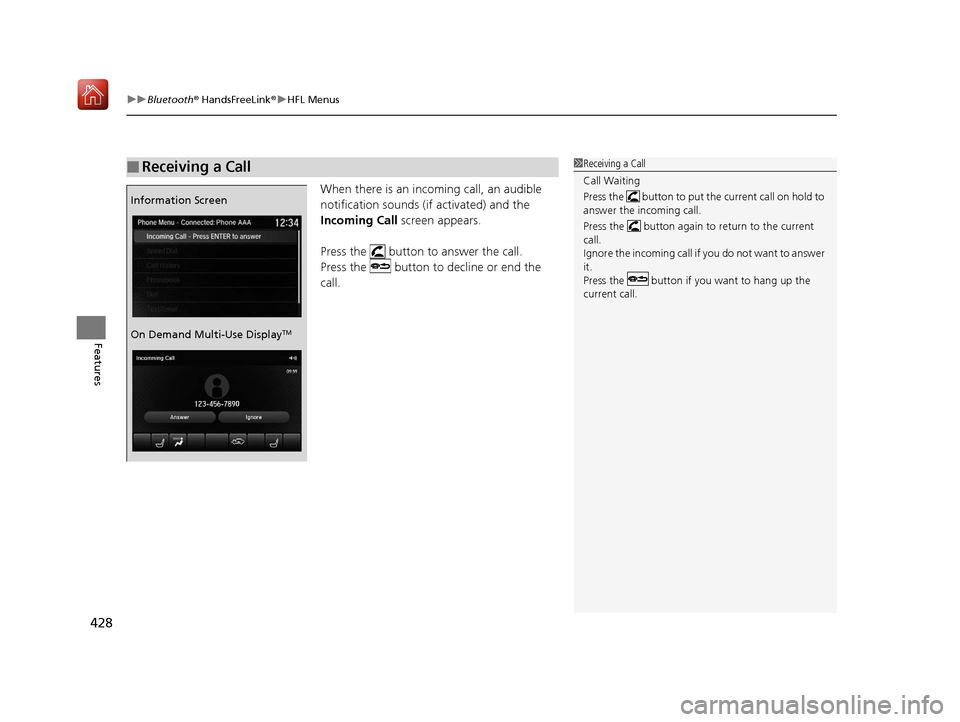

When there is an incoming call, an audible
notification sounds (i f activated) and the
Incoming Call screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
■Receiving a Call1 Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Ignore the incoming call if you do not want to answer
it.
Press the button if you want to hang up the
current call.
Information Screen
On Demand Multi-Use Display
TM
19 ACURA MDX-31TZ56510.book 428 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

Continued429
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

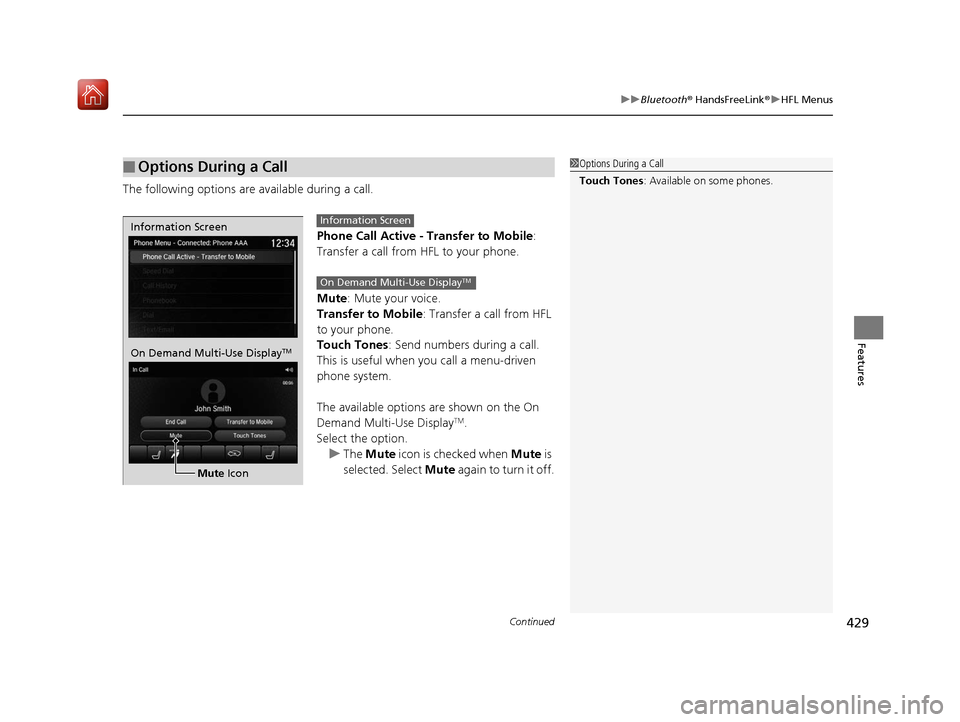

The following options are available during a call.
Phone Call Active - Transfer to Mobile :
Transfer a call from HFL to your phone.
Mute : Mute your voice.
Transfer to Mobile: Transfer a call from HFL
to your phone.
Touch Tones : Send numbers during a call.
This is useful when you call a menu-driven
phone system.
The available options are shown on the On
Demand Multi-Use Display
TM.
Select the option.
u The Mute icon is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call1Options During a Call
Touch Tones : Available on some phones.
Information Screen
On Demand Multi-Use DisplayTM
Mute Icon
Information Screen
On Demand Multi-Use DisplayTM
19 ACURA MDX-31TZ56510.book 429 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
