uuJump Starting u
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.
6. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, remove the jumper cabl es in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
19 ACURA MDX-31TZ56510.book 654 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

uuOverheating uHow to Handle Overheating
656
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve TankMAXMIN
19 ACURA MDX-31TZ56510.book 656 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

657
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 587
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Immediately stop
the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
19 ACURA MDX-31TZ56510.book 657 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

659
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

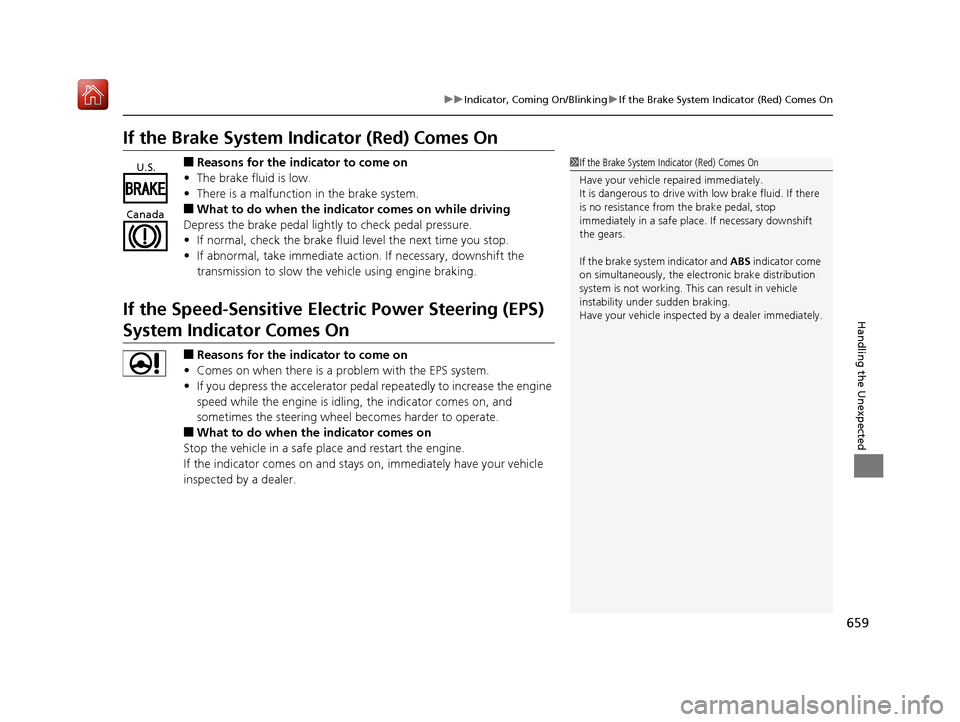

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
19 ACURA MDX-31TZ56510.book 659 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

661
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Syst em Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
There is a problem with the transmission system.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Select
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 467
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 670
* Not available on all models
19 ACURA MDX-31TZ56510.book 661 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

662
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1STRLD7.5 A
2−−
3ACG FR15 A
4 Washer 15 A
5IG1 OP(7.5 A)
6 ECU FR 7.5 A
7Starter7.5 A
8FI Sub 15A
9DBW15 A
10 FI Main 15 A
11IG Coil15 A
12 DRL R 10 A
13DRL L10 A
14 Injector 20 A
15−−
16 Back Up 10 A
17MG Clutch(7.5 A)
18 FR Fog*(7.5 A)
19−−
20 H/L HI R 7.5 A
21−−
22 Small 10 A
23−−
24 H/L HI L 7.5 A
25SBW15 A
26 H/L LO R 10 A
27H/L LO L10 A
28 Oil LVL 7.5 A
29Main Fan30 A
30 Sub Fan 30 A
31Wiper Main30 A
Circuit ProtectedAmps
* Not available on all models
19 ACURA MDX-31TZ56510.book 662 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

669
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 662 to P. 668.
There is a fuse puller in the engine compartment fuse
box.
If the radio fuse is remove d, the audio system will
disable itself.
Combined
Fuse Blown Fuse
Fuse Puller
Blown Fuse
19 ACURA MDX-31TZ56510.book 669 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

681Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 ACURA MDX-31TZ56510.book 681 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

692
Index
Coat Hook................................................. 216
Collision Mitigation Braking SystemTM
(CMBSTM) .................................................. 539
Compact Spare Tire .......................... 629, 677
Compass .................................................... 445
Console Compartment ............................. 210
Controls ..................................................... 137
Coolant (Engine) ....................................... 591
Adding to the Radiator ............................ 592
Adding to the Reserve Tank ..................... 591
Overheating............................................. 655
Creeping (Automatic Transmission) ........ 474
Cross Traffic Monitor ................................ 554
Cup Holders ............................................... 212
Customized Features ........................ 126, 360
D
Daytime Running Lights ........................... 176
Dead Battery ............................................. 653
Defrosting the Windshield and
Windows .................................................. 226
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 173
Rearview Mirror ....................................... 189
Dipstick (Engine Oil) ................................. 587
Directional Signals (Turn Signal) .............. 172
Door Mirrors ............................................. 190 Doors
......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking .............................. 154
Door Open Message.................................. 32
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside .............................................. 13, 151
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 607
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 447
Automatic Transmission .......................... 474
Braking ................................................... 531
Off-Highway Driving Guidelines............... 465
Shifting Gear ........................................... 475
Starting the Engine.................................. 467
Driving Position Memory System ............ 186
Dust and Pollen Filter ............................... 619
Dynamic Mode button ............................. 489
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 531
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 520Emergency
................................................ 670
Emissions Testing (Readiness Codes) ...... 681
Engine ....................................................... 678
Coolant .................................................. 591
Jump Starting ......................................... 653
Remote Engine Start ............................... 469
Starting................................................... 467
Engine Compartment Cover .................... 585
Engine Coolant ........................................ 591
Adding to the Radiator ........................... 592
Adding to the Reserve Tank .................... 591
Overheating ............................................ 655
Temperature Gauge ................................ 119
Engine Oil
Adding ................................................... 588
Checking ................................................ 587
Displaying Oil Life ................................... 579
Low Oil Pressure Indicator ................. 82, 657
ENGINE START/STOP Button .................... 169
EPS (Electric Power Steering) System ............................................... 88, 659
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 622
Exterior Mirrors ........................................ 190
F
Features.................................................... 233
Filters Dust and Pollen....................................... 619
Oil .......................................................... 589
19 ACURA MDX-31TZ56510.book 692 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

695
Index
Bulb Replacement ................................... 595
Daytime Running Lights .......................... 176
High Beam Indicator ................................. 88
Interior.................................................... 207
Light Switches......................................... 173
Lights On Indicator.................................... 89
Turn Signals ............................................ 172
Load Limits ............................................... 451
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 154
Childproof Door Locks ............................ 153
From Inside ............................................. 151
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 149
Low Battery Charge ................................. 657
Low Fuel Indicator ..................................... 85
Low Oil Pressure Indicator ................. 82, 657
Lower Anchors ..................................... 61, 68
Lubricant Specifications Chart ................ 677
Luggage (Maximum Load Limit) ............. 451
Lumbar Support ....................................... 192
M
Maintenance............................................ 575
Battery .................................................... 613
Brake Fluid .............................................. 594
Cleaning ................................................. 620
Climate Control System .......................... 619 Coolant ................................................... 591
Maintenance Minder
TM............................ 579
Oil ........................................................... 587
Precautions .............................................. 576
Radiator .................................................. 592
Remote Control ....................................... 617
Remote Transmitter ......................... 615, 616
Replacing Light Bulbs ............................... 595
Safety ...................................................... 577
Service Items ........................................... 581
Tires ........................................................ 604
Transmission Fluid ................................... 593
Under the Hood ...................................... 583
Wireless Headphone ................................ 618
Malfunction Indicator Lamp .............. 82, 658
Map Lights ................................................ 208
Maximum Load Limit ............................... 451
Meters, Gauges ......................................... 119
MID (Multi-information Display) ............. 120
Mirrors ....................................................... 189
Adjusting ................................................. 189
Door........................................................ 190
Exterior .................................................... 190
Interior Rearview ..................................... 189
Modifications (and Accessories) .............. 625
Moonroof .................................................. 168
MP3 ................................................... 270, 295
Multi-function Steering-wheel
Controls ................................................... 120
Multi-Information Display (MID) ............. 120
Multi-View Rear Camera .......................... 559N
Numbers (Identification).......................... 678
O
Odometer................................................. 121
Off-Highway Driving Guidelines ............. 465
Oil (Engine) Adding .................................................... 588
Checking................................................. 587
Displaying Oil Life .................................... 579
Low Oil Pressure Indicator ................. 82, 657
On Demand Multi-Use Display
TM............. 242
Open Source Licenses ............................... 335
Opening/Closing Hood....................................................... 584
Moonroof ............................................... 168
Power Windows ...................................... 166
Tailgate ................................................... 155
Operating the Switches Around the Steering Wheel ....................................... 169
Outside Temperature Display .................. 122
Overhead Screen ...................................... 340
Overheating .............................................. 655
P
Paddle Shifters (Sequential Mode) .......... 482
Panic Mode ............................................... 165
Parking ...................................................... 548
Parking Brake ........................................... 531
19 ACURA MDX-31TZ56510.book 695 ページ ２０１８年１２月１１日　火曜日　午後４時４７分
