Page 641 of 701

Acura MDX 2019  Owners Manual uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
640
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.

Page 642 of 701

Acura MDX 2019  Owners Manual Continued641
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
7. Press the inflator switch to turn on the
compressor.
u The compressor starts injecting sealant
and a

Page 643 of 701

Acura MDX 2019  Owners Manual 642
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
12. Apply the speed restriction la

Page 644 of 701

Acura MDX 2019  Owners Manual 643
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Continued
Handling the Unexpected

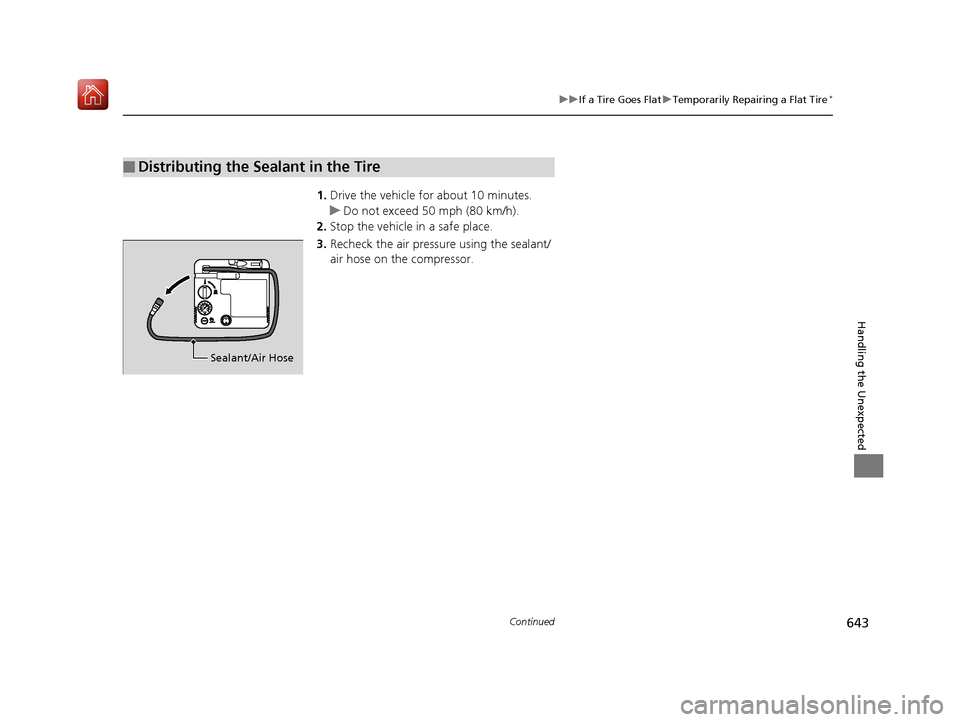

1. Drive the vehicle fo r about 10 minutes.
u Do not exceed 50  mph (80 km/h).
2. Stop the vehicle in a

Page 645 of 701

Acura MDX 2019  Owners Manual 644
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected

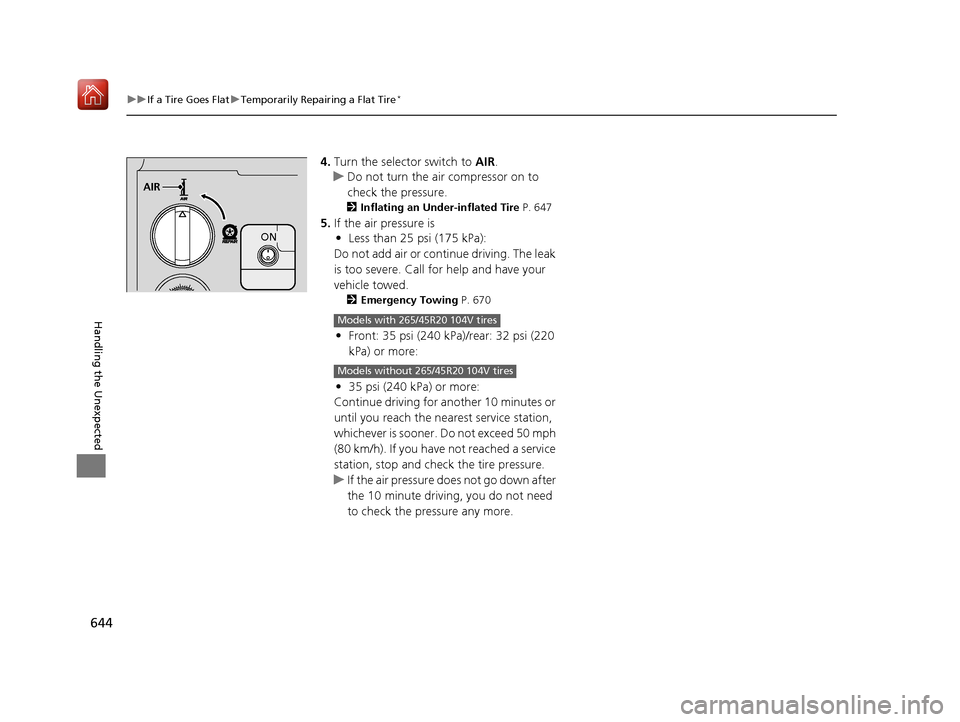

4. Turn the selector switch to  AIR.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Un

Page 646 of 701

Acura MDX 2019  Owners Manual Continued645
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 32 psi
(220 kPa):
Turn t

Page 647 of 701

Acura MDX 2019  Owners Manual 646
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected

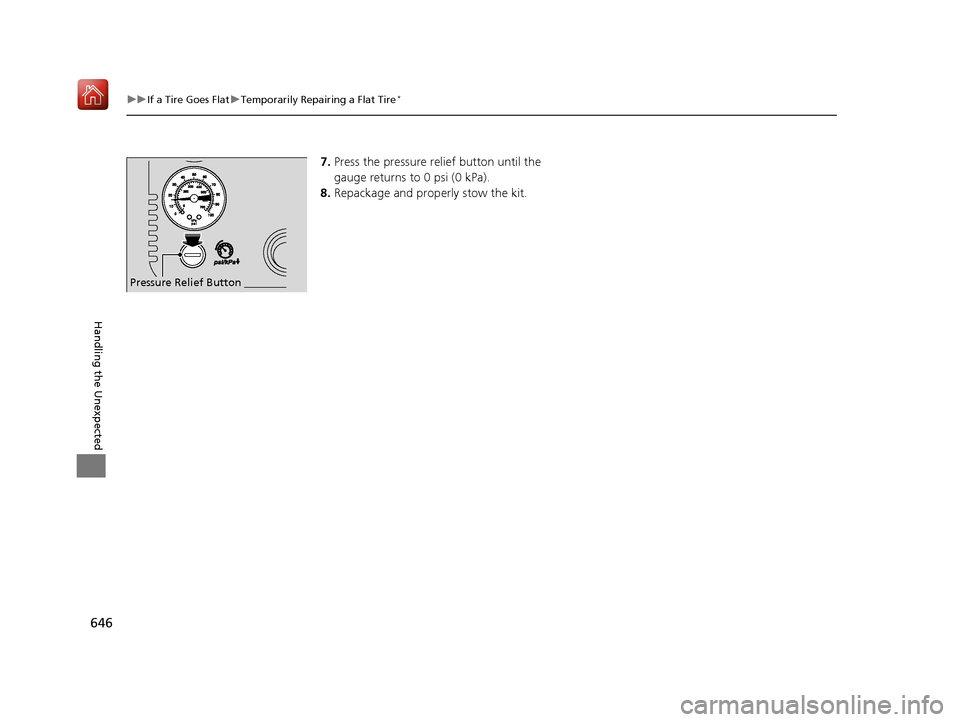

7. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
8. Repackage and properly stow the

Page 648 of 701

Acura MDX 2019  Owners Manual Continued647
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the cargo area floor lid.
2 Ge

Page 649 of 701

Acura MDX 2019  Owners Manual uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
648
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do n

Page 650 of 701

Acura MDX 2019  Owners Manual 649
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure rel
