Acura MDX 2019 Manual Online

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Parking
Brake Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on for about 15 seconds
then goes off when you push the
electric parking brake switch with
the power mode in OFF.
●Comes on for about 15 seconds
then goes off when you set the
power mode to OFF with the
parking brake applied.
●Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake may
not be set.
●Comes on when you pull the
electric parking brake switch
without depressing the brake
pedal.●Depress the brake pedal to release the parking
brake.
2Parking Brake P. 531
Electric Parking
Brake System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the electric parking brake
system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle checked
by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 660
U.S.
Canada
19 ACURA MDX-31TZ56510.book 80 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

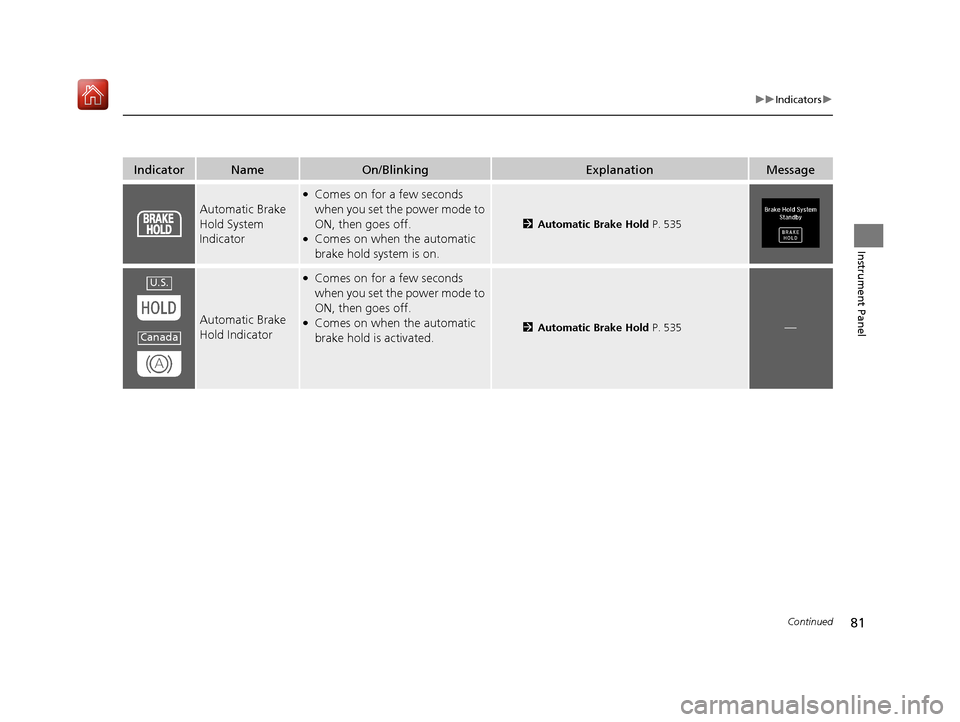

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 535
Automatic Brake
Hold Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 535—
U.S.
Canada
19 ACURA MDX-31TZ56510.book 81 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Oil Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately stop
in a safe place.
2 If the Low Oil Pressure Indicator Comes
On P. 657
Malfunction
Indicator Lamp
●Comes on when you set the
power mode to ON, and goes off
either when the engine starts or
after several seconds if the
engine did not start. If “readiness
codes” have not been set, it
blinks five times before it goes
off.
●Comes on if there is a problem
with the emissions control
systems.
●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emis sions control systems.
2Testing of Readiness Codes P. 681●Comes on while driving - Have your vehicle
checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and wait
for it to cool down. Then, take your vehicle to
a dealer.
2 If the Malfunction Indicator Lamp Comes
On or Blinks P. 658
Charging System
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the battery is
not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator Comes
On P. 657
19 ACURA MDX-31TZ56510.book 82 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

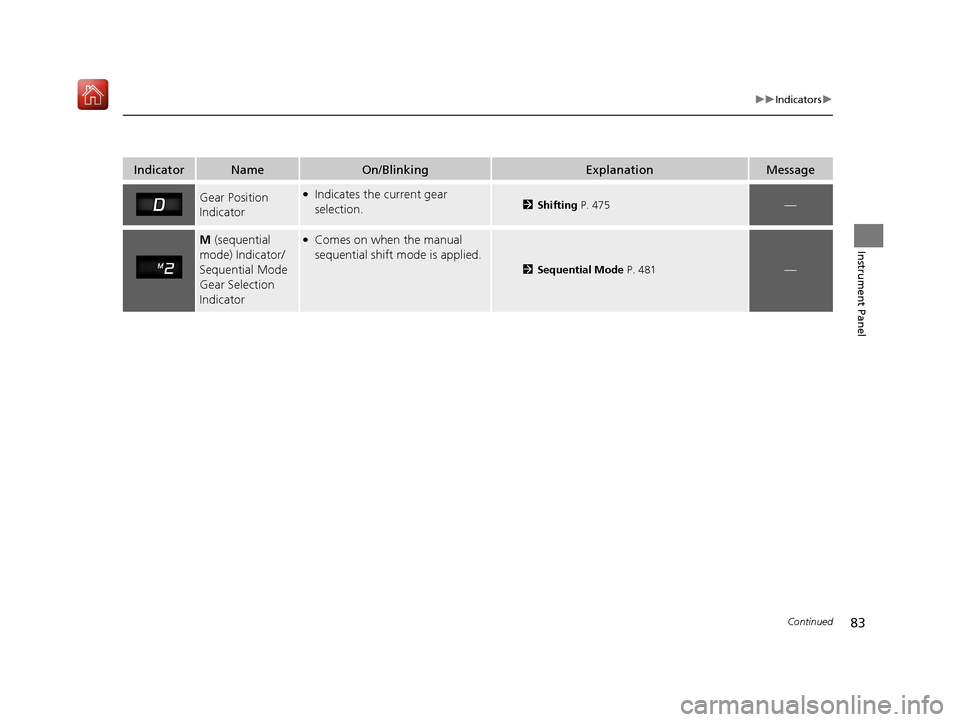

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear
selection.2Shifting P. 475—
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator●Comes on when the manual
sequential shift mode is applied.
2 Sequential Mode P. 481—
19 ACURA MDX-31TZ56510.book 83 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
●The indicated current gear
selection blinks if there is a
problem with the transmission
system.●Avoid sudden start and acceleration, and stop
in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light
for several seconds, and go off.●When all the gear positions light, immediately
stop your vehicle in a safe place.
●Indicators go off if there is no problem.
However, even if they go off, take your vehicle
to a dealer for inspection.
●The indicated current gear
selection or all the gear positions
blink if there is a problem with
the transmission system, and the
vehicle no longer moves.●Immediately stop in a safe place.
2Emergency Towing P. 670●Have your vehicle checked by a dealer.
●The indicated current gear
selection or all the gear positions
blink if you cannot select
(P due
to the transmission system
failure.
●The engine can be activated as a temporary
measure.
2 If the Transmission System Indicator
Blinks along with the Warning Message
P. 661
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
19 ACURA MDX-31TZ56510.book 84 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on about a few seconds
later.
●Blinks while driving if either you
and/or the front passenger has
not fastened a seat belt. The
beeper sounds an d the indicator
blinks at regular intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten their
seat belts.
●Stays on after you and/or the front
passenger has fastened the seat belt(s) -
A detection error may have occurred in the
sensor. Have your vehicle checked by a dealer.
2 Seat Belt Reminder P. 34
Low Fuel Indicator
●Comes on when the fuel reserve
is running low (approximately 2.5
U.S. gal./9.5 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
19 ACURA MDX-31TZ56510.book 85 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. Wi th this indicator on,
your vehicle still has normal braking ability but
no anti-lock function.
2 Anti-lock Brake System (ABS) P. 537
Supplemental
Restraint System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if a problem with any
of the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come on
at all - Have your vehicle checked by a dealer.
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-
beam are met.
2 Auto High-Beam P. 177—
19 ACURA MDX-31TZ56510.book 86 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
Assist® (VSA ®)
System Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when VSA ®, or trailer
stability assist is active.
●Comes on if there is a problem
with the VSA ®, hill start assist,
trailer stability assist or brake
lighting system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist ® (VSA ®), aka
Electronic Stability Control (ESC), System
P. 520
2 Trailer Stability Assist P. 462
2 Hill start assist system P. 472
●When Trailer Stability Assist Problem is
displayed on the MID, the VSA ® does not
activate.
Vehicle Stability
Assist ® (VSA ®) OFF
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when you partially
disable VSA®.
2 VSA ® On and Off P. 521—
19 ACURA MDX-31TZ56510.book 87 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Speed-sensitive
Electric Power
Steering (EPS)
System Indicator●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a dealer.
2If the Speed-Sensitive Electric Power
Steering (EPS) System Indicator Comes
On P. 659
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a spare
tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with
a spare, get your regular tire repaired or
replaced and put back on your vehicle as soon
as you can.
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 595
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
* Not available on all models
19 ACURA MDX-31TZ56510.book 88 ページ ２０１８年１２月１１日　火曜日　午後４時４７分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator
●Comes on when the light switch
in a position other than OFF or
when the switch is set to AUTO
and the exterior lights come on.●If you set the power mode to ACCESSORY or
VEHICLE OFF (LOCK) while the exterior lights
are on, a chime sounds wh en the driver’s door
is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights
are on.
——
Immobilizer
System Indicator
●Comes on briefly when you set
the power mode to ON, then
goes off.
●Comes on if the immobilizer
system cannot recognize the key
information.
●Blinks - You cannot start the engine. Set the
power mode to VEHICL E OFF (LOCK), then
select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by
a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
* Not available on all models
