Page 108 of 701
107
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you try to change the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.●Release your foot off the acce lerator pedal, then select a
shift button.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while the
vehicle is moving forward, or to
(D while the vehicle is
reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears when you set the po wer mode to ON without
fastening the driver’s seat belt.
●Appears when you change the gear position after (P
has been automatically selected with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
●Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 477
●Appears when you press the (P button but it is not
engaged due to low ATF temperature.●Depress the brake pedal until this message disappear.
19 ACURA MDX-31TZ56510.book 107 ページ 2018年12月11日 火曜日 午後4時47分
Page 594 of 701
593

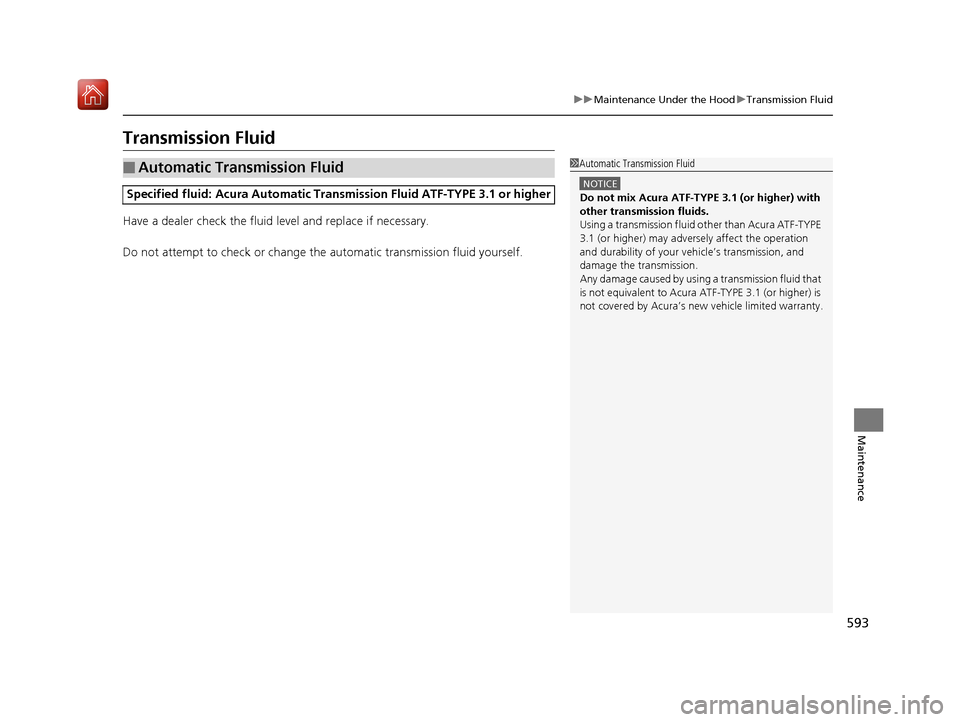

uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Acura Automatic Transmission Flui d ATF-TYPE 3.1 or higher
1Automatic Transmission Fluid
NOTICE
Do not mix Acura ATF-TYPE 3.1 (or higher) with
other transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
3.1 (or higher) may advers ely affect the operation
and durability of your ve hicle’s transmission, and
damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acura ATF-TYPE 3.1 (or higher) is
not covered by Acura’s new vehicle limited warranty.
19 ACURA MDX-31TZ56510.book 593 ページ 2018年12月11日 火曜日 午後4時47分
Page 678 of 701
677
uuSpecifications u
Information
■Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 3.1 or higher
Capacity Change 3.5 US qt (3.3 L)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 L)
SpecifiedAcura Hypoid Gear Oil HGO-1
Capacity Change 0.45 US qt (0.43 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.96 US gal (7.40 L)
(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
■ Tire
*1: Model with 18 inch wheel
*2: Models with 245/50R20
*3: Models with surround view camera system
*4: A-Spec models
Regular
Size
245/60R18 105H*1
245/50R20 102H*2
265/45R20 104V*3
265/45R20 104H*4
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear32 (220 [2.2])*3, *4
35 (240 [2.4])*1, *2
Compact
Spare*
Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 8J*1
20 x 8J*2
20 x 8 1/2J*3, *4
Compact Spare*17 x 4T
* Not available on all models
