engine Acura MDX 2020 Owner's Manual

673
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of its clip in the cargo
area.
2 Types of Tools P. 626
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
20 ACURA MDX-31TZ56600.book 673 ページ ２０１９年４月２４日　水曜日　午後５時４４分

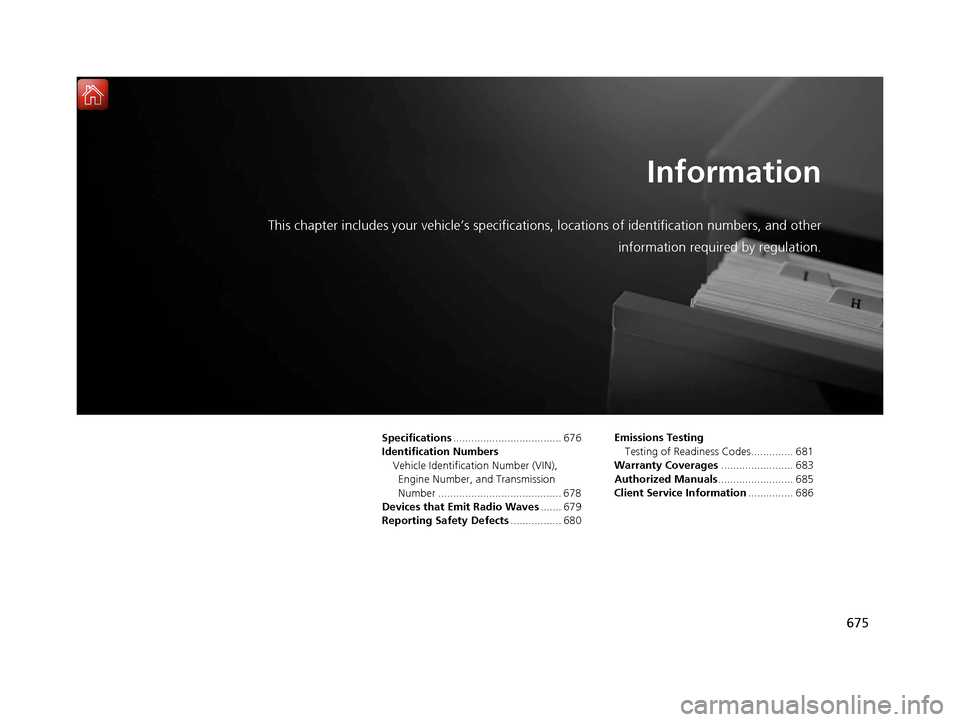

675
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 676
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 678
Devices that Emit Radio Waves ....... 679
Reporting Safety Defects ................. 680Emissions Testing
Testing of Readiness Codes.............. 681
Warranty Coverages ........................ 683
Authorized Manuals ......................... 685
Client Service Information ............... 686
20 ACURA MDX-31TZ56600.book 675 ページ ２０１９年４月２４日　水曜日　午後５時４４分

676
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
ModelMDX
No. of Passengers:
Front 2
Rear (2nd) 2
*1
3*2
Rear (3rd)
2
Total 6*1
7*2
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■
Air Conditioning
*1: U.S. models
*2: Canadian models
■Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)*1
HFC-134a (R-134a)*2
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)*1
675 – 725 g*2
Lubricant TypeRL85HM (POE)*1
PAG RL897*2
Quantity7.75 – 9.33 cu-in (127 – 153 cm3)*1
127 – 153 cm3 (20% RATIO)*2
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)
Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
■ Brake Fluid
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal/Side Marker/
Parking LightsLED
Daytime Running Lights LED
Side Turn Signal Lights (on Door
Mirrors)LED
Brake Lights 21 W
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights LED
Puddle Lights*LED
Interior Lights Front, Second Row and Third
Row Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Door Courtesy Lights 3.4 W
Door Inner Handle Lights LED
Front and Rear
* Console
Compartment Lights LED
Glove Box Light 1.4 W
Foot Lights 5 W
Cargo Area Lights 5 W
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
* Not available on all models
20 ACURA MDX-31TZ56600.book 676 ページ ２０１９年４月２４日　水曜日　午後５時４４分

677
uuSpecifications u
Information
■
Automatic Tran smission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedAcura ATF-Type 3.1 or higher
Capacity Change 3.5 US qt (3.3 L)
SpecifiedAcura DPSF-II
Capacity Change 1.92 US qt (1.82 L)
SpecifiedAcura HGO-1
Capacity Change 0.45 US qt (0.43 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.96 US gal (7.40 L)
(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
■ Tire
*1: Model with 18 inch wheel
*2: Models with 245/50R20
*3: Models with surround view camera system
*4: A-Spec models
Regular
Size
245/60R18 105H*1
245/50R20 102H*2
265/45R20 104V*3
265/45R20 104H*4
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear32 (220 [2.2])*3, *4
35 (240 [2.4])*1, *2
Compact
Spare*
Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 8J*1
20 x 8J*2
20 x 8 1/2J*3, *4
Compact Spare*17 x 4T
* Not available on all models
20 ACURA MDX-31TZ56600.book 677 ページ ２０１９年４月２４日　水曜日　午後５時４４分

678
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Automatic Transmission
Number
20 ACURA MDX-31TZ56600.book 678 ページ ２０１９年４月２４日　水曜日　午後５時４４分

681Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 ACURA MDX-31TZ56600.book 681 ページ ２０１９年４月２４日　水曜日　午後５時４４分

682
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 ACURA MDX-31TZ56600.book 682 ページ ２０１９年４月２４日　水曜日　午後５時４４分

686
Information
Client Service Information
Acura dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Acura Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 100-5E-8F
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Client Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 678
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 ACURA MDX-31TZ56600.book 686 ページ ２０１９年４月２４日　水曜日　午後５時４４分

692
Index
Compact Spare Tire.......................... 627, 677
Compass .................................................... 443
Console Compartment ............................. 209
Controls ..................................................... 137
Coolant (Engine) ....................................... 589
Adding to the Radiator ............................ 590
Adding to the Reserve Tank ..................... 589
Overheating............................................. 654
Creeping (Automatic Transmission) ........ 471
Cross Traffic Monitor ................................ 552
Cup Holders ............................................... 211
Customized Features ........................ 126, 358
D
Daytime Running Lights ........................... 175
Dead Battery ............................................. 652
Defrosting the Windshield and
Windows .................................................. 225
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 172
Rearview Mirror ....................................... 188
Dipstick (Engine Oil) ................................. 585
Directional Signals (Turn Signal) .............. 171
Door Mirrors ............................................. 189
Doors ......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking ............................... 154
Door Open Message .................................. 32 Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .............................................. 13, 151
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 605
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 445
Automatic Transmission .......................... 471
Braking ................................................... 529
Off-Highway Driving Guidelines............... 462
Shifting Gear ........................................... 472
Starting the Engine.................................. 464
Driving Position Memory System ............ 185
Dust and Pollen Filter ............................... 617
Dynamic Mode button ............................. 486
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 529
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 518
Emergency ................................................ 670
Emissions Testing (Readiness Codes) ....... 681
Engine ....................................................... 678
Coolant ................................................... 589 Jump Starting ......................................... 652
Remote Engine Start ............................... 466
Starting................................................... 464
Engine Compartment Cover .................... 583
Engine Coolant ........................................ 589
Adding to the Radiator ........................... 590
Adding to the Reserve Tank .................... 589
Overheating ............................................ 654
Temperature Gauge ................................ 119
Engine Oil Adding ................................................... 586
Checking ................................................ 585
Displaying Oil Life ................................... 577
Low Oil Pressure Indicator ................. 82, 656
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ............................................... 88, 658
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 620
Exterior Mirrors ........................................ 189
F
Features.................................................... 231
Filters Dust and Pollen....................................... 617
Oil .......................................................... 587
Flat Tire ............................................. 627, 635
Floor Mats ................................................ 619
Fluids
Automatic Transmission .......................... 591
20 ACURA MDX-31TZ56600.book 692 ページ ２０１９年４月２４日　水曜日　午後５時４４分

693
Index
Brake ...................................................... 592
Engine Coolant ....................................... 589
Windshield Washer ................................. 592
Fog Lights ................................................. 175
Folding Down the Second Row Seat ...... 197
Folding Down the Third Row Seat .......... 203
Foot Brake ................................................ 532
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 191
Adjusting ................................................ 191
Front Sensor Camera ............................... 487
Fuel ..................................................... 20, 569
Fuel Economy and CO
2 Emissions ............ 572
Gauge .................................................... 119
Instant Fuel Economy .............................. 123
Low Fuel Indicator..................................... 85
Range ..................................................... 123
Recommendation.................................... 569
Refueling ................................................ 569
Fuel Economy and CO
2 Emissions ............ 572
Fuel Fill Door ...................................... 20, 570
Unable to Unlock .................................... 671
Fuses ......................................................... 662
Inspecting and Changing ........................ 669
Locations ........................ 662, 665, 667, 668
G
Gasoline (Fuel) Economy................................................. 572
Gauge .................................................... 119 Information ............................................. 569
Low Fuel Indicator ..................................... 85
Refueling ................................................. 569
Gauges ...................................................... 119
Gear Position Indicator ...................... 83, 474
Gear Shift Positions Automatic Transmission ........................... 472
Glass (care) ................................................ 621
Glove Box .................................................. 208
H
Handling the Unexpected ........................ 625
HandsFreeLink ® (HFL) ............................... 393
Auto Answer ........................................... 410
Automatic Import of Cellular Phonebook
and Call History ..................................... 412
Automatic Transferring ............................ 410
Displaying Messages ................................ 430
HFL Buttons ............................................. 393
HFL Menus .............................................. 396
HFL Status Display ................................... 394
Limitations for Manua l Operation ............ 395
Making a Call .......................................... 421
Options During a Call .............................. 427
Phone Setup ............................................ 401
Phonebook Phonetic M odification ........... 416
Receiving a Call ....................................... 426
Receiving a Text/E-mail Message .............. 428
Ring Tone ................................................ 411
Roadside Assistance ................................. 434 Selecting a Text/E-mail Message
Account ................................................ 429
Speed Dial ............................................... 413
To Create a Security PIN .......................... 408
To Set Up a Text/E-mail Message Option................................................... 406
Use Contact Photo .................................. 411
Hard Disk Drive (HDD) Audio .................. 271
Hazard Warning Button .............................. 4
HDMI
TM Port .............................................. 337
Head Restraints ........................ 198, 200, 201
Headlight Washers ................................... 182
Headlights ................................................. 172
Aiming .................................................... 593
Auto High-Beam ..................................... 176
Automatic Operation............................... 173
Dimming ......................................... 172, 175
Operating................................................ 172
Heated Door Mirrors ................................ 184
Heated Steering Wheel ............................ 216
Heated Windshield ................................... 184
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ................................... 217, 218
HFL (HandsFreeLink ®)............................... 393
High Beam Indicator .................................. 88
Hill Start Assist System ............................. 469
HomeLink ® Universal Transceiver ............ 390
Honda App License Agreement .............. 319
20 ACURA MDX-31TZ56600.book 693 ページ ２０１９年４月２４日　水曜日　午後５時４４分
