remote start Acura MDX 2020 Owner's Guide

Continued467
uuWhen Driving uStarting the Engine
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start with Vehicle Feedback*
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
The engine may not start by the remote engine start
if:
•You have disabled a remo te engine start setting
using the multi-information display (MID).
•The power mode is not in VEHICLE OFF (LOCK).
•The transmission is in a position other than ( P.
•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and tailgate did not
lock, and the engine does not start.
* Not available on all models
20 ACURA MDX-31TZ56600.book 467 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuWhen Driving uStarting the Engine
468
Driving
1Remote Engine Start with Vehicle Feedback*
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation* is activated.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters and heated steering wheel are
activated*.
2 Heated Steering Wheel* P. 216
2 Front Seat Heaters and Seat
Ventilation
* P. 217, 218
* Not available on all models
20 ACURA MDX-31TZ56600.book 468 ページ ２０１９年４月２４日　水曜日　午後５時４４分

469
uuWhen Driving uStarting the Engine
Driving
1. Depress the brake pedal and press the ENGINE START/STOP button
simultaneously.
2. Keeping your right foot on the br ake pedal, press the button. Select
(R
when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the electric parkin g brake indicator goes off.
2Parking Brake P. 529
2 If the Transmission System Indicator Blinks along with the Warning Message
P. 661
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Change the gear position to
(D or (S when facing uphill, or (R when facing
downhill, then release the brake pedal.
The brakes remain engaged briefly as you release the brake pedal.
■Starting to Drive1 Starting to Drive
The engine stops when the gear position is changed
from
( P before the ENGINE START/STOP button is
pressed. Follow step 1 when starting to drive.
You can also release the parking brake by pulling the
electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
When the engine was started using the keyless access
remote*When the engine was started using the keyless access remote*
When the engine was started in any case
D/S
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
will not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Hill start assist will operate even when VSA ® is
switched off.
* Not available on all models
20 ACURA MDX-31TZ56600.book 469 ページ ２０１９年４月２４日　水曜日　午後５時４４分

613Continued
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Models without remote control engine start system
Battery type: CR2032
Battery
20 ACURA MDX-31TZ56600.book 613 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuRemote Transmitter Care uReplacing the Button Battery
614
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
u As a convenience, lightly place masking
tape over the remote buttons to hold
them in place.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Press down on the center of the assembly
and remove the battery.
u When removing the button battery, be
careful not to touch parts around it.
4. Make sure to replace the battery with the
correct polarity.
Models with remote control engine start system1 Replacing the Button Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with remote control engine start system
Battery type: CR2032
Battery
20 ACURA MDX-31TZ56600.book 614 ページ ２０１９年４月２４日　水曜日　午後５時４４分

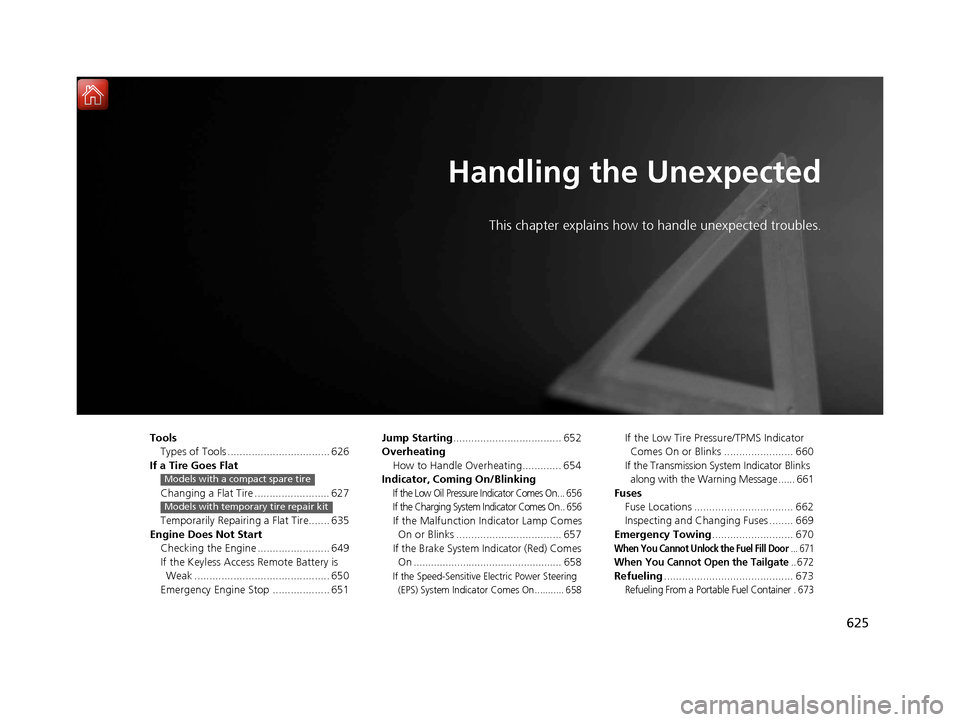

625
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 626
If a Tire Goes Flat
Changing a Flat Tire ......................... 627
Temporarily Repairi ng a Flat Tire....... 635
Engine Does Not Start Checking the Engine ........................ 649
If the Keyless Access Remote Battery is Weak ............................................. 650
Emergency Engine Stop ................... 651
Models with a compact spare tire
Models with temporary tire repair kit
Jump Starting .................................... 652
Overheating How to Handle Overheating............. 654
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ... 656
If the Charging System Indicator Comes On .. 656
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 657
If the Brake System Indicator (Red) Comes On ................................................... 658
If the Speed-Sensitive Electric Power Steering
(EPS) System Indicator Comes On........... 658
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 660
If the Transmission System Indicator Blinks along with the Warning Message ...... 661
Fuses Fuse Locations ................................. 662
Inspecting and Changing Fuses ........ 669
Emergency Towing ........................... 670
When You Cannot Unlock the Fuel Fill Door... 671
When You Cannot Open the Tailgate.. 672
Refueling........................................... 673
Refueling From a Portable Fuel Container . 673
20 ACURA MDX-31TZ56600.book 625 ページ ２０１９年４月２４日　水曜日　午後５時４４分

649
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the MID.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 650
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 168
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 611●If the interior lights come on normally 2 Fuses P. 662
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 464
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 162
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 119
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 669
If the problem continues:
2Emergency Towing P. 670
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 652
20 ACURA MDX-31TZ56600.book 649 ページ ２０１９年４月２４日　水曜日　午後５時４４分

650
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the indicator on the ENGINE START/
STOP button flashes, and the engine won’t start, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyle ss access remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds while the
indicator stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
ENGINE
START
STOP
20 ACURA MDX-31TZ56600.book 650 ページ ２０１９年４月２４日　水曜日　午後５時４４分

692
Index
Compact Spare Tire.......................... 627, 677
Compass .................................................... 443
Console Compartment ............................. 209
Controls ..................................................... 137
Coolant (Engine) ....................................... 589
Adding to the Radiator ............................ 590
Adding to the Reserve Tank ..................... 589
Overheating............................................. 654
Creeping (Automatic Transmission) ........ 471
Cross Traffic Monitor ................................ 552
Cup Holders ............................................... 211
Customized Features ........................ 126, 358
D
Daytime Running Lights ........................... 175
Dead Battery ............................................. 652
Defrosting the Windshield and
Windows .................................................. 225
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 172
Rearview Mirror ....................................... 188
Dipstick (Engine Oil) ................................. 585
Directional Signals (Turn Signal) .............. 171
Door Mirrors ............................................. 189
Doors ......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking ............................... 154
Door Open Message .................................. 32 Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .............................................. 13, 151
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 605
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 445
Automatic Transmission .......................... 471
Braking ................................................... 529
Off-Highway Driving Guidelines............... 462
Shifting Gear ........................................... 472
Starting the Engine.................................. 464
Driving Position Memory System ............ 185
Dust and Pollen Filter ............................... 617
Dynamic Mode button ............................. 486
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 529
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 518
Emergency ................................................ 670
Emissions Testing (Readiness Codes) ....... 681
Engine ....................................................... 678
Coolant ................................................... 589 Jump Starting ......................................... 652
Remote Engine Start ............................... 466
Starting................................................... 464
Engine Compartment Cover .................... 583
Engine Coolant ........................................ 589
Adding to the Radiator ........................... 590
Adding to the Reserve Tank .................... 589
Overheating ............................................ 654
Temperature Gauge ................................ 119
Engine Oil Adding ................................................... 586
Checking ................................................ 585
Displaying Oil Life ................................... 577
Low Oil Pressure Indicator ................. 82, 656
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ............................................... 88, 658
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 620
Exterior Mirrors ........................................ 189
F
Features.................................................... 231
Filters Dust and Pollen....................................... 617
Oil .......................................................... 587
Flat Tire ............................................. 627, 635
Floor Mats ................................................ 619
Fluids
Automatic Transmission .......................... 591
20 ACURA MDX-31TZ56600.book 692 ページ ２０１９年４月２４日　水曜日　午後５時４４分

694
Index
I
Identification Numbers............................ 678
Engine and Transmission.......................... 678
Vehicle Identification ............................... 678
Illumination Control ................................. 183
Button ..................................................... 183
Immobilizer System .................................. 162
Indicator .................................................... 89
Indicators ..................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ............................ 95, 489
Anti-lock Brake System (ABS) ..................... 86
Auto High-Beam ........................................ 86
Auto Idle Stop ........................................... 92
Auto Idle Stop System................................ 92
Automatic Brake Hold........................ 81, 533
Automatic Brake Hold System ............ 81, 533
Blind spot information System ........... 99, 527
Brake System (Amber)................................ 79
Brake System (Red) ............................ 78, 658
Charging System ............................... 82, 656
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 97, 98
Electric Parking Brake................................. 80
Electric Parking Brake System ..................... 80
Fog Lights .................................................. 89
Gear Position ............................................. 83
High Beam................................................. 88
Immobilizer System .................................... 89
Keyless Access System ............................... 91
Lane Keeping Assist System (LKAS) .... 93, 512 Lights On .................................................. 89
Low Fuel ................................................... 85
Low Oil Pressure ................................ 82, 656
Low Tire Pressure/TPMS ............................. 88
Malfunction Indicator Lamp............... 82, 657
Road Departure Mitigation (RDM) ............. 94
Seat Belt Reminder .............................. 34, 85
Security System Alarm ............................... 90
Speed-sensitive Electric Power
Steering (EPS) System ...................... 88, 658
Super Handling-All Wheel Drive
TM.............. 91
Supplemental Restraint System ............ 53, 86
System Message ........................................ 90
Transmission System.......................... 84, 661
Turn Signal ................................................ 88
Vehicle Stability Assist ® (VSA ®)
System ............................................ 87, 518
VSA ® OFF .......................................... 87, 519
Information .............................................. 675
Information Screen .................................. 244
Instrument Panel ........................................ 77
Brightness Control................................... 183
Integrated Dynamics System ................... 486
Dynamic Mode button ............................ 486
Interface Dial ............................................ 239
Interior Lights ........................................... 206
Interior Rearview Mirror .......................... 188
iPhone ............................................... 291, 318
iPod ................................................... 284, 318
J
Jack (Wheel Nut Wrench) ........................ 631
Jump Starting ........................................... 652
K
Key Number Tag ...................................... 141
Keyless Access System .............................. 142
Keyless Lockout Prevention ..................... 149
Keys ........................................................... 139
Lockout Prevention ................................. 149
Number Tag............................................ 141
Rear Door Won’t Open ........................... 153
Remote Transmitter ................................ 147
Types and Functions................................ 139
Kickdown (Automatic Transmission) ...... 471
L
Lane Keeping Assist System (LKAS)........ 510
Indicator ................................................... 93
LATCH (Child Seats) ............................. 61, 68
LED Puddle Light ...................................... 144
Legal Information on Apple CarPlay/ Android Auto ......................................... 331
License information ................................. 334
Lights ................................................ 172, 593
Automatic............................................... 173
Bulb Replacement ................................... 593
Daytime Running Lights .......................... 175
High Beam Indicator ................................. 88
20 ACURA MDX-31TZ56600.book 694 ページ ２０１９年４月２４日　水曜日　午後５時４４分
