Acura MDX 2020 Repair Manual

uuChild Safety uSafety of Infants and Small Children
60
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
20 ACURA MDX-31TZ56600.book 60 ページ ２０１９年４月２４日　水曜日　午後５時４４分

Continued61
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA LATCH-compatible child seat can be instal led in the second row seats. A child seat
is attached to the lower anc hors with either the rigid or flexible type of connectors.
1. Locate the lower anchors under the marks.
■Installing a LATCH-Compatible Child Seat1Installing a LATCH-Compatible Child Seat
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.Models with second row captain seat
Marks
Marks
Models with second row bench seat
20 ACURA MDX-31TZ56600.book 61 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuChild Safety uSafety of Infants and Small Children
62
Safe Driving

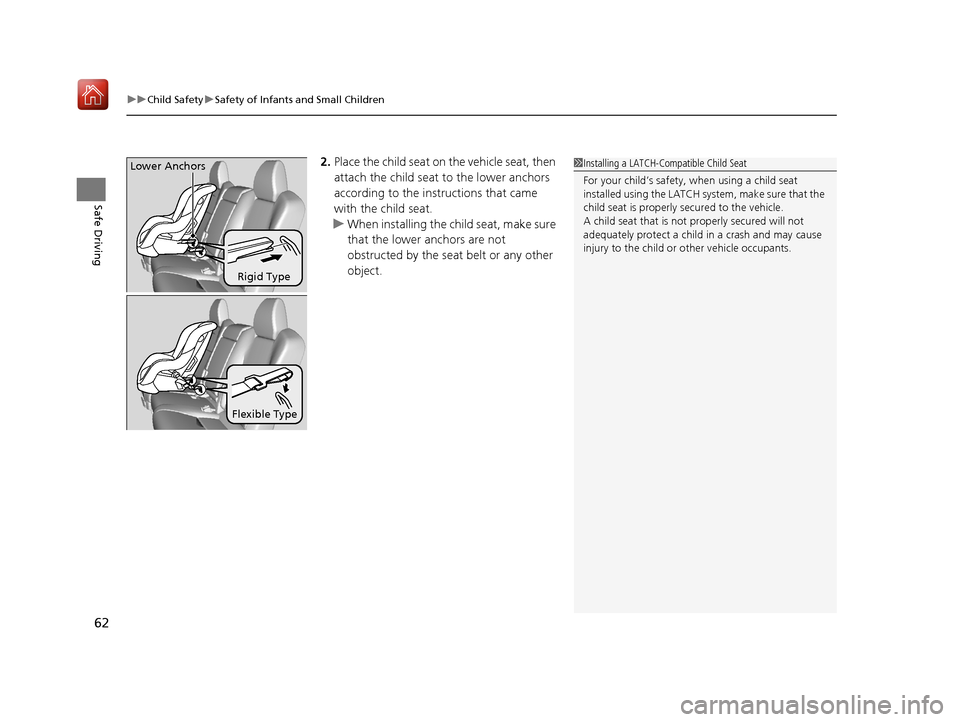

2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the ch ild seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
Rigid Type
Lower Anchors
Flexible Type
1
Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle.
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
20 ACURA MDX-31TZ56600.book 62 ページ ２０１９年４月２４日　水曜日　午後５時４４分

63
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
Second row captain seat
3. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restra int legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
3. Put the outer head restraint to its upper
most position, then route the tether strap
outside the head restra int legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 56
Straight Top Tether Type
Tether Strap Hook
Anchor
Tether Strap Hook
Anchor
Other Top Tether Type
Straight Top Tether Type
Other Top Tether Type
All Types
20 ACURA MDX-31TZ56600.book 63 ページ ２０１９年４月２４日　水曜日　午後５時４４分

64
uuChild Safety uSafety of Infants and Small Children
Safe Driving
Second row bench seat
3. Put the outer head restraint to its
uppermost position, then route the tether
strap between the head restraint legs, and
secure the tether strap hook to the anchor.
Make sure the strap is not twisted.
3. Put the outer head restraint to its upper
most position, then route the tether strap
outside the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
3. Put the center head re straint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
Tether Strap Hook
Anchor
Straight Top Tether Type
Tether Strap Hook
Anchor
Other Top Tether Type
Outer position
Straight Top Tether Type
Outer position
Other Top Tether Type
Center position
20 ACURA MDX-31TZ56600.book 64 ページ ２０１９年４月２４日　水曜日　午後５時４４分

65
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 56
All positions
20 ACURA MDX-31TZ56600.book 65 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuChild Safety uSafety of Infants and Small Children
66
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
20 ACURA MDX-31TZ56600.book 66 ページ ２０１９年４月２４日　水曜日　午後５時４４分

Continued67
uuChild Safety uSafety of Infants and Small Children
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
20 ACURA MDX-31TZ56600.book 67 ページ ２０１９年４月２４日　水曜日　午後５時４４分

uuChild Safety uSafety of Infants and Small Children
68
Safe DrivingA tether anchorage point is provided behind
each second and third row seating position.
If you have a child seat that comes with a
tether but can be installe d with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Models with second row captain seat
Tether Anchorage Points
Tether Anchorage Points
Models with second row bench seat
Tether Anchorage Points
Third row seat
20 ACURA MDX-31TZ56600.book 68 ページ ２０１９年４月２４日　水曜日　午後５時４４分

69
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■Using a second row anchor
1. Put the outer head restraint to its upper-
most position, then route the tether strap
between the head restra int legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
1. Put the outer head restraint to its upper
most position, then route the tether strap
outside the head restra int legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.Models with second row captain seat
Anchor
Tether Strap Hook
Tether Strap Hook
Anchor
Other Top Tether Type Straight Top Tether Type
Outer positions
Straight Top Tether Type
Outer positions
Other Top Tether Type
