ACURA MDX 2022 User Guide

Visual Index
10
Quick Reference Guide
❚How to Refuel (P582)
❚High-Mount Brake Light (P609)
❚Back-Up Lights/Taillights (P609)
❚Maintenance Under the Hood (P595)
❚Windshield Wipers (P177, 610)
❚Tires (P615, 639)
❚Power Door Mirrors (P188)
❚Headlights (P170, 608)
❚Front Side Marker Lights (P170, 608)
❚Front Turn Signal/Parking Lights (P169, 608)
❚Fog Lights* (P173, 608)
❚Side Turn Signal Lights (P169, 608)
❚Door Lock/Unlock Control (P133)
❚Rear Wiper (P179)
❚Opening/Closing the Tailgate (P148)
❚Brake Lights/Taillights/Rear Turn Signal
Lights/Rear Side Marker Lights
(P609)
❚Multi-View Rear Camera* (P571)
❚Tailgate Outer Handle (P148)
❚Surround View Camera System* (P573)
22 ACURA MDX-31TYA6000_02.book 10 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

11
Quick Reference Guide
Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P457)
At Automatic transmissionEngine status
Deceleration
Stop
Start-up
Automatic Brake Hold OffAutomatic Brake Hold On
Stop the vehicle and depress the brake pedal.
On
Keep the brake pedal
depressed. U.S.
Canada
With the automatic brake
hold system activated,
you can release the brake pedal when the
indicator comes on.Off
Release the brake pedal. With the automatic brake hold system activated, depress the accelerator pedal.Restarting
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 11 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

12
Quick Reference Guide

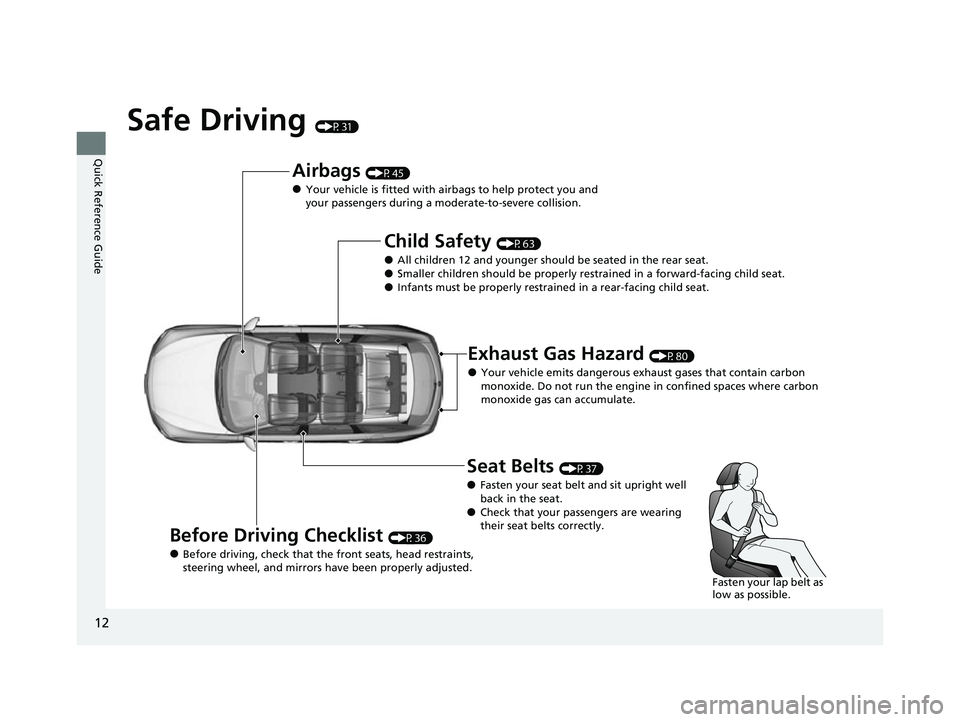

Safe Driving (P31)
Airbags (P45)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P63)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P80)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P36)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P37)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
22 ACURA MDX-31TYA6000_02.book 12 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

13
Quick Reference Guide
Instrument Panel (P83)
Indicators (P84)/Driver Information Interface (P108)/Gauges (P104)/
Head-Up Display
* (P122)
●Different gauges will display based on the Integrated Dynamics System mode. Selecting the Dynamic Mode (P451)●You can change to your preferred Integrated Dynamics System Mode gauge modes in INDIVIDUAL Mode.
Customizing the INDIVIDUAL Settings (P455)
●You can change the gauge layout. Gauge Layout (P114)
Fuel Gauge 2 P. 104
Tachometer
2 P. 104
Speedometer 2 P. 104
Gear Position Indicator
2 P. 89
M (sequential mode)
Indicator/Sequential Mode
Gear Selection Indicator
2 P. 89
Temperature Gauge
2 P. 105
Head-Up Display* 2 P. 122
Sport modeTachometer 2 P. 104Power Monitor
2 P. 107
Driver Information Interface
(Right Side Area) 2 P. 108
Driver Information Interface
(Left Side Area) 2 P. 108
Outside Temperature
2 P. 105
Odometer 2 P. 105
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 13 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

14
Quick Reference Guide
Controls (P127)
Clock (P128)
The clock is automatically updated through
the audio system.
You can adjust the time using the A-zone
touchpad.
aPress the (home) button.
bSelect Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time .
gSelect Off.
hSelect Set Date or Set Time .
iSelect (+/(- to adjust the dates, hours
and minutes.
jPress the (back) button to set the
date or time.
ENGINE START/STOP
Button
(P166)
Press the button to change the vehicle’s
power mode.
Turn Signals (P169)
Lights (P170)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
22 ACURA MDX-31TYA6000_02.book 14 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

15
Quick Reference Guide
Wipers and Washers
(P177)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent
wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P186)
●To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P144)
●Pull either front door inner handle to
unlock and open it at the same time.
22 ACURA MDX-31TYA6000_02.book 15 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

16
Quick Reference Guide
Tailgate (P 147)
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless access remote.
●Press and hold the power tailgate button
on the driver’s door or the remote
transmitter to open and close the power
tailgate.
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the keyless access remote.
Models with hands free access
1 sec.
Power Door Mirrors
(P 188)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold in and
out the door mirrors.
Selector Switch
Adjustment SwitchFolding Button*
22 ACURA MDX-31TYA6000_02.book 16 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

17
Quick Reference Guide
Power Windows (P 160)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switches
Indicator
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 17 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

18
Quick Reference Guide
Climate Control System (P229)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Floor and windshield defroster
vents Floor vents Dashboard and floor vents, and
back of the console
compartment Dashboard vents and back of the
console compartment
AUTO Button Passenger’s Side
Temperature
Control Switch
(ON/OFF)
Button (Windshield
Defroster) Button
SYNC (Synchronization)
Button
Fan Control Buttons Driver’s Side
Temperature
Control Switch
MODE Control Button
A/C (Air Conditioning) Button
(Recirculation)
Button
REAR LOCK Button
REAR SETTINGS Button
Rear Climate Control (P233)●Press the rear AUTO button to activate
the rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons Rear Fan
Control Buttons
Rear AUTO
Button (ON/OFF)
Button
MODE Control
Button
Rear floor vents Back of the console compartment
and floor vents Back of the console compartment
vents
22 ACURA MDX-31TYA6000_02.book 18 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

19
Quick Reference Guide
Features (P237)
Audio Remote Controls
(P 242)
●VOL(+/VOL( - (Volume) Switch
Press up or down to adjust the volume.
● (Power) Button
Press to turn the audio system on and off.
●Left Selector Wheel
When selecting the audio mode
Press the APPS button, then roll up or
down to select an item on the driver
information interface or the head-up
display
*, and then press the left selector
wheel.
Left Selector Wheel
APPS Button
VOL
( +/VOL(- (Volume) Switch
(Power) Button
Roll up or down: To cycle through the
following items, roll up or down and then
press the left selector wheel:
You can add or remove the items and
change their order on the driver
information interface or the head-up
display
*.
Navigation*
Phone
Audio Modes
( Apple Carplay , Android Auto ,
Alexa , Social Playlist , FM Radio ,
USB Audio , etc)
Select Driving View*
Customize Apps
●When listening to the radio
Move to a side to change the favorite
radio station or channel.
●When listening to an iPod, USB flash
drive, Bluetooth ® Audio, or Smartphone
Connection
Move to a side to skip to the beginning of
the next song or return to the beginning
of the current or previous song.
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 19 ページ ２０２０年１１月５日　木曜日　午前１１時３９分
