Acura MDX Hybrid 2017 Owner's Manual

uuClimate Control System uUsing Automatic Climate Control
220
Controls
You can store two sets of your preferred temperature, fan speed, and vent mode
settings to the climate control system.
To store a set of the climate control settings:
1.Select Shortcuts .
2. Adjust the climate control system to your
preference.
3. Select Climate .
4. Select Edit.
5. Select Add.
6. Select Preset 1 or Preset 2 you want to
store your settings to.
To recall one of the settings:
1. Select Shortcuts .
2. Select Climate .
3. Select Preset 1 or Preset 2 .
To delete a preset:
1. Select Shortcuts .
2. Select Climate .
3. Select Edit.
4. Select Delete.
5. Select Preset 1 or Preset 2 you want to
delete.
■Shortcuts1 Shortcuts
You can also store a set by pressing and holding the
preset number you want to store that setting after
step 3.
17 ACURA MDX E-AWD-31TRX6000.book 220 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

221
uuClimate Control System uUsing Automatic Climate Control
Controls
Press the button to turn the air
conditioning system on and automatically
switch the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1.Press the button.
2. Select the recirculation mode.
2 Switching between the Recirculation
and Fresh Air Modes P. 219
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
17 ACURA MDX E-AWD-31TRX6000.book 221 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

222
uuClimate Control System uRear Climate Control System
Controls
Rear Climate Control System
Use the system when the power system is on.
1. Select REAR.
2. Select AUTO.
u The rear system changes to auto mode.
3. Adjust the rear passenger’s compartment temperature using the temperature
control icon.
4. Select the ON/OFF to cancel.
u When the turned back on, the system returns to your last selection.
■Using the Rear Climate Control System From the Front Panel1Rear Climate Control System
If any icons on the touch screen are pressed while
using the rear climate control system in auto, the
function of the icon that was pressed will take
priority.
Rear Lock: Appears on the front panel. When
selected, it disables the rear panel control.
LOCK: Appears on the rear c ontrol panel while the
rear lock is on.
If the rear lock is on while in SYNC mode, the rear
control panel is disabled. LOCK SYNC appears on the
rear control panel.
On Demand Multi-Use DisplayTM
3 /4 (Temperature
Control) Icon
Fan Speed Level IndicatorsON/OFF
Icon
AUTO Icon
Rear Lock Icon
Vent Mode Icon
17 ACURA MDX E-AWD-31TRX6000.book 222 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

Continued223
uuClimate Control System uRear Climate Control System
Controls
■Changing the rear temperature setting
Change the temperature setting from the
following:
3/4 : To raise or lower the temperature
setting one degree at a time.
While you select and hold 3 /4 , the
temperature decreases or increases.
■Switching the vent mode Select a desired vent mode icon.
Vent mode: Rear console vents
: Rear console vents and floor vents
: Rear floor vents
1Changing the rear temperature setting
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
3/4 (Temperature Control) Icon
Vent Mode Icon
17 ACURA MDX E-AWD-31TRX6000.book 223 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

224
uuClimate Control System uRear Climate Control System
Controls

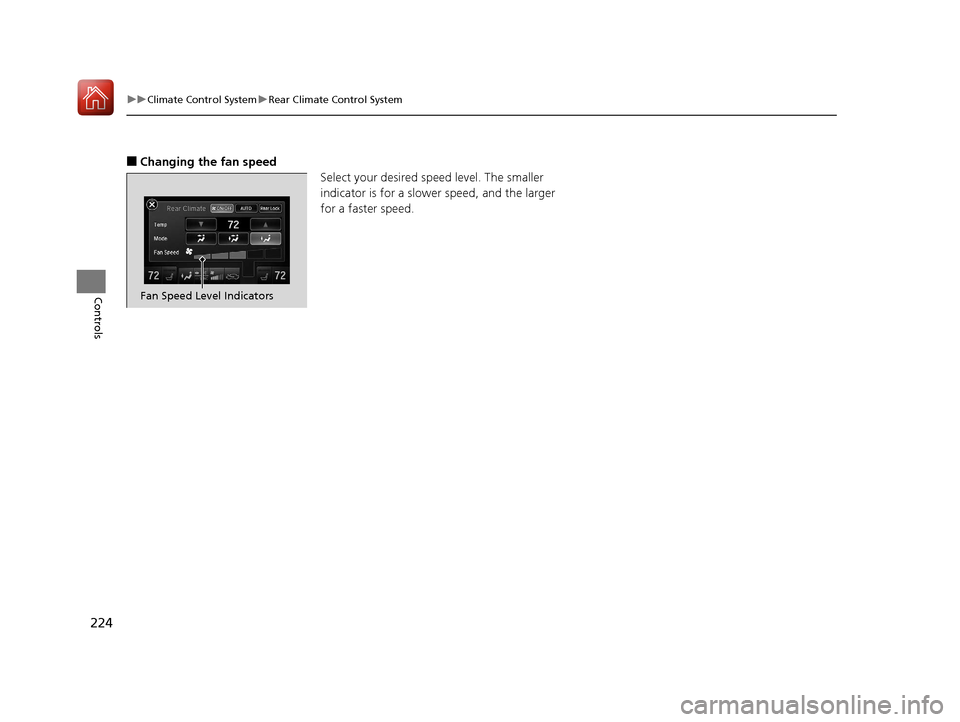

■Changing the fan speed
Select your desired speed level. The smaller
indicator is for a slower speed, and the larger
for a faster speed.
Fan Speed Level Indicators
17 ACURA MDX E-AWD-31TRX6000.book 224 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

225
uuClimate Control System uRear Climate Control System
Controls
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature usi ng the rear temperature control button.
3. To turn off the rear climate control system, press button.

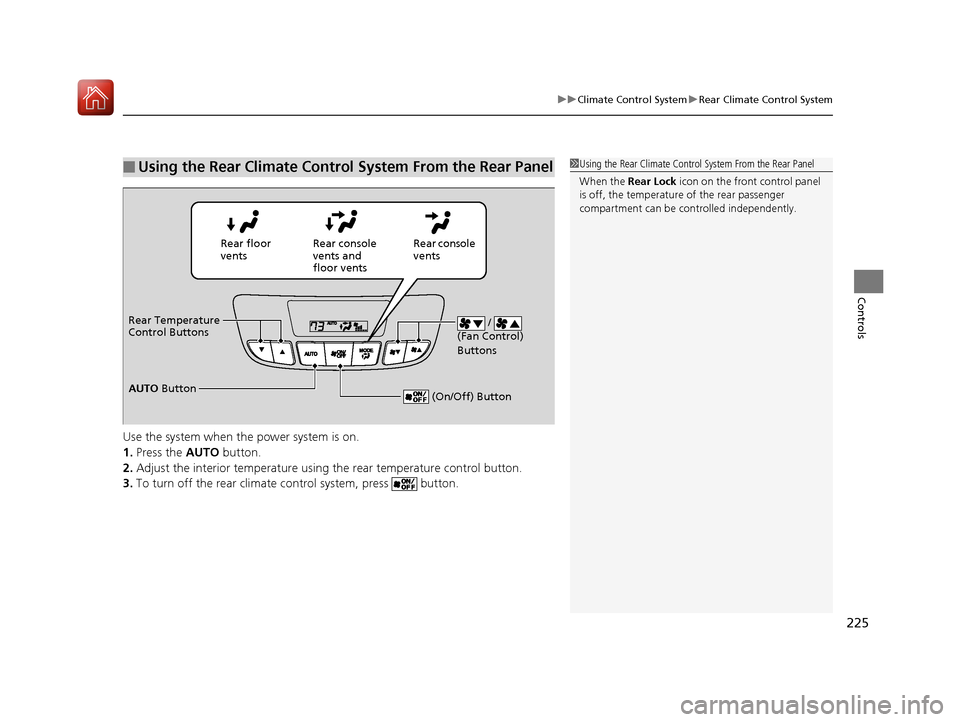

■Using the Rear Climate Control System From the Rear Panel1Using the Rear Climate Control System From the Rear Panel
When the Rear Lock icon on the front control panel
is off, the temperature of the rear passenger
compartment can be cont rolled independently.
Rear floor
ventsRear console
vents and
floor vents Rear console
vents
/
(Fan Control)
Buttons
(On/Off) Button
Rear Temperature
Control Buttons
AUTO Button
17 ACURA MDX E-AWD-31TRX6000.book 225 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

226
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
17 ACURA MDX E-AWD-31TRX6000.book 226 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

227

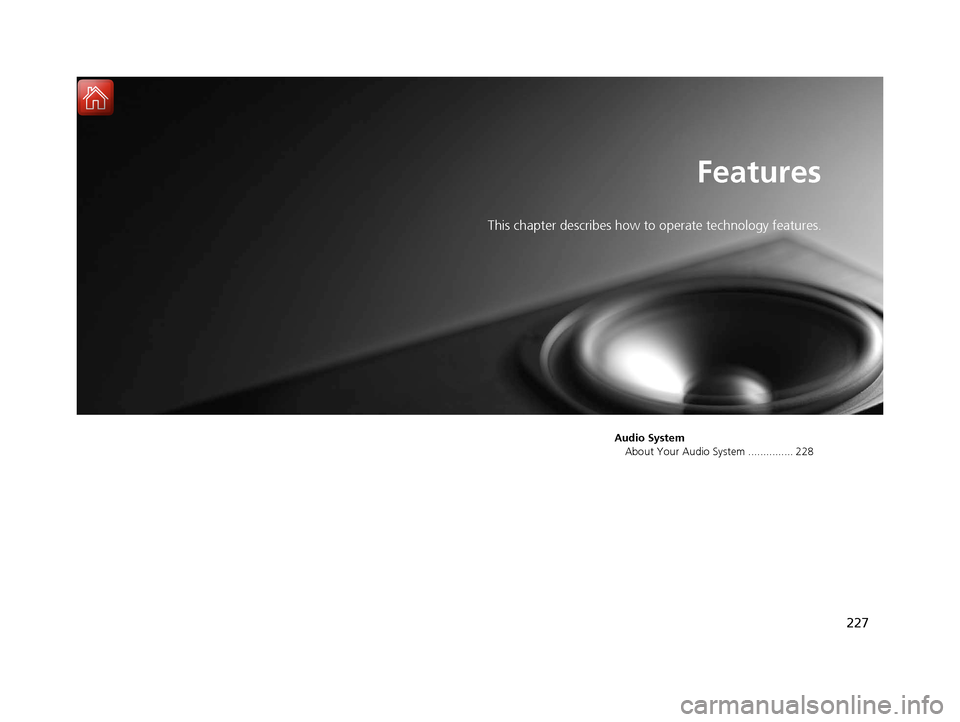

Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ............... 228
17 ACURA MDX E-AWD-31TRX6000.book 227 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

228
Features
Audio System
About Your Audio System
See the Navigation System Manual for operation of the audio system, customized
features, rear entertainment system*, Bluetooth ® HandsFreeLink®, voice commands,
multi-view rear camera system*, surround view camera system*, and HomeLink ®
Universal Transceiver.
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 228 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

229
Driving
This chapter discusses driving and refueling.
Before Driving................................... 230
Towing a Trailer ................................ 236
Off-Highway Driving Guidelines ..... 237
When Driving Turning on the Power ...................... 239
Dual Clutch Transmission ................. 246
Shifting ............................................ 247
Acoustic Vehicle Al erting System ...... 255
Integrated Dynamics System............. 256
Front Sensor Camera ....................... 257
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ............................. 259
Road Departure Mitigation (RDM) System ... 274Lane Keeping Assist System (LKAS)... 279
Vehicle Stability Assist (VSA ®), aka Electronic
Stability Control (ESC), System ............. 287
Agile Handling Assist ....................... 289
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) .. 290
Blind spot information (BSI) System .. 291
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 294
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ........... 296
High Voltage Battery ........................ 298
Braking Brake System ................................... 299
Anti-lock Brake System (ABS) ........... 305 Brake Assist System ......................... 306
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 307
Parking Your Vehicle When Stopped ................................ 316
Parking Sensor System
*................... 318
Cross Traffic Monitor ....................... 322
Multi-View Rear Camera .................. 326
Refueling Fuel Information .............................. 327
How to Refuel ................................. 328
Fuel Economy and CO
2 Emissions .... 330
* Not available on all models
