automatic transmission fluid Acura MDX Hybrid 2017 Owner's Manual

350
uuMaintenance Under the Hood uTransmission Fluid
Maintenance

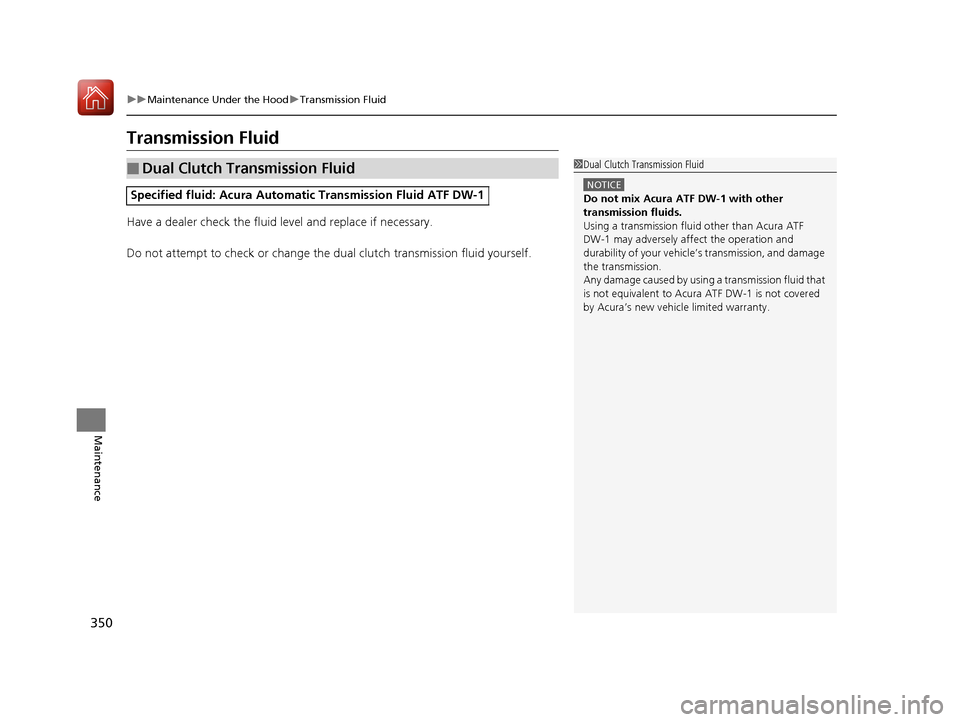

Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the dual clutch transmission fluid yourself.
■Dual Clutch Transmission Fluid
Specified fluid: Acur a Automatic Transmis sion Fluid ATF DW-1
1Dual Clutch Transmission Fluid
NOTICE
Do not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Acura ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acur a ATF DW-1 is not covered
by Acura’s new vehicl e limited warranty.
17 ACURA MDX E-AWD-31TRX6000.book 350 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

433
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
■ Engine Oil
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
(automatic transmission fluid)
Capacity Change 3.7 US qt (3.5 L)
SpecifiedAcura ATF DW-1
(automatic transmission fluid)
Capacity Change 2.56 US qt (2.42 L)
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.5 US qt (4.3 L)
■
Engine Coolant
■ Inverter Coolant
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity2.03 US gal (7.68 L)
(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity0.44 US gal (1.67 L)
(change including the remaining 0.108 US gal
(0.409 L) in the expansion tank)
■ Tire
RegularSize245/50R20 102HPressure
psi (kPa [kgf/cm2])35 (240 [2.4])
Compact
Spare
*
Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular20 x 8JCompact Spare*17 x 4T
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 433 ページ ２０１７年１月２０日　金曜日　午後２時
５３分

446
Index
Supplemental Restraint System ............ 57, 87
System Message ........................................ 91
Transmission System .......................... 84, 416
Turn Signal ................................................ 89
Vehicle Stability Assist (VSA®)
System ............................................. 88, 287
VSA ® OFF .......................................... 88, 288
Information ............................................... 431
Instrument Panel ........................................ 77
Brightness Control ................................... 179
Integrated Dynamics System (IDS) ........... 256
Dynamic Mode button ............................. 256
Interior Lights ........................................... 201
Interior Rearview Mirror .......................... 184
J
Jack (Wheel Nut Wrench) ......................... 389
Jump Starting ............................................ 407
K
Key Number Tag ....................................... 138
Keyless Access System ............................... 139
Keyless Lockout Prevention ..................... 145
Keys ........................................................... 137
Lockout Prevention .................................. 145
Number Tag ............................................ 138
Rear Door Won’t Open ............................ 149
Remote Transmitter ................................. 144
Types and Functions ................................ 137 Kickdown (Dual Clutch Transmission)
..... 246
L
Lane Keeping Assist System (LKAS)......... 279
Indicator.................................................... 92
LATCH (Child Seats) .............................. 65, 70
LED Puddle Light ...................................... 143
Lights ................................................. 168, 352
Automatic ............................................... 169
Bulb Replacement ................................... 352
Daytime Running Lights........................... 171
High Beam Indicator .................................. 89
Interior .................................................... 201
Light Switches ......................................... 168
Lights On Indicator .................................... 90
Turn Signals ............................................ 167
Load Limits ................................................ 233
Locking/Unlocking .................................... 137
Auto Door Locking/Unlocking.................. 150
Childproof Door Locks............................. 149
From Inside ............................................. 147
From Outside .......................................... 139
Keys ........................................................ 137
Using a Key ............................................. 145
Lockout Prevention System ..................... 145
Low Battery Charge ................................. 412
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 82, 412
Lower Anchors ...................................... 65, 70
Lubricant Specifications Chart ................. 433Luggage (Maximum Load Limit)
............. 233
Lumbar Support ....................................... 187M
Maintenance............................................ 331
12-Volt Battery ....................................... 370
Brake Fluid .............................................. 351
Cleaning ................................................. 375
Climate Control System .......................... 374
Coolant .................................................. 347
Maintenance Minder
TM............................ 335
Oil .......................................................... 343
Precautions ............................................. 332
Radiator .................................................. 348
Remote Control ...................................... 372
Remote Transmitter ................................ 371
Replacing Light Bulbs .............................. 352
Safety ..................................................... 333
Service Items ........................................... 337
Tires........................................................ 361
Transmission Fluid ................................... 350
Under the Hood ...................................... 339
Wireless Headphone ............................... 373
Malfunction Indicator Lamp ............. 82, 413
Map Lights ................................................ 202
Maximum Load Limit ............................... 233
Meters, Gauges ........................................ 117
MID (Multi-information Display) ............ 119
Mirrors ...................................................... 184
Adjusting ................................................ 184
17 ACURA MDX E-AWD-31TRX6000.book 446 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分
