418

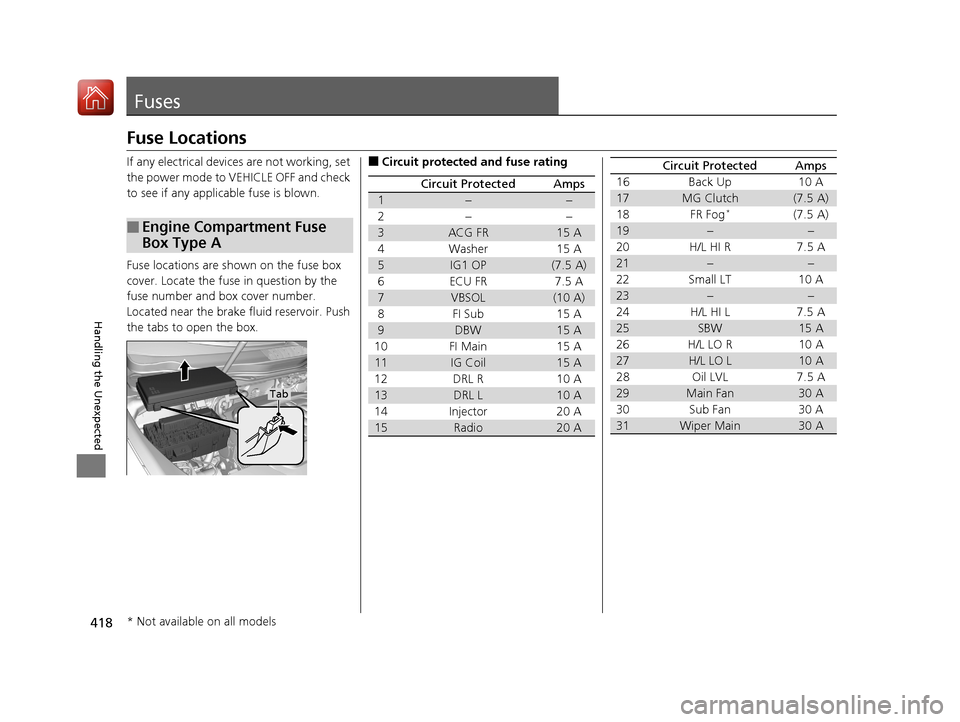

Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2−−
3ACG FR15 A
4 Washer 15 A
5IG1 OP(7.5 A)
6 ECU FR 7.5 A
7VBSOL(10 A)
8FI Sub 15A
9DBW15 A
10 FI Main 15 A
11IG Coil15 A
12 DRL R 10 A
13DRL L10 A
14 Injector 20 A
15Radio20 A
16 Back Up 10 A
17MG Clutch(7.5 A)
18 FR Fog*(7.5 A)
19−−
20 H/L HI R 7.5 A
21−−
22 Small LT 10 A
23−−
24 H/L HI L 7.5 A
25SBW15 A
26 H/L LO R 10 A
27H/L LO L10 A
28 Oil LVL 7.5 A
29Main Fan30 A
30 Sub Fan 30 A
31Wiper Main30 A
Circuit ProtectedAmps
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 418 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

419
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
AS F/B-150 A
DR F/B-2 50 A
DR F/B-1 50 A RR DEF 40 A
RR F/B-2 60 A
FR Blower 40 A
H/L Washer
*(30 A)
RR BLOWER & BMS 30 A
3
SUB F/B-160 A
VSA MTR40 A
AS F/B-260 A
R/B Main60 A
EPS70 A
SUB F/B-260 A
VSA FSR20 A
ESB40 A
4 Stop & Horn Hazard 30 A
5EOP RLY30 A
6 RR F/B-1 40 A
7FI Main40 A
8 Stop & Horn 20 A
9Hazard10 A
10 BMS 7.5 A
11−−
Circuit ProtectedAmps
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 419 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

420
uuFuses uFuse Locations
Handling the Unexpected
Located near the + terminal on the battery.
Pull up the cover.
Replacement of this fuse should be done by
a dealer.
Fuse location is shown on the back of the
positive battery terminal cover.
■Engine Compartment Fuse
Box Type C
FusePositive Battery
Terminal Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
Fan Main60 A
17 ACURA MDX E-AWD-31TRX6000.book 420 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

421
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1AS Door Lock10 A
2RR DR Door Lock7.5 A
3DR Door Lock7.5 A
4FR AS Door Unlock10 A
5RR DR Door Unlock7.5 A
6DR Door Unlock(7.5 A)
7D/L Main20 A
8−−
9ETS TELE20 A
10 IG1 RR 15 A
11Meter7.5 A
12 IG1 FR 20 A
13ACC7.5 A
14 − −
15DR P/Seat (SLI)20 A
16 S/R 20 A
17RR DR P/W20 A
18 Smart 10 A
19FR DR P/W20 A
20 − −
21Fuel Pump20 A
22 IG1 AS 15 A
23VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 IG2 HAC 7.5 A
27DRL7.5 A
28 ACC Key Lock 7.5 A
29DR P/Seat (LUM)7.5 A
30 INT Lights 7.5 A
31ETS TILT20 A
32 DR P/Seat (REC) 20 A
33−−
34−−
Circuit ProtectedAmps
17 ACURA MDX E-AWD-31TRX6000.book 421 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

422
uuFuses uFuse Locations
Handling the Unexpected
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type B
Fuse Box Side Panel Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DCT20 A
2−−
3DCT20 A
4IG Main30 A
5Hybrid System10 A
6Hybrid System15 A
7Hybrid System15 A
8DCT30 A
17 ACURA MDX E-AWD-31TRX6000.book 422 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

423
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type C
Fuse Box Side Panel Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ADS30 A
2−−
3−−
4IG Main30 A
5Smart10 A
6A/C Water Pump10 A
7−−
8Starter Motor30 A
17 ACURA MDX E-AWD-31TRX6000.book 423 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

424
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1EPTR*(30 A)
2RR AS P/W20 A
3ACM20 A
4FR DEF*(15 A)
5AVS Heated Seat20 A
6FR AS P/W20 A
7AS P/Seat (SLI)20 A
8AS P/Seat (REC)20 A
9AS P/Seat (LUM)(7.5 A)
10Spare5 A
11Heated Steering*(10 A)
12−−
13−−
14RR ACC Socket20 A
15FR ACC Socket20 A
16−−
17−−
18AMP30 A
19SRS10 A
20AS ECU7.5 A
21Option7.5 A
22−−
23−−
24OPDS7.5 A
25ILLUMI (INT)5 A
26EPTL*(30 A)
27CTR ACC Socket20 A
28AC INVTR(30 A)
Circuit ProtectedAmps
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 424 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

425
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse Label
Fuse BoxCover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PTG Closer20 A
2−−
3USB CHARGE15 A
4Fuel Lid7.5 A
5Seat Slide20 A
6−−
7RR Heat Seat*(20 A)
8−−
9−−
10−−
11−−
12Rear Wiper10 A
13Rear ECU7.5 A
14SH-AWD(20 A)
15EPB-R30 A
16EPB-L30 A
17−−
18PTG MTR40 A
* Not available on all models
17 ACURA MDX E-AWD-31TRX6000.book 425 ページ ２０１７年１月２０日　金曜日　午後２時 ５３分

426
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 418 to P. 425.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
Blown Fuse
