Acura MDX HYBRID 2018 Owners Manual

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
●The indicated current gear
selection blinks if there is a
problem with the transmission
system.●Avoid sudden start and acceleration, and stop
in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light
for several seconds.●When all the gear positions light, immediately
stop your vehicle in a safe place.
●Indicators go off if there is no problem.
However, even if they go off, take your vehicle
to a dealer for inspection.
—
●The indicated current gear
selection or all the gear positions
blink if there is a problem with
the transmission system, and the
vehicle no longer moves.●Immediately stop in a safe place.
2Emergency Towing P. 656●Have your vehicle checked by a dealer.
●The indicated current gear
selection or all the gear positions
blink if you cannot select
(P due
to the transmission system
failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning Message
P. 645
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
18 ACURA MDX E-AWD-31TRX6100.book 90 ページ ２０１８年３月２７日　火曜日　午後８時６分

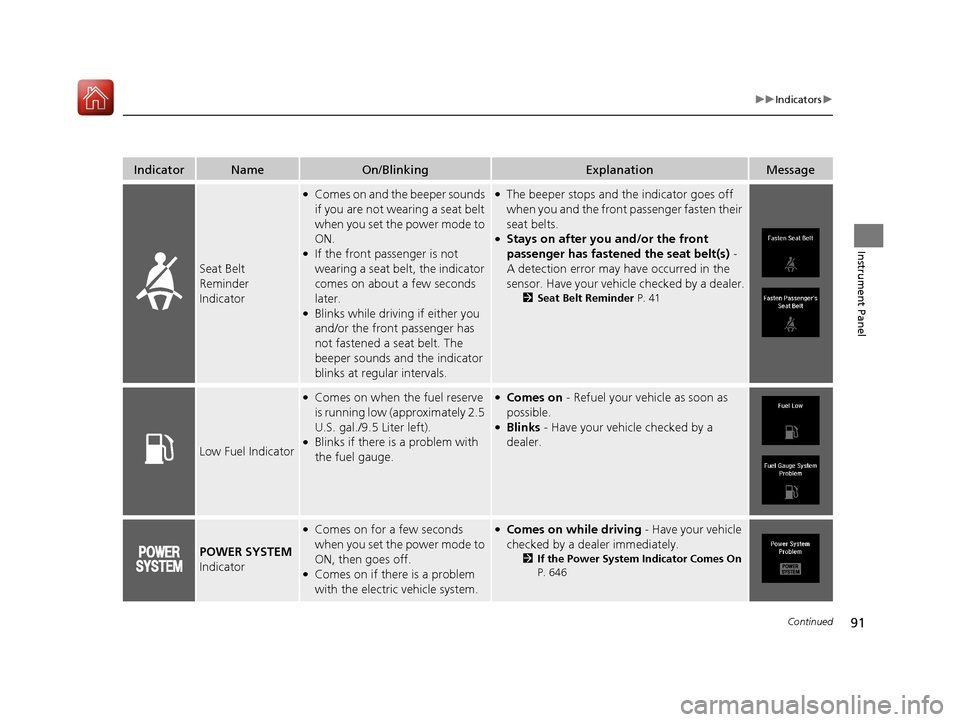

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on about a few seconds
later.
●Blinks while driving if either you
and/or the front passenger has
not fastened a seat belt. The
beeper sounds and the indicator
blinks at regular intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten their
seat belts.
●Stays on after you and/or the front
passenger has fastened the seat belt(s) -
A detection error may have occurred in the
sensor. Have your vehicle checked by a dealer.
2 Seat Belt Reminder P. 41
Low Fuel Indicator
●Comes on when the fuel reserve
is running low (approximately 2.5
U.S. gal./9.5 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
POWER SYSTEM
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the electric vehicle system.
●Comes on while driving - Have your vehicle
checked by a dealer immediately.
2 If the Power System Indicator Comes On
P. 646
18 ACURA MDX E-AWD-31TRX6100.book 91 ページ ２０１８年３月２７日　火曜日　午後８時６分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High Temperature
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when the engine coolant
temperature goes up, and stays
on if the temperature continues
to rise.
●Blinks while driving - Drive slowly to
prevent overheating.
●Stays on while driving - Immediately stop in
a safe place and allow the engine to cool.
2 Overheating P. 639
Low Temperature
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the engine
coolant temperature is low.
●If the indicator stays on after the engine has
reached normal operating temperature, there
may be problem with the temperature
sensors. Have your vehicle inspected by a
dealer.
—
SPORT+ mode
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when you press the
Dynamic Mode button if the
Sport+ mode was selected.2 Integrated Dynamics System P. 474—
READY Indicator
●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 457
18 ACURA MDX E-AWD-31TRX6100.book 92 ページ ２０１８年３月２７日　火曜日　午後８時６分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. Wi th this indicator on,
your vehicle still has normal braking ability but
no anti-lock function.
2 Anti-lock Brake System (ABS) P. 523
Supplemental
Restraint System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if a problem with any
of the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come on
at all - Have your vehicle checked by a dealer.
Auto High-Beam
Indicator●Comes on when all the operating
conditions of the Auto high-
beam are met.
2Auto High-Beam P. 180—
18 ACURA MDX E-AWD-31TRX6100.book 93 ページ ２０１８年３月２７日　火曜日　午後８時６分

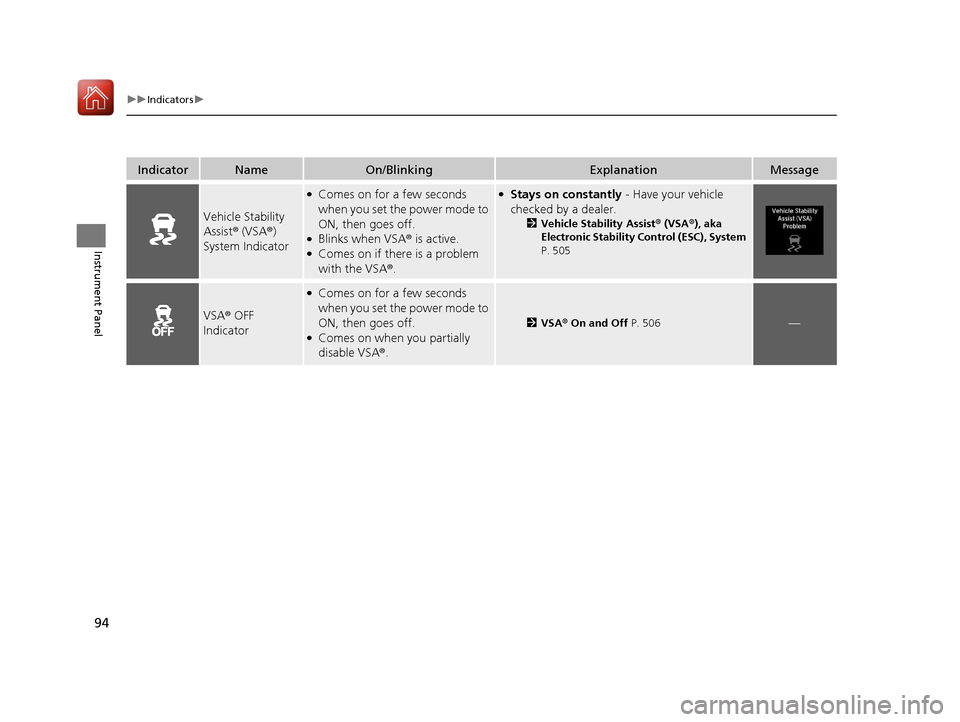

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
Assist® (VSA ®)
System Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when VSA ® is active.●Comes on if there is a problem
with the VSA®.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist ® (VSA ®), aka
Electronic Stability Control (ESC), System
P. 505
VSA ® OFF
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 506—
18 ACURA MDX E-AWD-31TRX6100.book 94 ページ ２０１８年３月２７日　火曜日　午後８時６分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Speed-sensitive
Electric Power
Steering (EPS)
System Indicator●Comes on when you set the
power mode to ON, and goes off
when the power system is on.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a dealer.
2If the Speed-Sensitive Electric Power
Steering (EPS) System Indicator Comes
On P. 643
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a spare
tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If th e vehicle is fitted with
a spare, get your regular tire repaired or
replaced and put back on your vehicle as soon
as you can.
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blinks along with all turn signals if
you press the hazard warning
button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 582
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 95 ページ ２０１８年３月２７日　火曜日　午後８時６分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator●Comes on whenever the light
switch is on, or in AUTO when
the exterior lights are on.●If you set the power mode to ACCESSORY or
VEHICLE OFF while the lights are on, a chime
sounds when the driv er’s door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights
are on.
——
Immobilizer
System Indicator
●Comes on briefly when you set
the power mode to ON, then
goes off.
●Comes on if the immobilizer
system cannot recognize the key
information.
●Blinks - You cannot start the power system.
Set the power mode to VEHICLE OFF, then
select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by
a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 96 ページ ２０１８年３月２７日　火曜日　午後８時６分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 166—
System Message
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on along with a beep
when a problem is detected. A
system message on the MID
appears at the same time.
●While the indicator is on, roll the multi-
function steering wheel control to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears on
the MID. Take the appropriate action for the
message.
●The MID does not return to the normal screen
unless the warning is canceled, or the multi-
function steering-wheel controls is rolled.
—
Keyless Access
System Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on as soon as a problem is
detected in the keyless access
system or keyless starting system.
●Have your vehicle checked by a dealer.
18 ACURA MDX E-AWD-31TRX6100.book 97 ページ ２０１８年３月２７日　火曜日　午後８時６分

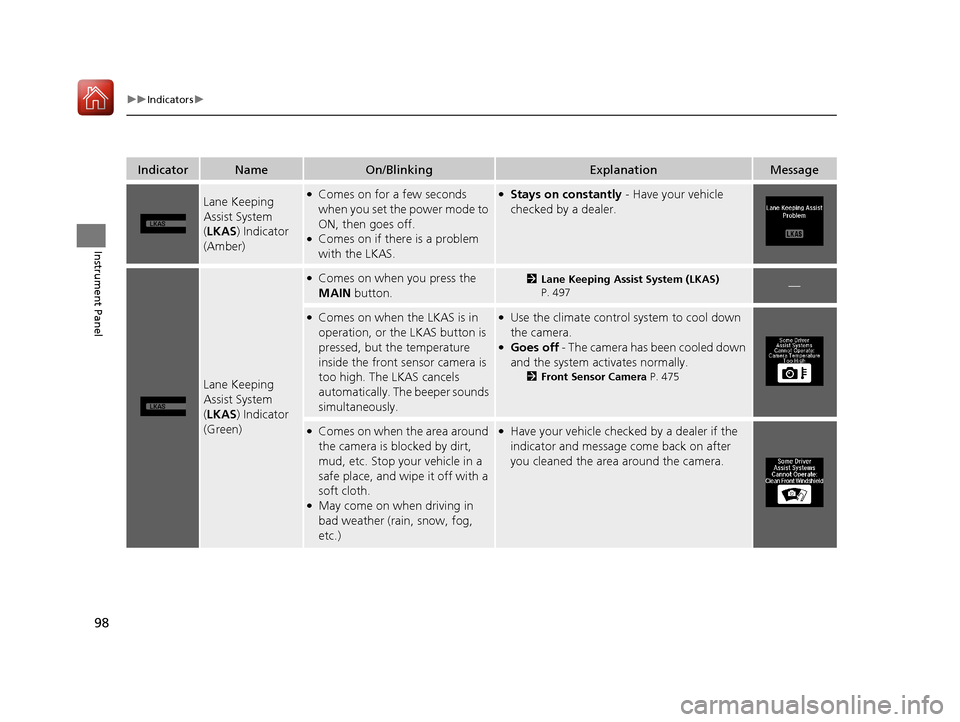

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
●Comes on when you press the
MAIN button.2Lane Keeping Assist System (LKAS)
P. 497—
●Comes on when the LKAS is in
operation, or the LKAS button is
pressed, but the temperature
inside the front sensor camera is
too high. The LKAS cancels
automatically. Th e beeper sounds
simultaneously.●Use the climate control system to cool down
the camera.
●Goes off - The camera has been cooled down
and the system activates normally.
2 Front Sensor Camera P. 475
●Comes on when the area around
the camera is blocked by dirt,
mud, etc. Stop your vehicle in a
safe place, and wipe it off with a
soft cloth.
●May come on when driving in
bad weather (rain, snow, fog,
etc.)
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
18 ACURA MDX E-AWD-31TRX6100.book 98 ページ ２０１８年３月２７日　火曜日　午後８時６分

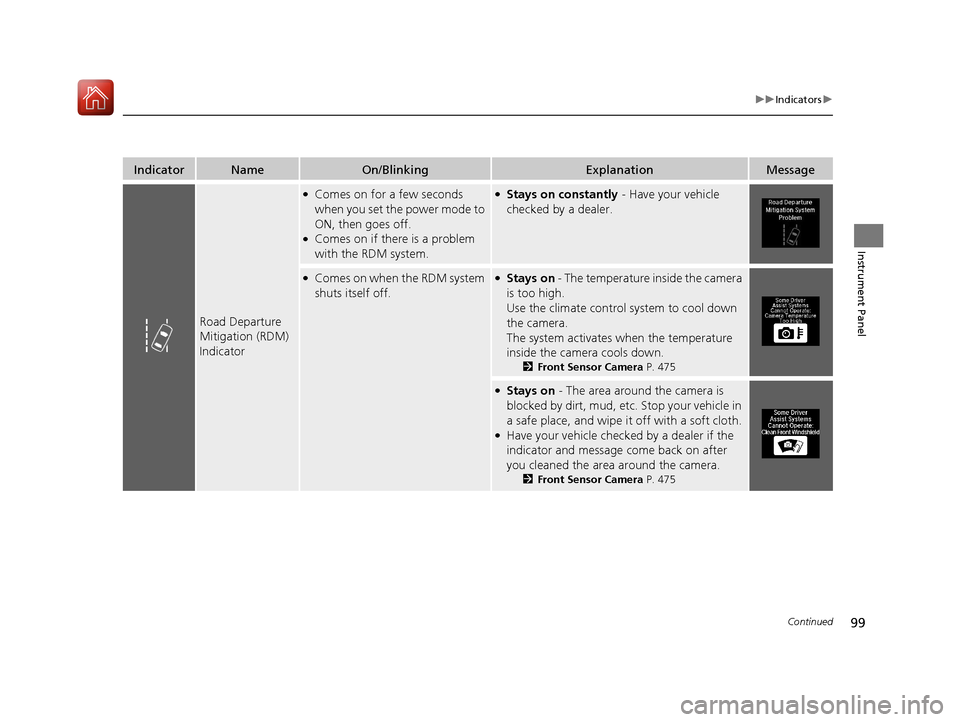

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the camera
is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 475
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in
a safe place, and wipe it off with a soft cloth.
●Have your vehicle checke d by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera P. 475
18 ACURA MDX E-AWD-31TRX6100.book 99 ページ ２０１８年３月２７日　火曜日　午後８時６分
