502

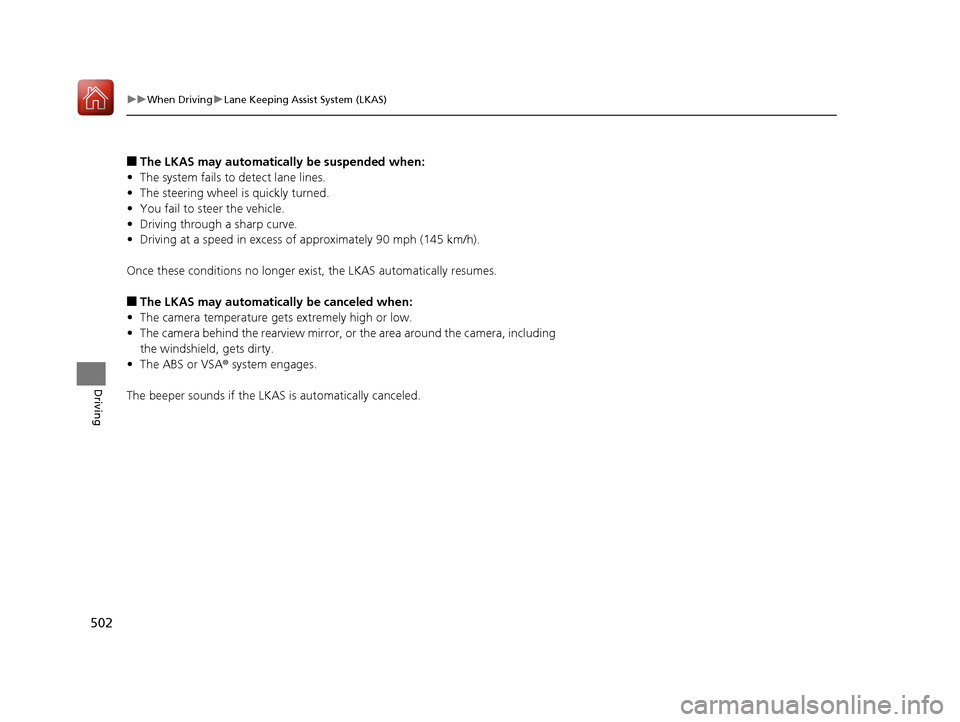

uuWhen Driving uLane Keeping Assist System (LKAS)
Driving
■The LKAS may automatically be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exis t, the LKAS automatically resumes.
■The LKAS may automatically be canceled when:
• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
18 ACURA MDX E-AWD-31TRX6100.book 502 ページ ２０１８年３月２７日　火曜日　午後８時６分

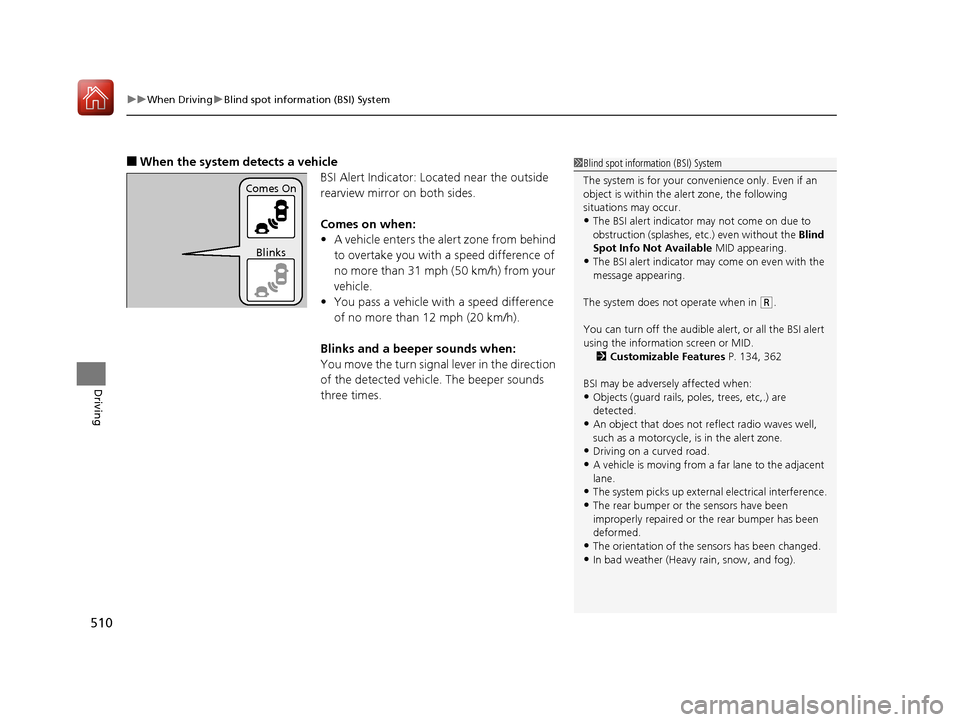

uuWhen Driving uBlind spot information (BSI) System
510
Driving
■When the system detects a vehicle
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Comes on when:
•A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
• You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
Blinks and a beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times.1 Blind spot inform ation (BSI) System
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.
•The BSI alert indicator may not come on due to
obstruction (splashes, et c.) even without the Blind
Spot Info Not Available MID appearing.
•The BSI alert indicator may come on even with the
message appearing.
The system does not operate when in
( R.
You can turn off the audible alert, or all the BSI alert
using the information screen or MID. 2 Customizable Features P. 134, 362
BSI may be adversel y affected when:
•Objects (guard rails, poles, trees, etc,.) are
detected.
•An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
•Driving on a curved road.
•A vehicle is moving from a far lane to the adjacent
lane.
•The system picks up external electrical interference.
•The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed.
•The orientation of the sensors has been changed.
•In bad weather (Heavy rain, snow, and fog).
Comes On
Blinks
18 ACURA MDX E-AWD-31TRX6100.book 510 ページ ２０１８年３月２７日　火曜日　午後８時６分

525
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 529
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 475
Be careful not to severely impact the radar sensor
cover.
1 How the system works
Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. The radar sensor is
behind the emblem.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle or pedestrian
detected in front of you becomes about 3 mph (5 km/h) and over with a chance
of a collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you. The camera is
located behind the
rearview mirror.
When to use
18 ACURA MDX E-AWD-31TRX6100.book 525 ページ ２０１８年３月２７日　火曜日　午後８時６分

532
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving
Limitations applicable to pedestrian detection only
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorter than about 3.3 feet (1 me ter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squa tting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain ro ad, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
18 ACURA MDX E-AWD-31TRX6100.book 532 ページ ２０１８年３月２７日　火曜日　午後８時６分

550

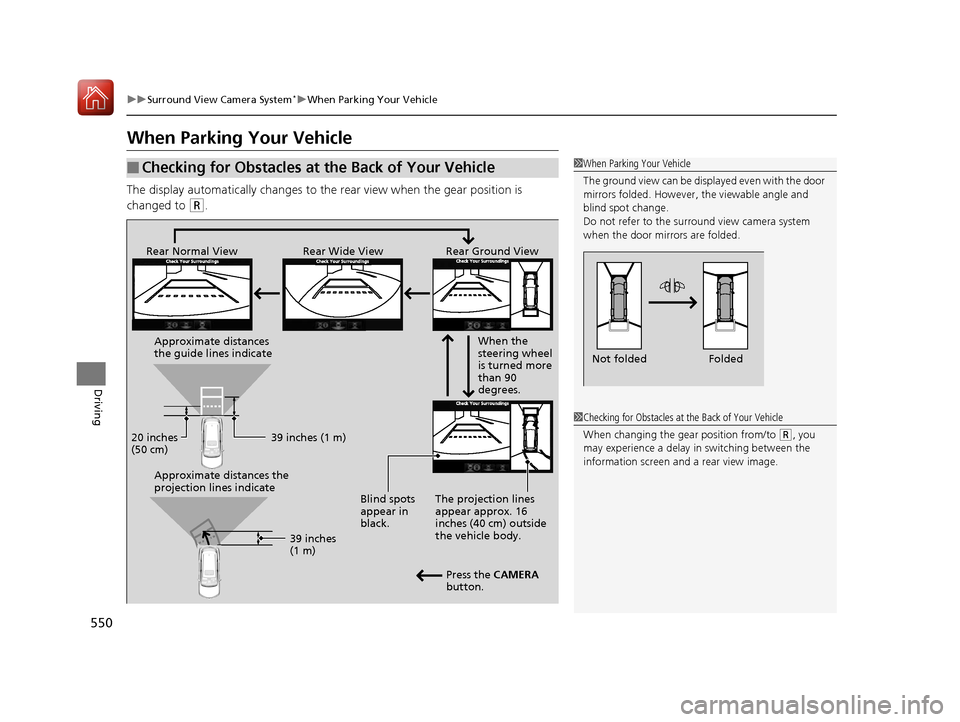

uuSurround View Camera System*uWhen Parking Your Vehicle
Driving
When Parking Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■Checking for Obstacles at the Back of Your Vehicle1 When Parking Your Vehicle
The ground view can be disp layed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.
Folded
Not folded
Rear Wide View
Rear Normal View Rear Ground View
When the
steering wheel
is turned more
than 90
degrees.
The projection lines
appear approx. 16
inches (40 cm) outside
the vehicle body.
Blind spots
appear in
black.
Press the CAMERA
button.
Approximate distances
the guide lines indicate
Approximate distances the
projection lines indicate
39 inches (1 m)
20 inches
(50 cm)
39 inches
(1 m)
1Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
information screen and a rear view image.
18 ACURA MDX E-AWD-31TRX6100.book 550 ページ ２０１８年３月２７日　火曜日　午後８時６分

677
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 525
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 639
Creeping (Dual Clutch Transmission) ...... 464
Cross Traffic Monitor ............................... 540
Cup Holders .............................................. 214
Customized Features ....................... 131, 362
D
Daytime Running Lights .......................... 179
Dead Battery ............................................ 637
Defrosting the Windshield and Windows ................................................. 228
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 665
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 192
Dipstick (Engine Oil) ................................ 573
Directional Signals (Turn Signal) ............. 175
Door Mirrors ............................................. 193
Doors ........................................................ 143
Auto Door Locking.................................. 157
Auto Door Unlocking .............................. 157 Door Open Message .................................. 38
Keys ........................................................ 143
Locking/Unlocking the Doors from the
Inside............................................... 18, 154
Locking/Unlocking the Doors from the
Outside.................................................. 145
Lockout Prevention System ...................... 152
DOT Tire Quality Grading ........................ 594
Driver’s Knee Airbag .................................. 54
Driving ....................................................... 447
Braking .................................................... 517
Dual Clutch Transmission ......................... 464
Off-Highway Driving Guidelines ............... 455
Shifting Gear ........................................... 465
Turning on the Power .............................. 457
Driving Position Memory System ............. 189
Dual Clutch Transmission ......................... 464
Creeping ................................................. 464
Fluid ........................................................ 580
Kickdown ................................................ 464
Operating the Shift Button ................ 23, 467
Shifting ................................................... 465
Dust and Pollen Filter ............................... 604
Dynamic Mode button ............................. 474
E
Elapsed Time............................................. 128
Electric Parking Brake Indicator .................................................... 86
Switch ..................................................... 517 Electric Parking Brake System
Indicator.................................................... 86
Electronic Stability Control (ESC) ............. 505
Emergency ................................................ 656
Emissions Testing (Readiness Codes) ....... 667
Energy Efficiency ........................................ 12
Engine ....................................................... 664
Coolant ................................................... 577
Jump Starting .......................................... 637
Oil ........................................................... 572
Remote Engine Start................................ 459
Starting ................................................... 457
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 639
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Oil Life .................................... 565
Low Oil Pressure Indicator ................. 88, 641
Recommended Engine Oil ....................... 572
EPS (Electric Power Steering) System ............................................... 95, 643
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 607
Exterior Mirrors ........................................ 193
18 ACURA MDX E-AWD-31TRX6100.book 677 ページ ２０１８年３月２７日　火曜日　午後８時６分

679
Index
Heater (Steering Wheel).......................... 219
Heaters (Seat) ................................... 220, 221
HFL (HandsFreeLink ®) .............................. 397
High Beam Indicator .................................. 95
High Voltage Battery ............................... 516
Hill Start Assist System ............................. 462
HomeLink ® Universal Transceiver ........... 394
Honda App License Agreement .............. 326
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)............ 9
I
Identification Numbers ............................ 664
Engine, Motor, and Transmission ............ 664
Vehicle Identification............................... 664
IDS (Integrated Dynamics System) .......... 474
Illumination Control ................................ 187
Button .................................................... 187
Immobilizer System .................................. 166
Indicator ................................................... 96
Indicators .................................................... 84
12-Volt Battery Charging System ...... 88, 641
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................. 100, 477
Anti-lock Brake System (ABS) .................... 93
Auto High-Beam ....................................... 93
Automatic Brake Hold ....................... 87, 521
Automatic Brake Hold System ........... 87, 521
Blind Spot Information (BSI) .................... 104 Brake System (Amber) ............................... 85
Brake System (Red) ............................ 84, 643
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Parking Brake ................................ 86
Electric Parking Brake System ............. 86, 644
Fog Lights .................................................. 96
Gear Position ............................................. 89
High Beam ................................................ 95
High Temperature ..................................... 92
Immobilizer System .................................... 96
Keyless Access System ............................... 97
Lane Keeping Assist System (LKAS) .... 98, 499
Lights On ................................................... 96
Low Fuel .................................................... 91
Low Oil Pressure ................................ 88, 641
Low Temperature ...................................... 92
Low Tire Pressure/TPMS ..................... 95, 645
M (sequential mode) Indicator/Sequential
Mode Gear Selection ............................... 89
Malfunction Indicator Lamp ............... 88, 642
POWER SYSTEM Indicator .................. 91, 646
READY ...................................................... 92
Road Departure Mitigation (RDM) .............. 99
Seat Belt Reminder .............................. 41, 91
Security System Alarm ............................... 97
Speed-sensitive Electric Power Steering (EPS) System ....................... 95, 643
SPORT+ mode ........................................... 92
Supplemental Restraint System ............ 59, 93
System Message ........................................ 97 Transmission System.......................... 90, 645
Turn Signal ................................................ 95
Vehicle Stability Assist
® (VSA ®)
System ............................................ 94, 505
VSA ® OFF .......................................... 94, 506
Information .............................................. 661
Information Screen .................................. 248
Instrument Panel ........................................ 83
Brightness Control................................... 187
Integrated Dynamics System (IDS) ........... 474
Dynamic Mode button ............................ 474
Interface Dial ............................................ 243
Interior Lights ........................................... 209
Interior Rearview Mirror .......................... 192
Internet Radio .......................................... 298
iPhone ............................................... 298, 325
iPod ................................................... 291, 325
J
Jack (Wheel Nut Wrench) ........................ 619
Jump Starting ........................................... 637
K
Key Number Tag ....................................... 144
Keyless Access System .............................. 145
Keyless Lockout Prevention ..................... 152
18 ACURA MDX E-AWD-31TRX6100.book 679 ページ ２０１８年３月２７日　火曜日　午後８時６分

680
Index
Keys........................................................... 143
Lockout Prevention .................................. 152
Number Tag ............................................ 144
Rear Door Won’t Open ............................ 156
Remote Transmitter ................................. 150
Types and Functions ................................ 143
Kickdown (Dual Clutch Transmission) ..... 464
L
Lane Keeping Assist System (LKAS)......... 497
Indicator .................................................... 98
Language (HFL) ......................................... 398
LATCH (Child Seats) .............................. 67, 74
LED Puddle Light ...................................... 149
Legal Information on Apple
CarPlay/Android Auto ............................. 338
License information .................................. 341
Lights ................................................. 176, 582
Automatic ............................................... 177
Bulb Replacement .................................... 582
Daytime Running Lights ........................... 179
High Beam Indicator .................................. 95
Interior .................................................... 209
Light Switches ......................................... 176
Lights On Indicator .................................... 96
Turn Signals ............................................. 175
Load Limits ................................................ 451
Locking/Unlocking .................................... 143
Auto Door Locking/Unlocking .................. 157
Childproof Door Locks ............................. 156 From Inside ............................................. 154
From Outside .......................................... 145
Keys ........................................................ 143
Using a Key ............................................. 151
Lockout Prevention System ..................... 152
Low Battery Charge ................................. 641
Low Fuel Indicator ...................................... 91
Low Oil Pressure Indicator ................. 88, 641
Lower Anchors ...................................... 67, 74
Lubricant Specifications Chart ................. 663
Luggage (Maximum Load Limit) ............. 451
Lumbar Support ....................................... 195
M
Maintenance............................................. 561
12-Volt Battery ........................................ 600
Brake Fluid .............................................. 581
Cleaning ................................................. 605
Climate Control System ........................... 604
Coolant ................................................... 577
Maintenance Minder
TM............................ 565
Oil ........................................................... 573
Precautions ............................................. 562
Radiator .................................................. 578
Remote Control....................................... 602
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 582
Safety...................................................... 563
Service Items ........................................... 567
Tires ........................................................ 591 Transmission Fluid ................................... 580
Under the Hood ...................................... 569
Wireless Headphone ............................... 603
Malfunction Indicator Lamp ............. 88, 642
Map Lights ................................................ 210
Maximum Load Limit ............................... 451
Meters, Gauges ........................................ 123
MID (Multi-information Display) ............ 125
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 611
Moonroof ................................................. 171
MP3 ................................................... 275, 300
Multi-function Steering-wheel
Controls .................................................. 125
Multi-Information Display (MID) ............ 125
Multi-View Rear Camera ......................... 544N
Numbers (Identification)......................... 664
O
Odometer................................................. 126
Off-Highway Driving Guidelines ............. 455
Oil (Engine) .............................................. 572
Adding ................................................... 574
18 ACURA MDX E-AWD-31TRX6100.book 680 ページ ２０１８年３月２７日　火曜日　午後８時６分

681
Index
Checking ................................................ 573
Displaying Oil Life ................................... 565
Low Oil Pressure Indicator ................. 88, 641
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
On Demand Multi-Use Display
TM............. 244
Open Source Licenses .............................. 340
Opening/Closing
Hood ...................................................... 570
Moonroof ............................................... 171
Power Windows...................................... 169
Tailgate................................................... 158
Operating the Switches Around the Steering Wheel ....................................... 172
Outside Temperature Display ................. 127
Overhead Screen ...................................... 345
Overheating ............................................. 639
P
Paddle Shifters (Sequential Mode) ......... 472
Panic Mode ............................................... 168
Parking ..................................................... 534
Parking Brake ........................................... 517
Parking Brake and Brake System Indicator ........................................... 84, 643
Parking Sensor System ............................. 536
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 176
POWER Button ......................................... 172
Power Tailgate ......................................... 160 Power Windows
........................................ 169
Precautions While Driving ....................... 463
Driving Guidelines for Your Utility Vehicle .................................................. 463
Rain ......................................................... 463
Pregnant Women ....................................... 45
Puncture (Tire) .................................. 615, 622
R
Radiator.................................................... 578
Radio (AM/FM) .......................................... 261
Radio (SiriusXM ®) ..................................... 264
Radio Data System (RDS) .......................... 262
Range ........................................................ 128
RDS (Radio Data System) .......................... 262
Readiness Codes (Emissions Testing) ....... 667
Rear Climate Control System ................... 229
From the Front Panel ............................... 229
From the Rear Panel ................................ 232
Rear Defogger/Heated Door Mirror
Button ..................................................... 188
Rear Entertainment System (RES) ............ 342
Auxiliary Console Panel ............................ 343
Front Control Panel Operation ................. 356
HDMI
TM Port ............................................ 344
Operating the System .............................. 345
Overhead Screen ..................................... 345
Playable Discs .......................................... 361
Rear Control Panel Operation .................. 346
Wireless Headphones .............................. 342 Rear Seats
................................................. 206
Second Row Seat ............................ 199, 200
Third Row Seat ........................................ 206
Rearview Mirror ....................................... 192
Refueling .................................................. 556
Fuel Gauge.............................................. 123
Gasoline .......................................... 556, 662
Low Fuel Indicator ..................................... 91
Regenerative Energy and Regenerative Braking ...................................................... 12
Regulations ............................... 514, 594, 665
Remote Engine Start with Vehicle Feedback ................................................. 459
Checking Door Lock Status...................... 153
Remote Transmitter ................................. 150
Replacement Battery .................................... 601, 602, 603
Bulbs ....................................................... 582
Front Wiper Blade Rubber ....................... 587
Fuses ............................... 647, 650, 653, 654
Rear Wiper Blade Rubber......................... 589
Tires ........................................................ 597
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ............................. 127
Reverse Tilt Door Mirror .......................... 193
Right Selector Wheel ....................... 125, 131
Road Departure Mitigation (RDM) ......... 492
On and Off.............................................. 494
18 ACURA MDX E-AWD-31TRX6100.book 681 ページ ２０１８年３月２７日　火曜日　午後８時６分
