overheating Acura MDX HYBRID 2018 Owner's Manual

Contents
Child Safety P. 62Exhaust Gas Hazard P. 80Safety Labels P. 81
Opening and Closing the Tailgate P. 158 Security System P. 166 Opening and Closing the Windows P. 169
Operating the Switches Around the Steering Wheel P. 172 Adjusting the Mirrors P. 192
Interior Lights/Interior Convenience Items P. 209 Climate Control System P. 222
Audio Error Messages P. 315General Information on the Audio System P. 323
HomeLink ® Universal Transceiver P. 394 Bluetooth® HandsFreeLink ® P. 397 AcuraLink ® P. 438
Off-Highway Driving Guidelines P. 455 When Driving P. 457 Braking P. 517
Surround View Camera System* P. 546 Refueling P. 556
Maintenance Under the Hood P. 569 Replacing Light Bulbs P. 582
Checking and Maintaining Tires P. 591 12-Volt Battery P. 600 Remote Transmitter Care P. 601
Climate Control System Maintenance P. 604 Clea ning P. 605 Accessories and Modifications P. 611
Power System Won’t Start P. 634 Jump Starting P. 637 Overheating P. 639
Emergency Towing P. 656 When You Cannot Unlock the Fuel Fill Door P. 657
Refueling P. 659
Devices that Emit Radio Waves P. 665 Reporting Safety Defects P. 666
Authorized Manuals P. 670 Client Service Information P. 671
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 83
ControlsP. 141
FeaturesP. 235
DrivingP. 447
MaintenanceP. 561
Handling the UnexpectedP. 613
InformationP. 661
IndexP. 675
18 ACURA MDX E-AWD-31TRX6100.book 3 ページ ２０１８年３月２７日　火曜日　午後８時６分

28
Quick Reference Guide
Handling the Unexpected (P613)
Flat Tire (P615)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P641)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with compact spare tire
Power System Won’t
Start
(P634)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P647)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P639)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P656)
● Call a professional towing service if you
need to tow your vehicle.
18 ACURA MDX E-AWD-31TRX6100.book 28 ページ ２０１８年３月２７日　火曜日　午後８時６分

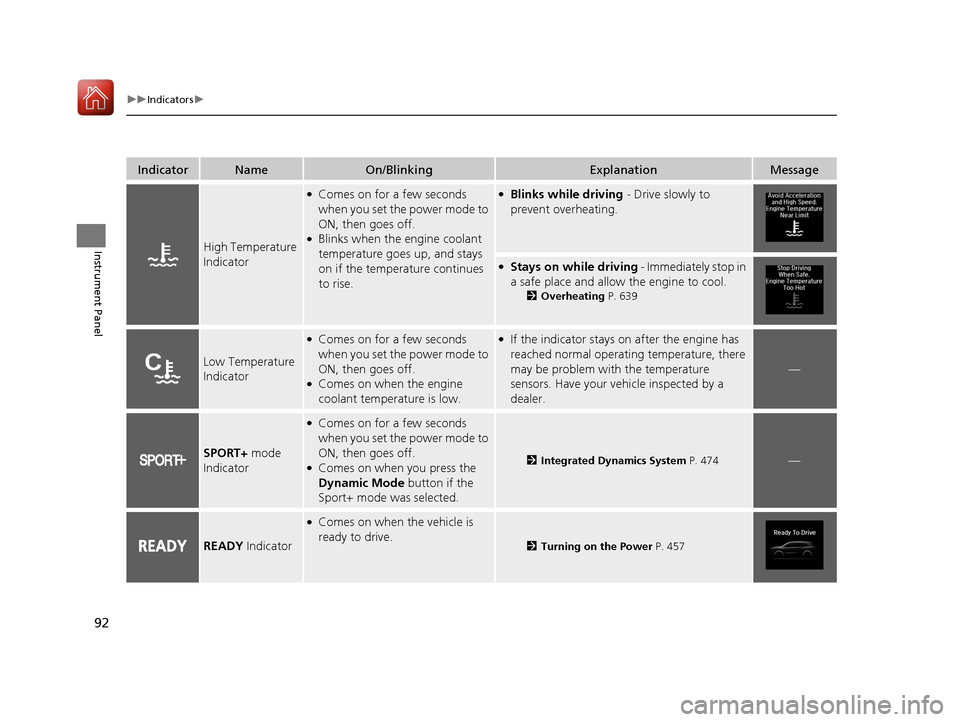

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High Temperature
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when the engine coolant
temperature goes up, and stays
on if the temperature continues
to rise.
●Blinks while driving - Drive slowly to
prevent overheating.
●Stays on while driving - Immediately stop in
a safe place and allow the engine to cool.
2 Overheating P. 639
Low Temperature
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when the engine
coolant temperature is low.
●If the indicator stays on after the engine has
reached normal operating temperature, there
may be problem with the temperature
sensors. Have your vehicle inspected by a
dealer.
—
SPORT+ mode
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on when you press the
Dynamic Mode button if the
Sport+ mode was selected.2 Integrated Dynamics System P. 474—
READY Indicator
●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 457
18 ACURA MDX E-AWD-31TRX6100.book 92 ページ ２０１８年３月２７日　火曜日　午後８時６分

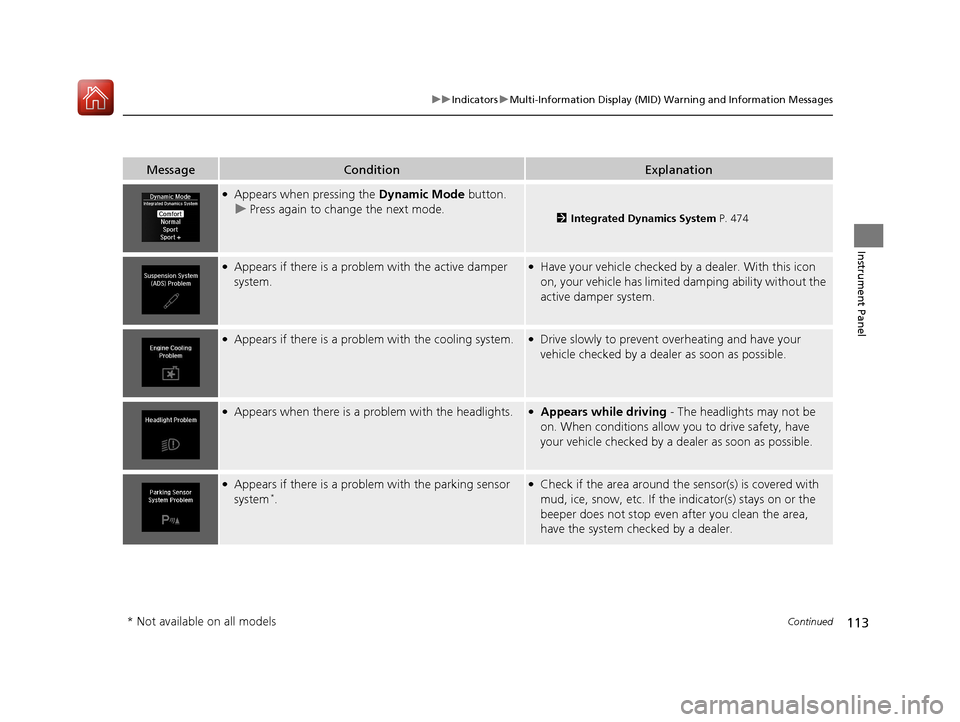

113
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the Dynamic Mode button.
u Press again to change the next mode.
2 Integrated Dynamics System P. 474
●Appears if there is a problem with the active damper
system.●Have your vehicle checked by a dealer. With this icon
on, your vehicle has limited damping ability without the
active damper system.
●Appears if there is a problem with the cooling system.●Drive slowly to prevent overheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when there is a problem with the headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a dealer as soon as possible.
●Appears if there is a problem with the parking sensor
system*.
●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 113 ページ ２０１８年３月２７日　火曜日　午後８時６分

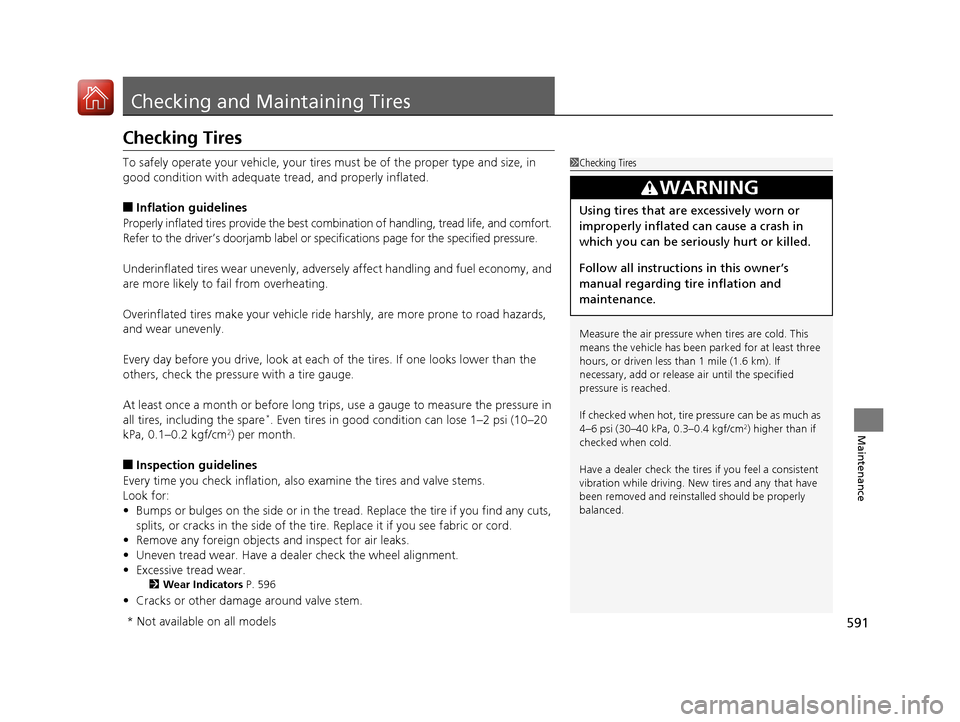

591
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires, including the spare
*. Even tires in good condition can lose 1–2 psi (10–20
kPa, 0.1–0.2 kgf/cm2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 596
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 591 ページ ２０１８年３月２７日　火曜日　午後８時６分

613
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 614
If a Tire Goes Flat
Changing a Flat Tire
*....................... 615
Temporarily Repair ing a Flat Tire*..... 622
Power System Won’t Start ............... 634
Checking the Procedure ................... 634
If the Keyless Access Remote Battery is Weak ............................................. 635
Emergency Power System Off........... 636
Jump Starting .................................... 637
Overheating
How to Handle Overheating ............. 639 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ... 641If the 12-Volt Battery Charging System
Indicator Comes On ....................... 641
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 642
If the Brake System Indicator (Red) Comes On ................................................... 643
If the Speed-Sensitive Electric Power Steering (EPS) System Indicator Comes
On.................................................. 643
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks........................ 645 If the Transmission System Indicator Blinks
along with the Warning Message ...... 645
If the Power System Indicator Comes On .. 646Fuses Fuse Locations ................................. 647
Inspecting and Changing Fuses ........ 655
Emergency Towing ........................... 656
When You Cannot Unlock the Fuel Fill Door ................................................. 657
When You Cannot Open the Tailgate.. 658Refueling ........................................... 659Refueling From a Portable Fuel
Container ................................... 659
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 613 ページ ２０１８年３月２７日　火曜日　午後８時６分

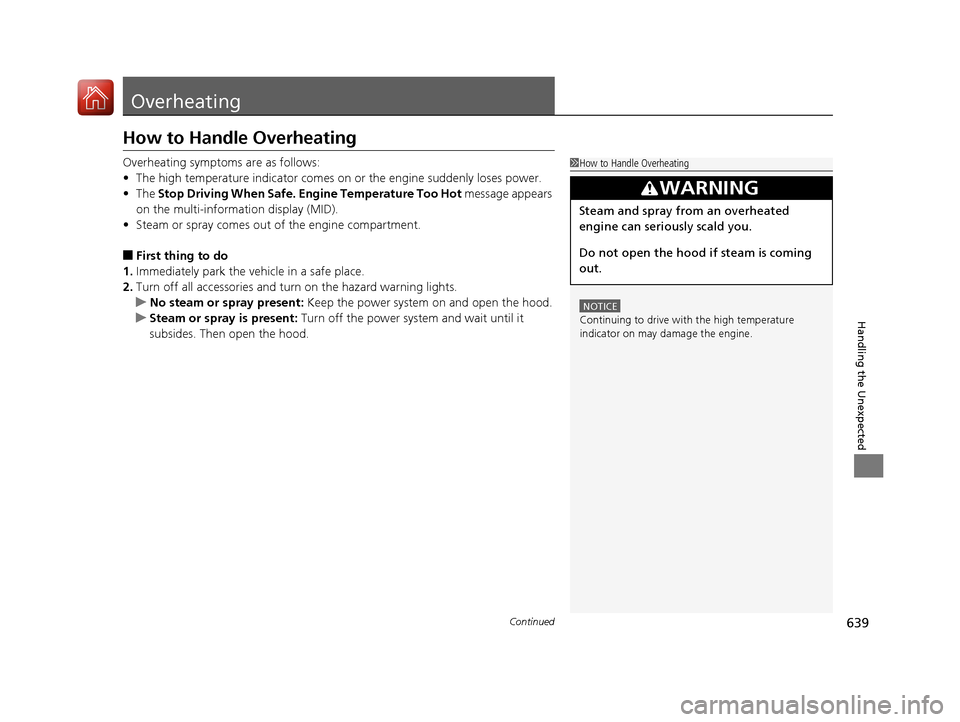

639Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The high temperature indicator comes on or the engine suddenly loses power.
• The Stop Driving When Safe. En gine Temperature Too Hot message appears
on the multi-information display (MID).
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the high temperature
indicator on may da mage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
18 ACURA MDX E-AWD-31TRX6100.book 639 ページ ２０１８年３月２７日　火曜日　午後８時６分

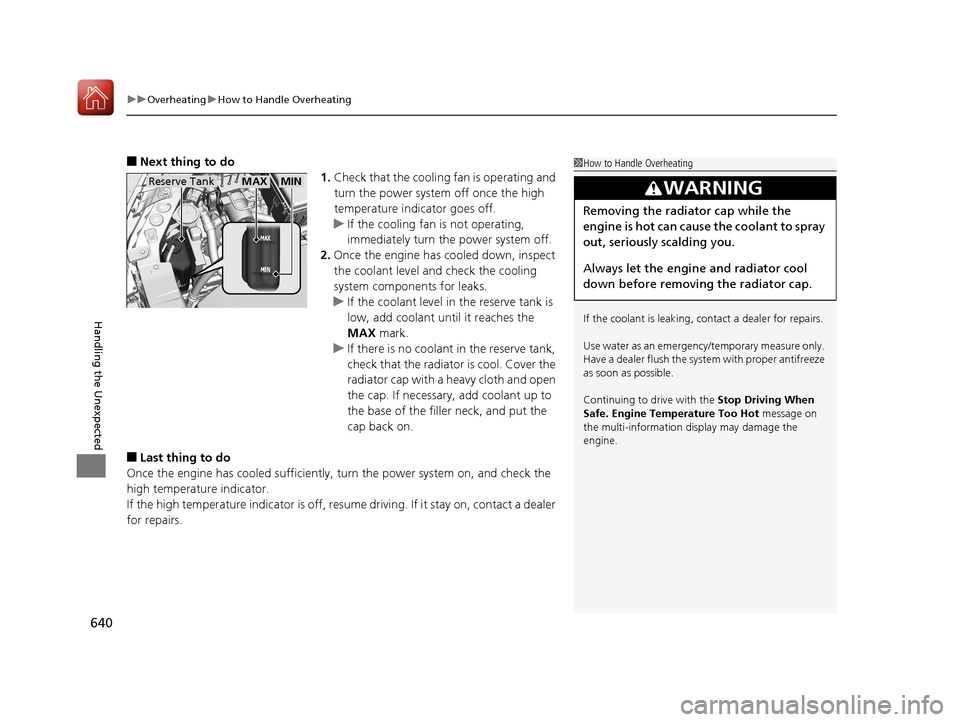

uuOverheating uHow to Handle Overheating
640
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the high
temperature indicator goes off.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, turn the power system on, and check the
high temperature indicator.
If the high temperature indicator is off, resu me driving. If it stay on, contact a dealer
for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the multi-information display may damage the
engine.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve TankMAXMIN
18 ACURA MDX E-AWD-31TRX6100.book 640 ページ ２０１８年３月２７日　火曜日　午後８時６分

677
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 525
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 639
Creeping (Dual Clutch Transmission) ...... 464
Cross Traffic Monitor ............................... 540
Cup Holders .............................................. 214
Customized Features ....................... 131, 362
D
Daytime Running Lights .......................... 179
Dead Battery ............................................ 637
Defrosting the Windshield and Windows ................................................. 228
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 665
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 192
Dipstick (Engine Oil) ................................ 573
Directional Signals (Turn Signal) ............. 175
Door Mirrors ............................................. 193
Doors ........................................................ 143
Auto Door Locking.................................. 157
Auto Door Unlocking .............................. 157 Door Open Message .................................. 38
Keys ........................................................ 143
Locking/Unlocking the Doors from the
Inside............................................... 18, 154
Locking/Unlocking the Doors from the
Outside.................................................. 145
Lockout Prevention System ...................... 152
DOT Tire Quality Grading ........................ 594
Driver’s Knee Airbag .................................. 54
Driving ....................................................... 447
Braking .................................................... 517
Dual Clutch Transmission ......................... 464
Off-Highway Driving Guidelines ............... 455
Shifting Gear ........................................... 465
Turning on the Power .............................. 457
Driving Position Memory System ............. 189
Dual Clutch Transmission ......................... 464
Creeping ................................................. 464
Fluid ........................................................ 580
Kickdown ................................................ 464
Operating the Shift Button ................ 23, 467
Shifting ................................................... 465
Dust and Pollen Filter ............................... 604
Dynamic Mode button ............................. 474
E
Elapsed Time............................................. 128
Electric Parking Brake Indicator .................................................... 86
Switch ..................................................... 517 Electric Parking Brake System
Indicator.................................................... 86
Electronic Stability Control (ESC) ............. 505
Emergency ................................................ 656
Emissions Testing (Readiness Codes) ....... 667
Energy Efficiency ........................................ 12
Engine ....................................................... 664
Coolant ................................................... 577
Jump Starting .......................................... 637
Oil ........................................................... 572
Remote Engine Start................................ 459
Starting ................................................... 457
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 639
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Oil Life .................................... 565
Low Oil Pressure Indicator ................. 88, 641
Recommended Engine Oil ....................... 572
EPS (Electric Power Steering) System ............................................... 95, 643
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 607
Exterior Mirrors ........................................ 193
18 ACURA MDX E-AWD-31TRX6100.book 677 ページ ２０１８年３月２７日　火曜日　午後８時６分

681
Index
Checking ................................................ 573
Displaying Oil Life ................................... 565
Low Oil Pressure Indicator ................. 88, 641
Recommended Engine Oil ....................... 572
Viscosity.................................................. 572
On Demand Multi-Use Display
TM............. 244
Open Source Licenses .............................. 340
Opening/Closing
Hood ...................................................... 570
Moonroof ............................................... 171
Power Windows...................................... 169
Tailgate................................................... 158
Operating the Switches Around the Steering Wheel ....................................... 172
Outside Temperature Display ................. 127
Overhead Screen ...................................... 345
Overheating ............................................. 639
P
Paddle Shifters (Sequential Mode) ......... 472
Panic Mode ............................................... 168
Parking ..................................................... 534
Parking Brake ........................................... 517
Parking Brake and Brake System Indicator ........................................... 84, 643
Parking Sensor System ............................. 536
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 176
POWER Button ......................................... 172
Power Tailgate ......................................... 160 Power Windows
........................................ 169
Precautions While Driving ....................... 463
Driving Guidelines for Your Utility Vehicle .................................................. 463
Rain ......................................................... 463
Pregnant Women ....................................... 45
Puncture (Tire) .................................. 615, 622
R
Radiator.................................................... 578
Radio (AM/FM) .......................................... 261
Radio (SiriusXM ®) ..................................... 264
Radio Data System (RDS) .......................... 262
Range ........................................................ 128
RDS (Radio Data System) .......................... 262
Readiness Codes (Emissions Testing) ....... 667
Rear Climate Control System ................... 229
From the Front Panel ............................... 229
From the Rear Panel ................................ 232
Rear Defogger/Heated Door Mirror
Button ..................................................... 188
Rear Entertainment System (RES) ............ 342
Auxiliary Console Panel ............................ 343
Front Control Panel Operation ................. 356
HDMI
TM Port ............................................ 344
Operating the System .............................. 345
Overhead Screen ..................................... 345
Playable Discs .......................................... 361
Rear Control Panel Operation .................. 346
Wireless Headphones .............................. 342 Rear Seats
................................................. 206
Second Row Seat ............................ 199, 200
Third Row Seat ........................................ 206
Rearview Mirror ....................................... 192
Refueling .................................................. 556
Fuel Gauge.............................................. 123
Gasoline .......................................... 556, 662
Low Fuel Indicator ..................................... 91
Regenerative Energy and Regenerative Braking ...................................................... 12
Regulations ............................... 514, 594, 665
Remote Engine Start with Vehicle Feedback ................................................. 459
Checking Door Lock Status...................... 153
Remote Transmitter ................................. 150
Replacement Battery .................................... 601, 602, 603
Bulbs ....................................................... 582
Front Wiper Blade Rubber ....................... 587
Fuses ............................... 647, 650, 653, 654
Rear Wiper Blade Rubber......................... 589
Tires ........................................................ 597
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ............................. 127
Reverse Tilt Door Mirror .......................... 193
Right Selector Wheel ....................... 125, 131
Road Departure Mitigation (RDM) ......... 492
On and Off.............................................. 494
18 ACURA MDX E-AWD-31TRX6100.book 681 ページ ２０１８年３月２７日　火曜日　午後８時６分
