18
Quick Reference Guide
Wipers and Washers
(P183)
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
MIST
OFF
AUTO: Wiper speed varies
automatically
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity(+: High Sensitivity
Steering Wheel (P191)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Unlocking the Front
Doors from the Inside
(P155)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P165, 160)
● Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless access remote.
● Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Tailgate Outer Handle
18 ACURA MDX E-AWD-31TRX6100.book 18 ページ ２０１８年３月２７日　火曜日　午後８時６分

183
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, AUTO, LO, HI)
Move the lever up or down to change the
wiper settings.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wipers/Washers1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defrost er or heated windshield
*
to warm the windshield, then turn the wipers on.
If the wipers st op operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.
MIST
AUTO OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 183 ページ ２０１８年３月２７日　火曜日　午後８時６分

uuOperating the Switches Around the Steering Wheel uWipers and Washers

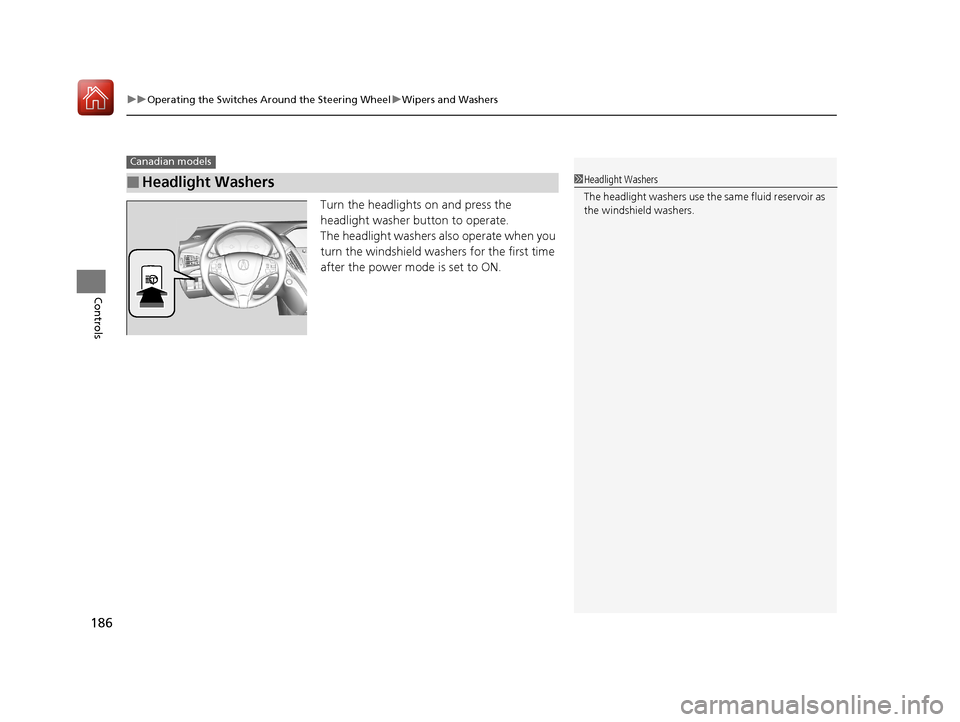

186
Controls
Turn the headlights on and press the
headlight washer button to operate.
The headlight washers also operate when you
turn the windshield wash ers for the first time
after the power mode is set to ON.
■Headlight Washers
Canadian models
1 Headlight Washers
The headlight washers use th e same fluid reservoir as
the windshield washers.
18 ACURA MDX E-AWD-31TRX6100.book 186 ページ ２０１８年３月２７日　火曜日　午後８時６分

463
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
To prevent rollovers or loss of control:
• Take corners at slower speeds than yo u would with a passenger vehicle.
• Avoid sharp turns and abrupt maneuvers whenever possible.
• Do not modify your vehicle in any way th at you would raise the center of gravity.
• Do not carry heavy cargo on the roof.
Never carry more than 165 lbs (75 kg) of cargo on the roof rack (Acura accessory).
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■Driving Guidelines for Your Utility Vehicle
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not select a shift button while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored. Repeated operation under
these conditions can eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the power system will shut down and all
steering and brake power a ssist functions will stop,
making it difficult to control the vehicle.
Do not press the
( N button, as you will lose
regenerative braking (and ac celeration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
18 ACURA MDX E-AWD-31TRX6100.book 463 ページ ２０１８年３月２７日　火曜日　午後８時６分

567
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message
Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit
bottle*
●Inspect tie rod ends, steering gearbox, boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 30,000 miles (48,000 km), then every 25,000 miles (40,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear)
stress to fluid. This requires twin motor unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the twin motor
unit fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace twin motor unit fluid*6
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 567 ページ ２０１８年３月２７日　火曜日　午後８時６分

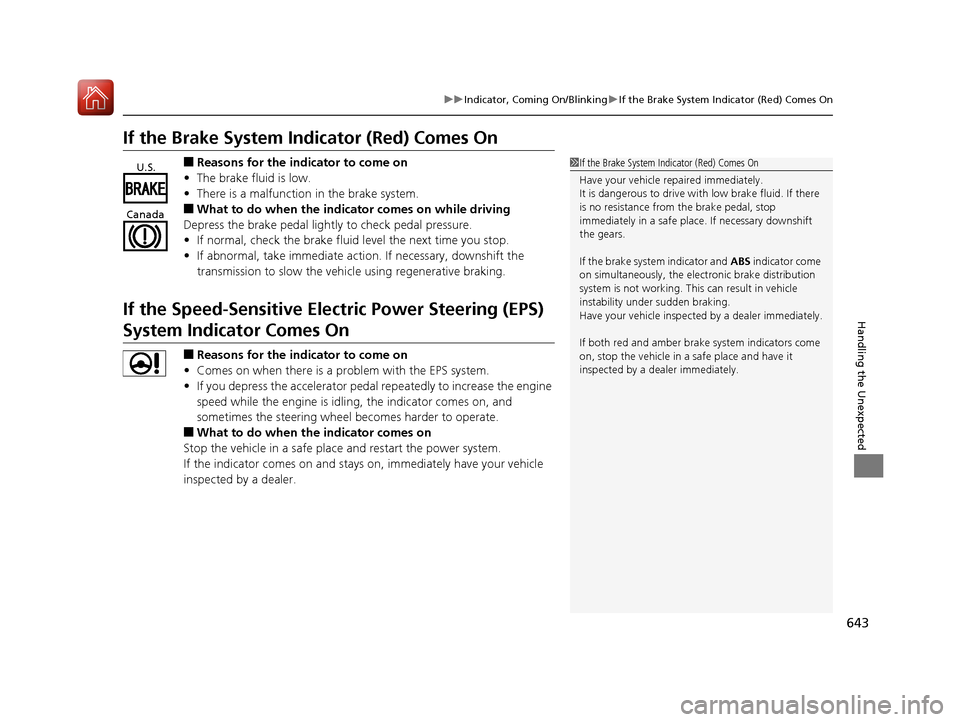

643
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe plac e and restart the power system.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
18 ACURA MDX E-AWD-31TRX6100.book 643 ページ ２０１８年３月２７日　火曜日　午後８時６分

677
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 525
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 212
Controls .................................................... 141
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 639
Creeping (Dual Clutch Transmission) ...... 464
Cross Traffic Monitor ............................... 540
Cup Holders .............................................. 214
Customized Features ....................... 131, 362
D
Daytime Running Lights .......................... 179
Dead Battery ............................................ 637
Defrosting the Windshield and Windows ................................................. 228
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 665
Dimming Headlights .............................................. 176
Rearview Mirror ...................................... 192
Dipstick (Engine Oil) ................................ 573
Directional Signals (Turn Signal) ............. 175
Door Mirrors ............................................. 193
Doors ........................................................ 143
Auto Door Locking.................................. 157
Auto Door Unlocking .............................. 157 Door Open Message .................................. 38
Keys ........................................................ 143
Locking/Unlocking the Doors from the
Inside............................................... 18, 154
Locking/Unlocking the Doors from the
Outside.................................................. 145
Lockout Prevention System ...................... 152
DOT Tire Quality Grading ........................ 594
Driver’s Knee Airbag .................................. 54
Driving ....................................................... 447
Braking .................................................... 517
Dual Clutch Transmission ......................... 464
Off-Highway Driving Guidelines ............... 455
Shifting Gear ........................................... 465
Turning on the Power .............................. 457
Driving Position Memory System ............. 189
Dual Clutch Transmission ......................... 464
Creeping ................................................. 464
Fluid ........................................................ 580
Kickdown ................................................ 464
Operating the Shift Button ................ 23, 467
Shifting ................................................... 465
Dust and Pollen Filter ............................... 604
Dynamic Mode button ............................. 474
E
Elapsed Time............................................. 128
Electric Parking Brake Indicator .................................................... 86
Switch ..................................................... 517 Electric Parking Brake System
Indicator.................................................... 86
Electronic Stability Control (ESC) ............. 505
Emergency ................................................ 656
Emissions Testing (Readiness Codes) ....... 667
Energy Efficiency ........................................ 12
Engine ....................................................... 664
Coolant ................................................... 577
Jump Starting .......................................... 637
Oil ........................................................... 572
Remote Engine Start................................ 459
Starting ................................................... 457
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 639
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Oil Life .................................... 565
Low Oil Pressure Indicator ................. 88, 641
Recommended Engine Oil ....................... 572
EPS (Electric Power Steering) System ............................................... 95, 643
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 607
Exterior Mirrors ........................................ 193
18 ACURA MDX E-AWD-31TRX6100.book 677 ページ ２０１８年３月２７日　火曜日　午後８時６分
